5962R9576801VEC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9576801VEC

5962R9576801VEC: DescriptionMagnitude Comparator, HCT Series, 4-Bit, True Output, CMOS, CDIP16; Categorylogic logic; File Size246KB，9 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9576801VEC Overview

Magnitude Comparator, HCT Series, 4-Bit, True Output, CMOS, CDIP16

5962R9576801VEC Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Other features	CASCADABLE
series	HCT
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	MAGNITUDE COMPARATOR
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	66 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

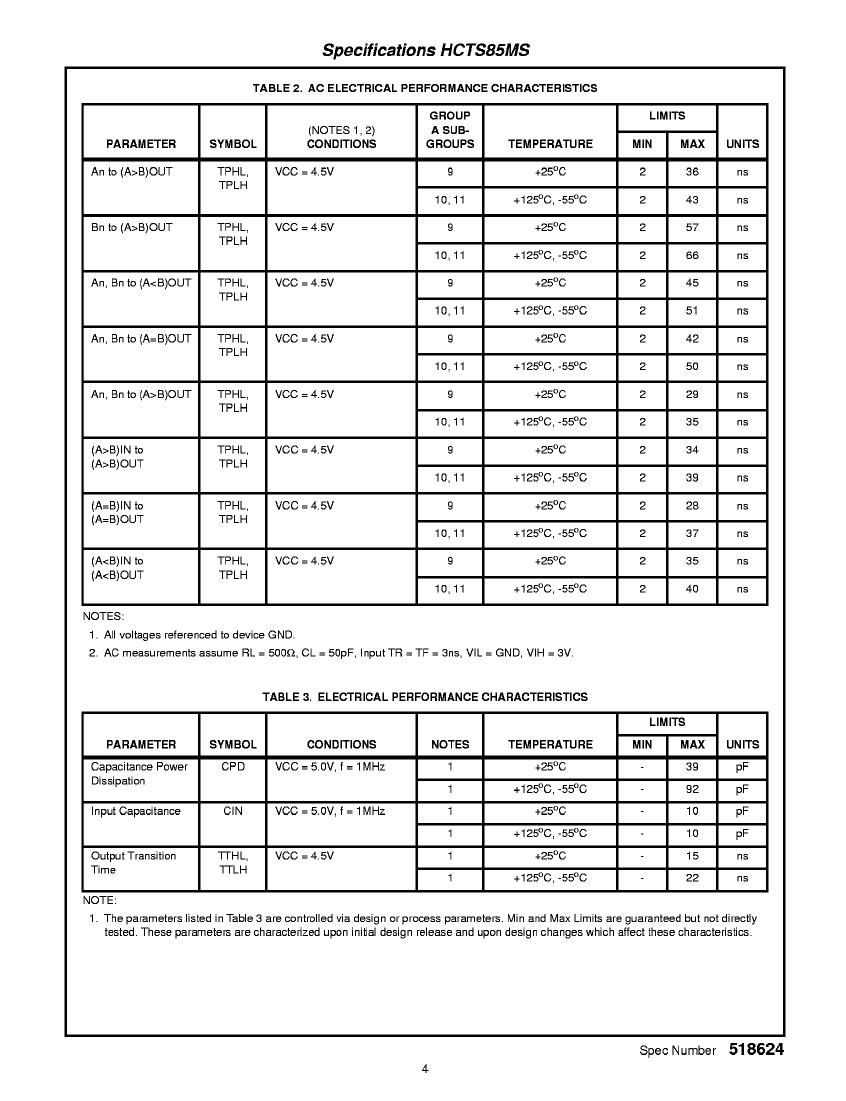

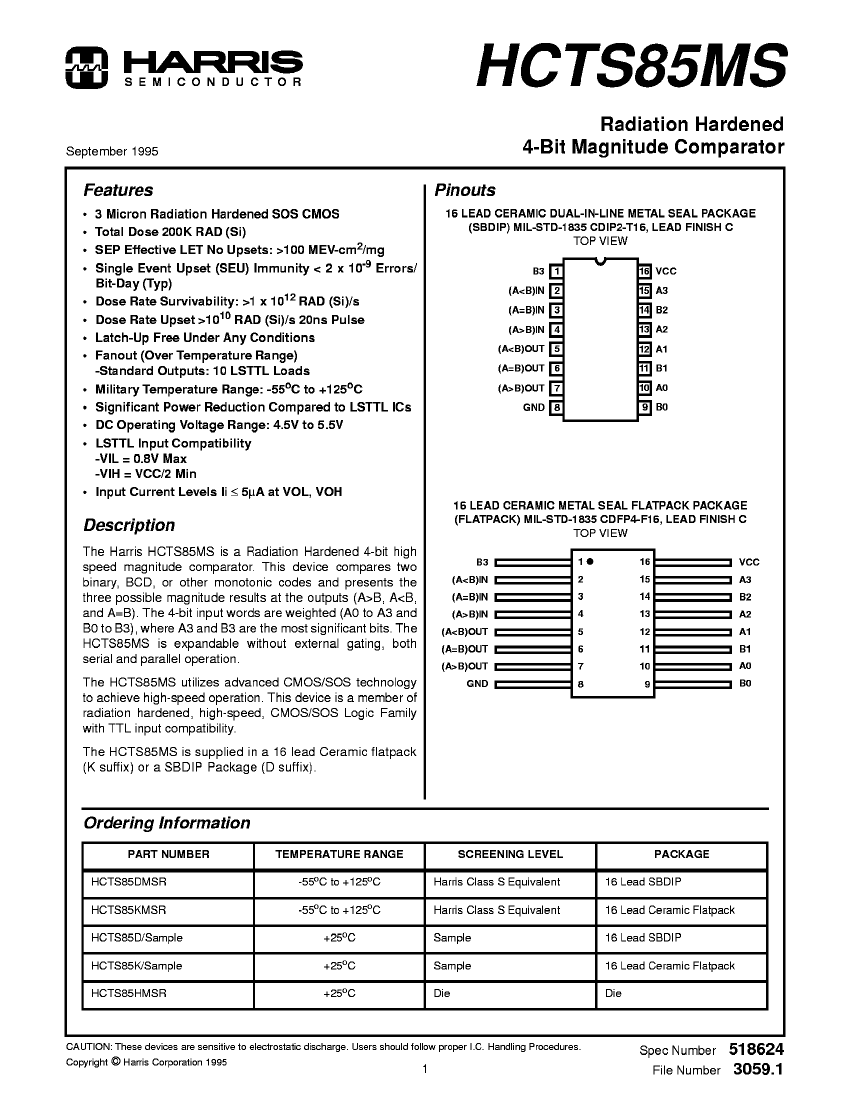

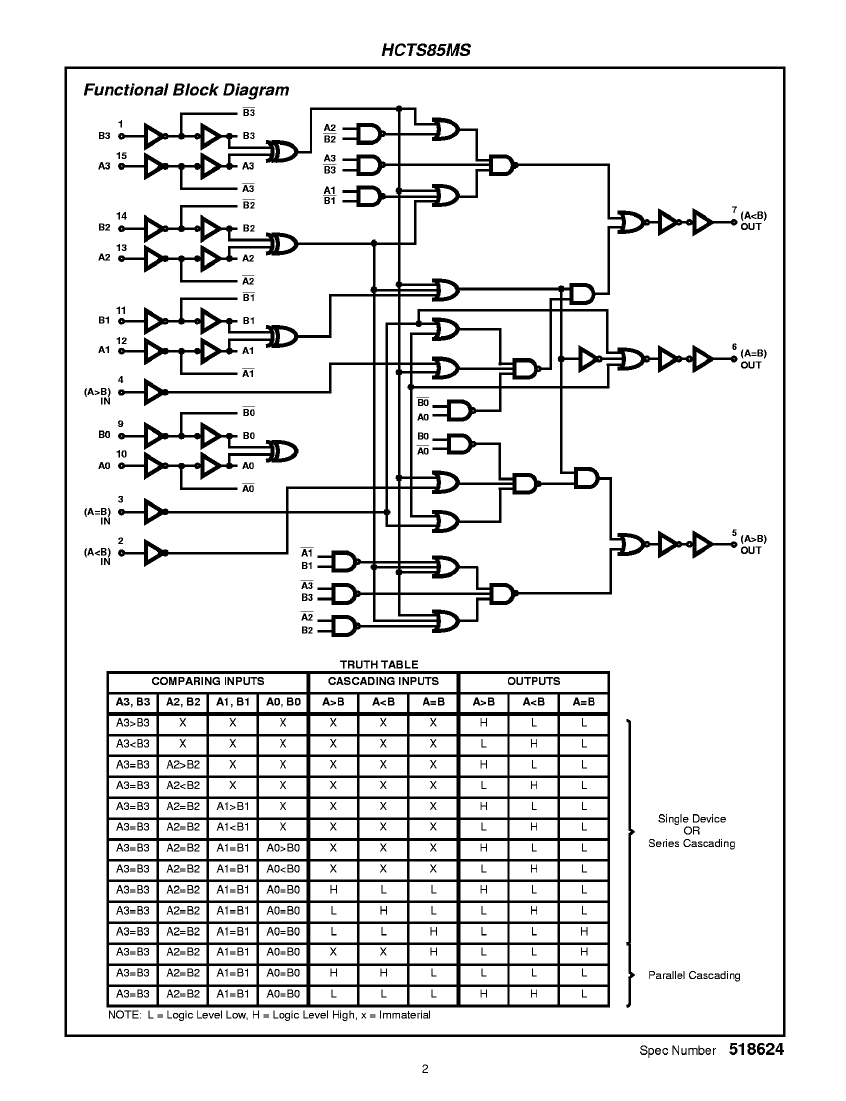

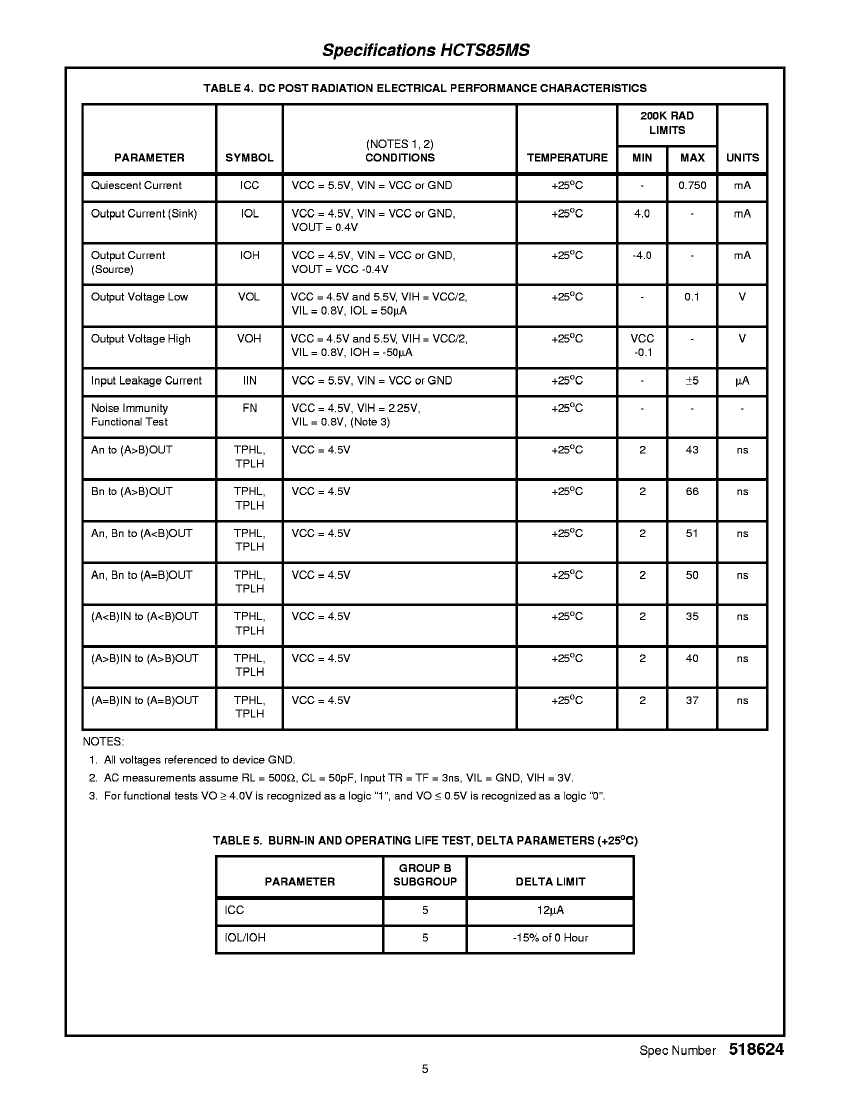

Preview

Download Datasheet

View All

5962R9576801VEC Related Products

	5962R9576801VEC	5962R9576801V9A	5962R9576801VXC	HCTS85D/SAMPLE	HCTS85DMSR	HCTS85K/SAMPLE	HCTS85KMSR
Description	Magnitude Comparator, HCT Series, 4-Bit, True Output, CMOS, CDIP16	Magnitude Comparator, HCT Series, 4-Bit, True Output, CMOS	Magnitude Comparator, HCT Series, 4-Bit, True Output, CMOS, CDFP16	Magnitude Comparator, HCT Series, 4-Bit, True Output, CMOS, CDIP16	Magnitude Comparator, HCT Series, 4-Bit, True Output, CMOS, CDIP16	Magnitude Comparator, HCT Series, 4-Bit, True Output, CMOS, CDFP16	Magnitude Comparator, HCT Series, 4-Bit, True Output, CMOS, CDFP16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE
series	HCT	HCT	HCT	HCT	HCT	HCT	HCT
JESD-30 code	R-CDIP-T16	X-XUUC-N16	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16	R-CDFP-F16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR
Number of digits	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	UNCASED CHIP	FLATPACK	IN-LINE	IN-LINE	FLATPACK	FLATPACK
propagation delay (tpd)	66 ns	66 ns	66 ns	66 ns	66 ns	66 ns	66 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal location	DUAL	UPPER	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Harris	-	Harris	Harris	Harris	Harris	Harris
JESD-609 code	e4	e0	e4	-	e0	-	e0
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-	-55 °C
Temperature level	MILITARY	MILITARY	MILITARY	-	MILITARY	-	MILITARY
Terminal surface	GOLD	TIN LEAD	GOLD	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
