CPRJ-WSP24-2-CX-T-T-T-B

Description
Audio/RCA Connector
CategoryThe connector    The connector
File Size52KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

CPRJ-WSP24-2-CX-T-T-T-B Overview

Audio/RCA Connector

CPRJ-WSP24-2-CX-T-T-T-B Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCentral Semiconductor
Reach Compliance Codeunknown
body width1.062 inch
subject depth0.511 inch
body length0.511 inch
Body/casing typeJACK
Configuration2X1 HORIZONTAL
Connector typeAUDIO/RCA CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact styleRND PIN-SKT
Insulator colorBROWN
JESD-609 codee3
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsTWO
Number of poles3
Number of ports2
OptionsGENERAL PURPOSE
GuidelineUL
Shell materialPBT
Terminal length0.157 inch
Termination typeSOLDER
Base Number Matches1
1
2
3
4
5
6
7
8
9
A
A
B
B
C
C
D
E
Item
1
2
3
4
5
6
Series
CPRJ
RCA Phone
Jack
Style
Positions
WSP24
X
Side Entry 1,2,4,6,8
PCB Mount
Name
Material
PBT
PBT
ABS
C2680 t=0.4
C2680 t=0.4
C2680 t=0.4
Busing Plating
Cover Plating
X
X
T=Tin (std)
T=Tin (std)
Finish
UL-94V-0
UL-94V-0
UL94V-0
MB: Cu Cu/Sn Plated
MB: Cu Cu/Sn Plated
MB:Cu Cu/Sn Plated
Terminal Plating
Insulator Color
X
X (XXXXX)
T=Tin (std)
K=Black
Y=Gray
R=Red
G=Green
W=White
O=Orange
E=Yellow
B=Brown
L=Blue
D
F
RoHS compliant
Rev.
Description
Date
Approved
Housing
Washer
Cover
Bushing
Terminal
Terminal
Metal Cover
X
Blank=(plastic)
F=Full
FG=Full Grounded
PR=Pairs
CX=Custom
E
F

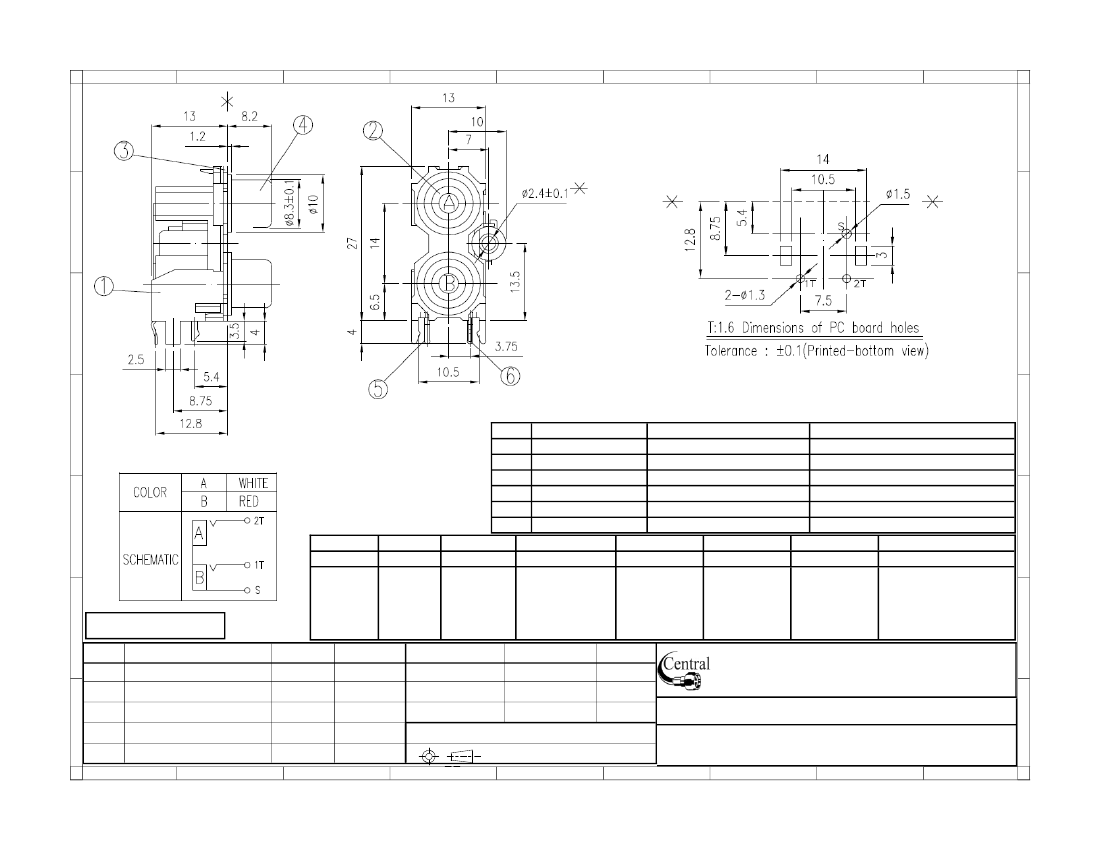

Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
G
Date
Central Components Manufacturing
12/29/05
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
12/29/05
12/29/05 Part No.:
CPRJ-WSP24-2-X-X-X-X-XX
0.00 ± 0.20 Angles ± 3’
Description: Pin Jack
UNIT: mm
5
6
7
8
9
G
1
2
3
4

CPRJ-WSP24-2-CX-T-T-T-B Related Products

CPRJ-WSP24-2-CX-T-T-T-B CPRJ-WSP24-2-CX-T-T-T-R CPRJ-WSP24-2-CX-T-T-T-L CPRJ-WSP24-2-CX-T-T-T-E CPRJ-WSP24-2-CX-T-T-T-G CPRJ-WSP24-2-CX-T-T-T-Y CPRJ-WSP24-2-CX-T-T-T-O CPRJ-WSP24-2-CX-T-T-T-K CPRJ-WSP24-2-CX-T-T-T-W
Description Audio/RCA Connector Audio/RCA Connector Audio/RCA Connector Audio/RCA Connector Audio/RCA Connector Audio/RCA Connector Audio/RCA Connector Audio/RCA Connector Audio/RCA Connector
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to
Maker Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
body width 1.062 inch 1.062 inch 1.062 inch 1.062 inch 1.062 inch 1.062 inch 1.062 inch 1.062 inch 1.062 inch
subject depth 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch
body length 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch 0.511 inch
Body/casing type JACK JACK JACK JACK JACK JACK JACK JACK JACK
Configuration 2X1 HORIZONTAL 2X1 HORIZONTAL 2X1 HORIZONTAL 2X1 HORIZONTAL 2X1 HORIZONTAL 2X1 HORIZONTAL 2X1 HORIZONTAL 2X1 HORIZONTAL 2X1 HORIZONTAL
Connector type AUDIO/RCA CONNECTOR AUDIO/RCA CONNECTOR AUDIO/RCA CONNECTOR AUDIO/RCA CONNECTOR AUDIO/RCA CONNECTOR AUDIO/RCA CONNECTOR AUDIO/RCA CONNECTOR AUDIO/RCA CONNECTOR AUDIO/RCA CONNECTOR
Contact to complete cooperation TIN TIN TIN TIN TIN TIN TIN TIN TIN
Contact completed and terminated Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn)
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
Insulator color BROWN RED BLUE YELLOW GREEN GRAY ORANGE BLACK WHITE
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors TWO TWO TWO TWO TWO TWO TWO TWO TWO
Number of poles 3 3 3 3 3 3 3 3 3
Number of ports 2 2 2 2 2 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Guideline UL UL UL UL UL UL UL UL UL
Shell material PBT PBT PBT PBT PBT PBT PBT PBT PBT
Terminal length 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Base Number Matches 1 1 1 1 1 1 1 - -
