Chip Zener Diode
Formosa MS
ZGFM306V8B THRU ZGFM30200B
List
List................................................................................................. 1
Package outline............................................................................... 2
Features.......................................................................................... 2
Mechanical data............................................................................... 2
Maximum ratings ............................................................................. 2
Electrical characteristics................................................................... 3
Rating and characteristic curves........................................................ 4~5
Pinning information........................................................................... 6
Suggested solder pad layout............................................................. 6
Packing information.......................................................................... 7
Reel packing.................................................................................... 8
Suggested thermal profiles for soldering processes............................. 8
High reliability test capabilities........................................................... 9
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2011/07/01
Revision
D
Page.
9
Page 1
DS-121741
Chip Zener Diode
Formosa MS
Package outline
SMB
0.213(5.4)
0.197(5.0)
ZGFM306V8B THRU ZGFM30200B
3.0W Surface Mount Zener
Diodes - 6.8V-200V
Features
•
Batch process design, excellent power dissipation offers
•
•
•
•
•
•
•
•
better reverse leakage current and thermal resistance.
Glass passivated chip junction.
Typical IR less than 0.5µA above 200V.
Standard zener voltage tolerance ±5%.
Low inductance.
Low profile package.
Built-in strain relief.
Lead-free parts meet environmental standards of
MIL-STD-19500 /228
Suffix "-H" indicates Halogen-free part, ex.ZGFM306V8B-H.
0.016(0.4) Typ.
0.142(3.6)
0.126(3.2)
Mechanical data
•
Epoxy:UL94-V0 rated flame retardant
•
Case : Molded plastic, DO-214AA / SMB
•
Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
0.032(0.8) Typ.
0.075(1.9)
0.067(1.7)
0.032 (0.8) Typ.
Dimensions in inches and (millimeters)
•
Polarity : Indicated by cathode band
•
Mounting Position : Any
•
Weight : Approximated 0.09 gram
Maximum ratings
(at T =25 C unless otherwise noted)
o
A
PARAMETER
Forward voltage
Power Dissipation
Forward surge current
CONDITIONS
I
F
= 200 mAdc
T
L
=50°C (Note 1)
8.3ms single half sine-wave
superimposed on rate load
(JEDEC methode)
Symbol
V
F
P
D
I
FSM
T
J
T
STG
MIN.
TYP.
MAX.
1.20
3.0
15
UNIT
V
W
A
o
Operating temperature
Storage temperature
Note.1 M ounted on 11 x 11mm FR-4 or FR-5 Board
-55
-65
+150
+175
C
C
o
Thermal Characteristics
PARAMETER
Typical thermal resistance junction to ambient
Symbol
R
θJA
Limit
85
UNIT
°C/W
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2011/07/01
Revision
D
Page.
9
Page 2
DS-121741
Chip Zener Diode
Formosa MS
o
A
ZGFM306V8B THRU ZGFM30200B
Electrical characteristics
(at T =25 C unless otherwise noted)
Zener
voltage
Part No.
Marking
code
Min.
ZGFM306V8B
ZGFM307V5B
ZGFM308V2B
ZGFM308V7B
ZGFM309V1B
ZGFM3010B
ZGFM3011B
ZGFM3012B
ZGFM3013B
ZGFM3015B
ZGFM3016B
ZGFM3018B
ZGFM3020B
ZGFM3022B
ZGFM3024B
ZGFM3027B
ZGFM3030B
ZGFM3033B
ZGFM3036B
ZGFM3039B
ZGFM3043B
ZGFM3047B
ZGFM3051B
ZGFM3056B
ZGFM3062B
ZGFM3068B
ZGFM3075B
ZGFM3082B
ZGFM3091B
ZGFM30100B
ZGFM30110B
ZGFM30120B
ZGFM30130B
ZGFM30150B
ZGFM30160B
ZGFM30180B
ZGFM30200B
3Z6V8
3Z7V5
3Z8V2
3Z8V7
3Z9V1
3Z10
3Z11
3Z12
3Z13
3Z15
3Z16
3Z18
3Z20
3Z22
3Z24
3Z27
3Z30
3Z33
3Z36
3Z39
3Z43
3Z47
3Z51
3Z56
3Z62
3Z68
3Z75
3Z82
3Z91
3Z100
3Z110
3Z120
3Z130
3Z150
3Z160
3Z180
3Z200
6.46
7.13
7.79
8.27
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
58.90
64.60
71.25
77.90
86.45
95.00
104.50
114.00
123.50
142.50
152.00
171.00
190.00
V
Z
@ I
ZT
(Volts)
Nom.
6.8
7.5
8.2
8.7
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
Max.
7.14
7.88
8.61
9.14
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
65.10
71.40
78.75
86.10
95.55
105.0
115.5
126.0
136.5
157.5
168.0
189.0
210.0
Test
current
I
ZT
mA
110
100
91
85
82
75
68
63
58
50
47
42
37
34
31
28
25
23
21
19
17
16
15
13
12
11
10
9.1
8.2
7.5
6.8
6.3
5.8
5.0
4.7
4.2
3.7
Z
ZT
@ I
ZT
Max.(Ω)
2.0
2.0
2.0
2.0
3.0
4.0
4.0
4.5
5.0
7.0
8.0
10.0
11.0
12.0
13.0
18.0
20.0
23.0
25.0
30.0
35.0
40.0
48.0
55.0
60.0
75.0
90.0
100
125
175
250
325
400
575
650
725
900
Zener
impedance
Z
ZK
@ I
ZK
Max.(Ω)
700
700
700
700
700
700
700
700
700
700
700
750
750
750
750
750
1000
1000
1000
1500
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
6000
6500
7000
8000
I
ZK
mA
1.00
0.50
0.50
0.50
0.50
0.50
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
I
R
Max.(uA)
5.0
5.0
5.0
4.0
3.0
3.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Leakage
current
V
R
Volts
4.0
5.0
6.0
6.6
7.0
7.6
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.4
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
114.0
121.6
136.8
152.0
Note : 20% tolerance of Zener voltage for no suffix ex: ZGFM306V8 is 6.8V 20%
10% tolerance of Zener voltage for suffix "A" ex: ZGFM306V8A is 6.8V 10%
5% tolerance of Zener voltage for suffix "B" ex: ZGFM306V8B is 6.8V 5%
2% tolerance of Zener voltage for suffix "C" ex: ZGFM306V8C is 6.8V 2%
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2011/07/01
Revision
D
Page.
9
Page 3
DS-121741

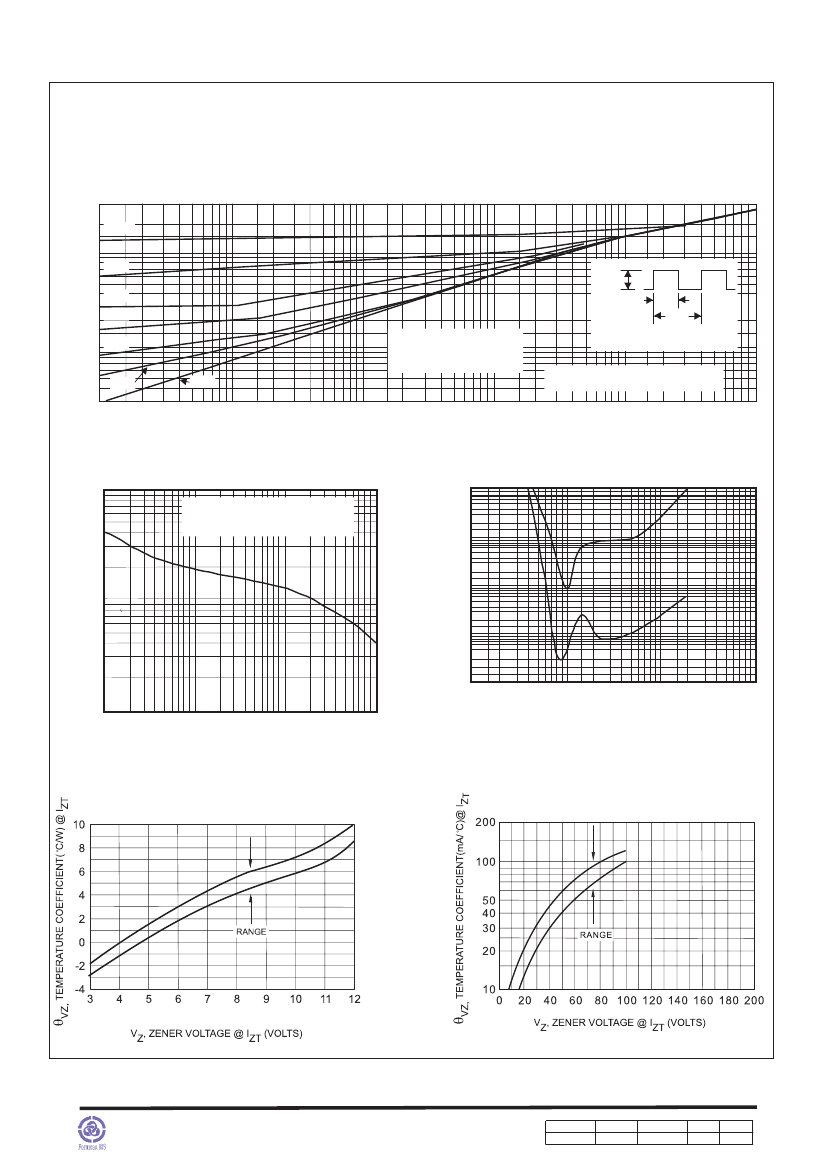

Rating and characteristic curves (ZGFM306V8B THRU ZGFM30200B)
FIG.1 Typical Thermal Response L
RθJL
( t,D )TRANSIENT THERMAL RESISTANCE
JUNCTION-TO-LEAD (
°C
/ W )
30
20
10
7
5
0.1
3
0.05
1
0.02
0.7
0.5
0.01
0.3
0.0001
0.0002
0.2
D=0.5
PPK
t1
t2
NOTE BELOW 0.1 SECOND,
THERMAL RESPONSE
CURVE IS APPLICABLE TO
ANY LEAD LENGTH(L)
D=0
DUTY CYCLE, D=t1 t2
SINGLE PULSE TJL=JL(t)PPK
REPETITIVE LULSES TJL=JL(t,D)PPK
0.2
0.5
1
2
5
10
0.0005
0.001
0.002
0.005
0.01
0.02
0.05
0.1
FIG. 2 Maximum Surge Power
500
RECTANGULAR NONREPETITIVE
WAVEFORM TJ=25°C PRIOR TO
INITIAL PULSE
IR, REVERSE LEADAGE, (uAdc)
@VR AS SPECIFIED IN ELEC. CHAR. TABLE
FIG. 3 Maximum Surge Power
250
PPK, PEAK SURGE POWER, ( W )
0.1
0.05
0.03
0.02
0.01
0.005
0.003
0.002
0.001
0.0005
0.0003
0.0002
0.0001
1
2
5
10
20
50
100
200
500
1K
150
100
50
30
20
10
NOMINAL VZ, (V)
0.1
1.0
10
PW, PULSE WIDTH, (ms)
100
FIG.4 Units To 12 Volts
FIG 5. Units 10 To200 Volts
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2011/07/01
Revision
D
Page.
9
Page 4
DS-121741

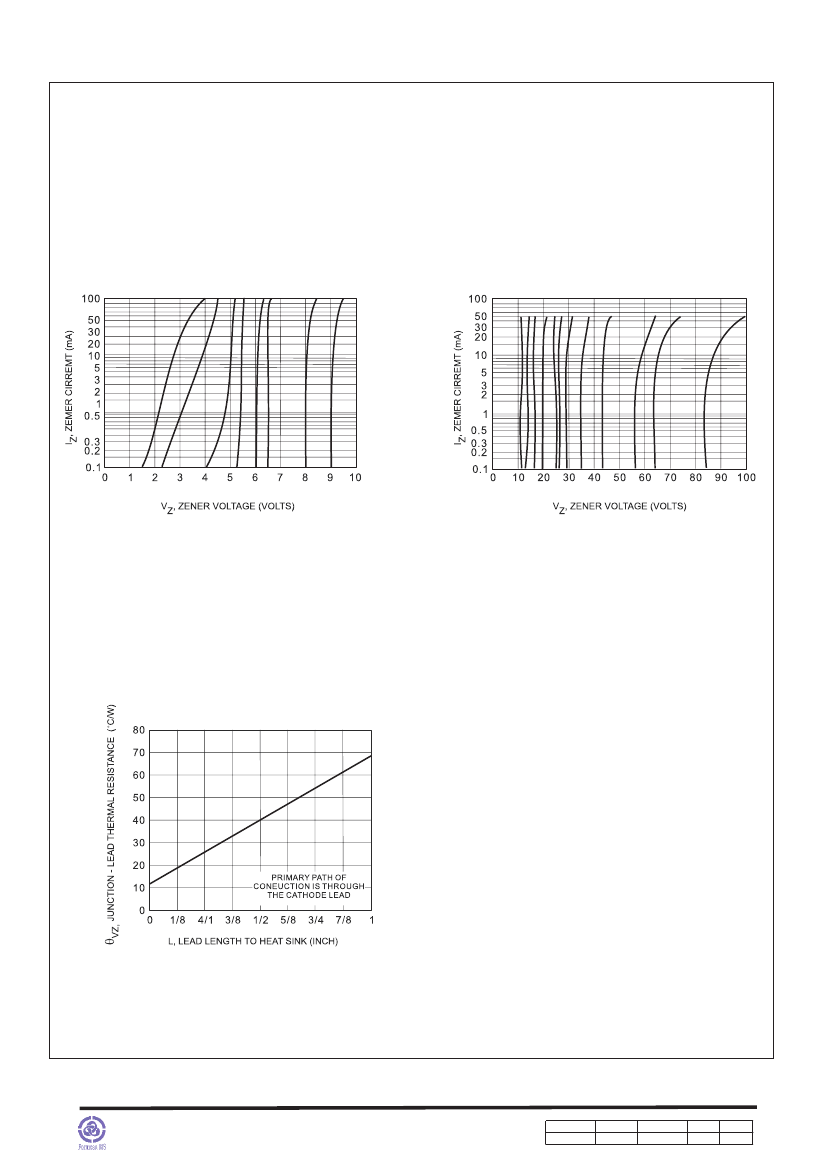

Rating and characteristic curves (ZGFM306V8B THRU ZGFM30200B)
FIG.6 VZ = 3.9 Thru 10 Volts
FIG.7 VZ = 12 Thru 82 Volts
FIG. 8 Typical Thermal Resistance
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/08/10
Revised Date
2011/07/01
Revision
D
Page.
9
Page 5
DS-121741
