5962-01-348-9856 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962-01-348-9856

5962-01-348-9856: DescriptionIC IC,ANALOG MUX,SINGLE,4-CHANNEL,CMOS,DIP,16PIN,PLASTIC, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size209KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-348-9856 Overview

IC IC,ANALOG MUX,SINGLE,4-CHANNEL,CMOS,DIP,16PIN,PLASTIC, Multiplexer or Switch

5962-01-348-9856 Parametric

Parameter Name	Attribute value
Maker	ADI
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Maximum on-state resistance (Ron)	300 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	0.8 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

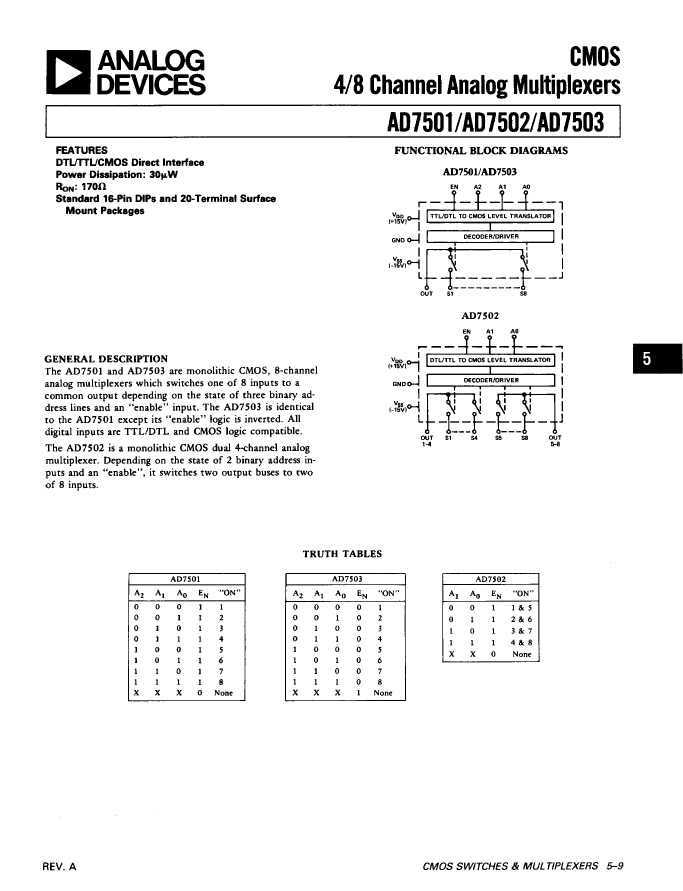

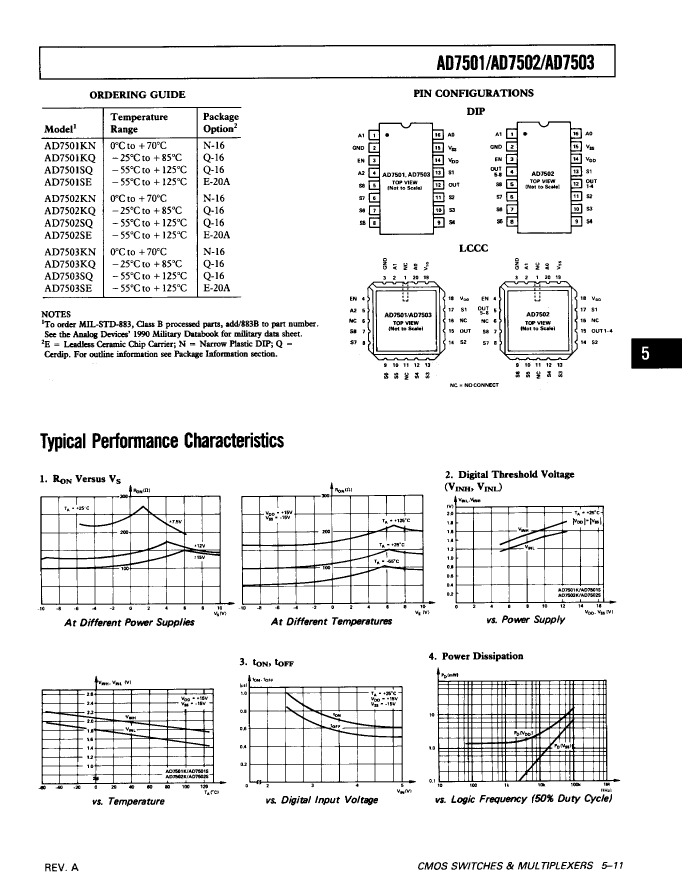

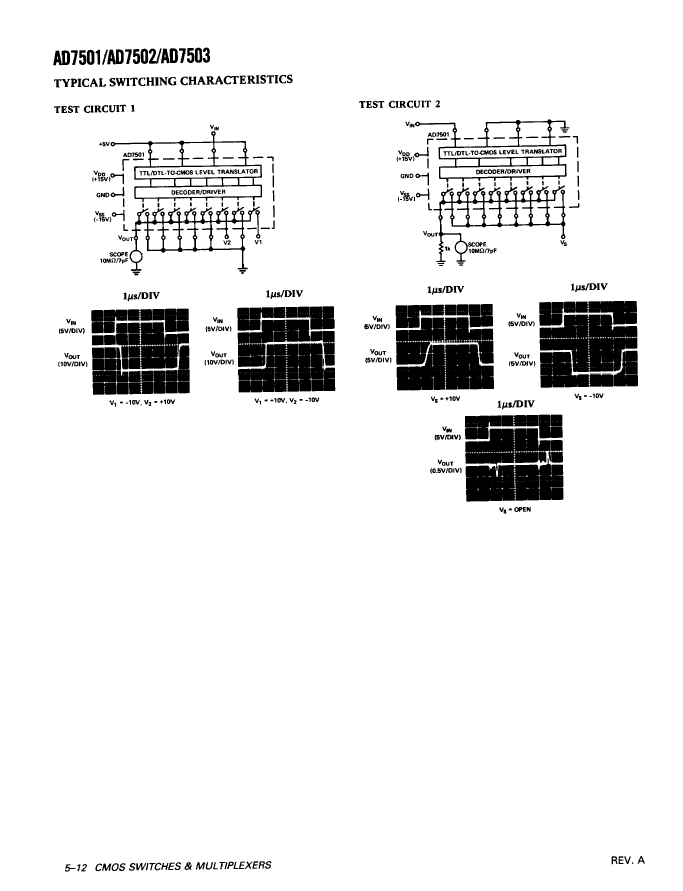

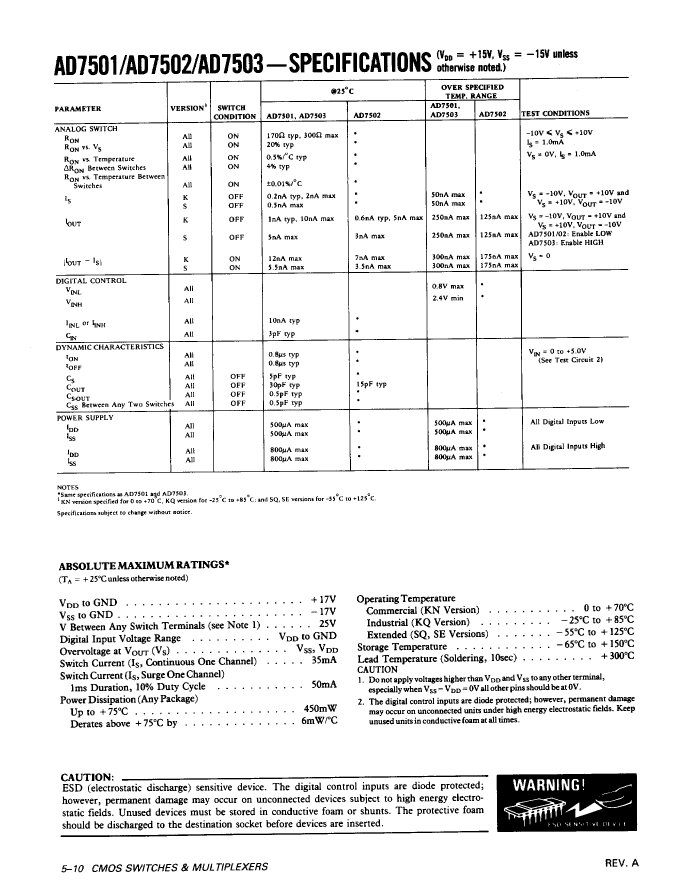

Preview

Download Datasheet

View All

5962-01-348-9856 Related Products

	5962-01-348-9856	5962-01-108-9619	AD7501JD/883B	AD7501KD/883B	AD7501SD/883B	AD7503JD/883B	AD7503KD/883B	5962-01-307-3020
Description	IC IC,ANALOG MUX,SINGLE,4-CHANNEL,CMOS,DIP,16PIN,PLASTIC, Multiplexer or Switch	IC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,16PIN,CERAMIC, Multiplexer or Switch	IC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,16PIN,CERAMIC, Multiplexer or Switch	IC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,16PIN,CERAMIC, Multiplexer or Switch	IC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,16PIN,CERAMIC, Multiplexer or Switch	IC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,16PIN,CERAMIC, Multiplexer or Switch	IC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,16PIN,CERAMIC, Multiplexer or Switch	IC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,16PIN,CERAMIC, Multiplexer or Switch
Reach Compliance Code	unknown	not_compliant	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	4	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-25 °C	-25 °C	-25 °C	-55 °C	-25 °C	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	OTHER	OTHER	OTHER	MILITARY	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	ADI	-	ADI	ADI	ADI	ADI	ADI	ADI
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Is it lead-free?	-	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
JESD-609 code	-	-	e0	e0	e0	e0	e0	-
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
