3-440409-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-440409-2

3-440409-2: Description9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size186KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-440409-2 Overview

9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG

3-440409-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	3 AUDIO JACKS AVAILABLE
body width	1.247 inch
subject depth	0.749 inch
body length	1.543 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
Insulator color	TURQUOISE
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	440409
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	10u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN LEAD
Shell material	STEEL
Housing size	1/E
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	2.224 N
Base Number Matches	1

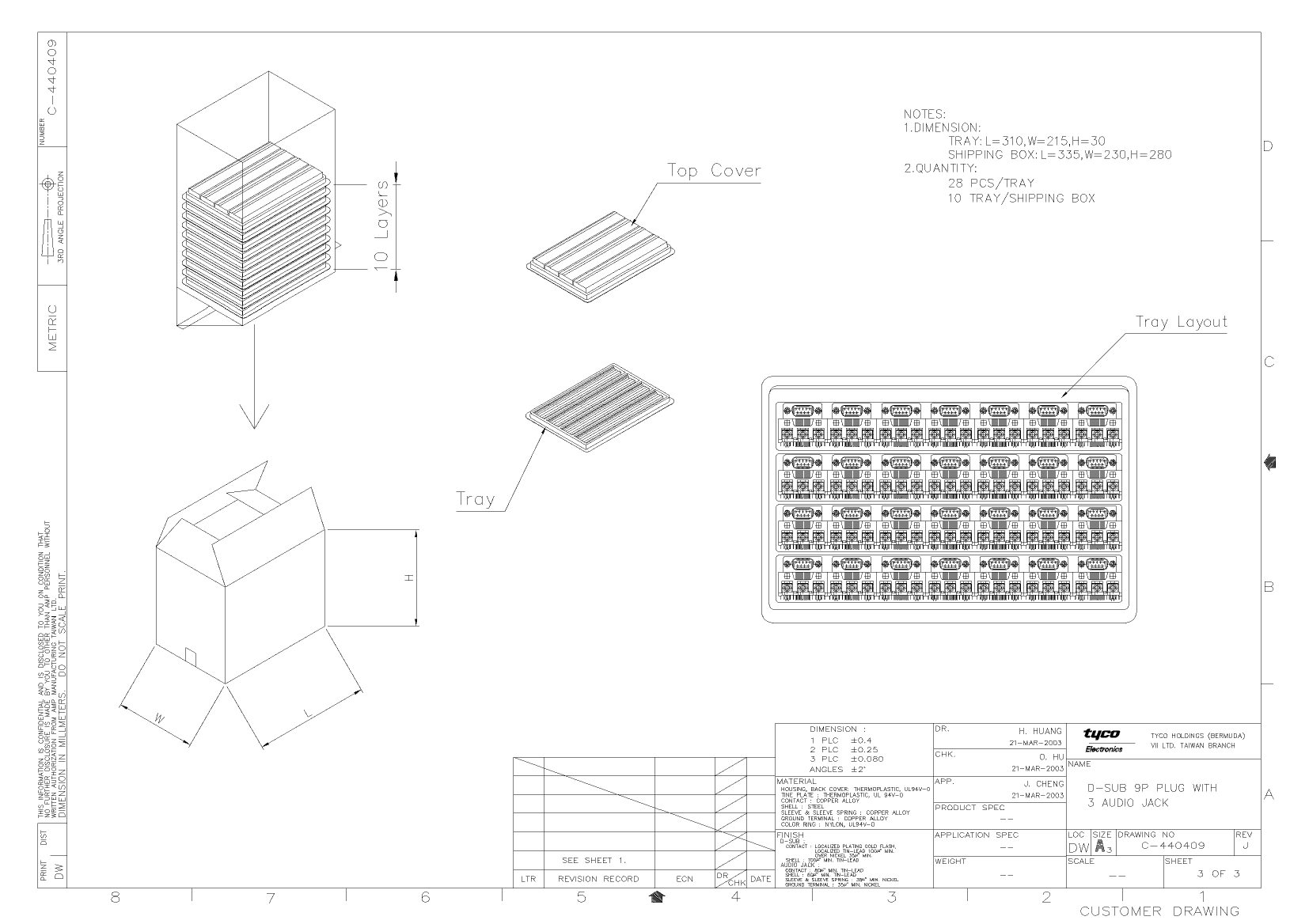

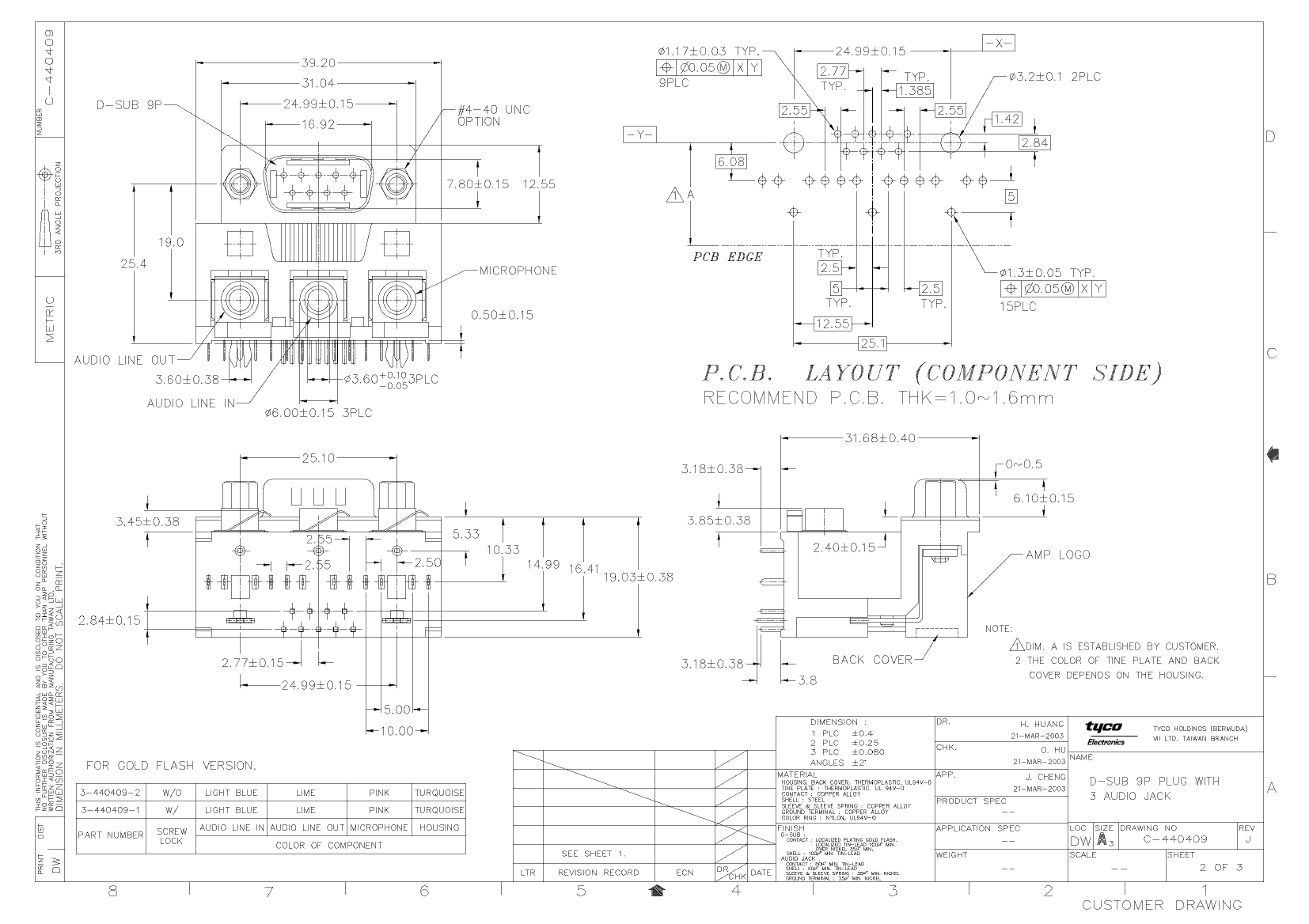

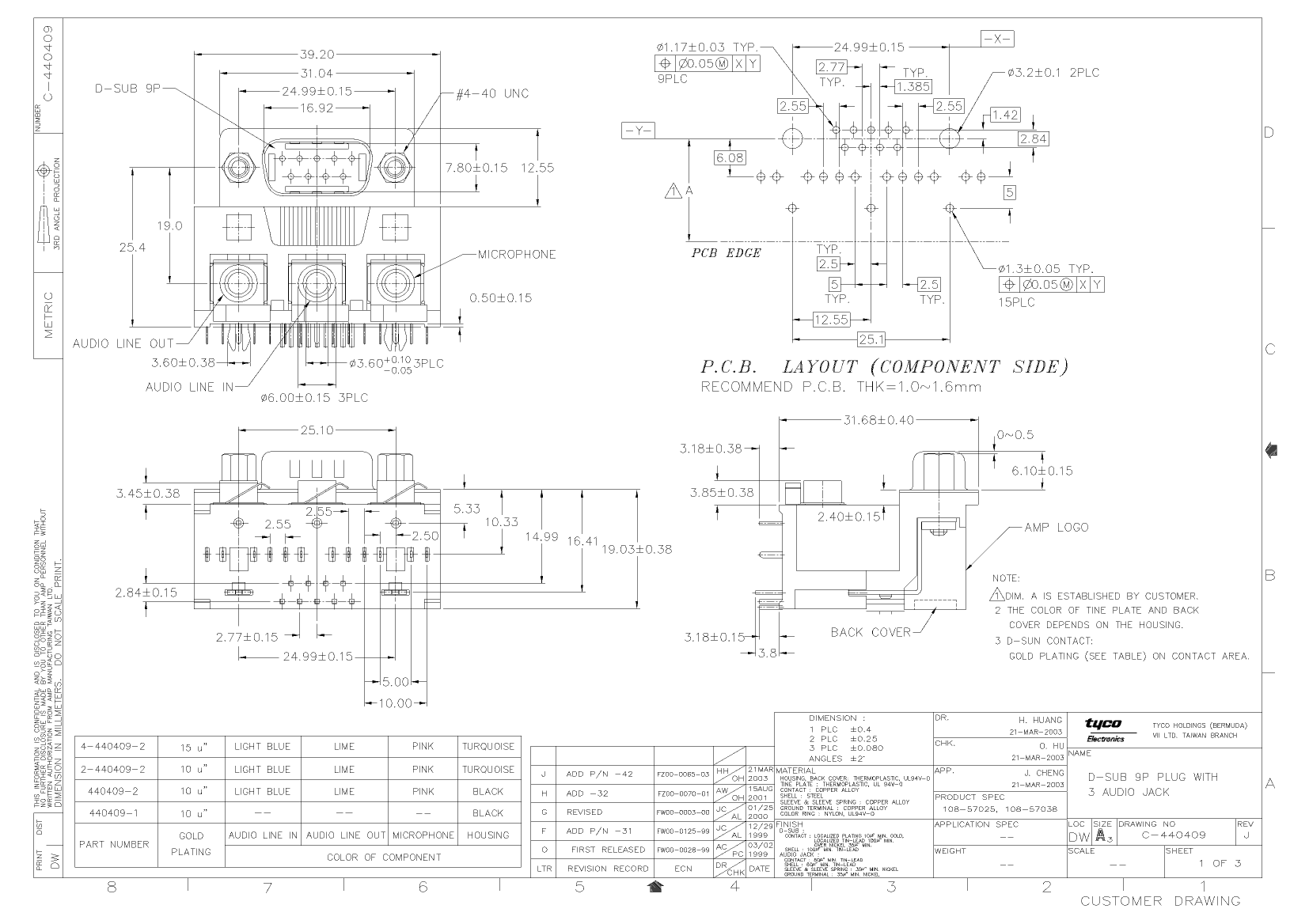

Preview

Download Datasheet

View All

3-440409-2 Related Products

	3-440409-2	440409-1	440409-2	3-440409-1	4-440409-2
Description	9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG	9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG	9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG	9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG	9 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	unknow	unknown	unknown	unknown
Other features	3 AUDIO JACKS AVAILABLE	3 AUDIO JACKS AVAILABLE	3 AUDIO JACKS AVAILABLE	3 AUDIO JACKS AVAILABLE	3 AUDIO JACKS AVAILABLE
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	TIN LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	440409	440409	440409	440409	440409
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	1/E	1/E	1/E	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	9	9	9	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	-
body width	1.247 inch	1.247 inch	1.247 inch	1.247 inch	-
subject depth	0.749 inch	0.749 inch	0.749 inch	0.749 inch	-
body length	1.543 inch	1.543 inch	1.543 inch	1.543 inch	-
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	-
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	-
maximum insertion force	2.224 N	2.224 N	2.224 N	2.224 N	-
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-
Insulator color	TURQUOISE	BLACK	BLACK	TURQUOISE	-
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	-
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
PCB row number	2	2	2	2	-
Number of rows loaded	2	2	2	2	-
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	-
Plating thickness	10u inch	10u inch	10u inch	10u inch	-
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch	-
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	-
Evacuation force-minimum value	2.224 N	2.224 N	2.224 N	2.224 N	-
Installation option 1	-	#4-40	#4-40	#4-40	-
Installation option 2	-	SCREWLOCKS	SCREWLOCKS	SCREWLOCKS	-
