34S201-340H3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 34S201-340H3

34S201-340H3: DescriptionRF 1.0/2.3 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

34S201-340H3 Overview

RF 1.0/2.3 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug,

34S201-340H3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: DIN 47297, APPLICABLE CABLE: RG 180, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF 1.0/2.3 DIN CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	34S201-340H3
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

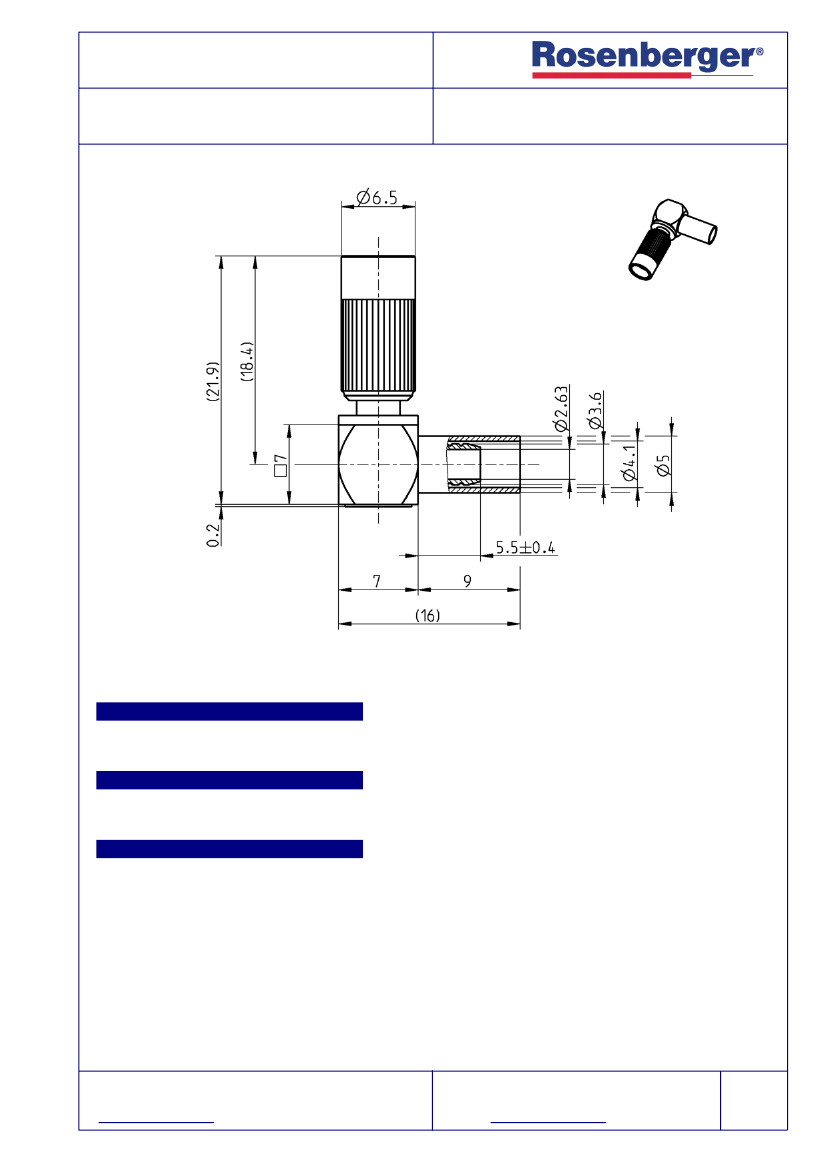

TECHNICAL DATA SHEET

1.0/2.3

RIGHT ANGLE PLUG

SCREW ON, FOR 75

Ω

CABLE

34S201-340H3

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

CECC 22 230, DIN 47297

Documents

Assembly instruction

34 D

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Coupling nut

Crimping ferrule

Material

Beryllium copper

Brass

PTFE

Brass

Copper

Plating

Gold, min. 1.27 µm, over nickel

Gold, min. 1.27 µm, over chemical nickel

Silver, 3-6 µm

Nickel, 2.5-5 µm

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
