5962-8762902SX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-8762902SX

5962-8762902SX: DescriptionBus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERPACK-20; Categorylogic logic; File Size130KB，4 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

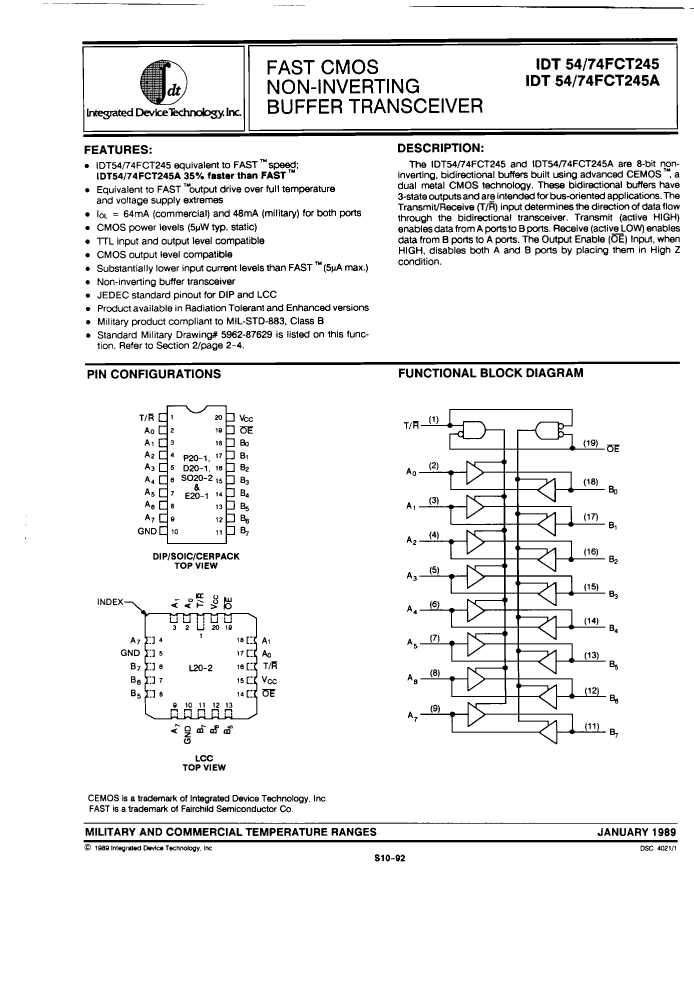

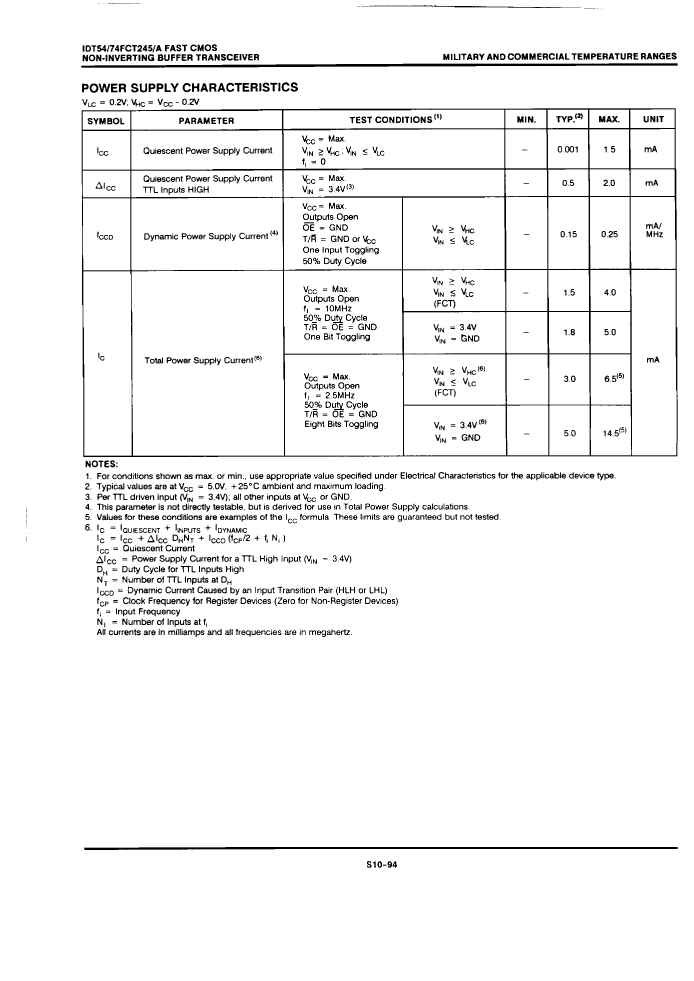

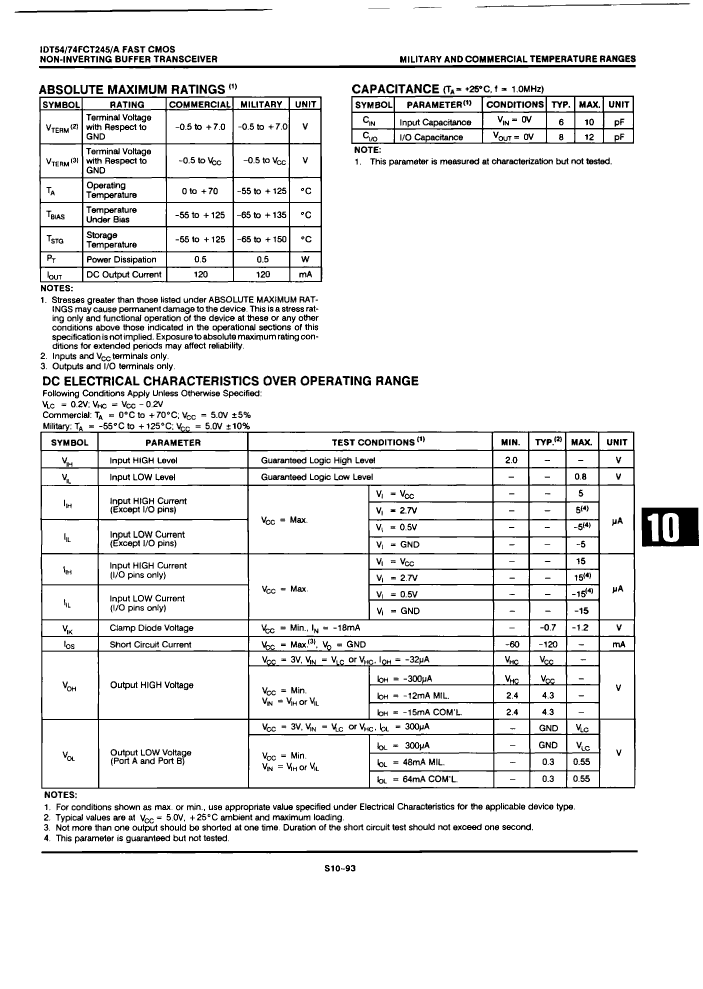

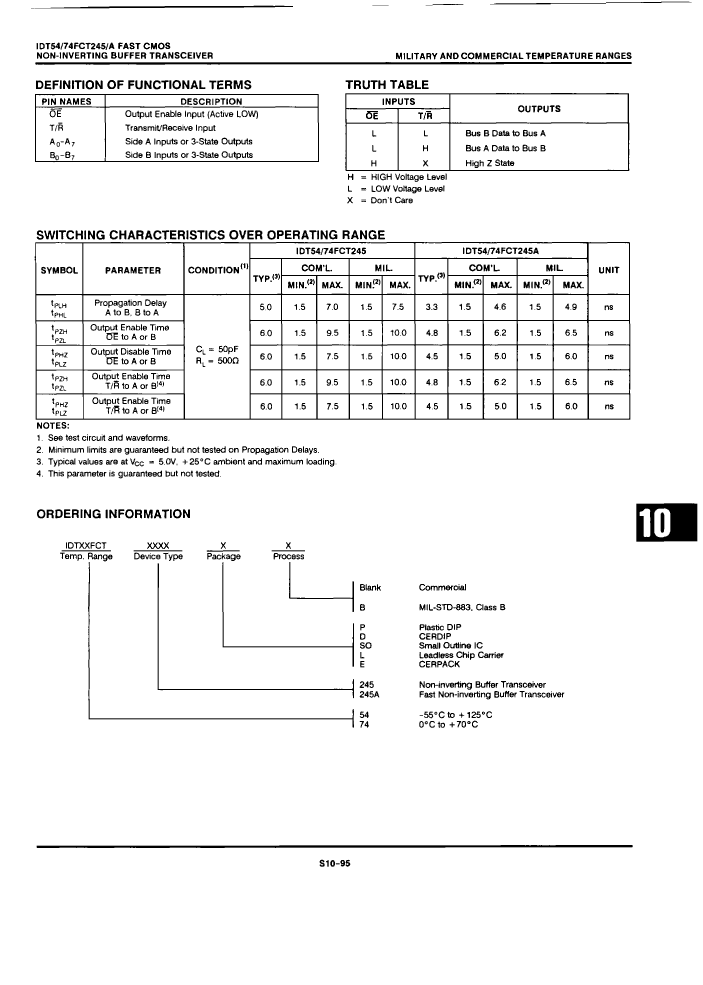

5962-8762902SX Overview

Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERPACK-20

5962-8762902SX Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	20
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V
series	FCT
JESD-30 code	R-GDFP-F20
JESD-609 code	e0
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	4.9 ns
Certification status	Not Qualified
Maximum seat height	2.3368 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.9215 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-8762902SX Related Products

	5962-8762902SX	5962-87629022X	5962-8762902RX	IDT74FCT245SOT/R
Description	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERPACK-20	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20, LCC-20	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, SOIC-20
Parts packaging code	DFP	QLCC	DIP	SOIC
package instruction	DFP,	QCCN,	DIP,	SOP, SOP20,.4
Contacts	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	not_compliant
Other features	WITH DIRECTION CONTROL; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	WITH DIRECTION CONTROL; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	WITH DIRECTION CONTROL; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	WITH DIRECTION CONTROL
series	FCT	FCT	FCT	FCT
JESD-30 code	R-GDFP-F20	S-CQCC-N20	R-GDIP-T20	R-PDSO-G20
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DFP	QCCN	DIP	SOP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	4.9 ns	4.9 ns	4.9 ns	7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.3368 mm	2.54 mm	5.08 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL
width	6.9215 mm	8.89 mm	7.62 mm	7.5 mm
Base Number Matches	1	1	1	-
length	-	8.89 mm	25.3365 mm	12.8 mm
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	225
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	30
