DM7040-2-L-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DM7040-2-L-R

DM7040-2-L-R: DescriptionTelecom and Datacom Connector, 40 Contact(s), Straight, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size315KB，2 Pages; ManufacturerMethode Electronics Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

DM7040-2-L-R Overview

Telecom and Datacom Connector, 40 Contact(s), Straight, Press Fit Terminal, ROHS COMPLIANT

DM7040-2-L-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Methode Electronics Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	2 PORTS, 20 POSITION EACH, SHIELDED
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	MATTE TIN (100) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Number of ports	2
Options	GENERAL PURPOSE
Shell material	ZINC ALLOY
Termination type	PRESS FIT
Total number of contacts	40
Base Number Matches	1

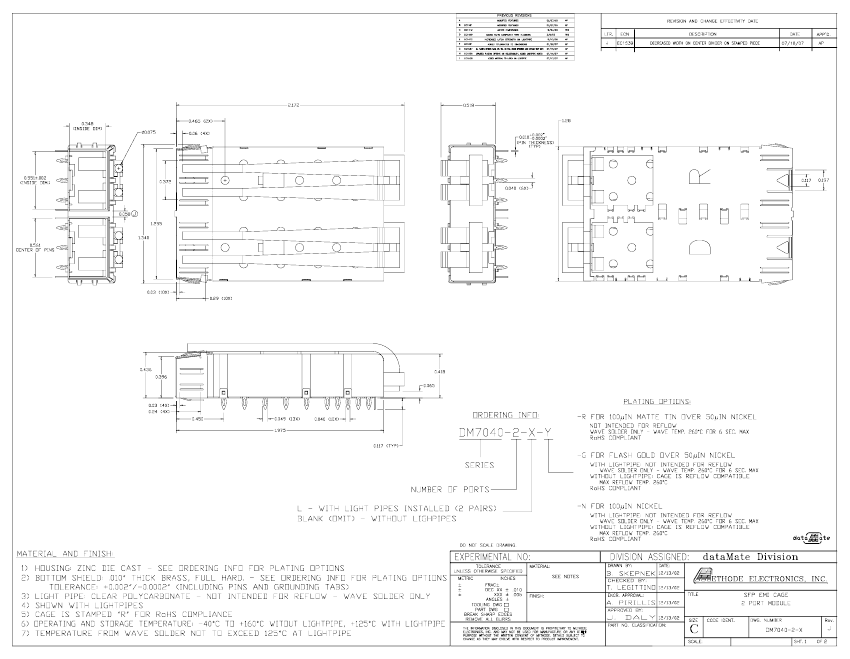

Preview

Download Datasheet

View All

DM7040-2-L-R Related Products

	DM7040-2-L-R	DM7040-2-N	DM7040-2-L-N	DM7040-2-R	DM7040-2-G	DM7040-2-L-G
Description	Telecom and Datacom Connector, 40 Contact(s), Straight, Press Fit Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 40 Contact(s), Straight, Press Fit Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 40 Contact(s), Straight, Press Fit Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 40 Contact(s), Straight, Press Fit Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 40 Contact(s), Straight, Press Fit Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 40 Contact(s), Straight, Press Fit Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	2 PORTS, 20 POSITION EACH, SHIELDED	2 PORTS, 20 POSITION EACH, SHIELDED	2 PORTS, 20 POSITION EACH, SHIELDED	2 PORTS, 20 POSITION EACH, SHIELDED	2 PORTS, 20 POSITION EACH, SHIELDED	2 PORTS, 20 POSITION EACH, SHIELDED
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	MATTE TIN (100) OVER NICKEL (50)	NICKEL (100)	NICKEL (100)	MATTE TIN (100) OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Nickel (Ni)	Nickel (Ni)	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Number of ports	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	40	40	40	40	40	40
Base Number Matches	1	1	1	1	1	1
