PS5030-680MB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> PS5030-680MB

Preview

PS5030-680MB: DescriptionGeneral Purpose Inductor, 68uH, 20%, 1 Element, SMD, 2020,; CategoryPassive components inductor; File Size74KB，3 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

PS5030-680MB Overview

General Purpose Inductor, 68uH, 20%, 1 Element, SMD, 2020,

PS5030-680MB Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
package instruction	2020
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2020
structure	Magnetic Shielded
DC Resistance	0.525 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PS
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Package height	3 mm
Package length	5 mm
Package form	SMT
Package width	5 mm
method of packing	Bulk
Maximum rated current	0.68 A
series	PS
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

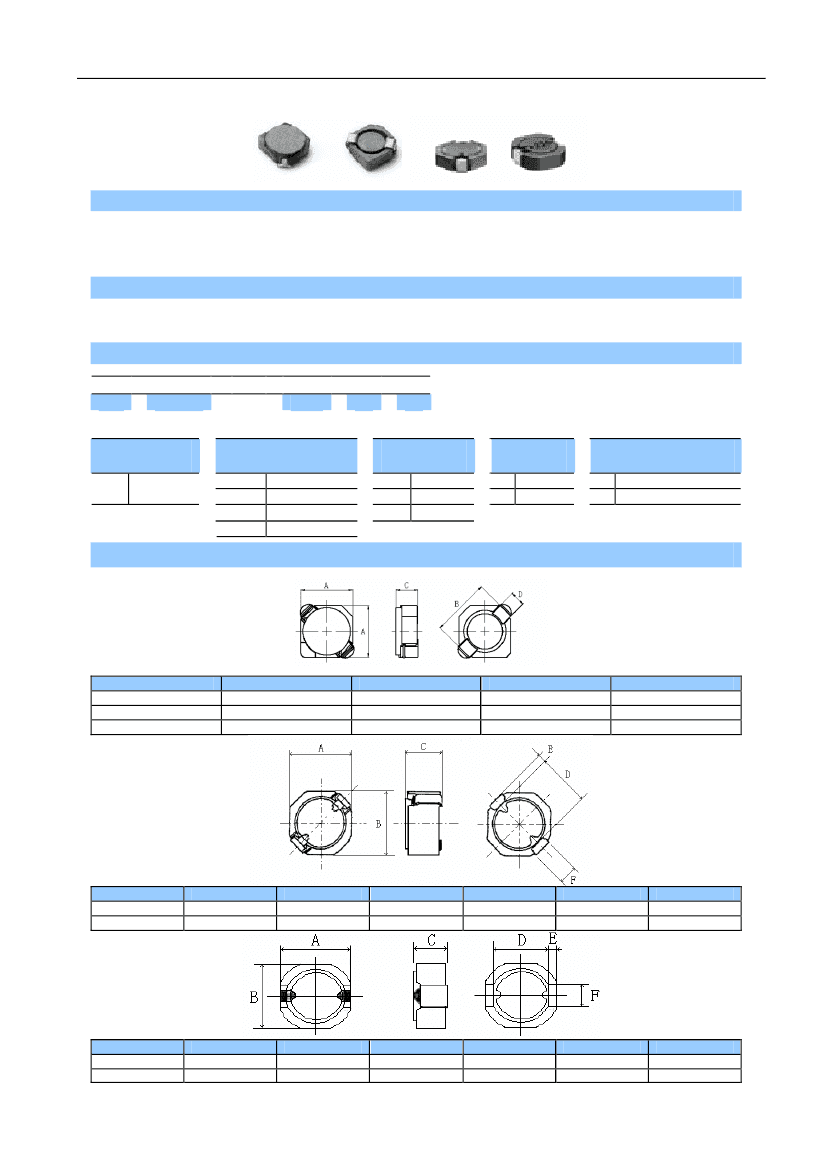

广东肇庆英达电感器件有限公司

GUANGDONG ZHAOQING YINGDA INDUCTOR CO.，LTD

表面贴装元件

SMD COMPONENTS

ＰＳ系列功率电感　ＰＳ　Ｓ½½½½½　ＳＭＤ　Ｐ½½½½　Ｉ½½½½½½½½　

特征　ＦＥＡＴＵＲＥＳ　

・超薄　

・屏½结构　

・适合于表面贴装，适合于回流焊　

・

Low profile

・

Magnetic shielded

・

SMT type, suitable for solder reflow

应用　ＡＰＰＬＩＣＡＴＩＯＮＳ　

・移动通信，笔记本电脑　

・ＤＣ／ＤＣ ½换　

・Portable

communication equipment, Notebook Computer

・

DC/DC converters

产品规格型号表示方法　ＯＲＤＥＲＩＮＧ　ＣＯＤＥ　

PS

①

产品代号

Code

5020

②

—

150

③

M

④

③

T

⑤

④

误差

Tolerance

⑤

包装方式

Packaging Style

Tape&Reel

Bulk

规格尺寸

Dimensions

(L×W×T) (mm)

感量(µH)

Inductance

PS

系列

功率电感

5020

5030

6020

6030

5.0×5.0×2.0

5.0×5.0×3.0

6.0×6.0×2.0

6.0×6.0×3.0

150

101

102

15

100

1000

K

M

±10%

±20%

T

B

外½尺寸Ｄ½½½½½½½½½　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　

单½（Ｕ½½½）：½½

型号

Part

3011

3014

4018

A

3.2MAX

4.0MAX

B

3.3

4.4

C

1.2MAX

1.55MAX

1.8±0.3

D

1.0

1.1

型号

Part

5020

5030

A

5.0±0.3

B

5.0±0.3

C

2.0±0.3

3.0±0.3

D

4.2±0.3

E

0.6±0.3

F

1.4±0.3

型号

Part

6020

6030

A

6.0±0.3

B

6.0±0.3

C

2.0±0.3

3.0±0.3

D

4.8±0.3

E

0.6±0.3

F

2.0±0.3
