304-80014-05

Description
Board Euro Connector, 20 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size368KB,2 Pages
Manufacturerept Connectors
Websitehttps://www.ept.de
Download Datasheet Parametric View All

304-80014-05 Overview

Board Euro Connector, 20 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

304-80014-05 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Other featuresSTANDARDS: DIN 41612, IEC 60603-2
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
DIN complianceYES
Filter functionNO
IEC complianceYES
MIL complianceNO
Manufacturer's serial number304
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts20
Base Number Matches1

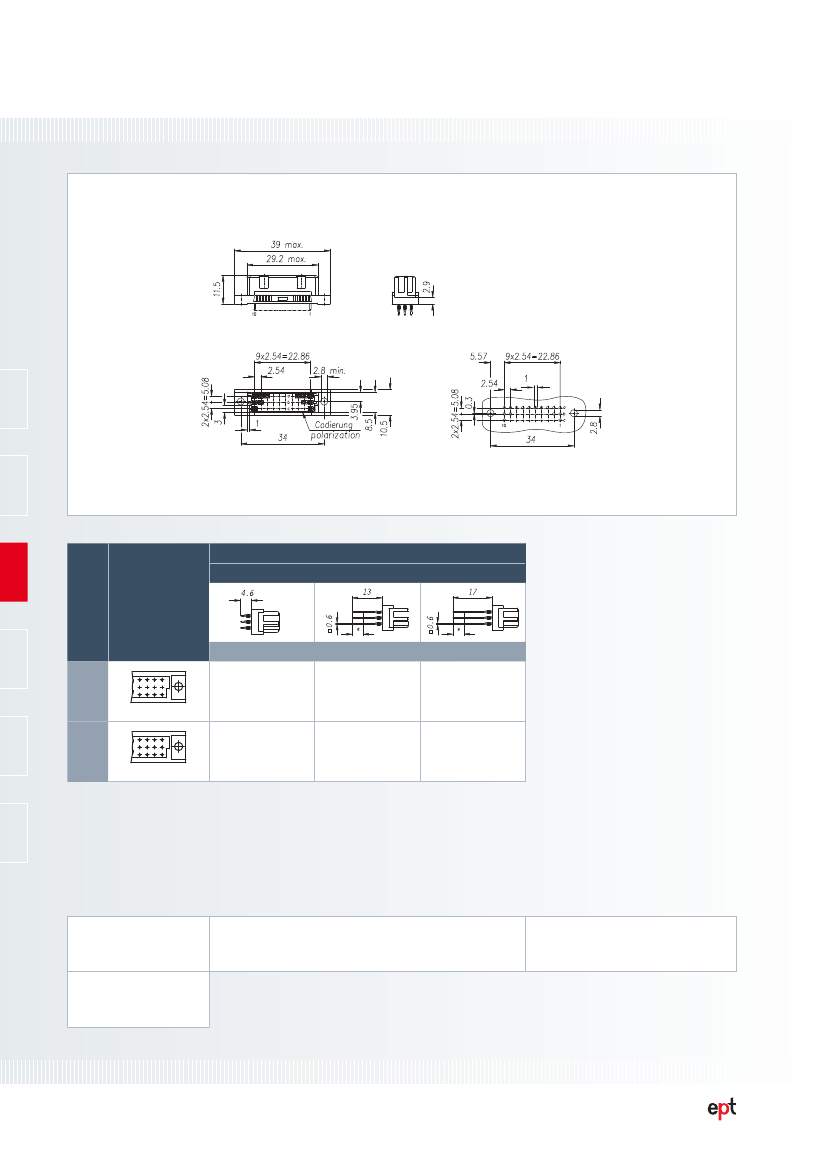

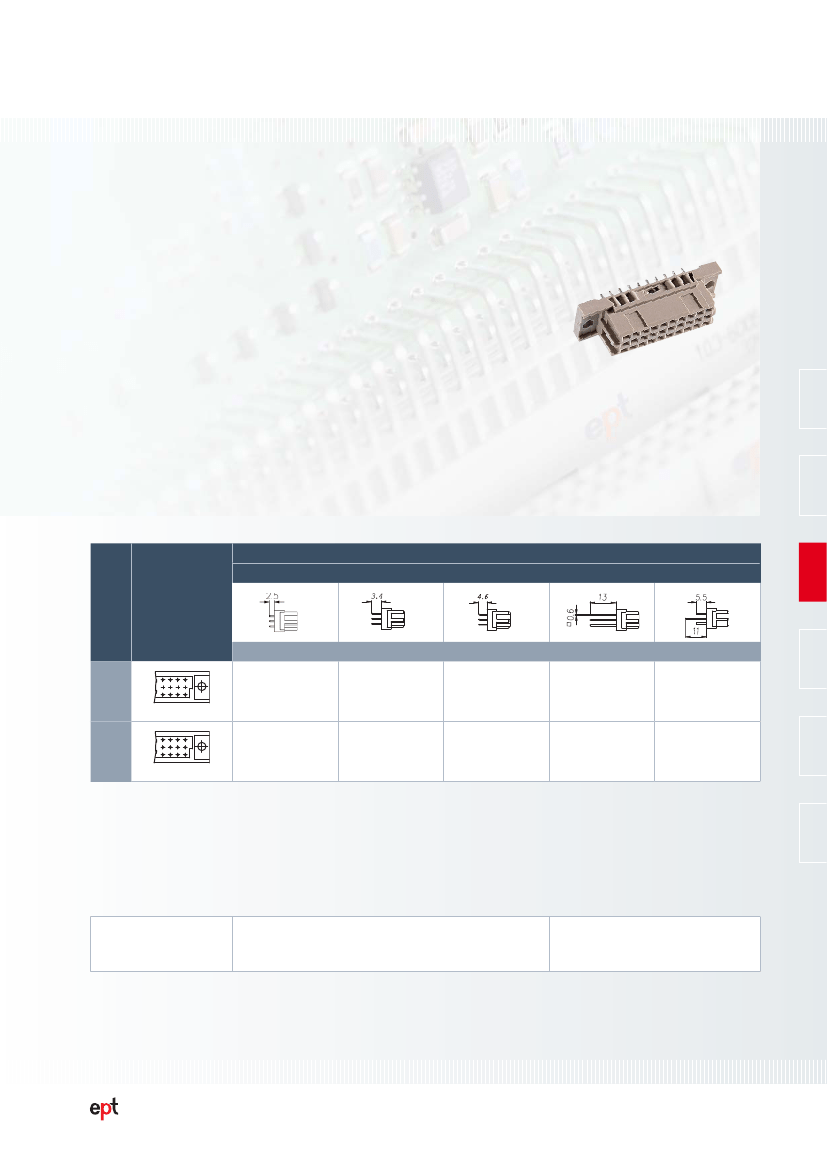

Connectors according to DIN 41612 / IEC 60603-2
Type C/3
Female connector
Dimensions in mm
Hole pattern
Press-fit technology –
Performance level II
Termination length
No. of
contacts
Contact
arrangement
a
b
c
4
3 2 1
Part number
304-68004-02
304-78006-03
304-78106-04
20
30
a
b
c
4
3 2 1
304-68014-02
304-78016-03
304-78116-04
Accessories
– Press-fit tool (see page 208)
– Support tool (see page 209)
– Coding accessories (see page 160)
Note
– * Rear mating zone
performance level II
On request
– Performance levels I + III or customer-specific
– Special contact length
– Alternative surface Sn, e. g. for WireWrap
Options
– Without
ange
– Contact arrangement (see page 162)
106
ept GmbH
I
Phone +49 (0) 88 61 / 25 01 0
I
Fax +49 (0) 88 61 / 55 07
I
E-mail sales@ept.de
I
www.ept.de
