83947AYIT: DescriptionLow Skew Clock Driver, 83947 Series, 9 True Output(s), 0 Inverted Output(s), PQFP32, 7 X 7 MM, 1.40 MM HEIGHT, MS-026BBA, LQFP-32; Categorylogic logic; File Size106KB，10 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

83947AYIT Overview

Low Skew Clock Driver, 83947 Series, 9 True Output(s), 0 Inverted Output(s), PQFP32, 7 X 7 MM, 1.40 MM HEIGHT, MS-026BBA, LQFP-32

83947AYIT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFP
package instruction	7 X 7 MM, 1.40 MM HEIGHT, MS-026BBA, LQFP-32
Contacts	32
Reach Compliance Code	not_compliant
ECCN code	EAR99
series	83947
Input adjustment	DIFFERENTIAL MUX
JESD-30 code	S-PQFP-G32
JESD-609 code	e0
length	7 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
MaximumI(ol)	0.02 A
Humidity sensitivity level	3
Number of functions	1
Number of inverted outputs
Number of terminals	32
Actual output times	9
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP32,.35SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius)	240
power supply	3.3 V
Prop。Delay @ Nom-Sup	4.5 ns
propagation delay (tpd)	4.5 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.5 ns
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	20
width	7 mm
minfmax	110 MHz
Base Number Matches	1

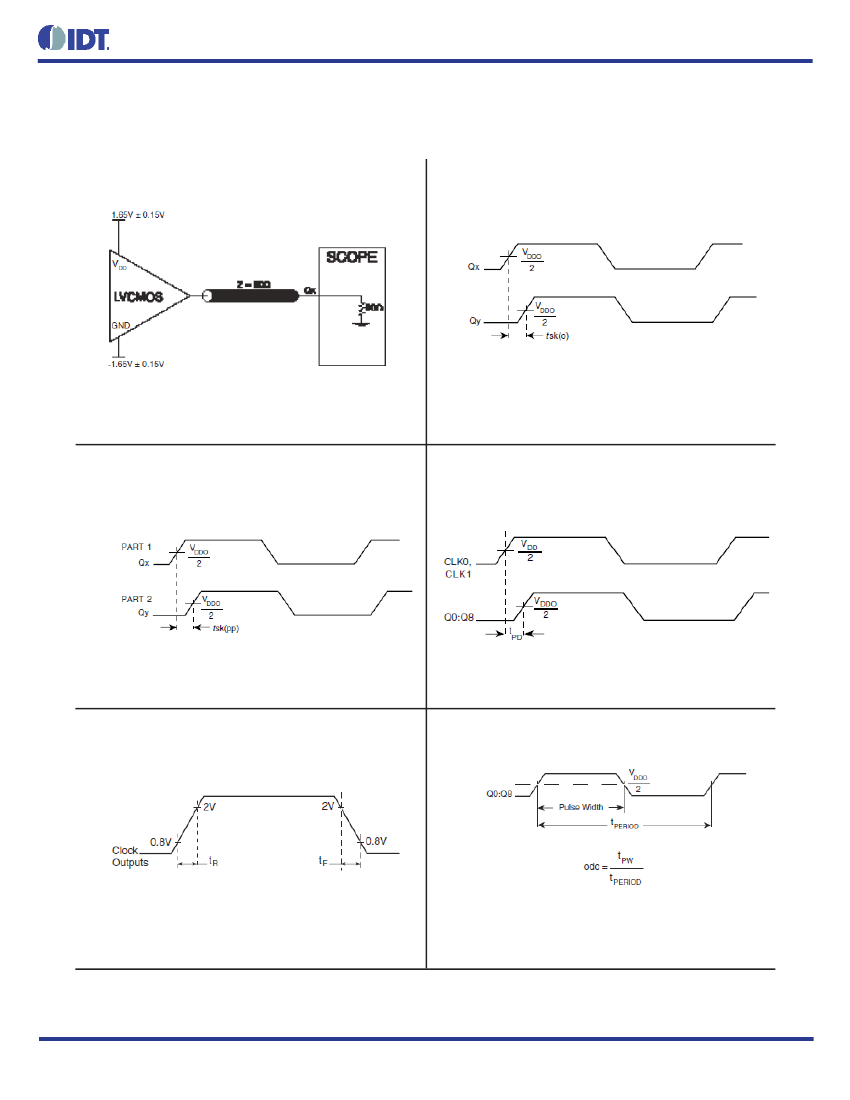

Preview

Download Datasheet

View All

Low Skew, 1-to-9

LVCMOS Fanout Buffer

Data Sheet

83947

ENERAL

ESCRIPTION

The 83947I is a low skew, 1-to-9 LVCMOS Fanout Buffer. The low

impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series

or parallel terminated transmission lines. The effective fanout can be

increased from 9 to 18 byutilizing the ability of the outputs to drive two

series terminated lines.

Guaranteed output and part-to-part skew characteristics make the

83947I ideal for high performance, single ended applications that also

require a limited output voltage.

EATURES

•

9 LVCMOS/LVTTL outputs

•

Selectable CLK0 and CLK1 can accept the following

input levels: LVCMOS and LVTTL

•

Maximum output frequency: 110MHz

•

Output skew: 500ps (maximum)

•

Part-to-part skew: 2ns (maximum)

•

3.3V operating supply

•

-40°C to 85°C ambient operating temperature

•

Lead-Free package available

LOCK

IAGRAM

SSIGNMENT

DDO

GND

9 10 11 12 13 14 15 16

GND

DDO

GND

DDO

GND

32 31 30 29 28 27 26 25

GND

CLK_SEL

CLK0

CLK1

CLK_EN

GND

DDO

GND

DDO

GND

ICS83947I

32-Lead LQFP

7mm x 7mm x 1.4mm package body

Y Package

Top View

Revision B March 17, 2016
