Part Number

Search

54ACTQ657SDMQB

Description
Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24,
Categorylogic    logic
File Size622KB,12 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

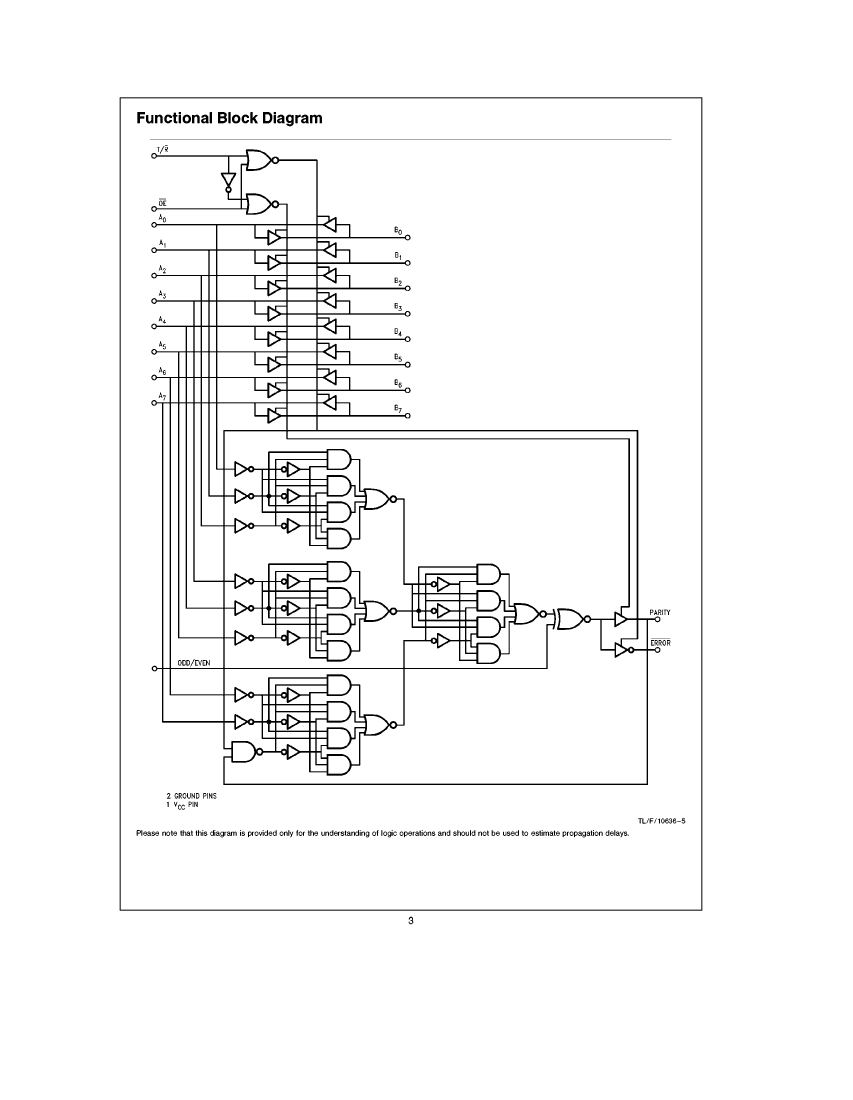

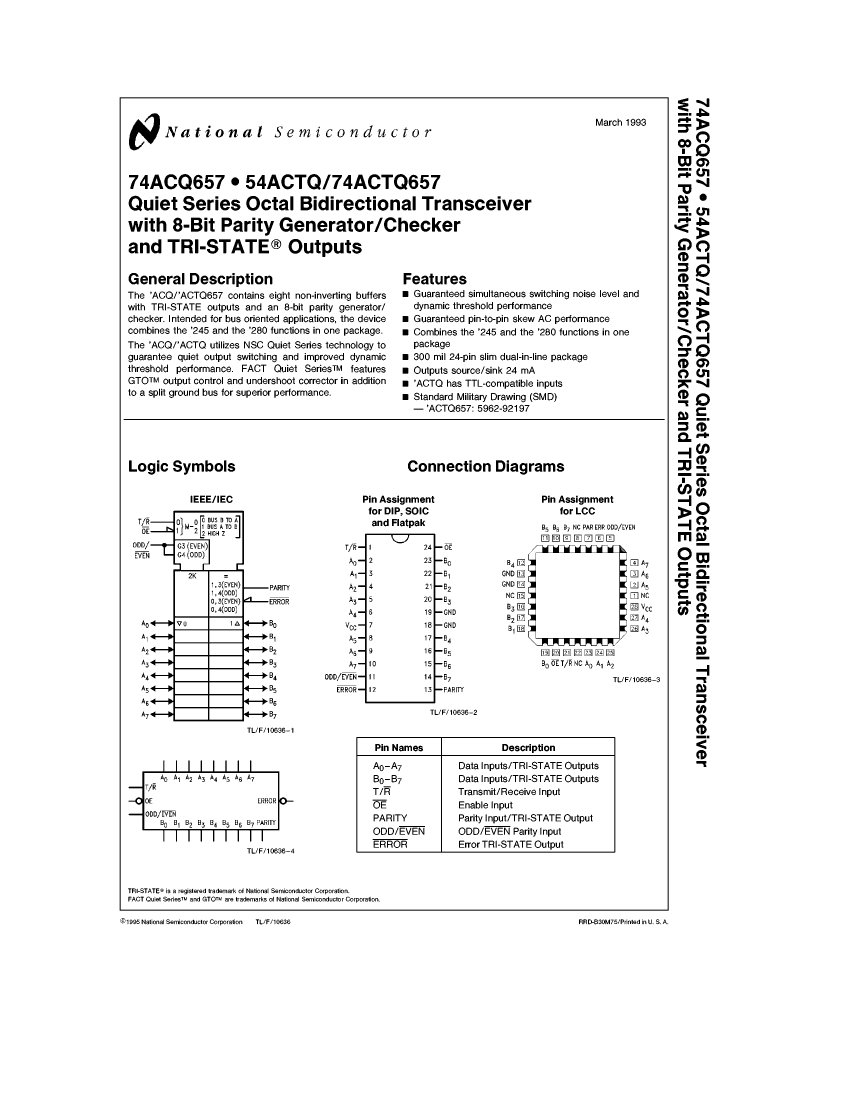

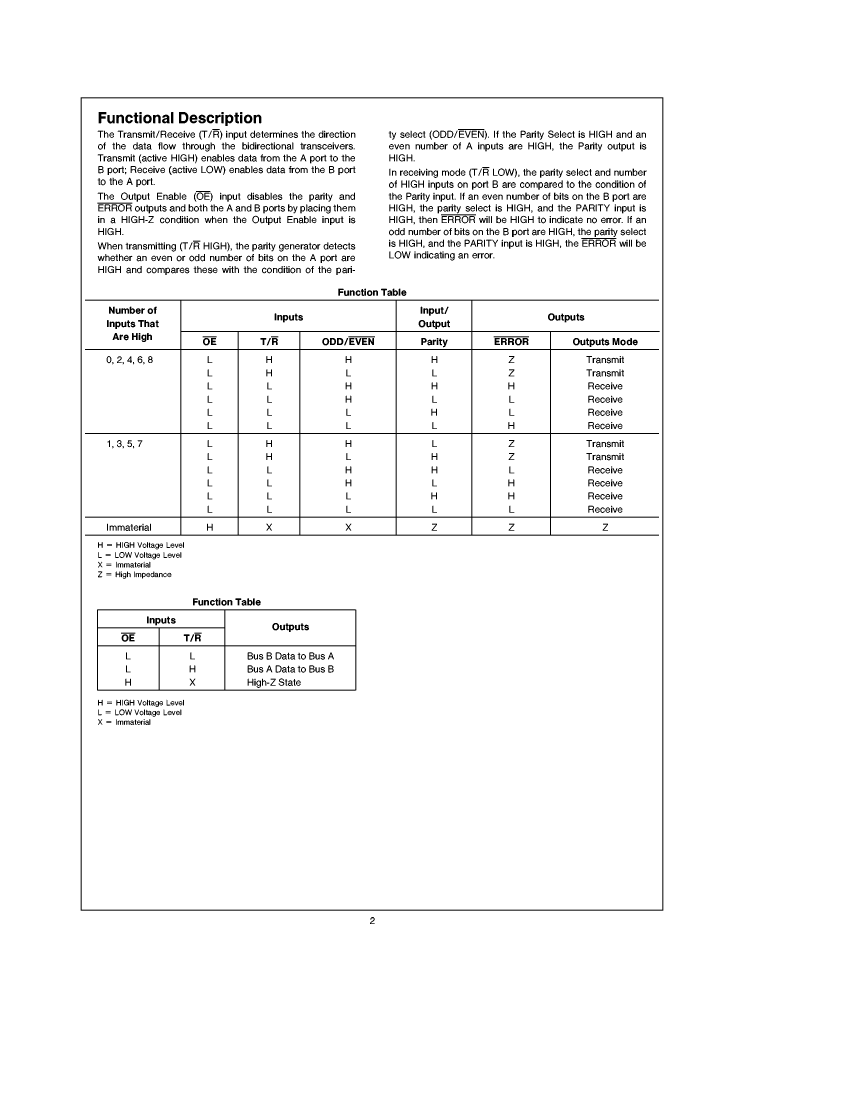

54ACTQ657SDMQB Overview

Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24,

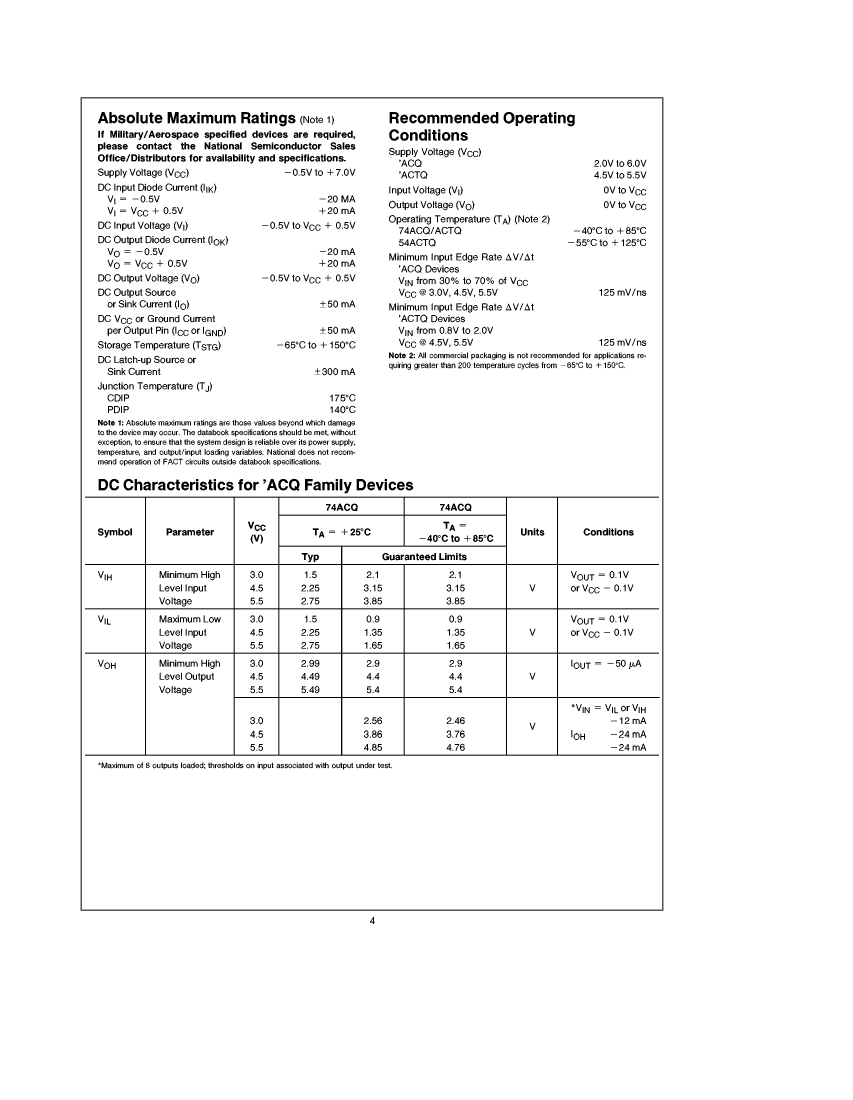

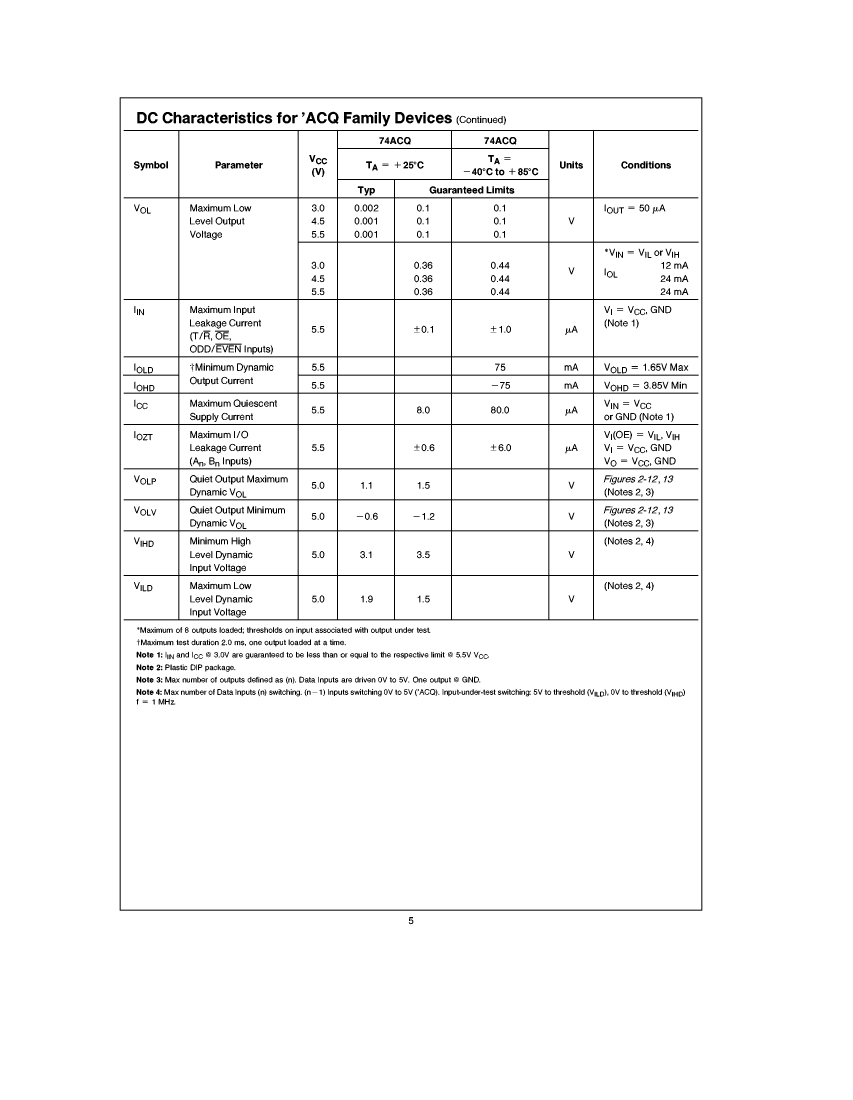

54ACTQ657SDMQB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionDIP, DIP24,.3
Reach Compliance Codeunknown
Control typeCOMMON CONTROL
Counting directionBIDIRECTIONAL
JESD-30 codeR-XDIP-T24
JESD-609 codee0
MaximumI(ol)0.024 A
Number of digits8
Number of functions1
Number of terminals24
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP24,.3
Package shapeRECTANGULAR
Package formIN-LINE
method of packingTUBE
power supply5 V
Prop。Delay @ Nom-Sup9 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1

54ACTQ657SDMQB Related Products

54ACTQ657SDMQB 54ACTQ657LMQB
Description Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24, Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, CQCC28,
Is it Rohs certified? incompatible incompatible
package instruction DIP, DIP24,.3 QCCN, LCC28,.45SQ
Reach Compliance Code unknown unknown
Control type COMMON CONTROL COMMON CONTROL
Counting direction BIDIRECTIONAL BIDIRECTIONAL
JESD-30 code R-XDIP-T24 S-XQCC-N28
JESD-609 code e0 e0
MaximumI(ol) 0.024 A 0.024 A
Number of digits 8 8
Number of functions 1 1
Number of terminals 24 28
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output characteristics 3-STATE 3-STATE
Output polarity TRUE TRUE
Package body material CERAMIC CERAMIC
encapsulated code DIP QCCN
Encapsulate equivalent code DIP24,.3 LCC28,.45SQ
Package shape RECTANGULAR SQUARE
Package form IN-LINE CHIP CARRIER
method of packing TUBE TUBE
power supply 5 V 5 V
Prop。Delay @ Nom-Sup 9 ns 9 ns
Certification status Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Nominal supply voltage (Vsup) 5 V 5 V
surface mount NO YES
technology CMOS CMOS
Temperature level MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE NO LEAD
Terminal pitch 2.54 mm 1.27 mm
Terminal location DUAL QUAD
Base Number Matches 1 1
