5962-8687504YA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8687504YA

5962-8687504YA: DescriptionMulti-Port SRAM, 1KX8, 45ns, CMOS, CQCC48, CERAMIC, LCC-48; Categorystorage storage; File Size399KB，13 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8687504YA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5962-8687504YA	-	-	View	Buy Now

5962-8687504YA Overview

Multi-Port SRAM, 1KX8, 45ns, CMOS, CQCC48, CERAMIC, LCC-48

5962-8687504YA Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	LCC
package instruction	QCCN,
Contacts	48
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	45 ns
Other features	AUTOMATIC POWER-DOWN; INTERRUPT FLAG; ARBITER
JESD-30 code	S-CQCC-N48
JESD-609 code	e0
length	14.224 mm
memory density	8192 bit
Memory IC Type	MULTI-PORT SRAM
memory width	8
Number of functions	1
Number of ports	2
Number of terminals	48
word count	1024 words
character code	1000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.9812 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.016 mm
Terminal location	QUAD
width	14.224 mm
Base Number Matches	1

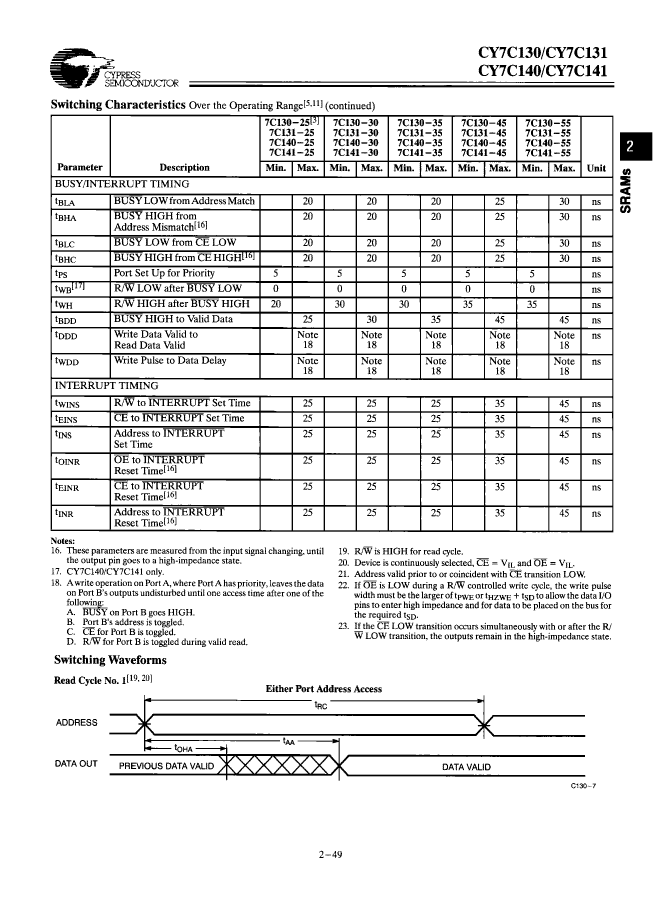

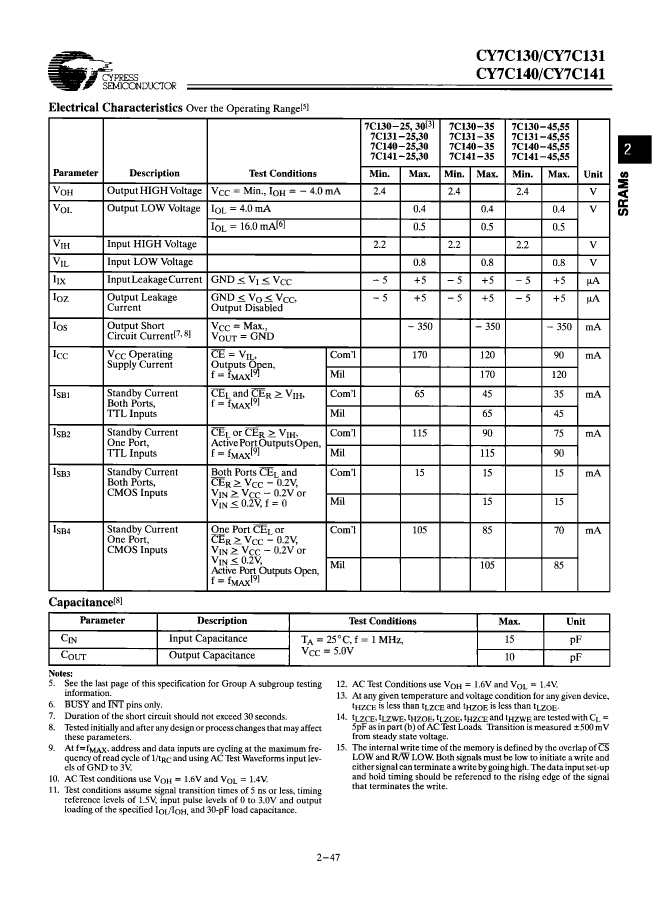

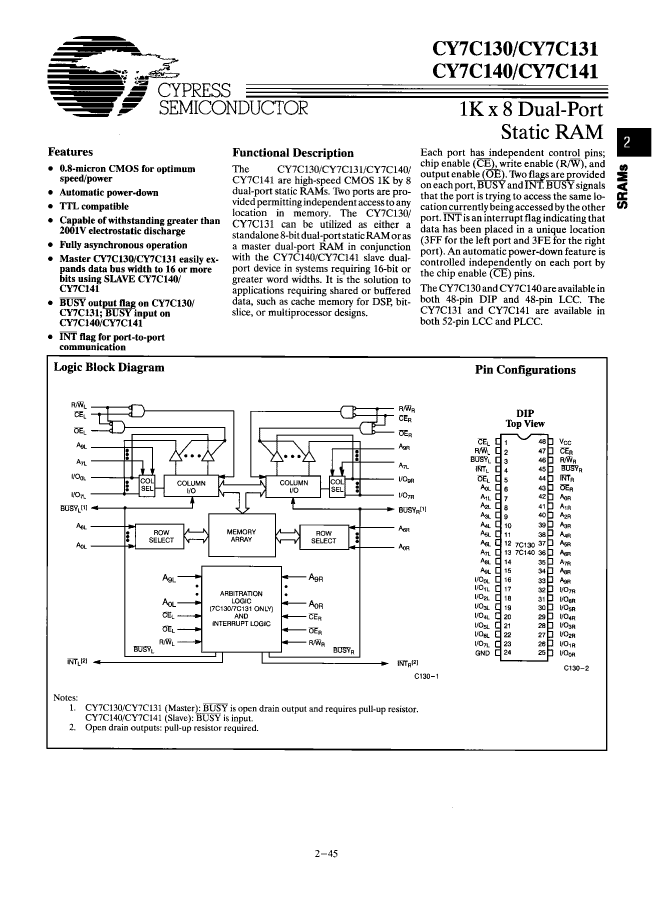

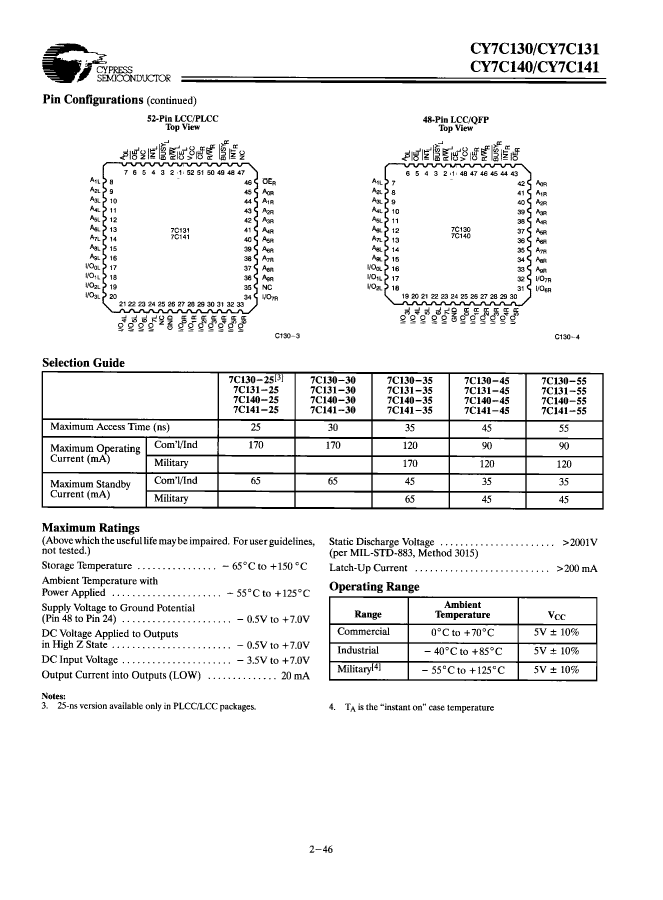

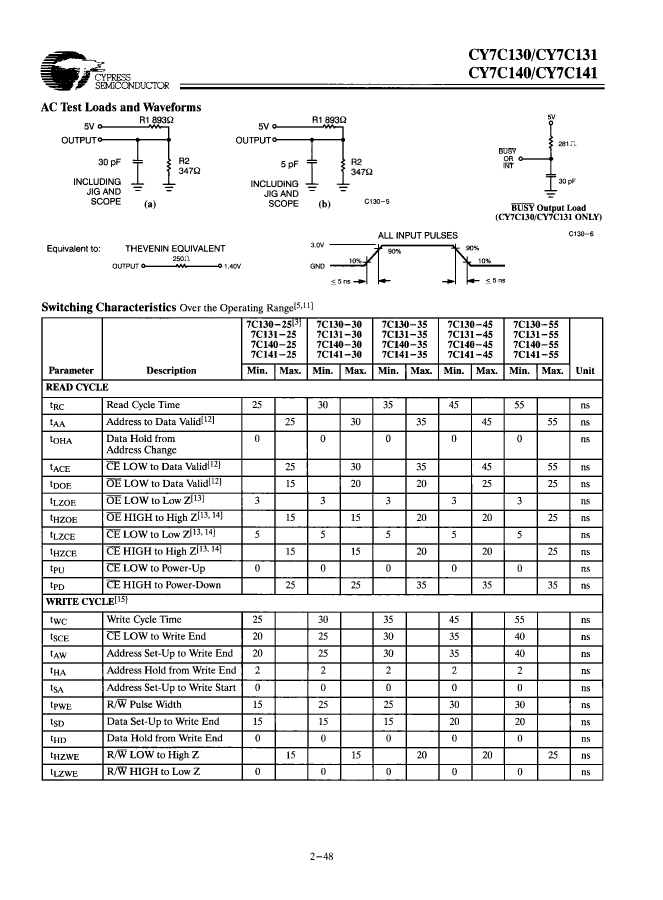

Preview

Download Datasheet

View All

5962-8687504YA Related Products

	5962-8687504YA	5962-8687503YA	5962-8687511YA	SIT9045AMU22-28S-A150.000000D	5962-8687511UA	5962-8687504UA	5962-8687512YA	5962-8687519YA	5962-8687512UA	5962-8687520YA
Description	Multi-Port SRAM, 1KX8, 45ns, CMOS, CQCC48, CERAMIC, LCC-48	Multi-Port SRAM, 1KX8, 55ns, CMOS, CQCC48, CERAMIC, LCC-48	Multi-Port SRAM, 1KX8, 55ns, CMOS, CQCC48, CERAMIC, LCC-48	LVCMOS Output Clock Oscillator, 150MHz Nom, PQFN, 4 PIN	Multi-Port SRAM, 1KX8, 55ns, CMOS, CQFP64, CERAMIC, QFP-64	Multi-Port SRAM, 1KX8, 45ns, CMOS, CQFP64, CERAMIC, QFP-64	Multi-Port SRAM, 1KX8, 45ns, CMOS, CQCC48, CERAMIC, LCC-48	Multi-Port SRAM, 1KX8, 35ns, CMOS, CQCC48, CERAMIC, LCC-48	Multi-Port SRAM, 1KX8, 45ns, CMOS, CQFP64, CERAMIC, QFP-64	Multi-Port SRAM, 1KX8, 35ns, CMOS, CQCC48, CERAMIC, LCC-48
package instruction	QCCN,	QCCN,	QCCN,	PQFN, 4 PIN	QFF,	QFF,	QCCN,	QCCN,	QFF,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	AUTOMATIC POWER-DOWN; INTERRUPT FLAG; ARBITER	AUTOMATIC POWER-DOWN; INTERRUPT FLAG; ARBITER	AUTOMATIC POWER-DOWN; INTERRUPT FLAG	STANDBY; ENABLE/DISABLE FUNCTION	AUTOMATIC POWER-DOWN; INTERRUPT FLAG	AUTOMATIC POWER-DOWN; INTERRUPT FLAG; ARBITER	AUTOMATIC POWER-DOWN; INTERRUPT FLAG	AUTOMATIC POWER-DOWN; INTERRUPT FLAG; ARBITER	AUTOMATIC POWER-DOWN; INTERRUPT FLAG	AUTOMATIC POWER-DOWN; INTERRUPT FLAG
JESD-609 code	e0	e0	e0	e4	e0	e0	e0	e0	e0	e0
Number of terminals	48	48	48	4	64	64	48	48	64	48
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	Nickel/Palladium/Gold (Ni/Pd/Au)	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Maker	Cypress Semiconductor	Cypress Semiconductor	-	-	Cypress Semiconductor	Cypress Semiconductor	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	LCC	LCC	LCC	-	QFP	QFP	LCC	LCC	QFP	LCC
Contacts	48	48	48	-	64	64	48	48	64	48
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	45 ns	55 ns	55 ns	-	55 ns	45 ns	45 ns	35 ns	45 ns	35 ns
JESD-30 code	S-CQCC-N48	S-CQCC-N48	S-CQCC-N48	-	S-CQFP-F64	S-CQFP-F64	S-CQCC-N48	S-CQCC-N48	S-CQFP-F64	S-CQCC-N48
length	14.224 mm	14.224 mm	14.224 mm	-	22.86 mm	22.86 mm	14.224 mm	14.224 mm	22.86 mm	14.224 mm
memory density	8192 bit	8192 bit	8192 bit	-	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit
Memory IC Type	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	-	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM
memory width	8	8	8	-	8	8	8	8	8	8
Number of functions	1	1	1	-	1	1	1	1	1	1
Number of ports	2	2	2	-	2	2	2	2	2	2
word count	1024 words	1024 words	1024 words	-	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words
character code	1000	1000	1000	-	1000	1000	1000	1000	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	1KX8	1KX8	1KX8	-	1KX8	1KX8	1KX8	1KX8	1KX8	1KX8
Output characteristics	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	-	3-STATE	-
Exportable	YES	YES	YES	-	YES	YES	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	-	QFF	QFF	QCCN	QCCN	QFF	QCCN
Package shape	SQUARE	SQUARE	SQUARE	-	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	-	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER	FLATPACK	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9812 mm	1.9812 mm	1.9812 mm	-	2.286 mm	2.286 mm	1.9812 mm	1.9812 mm	2.286 mm	1.9812 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	NO LEAD	-	FLAT	FLAT	NO LEAD	NO LEAD	FLAT	NO LEAD
Terminal pitch	1.016 mm	1.016 mm	1.016 mm	-	1.27 mm	1.27 mm	1.016 mm	1.016 mm	1.27 mm	1.016 mm
Terminal location	QUAD	QUAD	QUAD	-	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14.224 mm	14.224 mm	14.224 mm	-	22.86 mm	22.86 mm	14.224 mm	14.224 mm	22.86 mm	14.224 mm
Base Number Matches	1	1	1	-	1	1	1	-	-	-
