3654-107-18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 3654-107-18

3654-107-18: DescriptionIC Socket, DIP16, 16 Contact(s),; CategoryThe connector socket; File Size142KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric View All

3654-107-18 Overview

IC Socket, DIP16, 16 Contact(s),

3654-107-18 Parametric

Parameter Name	Attribute value
Maker	Aries Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SOCKET ADAPTER
Device slot type	IC SOCKET
Type of equipment used	DIP16
Shell material	GLASS FILLED POLYAMIDE46
Number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

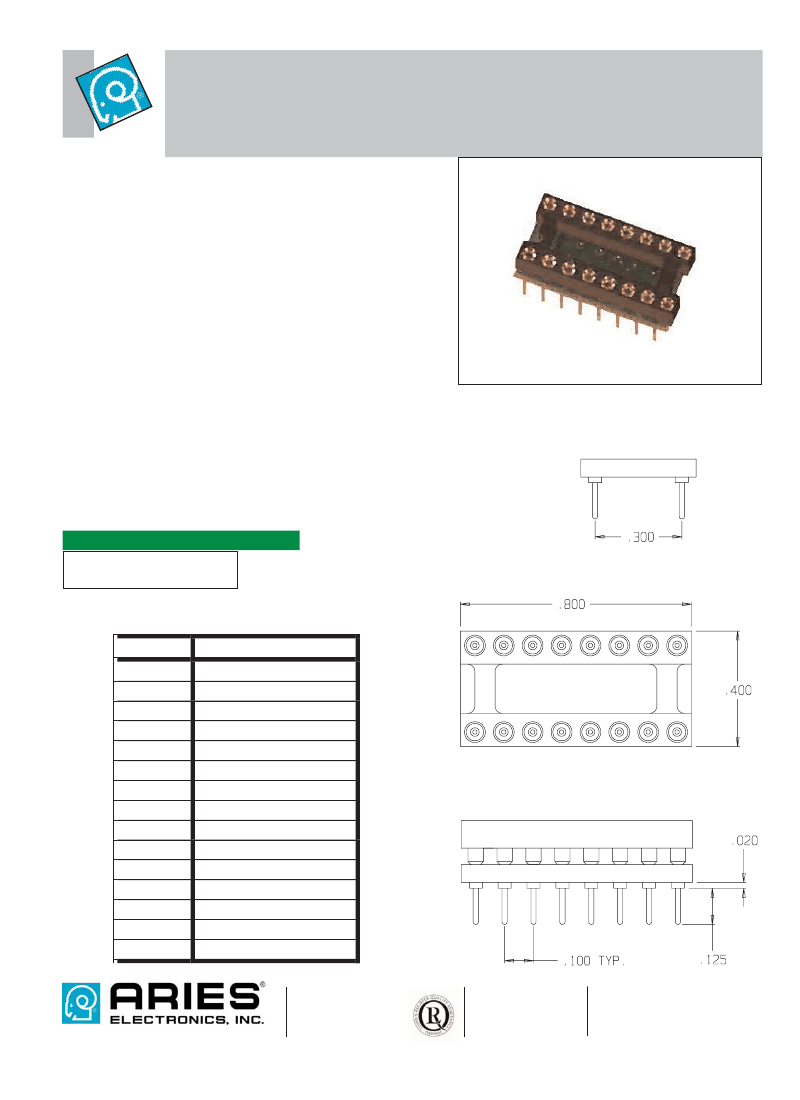

3654-107-18 FORCE 2581RF-MCST

16 PIN DIP PACKAGE TO AT&T ODL200-1352J

FIBER OPTIC RECEIVER CHIP FOOTPRINT

SPECIFICATIONS:

• Female socket material is black UL 94V-0 Glass-filled 4/6

Nylon 170°C continuous use temp.

• PCB is FR-4, .062 [1.56] or .094 [2.39] thick.

• Male pin is Brass Alloy 3601/2 hard per UNS C36000

ASTM-B16-85.

• Male pin plating is 200µ [5.08µm] min. Tin per MIL-T-10727

Type 1 or Tin/Lead 90/10 MIL-P-81728 over 100µ [2.54µm}

Nickel per QQ-N-290.

• Female pin body is Brass Alloy 360 1/2 hard per UNS

C36000 ASTM-B16/85.

• 4-fingered collet contact is Beryllium Copper Alloy per 17200

ASTM-B194-92.

• Contact plating is 10µ [.254µm] min. Gold per MIL-G-45204

over 50µ [1.27µm] min. Nickel per QQ-N-290.

Note: Aries specializes in custom design and production. In addition to the

• Minimum contact current rating=1 Amp @ 5VDC.

standard products shown on this page, special materials, platings, sizes,

• Operating Temperature-221°F [105°C].

and configurations can be furnished, depending on quantities. Aries

• Insertion Force=180 grams/pin; Withdrawal Force=90

reserves the right to change product specifications without notice.

grams/pin; Normal Force=140 grams/pin; based on a .018

[.46]diamter test lead.

• Socket accepts leads .015-.025 [.38-.64] in diameter, .100

-.125 [2.54-3.18] long.

MOUNTING CONSIDERATIONS:

• Standard through holes.

LL DIMENSIONS

INCHES

[

MILLIMETERS

]

All tolerances ± .005 [.13]

unless otherwise specified

PCB

NEW IC

N/C

4,5

1,3,8,9,12,13,14,15,16

4,5

N/C

NORTH AMERICA

Frenchtown, NJ USA

TEL: (908) 996-6841

FAX: (908) 996-3891

UK/IRELAND/GB

TEL: +44 870 240 0249

FAX: +44 1653 690980

uking@arieselec.com

EUROPE/MAINLAND/HOLLAND

TEL: +31 78 615 94 65

FAX: +31 78 615 43 11

18049

europe@arieselec.com

REV. C

http://www.arieselec.com • info@arieselec.com

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
