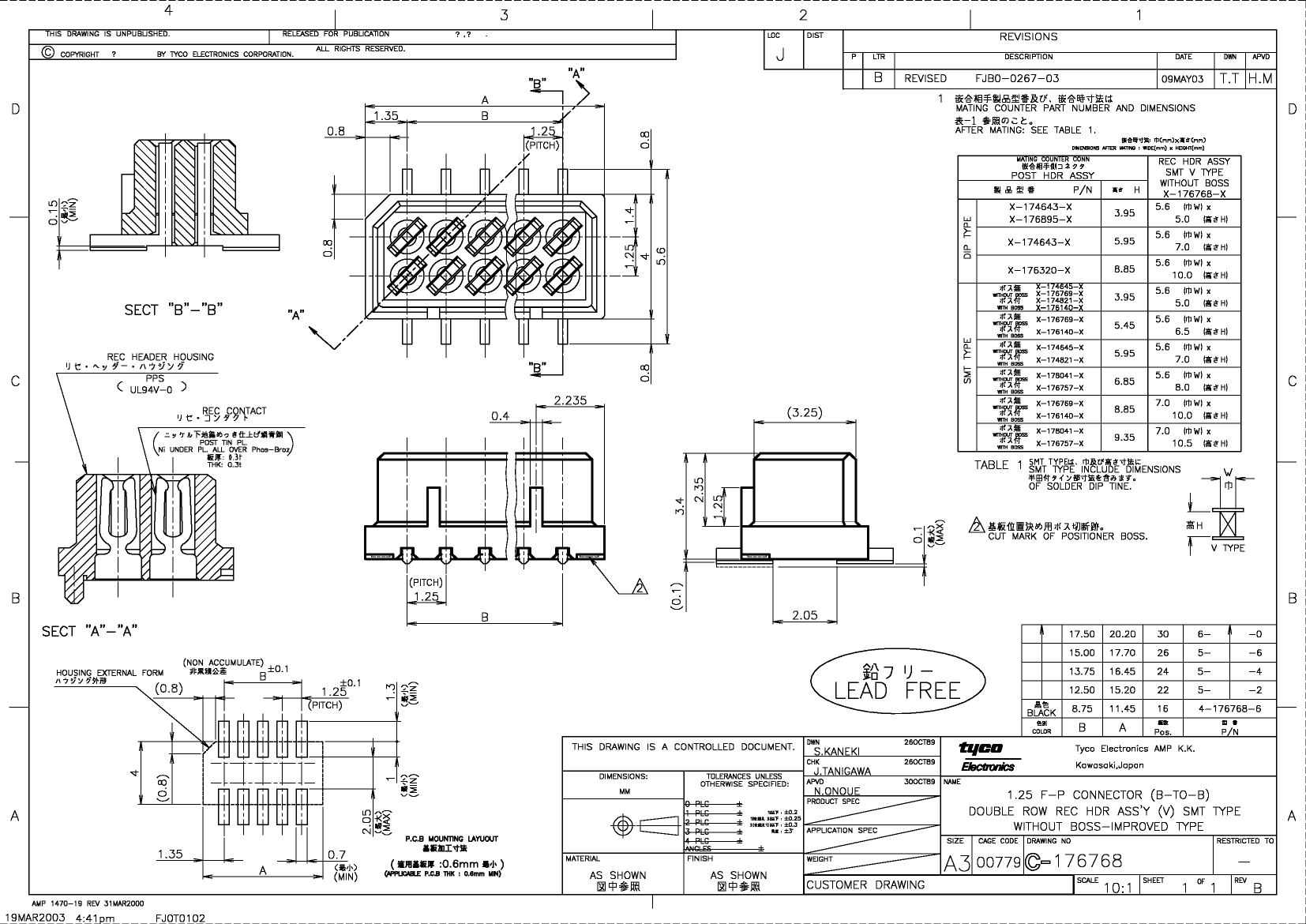

5-176768-6: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,26 CONTACTS,SKT,0.049 PITCH,BLACK; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-176768-6 Overview

HEADER CONNECTOR,PCB MNT,PLUG,26 CONTACTS,SKT,0.049 PITCH,BLACK

5-176768-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	LOOSE PIECE
body width	0.158 inch
subject depth	0.134 inch
body length	0.697 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Dielectric withstand voltage	500VDC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	176768
Plug contact pitch	0.049 inch
Match contact row spacing	0.049 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.0132 mm
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

5-176768-6 Related Products

	5-176768-6	5-176768-4	5-176768-2	6-176768-0
Description	HEADER CONNECTOR,PCB MNT,PLUG,26 CONTACTS,SKT,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,24 CONTACTS,SKT,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,22 CONTACTS,SKT,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,SKT,0.049 PITCH,BLACK
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE
body width	0.158 inch	0.158 inch	0.158 inch	0.158 inch
subject depth	0.134 inch	0.134 inch	0.134 inch	0.134 inch
body length	0.697 inch	0.648 inch	0.598 inch	0.795 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB	SN-PB	SN-PB	SN-PB
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	176768	176768	176768	176768
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch
Match contact row spacing	0.049 inch	0.049 inch	0.049 inch	0.049 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.0132 mm	4.0132 mm	4.0132 mm	4.0132 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm
Total number of contacts	26	24	22	30
Base Number Matches	1	1	1	-
