74FCT38072DCGI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74FCT38072DCGI

74FCT38072DCGI: DescriptionSOIC-8, Tube; Categorylogic logic; File Size184KB，6 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

74FCT38072DCGI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74FCT38072DCGI	-	-	View	Buy Now

74FCT38072DCGI Overview

SOIC-8, Tube

74FCT38072DCGI Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
package instruction	GREEN, SOIC-8
Contacts	8
Manufacturer packaging code	DCG8
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Clock Drivers & Distribution 3.3V 1:2 Clock Driver
series	FCT
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
MaximumI(ol)	0.012 A
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs
Number of terminals	8
Actual output times	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Prop。Delay @ Nom-Sup	3 ns
propagation delay (tpd)	3 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.1 ns
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

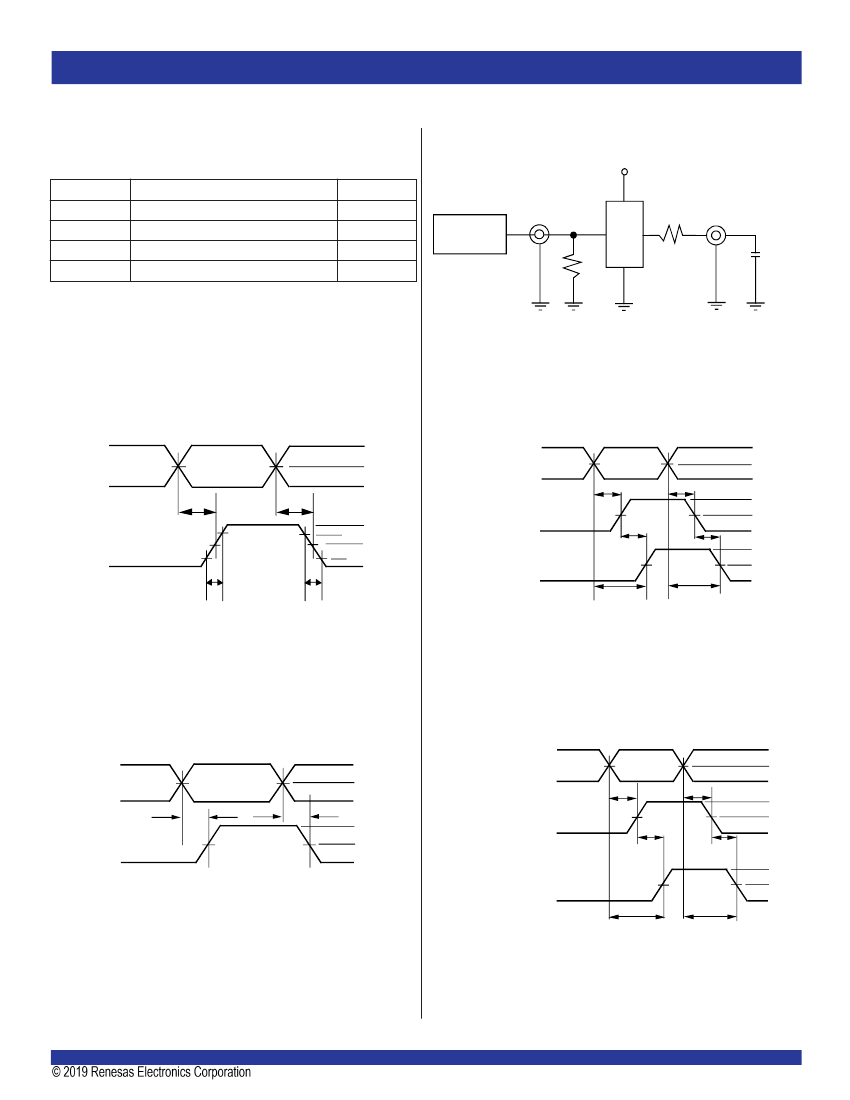

IDT74FCT38072

3.3V CMOS 1-TO-2 CLOCK DRIVER

INDUSTRIAL TEMPERATURE RANGE

3.3V CMOS

1-TO-2 CLOCK DRIVER

IDT74FCT38072

•

FEATURES:

DESCRIPTION:

Advanced CMOS Technology

Guaranteed low skew < 100ps (max.)

Very low duty cycle distortion< 350ps (max.)

High speed propagation delay< 3ns (max.)

Very low CMOS power levels

TTL compatible inputs and outputs

1:2 fanout

Maximum output rise and fall time < 1ns (max.)

Low input capacitance: 3pF typical

= 3.3V ± 0.3V

Inputs can be driven from 3.3V or 5V components

Operating frequency up to 166MHz

Available in SOIC package

The FCT38072 is a 3.3V clock driver built using advanced CMOS

technology. This low skew clock driver offers 1:2 fanout. The large fanout from

a single input reduces loading on the preceding driver and provides an efficient

clock distribution network. Multiple power and grounds reduce noise. Typical

applications are clock and signal distribution.

FUNCTIONAL BLOCK DIAGRAM

PIN CONFIGURATION

GND

SOIC

TOP VIEW

INDUSTRIAL TEMPERATURE RANGE

2004 Integrated Device Technology, Inc.

The IDT logo is a registered trademark of Integrated Device Technology, Inc.

MAY 2010

DSC-6595/5
