2N5194: DescriptionPower Bipolar Transistor, 4A I(C), 60V V(BR)CEO, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-126VAR, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size95KB，1 Pages; ManufacturerSemiconductor Technology Inc

Download Datasheet Parametric Compare View All

2N5194 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N5194	-	-	View	Buy Now

2N5194 Overview

Power Bipolar Transistor, 4A I(C), 60V V(BR)CEO, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-126VAR, 3 PIN

2N5194 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SIP
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	4 A
Collector-emitter maximum voltage	60 V
Configuration	Single
Minimum DC current gain (hFE)	25
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of terminals	3
Maximum operating temperature	140 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	40 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	2 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

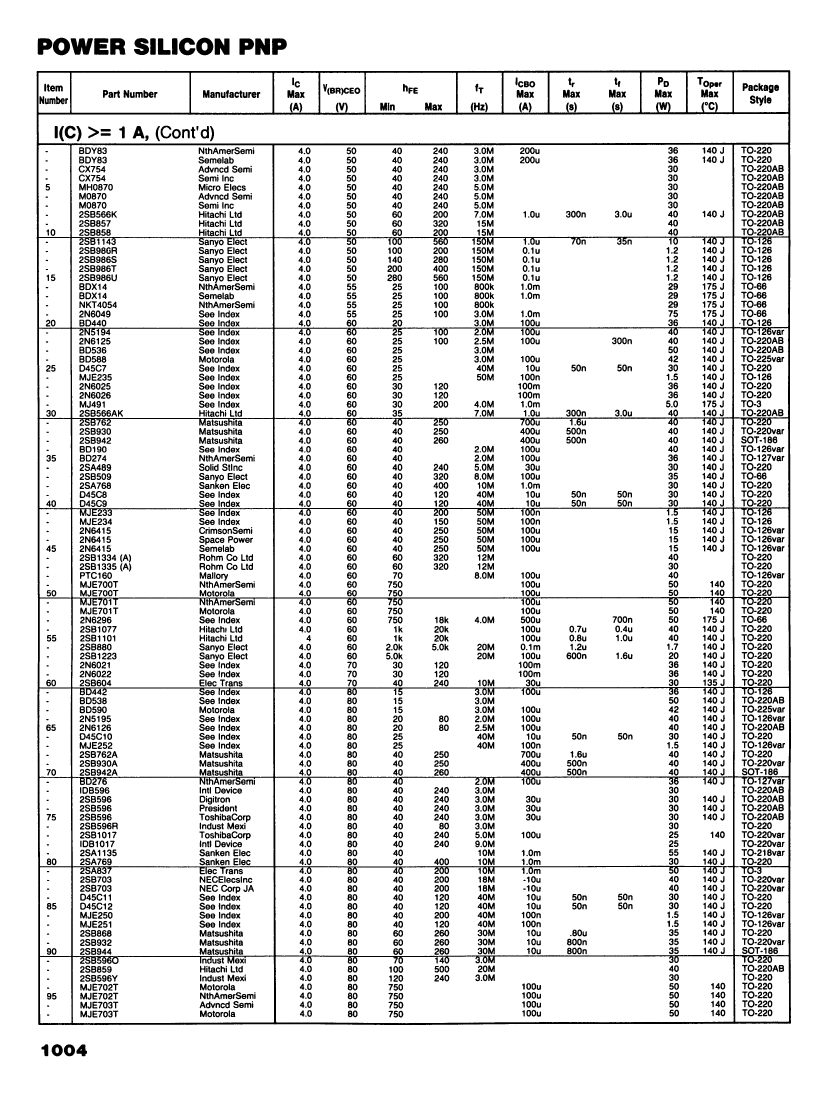

POWER SILICON PNP
