REVISIONS
DESCRIPTION
ECN 3139: UPDATE DWG FORMAT
ECN 99999: REMOVE CONTINUITY NOTE
1
DATE
1/4/08
12/5/08
CHANGED BY
D.GRIFFIN
D.FRISIELLO
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN
PERMISSION OF L-COM, INC. IS PROHIBITED.
D
.50 12.7
.98 25
D
.33±.01 8.5±0.254
.043
(ACCEPT A 0.04" DIAMETER
CENTER CONDUCTOR OF
CABLE
C
.068 1.7
.324 8.2
.610 15.5
.335 8.5
.157 4
C
RECOMMENDED
FERRULE & PIN
CRIMP SIZES
BRAID
CENTER CONDUCTOR
DIELECTRIC
CABLE STRIPPING
DIMENSIONS
B
B
NOTES:
MATERIAL:
BODY: BRASS
FERRULE: BRASS OR COPPER ALLOY
PIN: BRASS
INSULATOR: ACETAL
FINISH:
BODY: NICKEL PLATE
FERRULE: NICKEL PLATE
PIN: GOLD PLATE
A
ELECTRICAL:
IMPEDANCE: 75 OHM
PACKAGING:
INDIVIDUALLY PACKAGE EACH ASSEMBLY UTILIZING APPROPRIATE SIZED BAG
APPLICATION:
RG6 COAXIAL CABLE
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
TOLERANCES TO BE:
.X .1 [2.5]
.XX .01 [.25]
.XXX .005 [.13]
ANGLES 2
APPROVALS
DRAWN BY
C.MCCORMICK
CHECKED BY
D.PARHAM
APPROVED BY
R.CARRICK
DATE
03/30/2001
03/30/2001
PRODUCT DESCRIPTION
03/30/2001
SIZE
CATEGORY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
A
OVERALL CABLE LENGTH TOL:
≤
60 [1524] +3 [76.2] / - 0
> 60 [1524] +5% / -0%
PROJ
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR

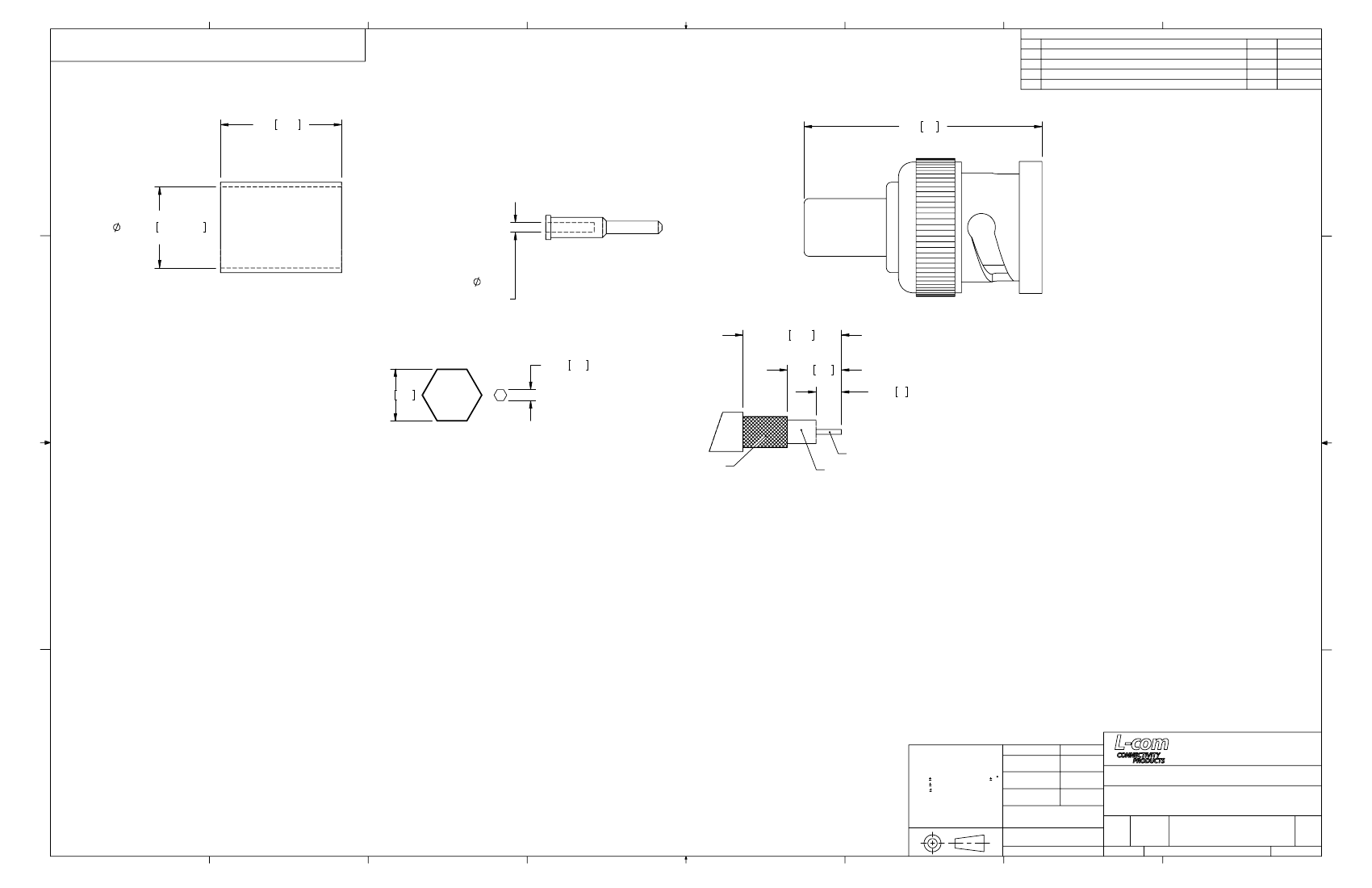

MALE BNC 75 OHM CONNECTOR
B
FSCM NO.
43321
DWG. NO.
REV.
BAC029
1
F
8
7
6
5
4
3
2
SCALE: 1:1
CAD FILE: BAC029.SLDDRW
SHEET 1 OF 1
