HCTS193KMSH datasheet, PDF - EEWORLD Datasheet

HCTS193KMSH: DescriptionBinary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16; Categorylogic logic; File Size277KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

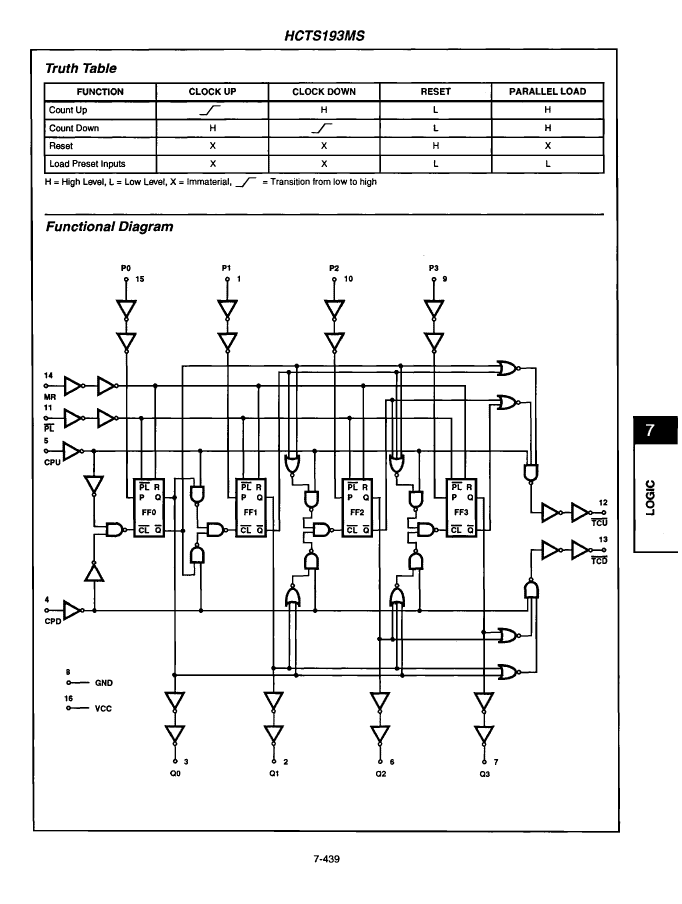

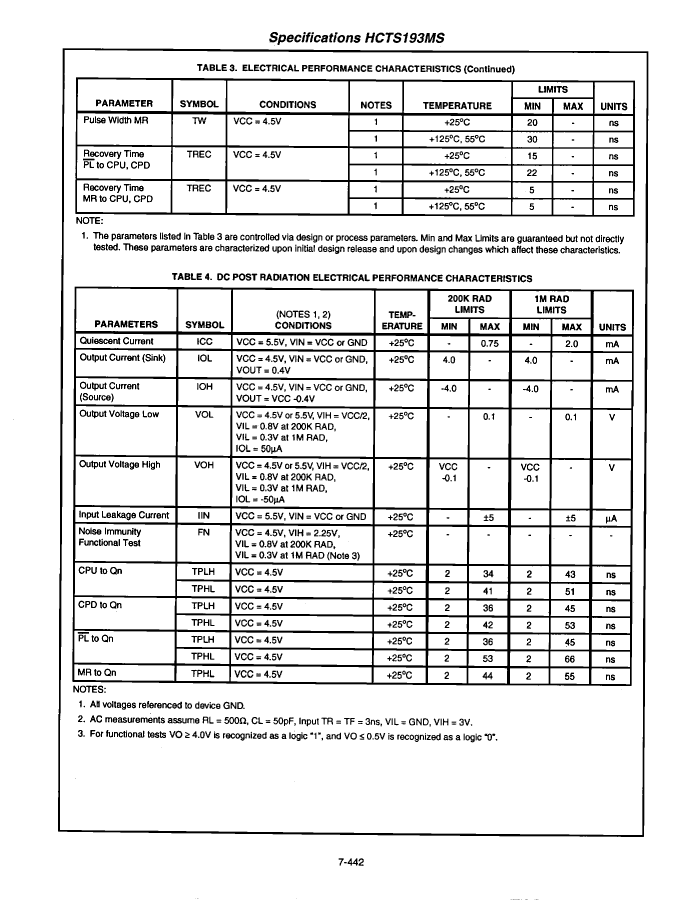

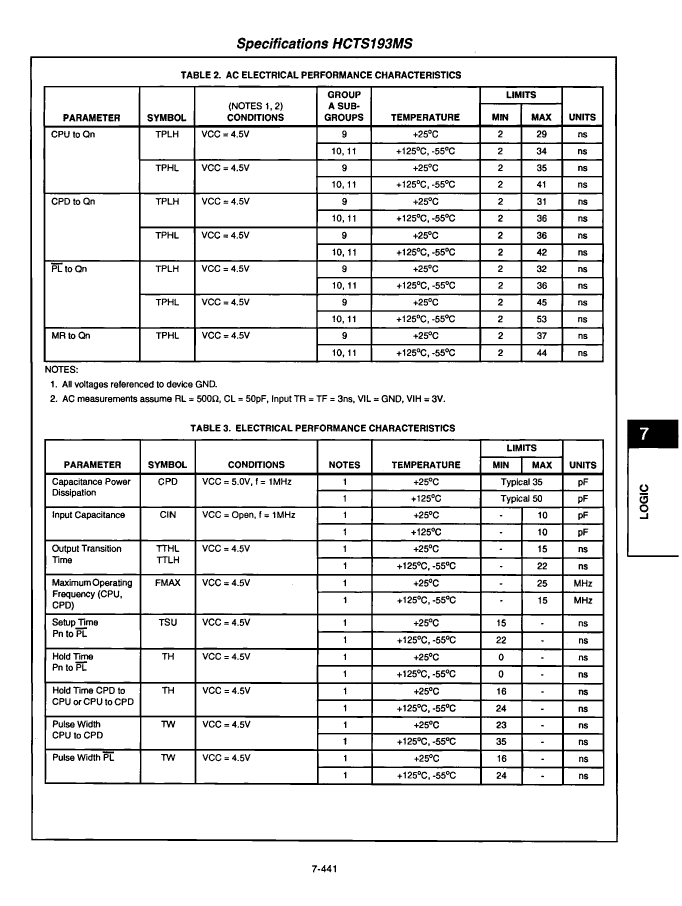

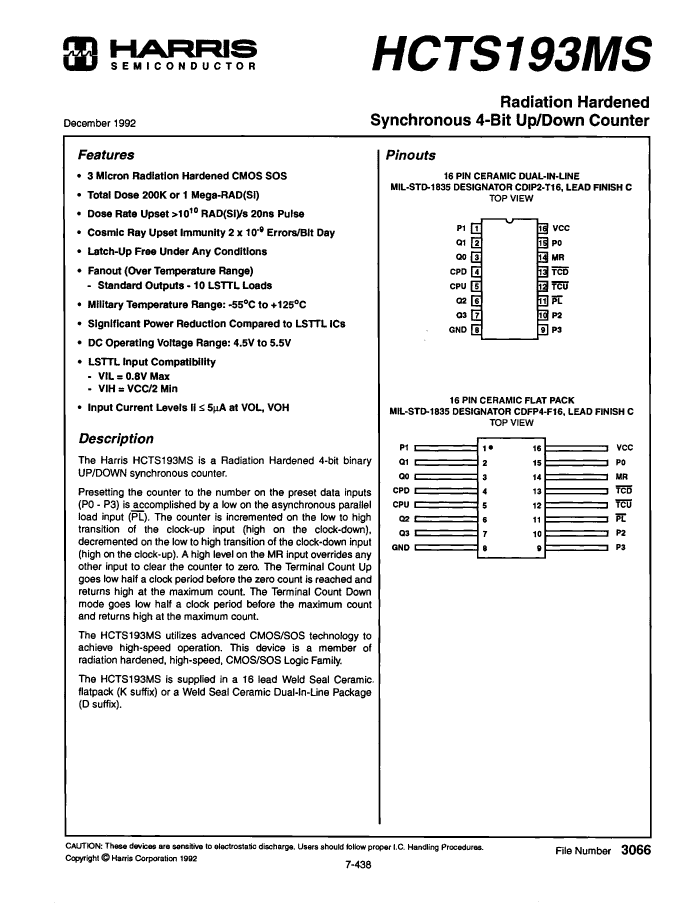

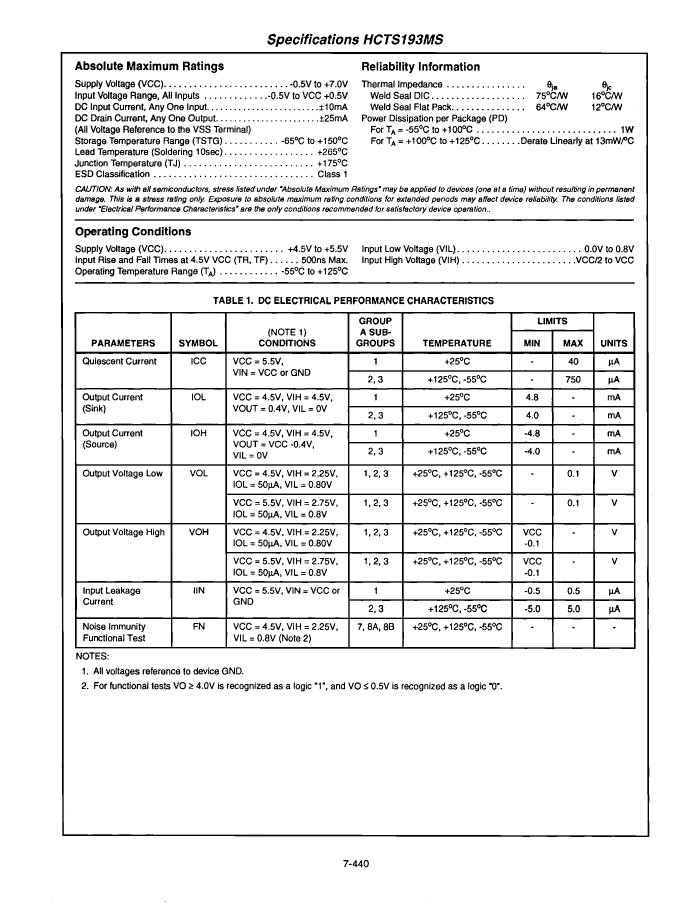

HCTS193KMSH Overview

Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL
series	HCT
JESD-30 code	R-CDFP-F16
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	53 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

	HCTS193KMSH	HCTS193DMSH
Description	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16	Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16
Maker	Harris	Harris
Reach Compliance Code	unknown	unknown
Other features	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK	TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	HCT	HCT
JESD-30 code	R-CDFP-F16	R-CDIP-T16
Load capacitance (CL)	50 pF	50 pF
Load/preset input	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
propagation delay (tpd)	53 ns	53 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1
