03W200A
IC for CD Players
BA5817FM
Description
BA5817FM is a 5-channel motor driver. 4 channels are
BTL drivers and 1 channel is a reversible DC motor driver.
2 channels of BTL driver incorporate standard operational
amplifier in pre-driver. Output voltage can be set by
output voltage control pin in reversible DC motor driver.
Brake function is incorporated.
Dimension (Unit : mm)
18.5
±
0.2
28
15
9.9
±
0.3
7.5
±
0.2
1
5.15
±
0.1
0.8 0.35
±
0.1
0.08
M
16.0
±
0.2
14
0.25
±
0.1
0.11
Features
1) Space saving by power save terminal
2) High-efficient driving due to independent power supply
for Pre Vcc and Pow Tr (CH 2 and CH 1,3,4)
3) Wide dynamic range
4) Built-in thermal shutdown circuit
2.2
±
0.1
0.1 S
HSOP-M28
Applications
CD players, DVD-RW players, Other optical DISC appliances
Absolute Maximum Ratings (Ta=25˚C)
Parameter
Power supply voltage
Power dissipation
Operating temperature range
Storage temperature range
Symbol
PREVcc
POWVcc
Pd
Topr
Tstg
–40
–55
Limits
13.5
2.2
~
~
∗
Unit
V
W
+85
+150
˚C
˚C
∗Derating
: 17.6mW/˚C for operation above Ta=25˚C
∗On
less than 3%(percentage occupied by copper foil), PCB (70mmx70mm, t=1.6mm) glass epoxy mounting.
Recommended Operating Conditions (Ta=25˚C)
Parameter
Power supply voltage
Symbol
PREVcc
POWVcc
Min.
4.3
Typ.
—
Max.
13.2
PREVcc
Unit
V
March, 2004
0.5
±
0.2
(Unless otherwise noted: Ta=25˚C, PREVcc=12V, POWVcc2=12V, POWVcc134=5V, BIAS=1.25V, RL=8Ω)
Parameter
Circuit current at no signal
Current at power save mode
<BTL driver
(CH1)
>
Maximum output amplitude
Voltage gain
<BTL driver
(CH2)
>
Maximum output amplitude
Voltage gain
<BTL driver
(CH3,4)
>
Maximum output amplitude
Voltage gain
<Loading driver>
Output "H" voltage variable gain
GVH
7.4
9.2
11
dB
"H" output vs. input (LDCNT)
∗This
product is not designed for protection against radioactive rays.
Electrical characteristics
Symbol
Icc
IPS
VOM
GVC
VOM
GVC
VOM
GVC
Min.
-
-
3.6
13.2
8.0
18.4
3.6
17.2
Typ.
22.9
1.65
4.0
15.0
9.0
20.2
4.0
19.0
Max.
34
2.8
-
16.8
-
22.0
-
20.8
Unit
mA
mA
V
dB
V
dB
V
dB
Conditions
When no load, RL=∞
PS="L"

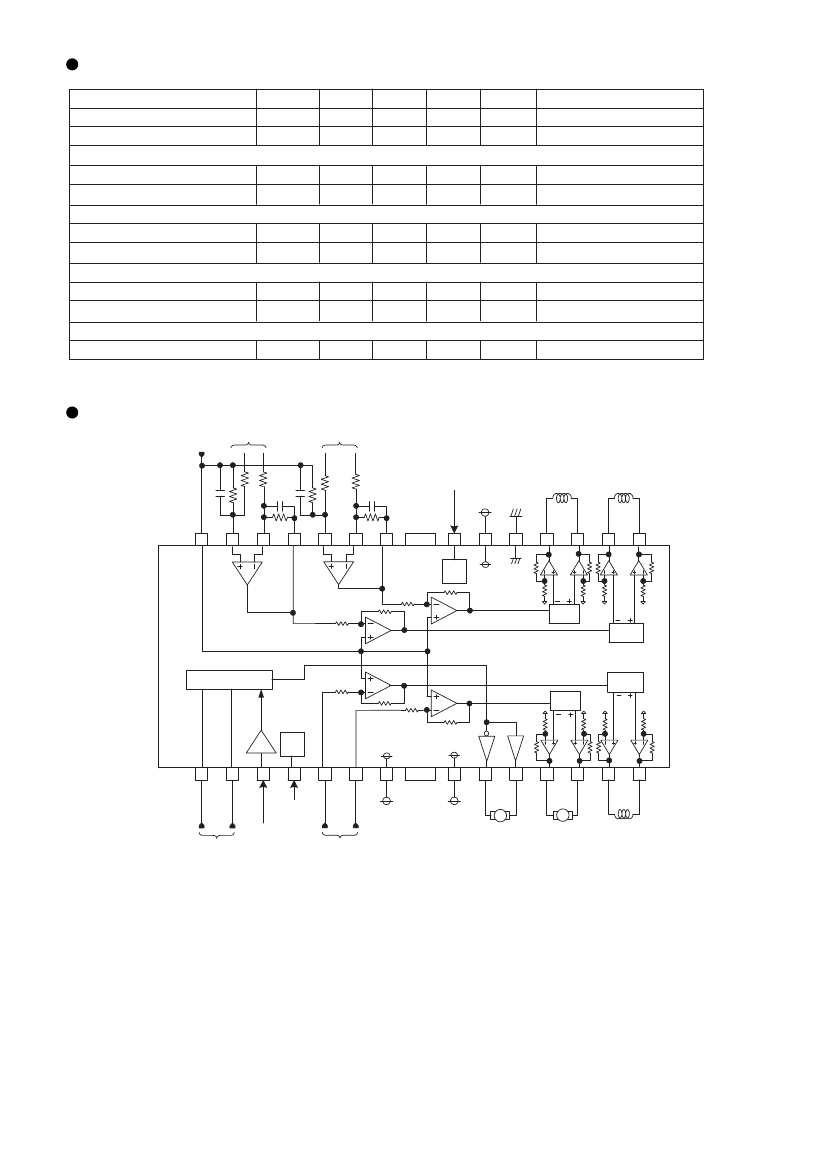

Application Circuit
BIAS
FOCUS IN
TRACKING IN
'L'
→MUTE
MUTE
POWVCC
=5V
TRACKING
TILT
28
27
26
25
24
23
22
21
20
19
18
17
10k
16
10k
15
CH1~
POWVCC134 10k
CH4
MUTE (CH1,CH3,CH4)
10k
10k
10k
10k
7.5k
7.5k
16k
10k
16k
LEVEL
SHIFT
LEVEL
SHIFT
BA5817FM
LOADING PRE
FWD REV
7.5k
10k
6k
POWER
SAVE
LEVEL
SHIFT
LEVEL
SHIFT
15k
10k
10k
10k
10k
X3
1
2
3
(PRE,LOADING)
5
6
7
PREVCC
POWVCC2
(CH2)
10k
8
9
10
11
10k
10k
10k
14
4
12
13
PS
LOADING
VOLTAGE
LOADING
CONTROL
INPUT
PREVCC
=12V
STEPPING
INPUT
POWVCC
=5V
M
LOADING
M
SLED
FOCUS
Appendix
Notes
No technical content pages of this document may be reproduced in any form or transmitted by any
means without prior permission of ROHM CO.,LTD.
The contents described herein are subject to change without notice. The specifications for the
product described in this document are for reference only. Upon actual use, therefore, please request
that specifications to be separately delivered.
Application circuit diagrams and circuit constants contained herein are shown as examples of standard
use and operation. Please pay careful attention to the peripheral conditions when designing circuits
and deciding upon circuit constants in the set.
Any data, including, but not limited to application circuit diagrams information, described herein
are intended only as illustrations of such devices and not as the specifications for such devices. ROHM
CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any
third party's intellectual property rights or other proprietary rights, and further, assumes no liability of
whatsoever nature in the event of any such infringement, or arising from or connected with or related
to the use of such devices.
Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or
otherwise dispose of the same, no express or implied right or license to practice or commercially
exploit any intellectual property rights or other proprietary rights owned or controlled by
ROHM CO., LTD. is granted to any such buyer.
Products listed in this document use silicon as a basic material.
Products listed in this document are no antiradiation design.
The products listed in this document are designed to be used with ordinary electronic equipment or devices
(such as audio visual equipment, office-automation equipment, communications devices, electrical
appliances and electronic toys).
Should you intend to use these products with equipment or devices which require an extremely high level of
reliability and the malfunction of with would directly endanger human life (such as medical instruments,
transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other
safety devices), please be sure to consult with our sales representative in advance.
About Export Control Order in Japan
Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control
Order in Japan.
In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)
on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.
Appendix1-Rev1.0
