BR9529: Description10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size199KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR9529 Overview

10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B

BR9529 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	8.5 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

BR9529 / SBR9529*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 1500.0 MHz

9.5 dB Typical

8.5 dB Min

4.0 dB Typical

8.0 dB Max

20.0 dBm Typical

19.0 dBm Min

39.0 dBm Typical

48.0 dBm Typical

1.5/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-16.0 dB Typical

-15.0 dB Min

12.0 Volts

90.0 mA

-55.0 - 85.0 °C

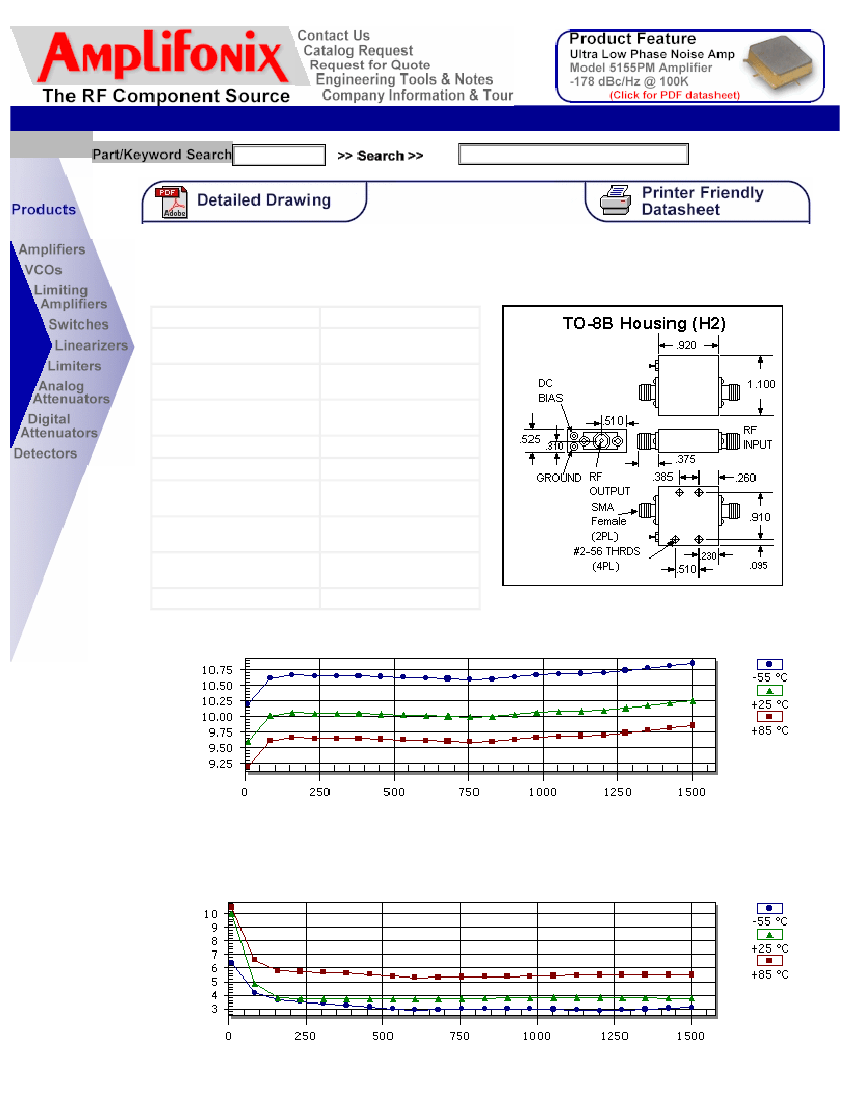

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR9529 Related Products

	BR9529	SBR9529
Description	10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B	10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	8.5 dB	8.5 dB
Maximum input power (CW)	20 dBm	20 dBm
Maximum operating frequency	1500 MHz	1500 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
