Part Number

Search

34310601

Description
Board Connector, 10 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking
CategoryThe connector    The connector
File Size261KB,1 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

34310601 Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking

34310601 Parametric

Parameter NameAttribute value
MakerW+P Products GmbH
Reach Compliance Codecompliant
body width0.165 inch
subject depth0.213 inch
body length0.598 inch
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number343
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts10
Base Number Matches1

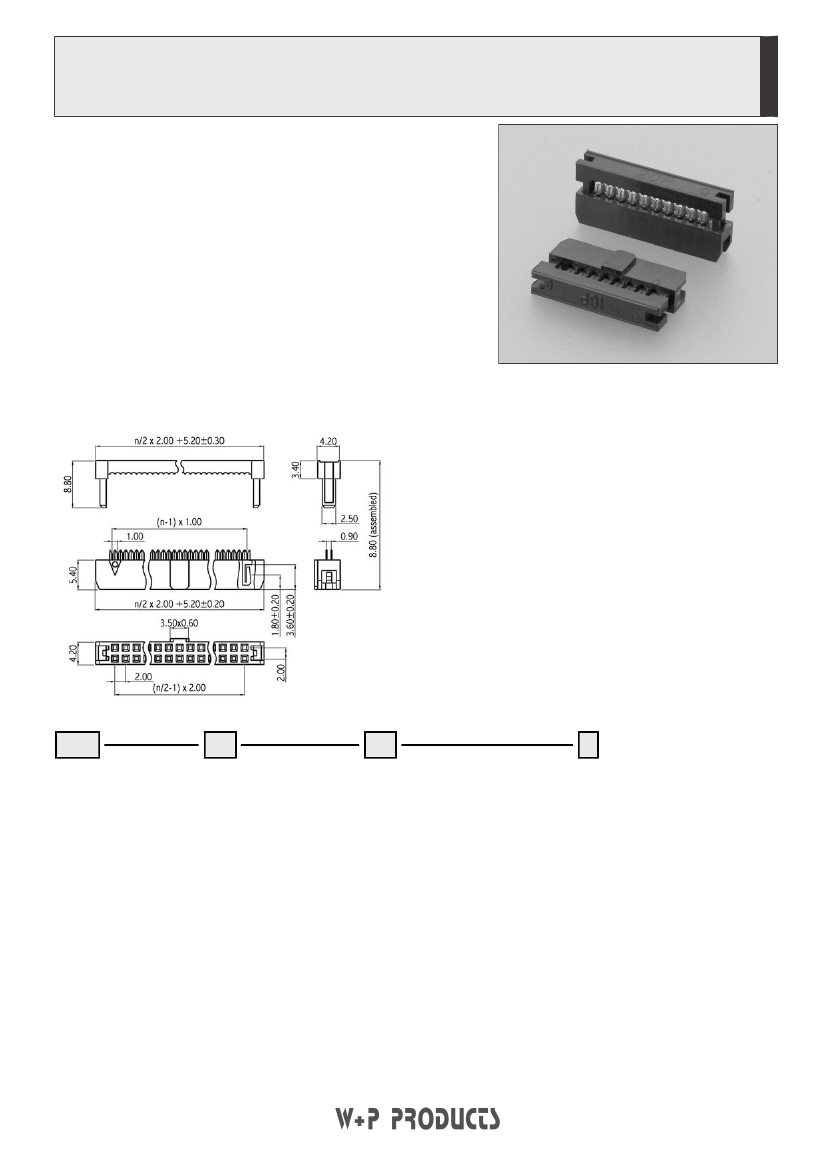

343
IDC Pfostenverbinder RM 2,00mm
IDC Socket Connectors, 2.00mm Pitch
Technische Daten /
Technical Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Kupferlegierung
Contact Material
Copper alloy
Kontaktoberfläche
Lt. Oberflächenoptionen, über Ni
Contact Surface
Acc. to options (see below), over Ni
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
Isolationswiderstand
> 1000MΩ
Insulation Resistance
> 1000MΩ
Spannungsfestigkeit
500V
AC
Test Voltage
500V
AC
Nennstrom
1A
Current Rating
1A
Temperaturbereich
-40°C ... +105°C
Temperature Range
-40°C ... +105°C
© W+P PRODUCTS
Passende Gegenstecker:
Compatible Connectors:
238 634 635 2380 6340 9510
Einsetzbar für Stiftleisten mit Vierkantstiften 0,5mm.
Accept Pin Headers with 0.5mm rectangular pins.
Series
Contacts
*
Plating
Bump (Optional)
343
20
10 12 14 16 18
20 22 24 26 30
32 34 36 40 44
50 60 64 68
60
60
Sel. Au/Sn
Duplex Plating
1
[ ]
Ohne Nase
W/o bump
1
Mit Nase
With bump
* Dies ist ein
Bestellbeispiel
-
bitte durch Ihre Spezifikationen ersetzen.
* This is an
order example
-
please replace by your specifications.
TEL +49 5223 98507-0
FAX +49 5223 98507-50
E-MAIL sales@wppro.com
WEBSITE www.wppro.com
1
