Datasheet
Serial EEPROM Series Standard EEPROM
I
2
C BUS EEPROM (2-Wire)
BR24T512-3AM
General Description
BR24T512-3AM is a serial EEPROM of I
2
C BUS Interface Method
Features
All controls available by 2 ports of serial clock (SCL)
and serial data (SDA)
Other devices than EEPROM can be connected to the
same port, saving microcontroller port
1.7V to 5.5V single power source operation most
suitable for battery use
1.7V to 5.5V wide limit of operating voltage, possible
1MHz operation
Page Write Mode useful for initial value write at factory
shipment
Self-timed Programming Cycle
Low Current Consumption
Prevention of Write Mistake
WP (Write Protect) Function added
Prevention of Write Mistake at Low Voltage
More than 1 million write cycles
More than 40 years data retention
Noise filter built in SCL / SDA terminal
Initial delivery state FFh
AEC-Q100 Grade3 Qualified
Packages
W(Typ) x D(Typ)x H(Max)
TSSOP-B8
3.00mm x 6.40mm x 1.20mm
SOP-J8
4.90mm x 6.00mm x 1.65mm
SOP8
5.00mm x 6.20mm x 1.71mm
Figure.1
Page Write
Page Size
Product number
128 Bytes
BR24T512-3AM
BR24T512-3AM
Capacity
Bit
Format
Type
BR24T512FVT-3AM
512Kbit
64Kx8
BR24T512FJ-3AM
BR24T512F-3AM
1.7V to 5.5V
Power Supply
Voltage
Package
TSSOP-B8
SOP-J8
SOP8
○
Product structure：Silicon monolithic integrated circuit
○This
product has no designed protection against radioactive rays
.
www.rohm.com
TSZ02201-0GFG0G100420-1-2
© 2016 ROHM Co., Ltd. All rights reserved.
1/29
15.Jul.2016 Rev.001
TSZ22111・14・001
BR24T512-3AM
Absolute Maximum Ratings (Ta=25°C)
Parameter
Supply Voltage
Storage Temperature
Operating Temperature
Input Voltage /
Output Voltage
Junction
Temperature
Electrostatic Discharge
Voltage
(Human Body Model)
Symbol
Vcc
Tstg
Topr
‐
Tjmax
V
ESD
Rating
-0.3 to +6.5
-65 to +150
-40 to +85
-0.3 to Vcc+1.0
150
-4000 to +4000
Unit
V
°C
°C
V
°C
V
Remark
Datasheet
The Max value of Input voltage/Output voltage is not over 6.5V.
When the pulse width is 50ns or less, the Min value of Input
voltage/Output voltage is not lower than -1.0V.
Junction temperature at the storage condition
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over
the absolute maximum ratings.
Thermal Resistance
(Note1)
Parameter
TSSOP-B8
Junction to Ambient
Junction to Top Characterization Parameter
(Note2)
SOP-J8
Junction to Ambient
Junction to Top Characterization Parameter
(Note2)
SOP8
Junction to Ambient
Junction to Top Characterization Parameter
(Note2)
θ
JA
Ψ
JT
197.4
21
109.8
19
°C/W
°C/W
θ
JA
Ψ
JT
149.3
18
76.9
11
°C/W
°C/W
θ
JA
Ψ
JT
251.9
31
152.1
20
°C/W
°C/W
Symbol
Thermal Resistance (Typ)
1s
(Note3)
2s2p
(Note4)
Unit
(Note1)Based on JESD51-2A(Still-Air)
(Note2)The thermal characterization parameter to report the difference between junction temperature and the temperature at the top center of the outside
surface of the component package.
(Note3)Using a PCB board based on JESD51-3.
Layer Number of
Measurement Board
Single
Top
Copper Pattern
Footprints and Traces
Layer Number of
Measurement Board
4 Layers
Top
Copper Pattern
Footprints and Traces
Material
FR-4
Thickness
70μm
Board Size
114.3mm x 76.2mm x 1.57mmt
(Note4)Using a PCB board based on JESD51-7.
Material
FR-4
Thickness
70μm
Board Size
114.3mm x 76.2mm x 1.6mmt
2 Internal Layers
Copper Pattern
74.2mm x 74.2mm
Thickness
35μm
Bottom
Copper Pattern
74.2mm x 74.2mm
Thickness
70μm
Memory Cell Characteristics (Ta=25°C, V
CC
=1.7V to 5.5V)
Parameter
Write Cycles
(Note1)
Data Retention
(Note1)
(Note1) Not 100% TESTED
Limit
Min
Typ
1,000,000
-
40
-
Max
-
-
Unit
Times
Years
Recommended Operating Ratings
Parameter
Power Source Voltage
Input Voltage
Bypass Capacitor
Symbol
Vcc
V
IN
C
Rating
Min
1.7
0
0.1
Max
5.5
Vcc
-
Unit
V
μF
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/29
TSZ02201-0GFG0G100420-1-2
15.Jul.2016 Rev.001
BR24T512-3AM
DC Characteristics (Unless otherwise specified, Ta=-40°C to +85°C, Vcc =1.7V to 5.5V)
Parameter
Input High Voltage1
Input Low Voltage1
Output Low Voltage1
Output Low Voltage2
Input Leakage Current
Output Leakage Current
Supply Current (Write)
Supply Current (Read)
Standby Current
Symbol
V
IH1
V
IL1
V
OL1
V
OL2
I
LI
I
LO
I
CC1
I
CC2
I
SB
Limit
Min
0.7Vcc
-0.3
(Note1)
-
-
-1
-1
-
-
-
Typ
-
-
-
-
-
-
-
-
-
Max
Vcc+1.0
+0.3Vcc
0.4
0.2
+1
+1
4.5
2.0
3.0
Unit
V
V
V
V
μA
μA
mA
mA
μA
I
OL
=3.0mA,
2.5V≦Vcc≦5.5V (SDA)
I
OL
=0.7mA,
1.7V≦Vcc＜2.5V (SDA)
V
IN
=0 to Vcc
V
OUT
=0 to Vcc (SDA)
Vcc=5.5V,f
SCL
=1MHz, t
WR
=5ms,
Byte Write, Page Write
Vcc=5.5V,f
SCL
=1MHz
Random Read, Current Read,
Sequential Read
Vcc=5.5V, SDA,SCL=Vcc
A0,A1,A2=GND,WP=GND
Conditions
Datasheet
(Note1) When the pulse width is 50ns or less, it is -1.0V.
AC Characteristics (Unless otherwise specified, Ta=-40°C to +85°C, Vcc=1.7V to 5.5V)
Parameter
Clock Frequency
Data Clock “HIGH“ Period
Data Clock “LOW“ Period
SDA, SCL (INPUT) Rise Time
SDA, SCL (INPUT) Fall Time
SDA (OUTPUT) Fall Time
Start Condition Hold Time
Start Condition Setup Time
Input Data Hold Time
Input Data Setup Time
Output Data Delay Time
Output Data Hold Time
Stop Condition Setup Time
Bus Free Time
Write Cycle Time
Noise Spike Width (SDA, SCL)
WP Hold Time
WP Setup Time
WP High Period
(Note2) Not 100% tested
(Note2)
(Note2)
Symbol
f
SCL
t
HIGH
t
LOW
t
R
t
F1
t
F2
t
HD:STA
t
SU:STA
t
HD:DAT
t
SU:DAT
t
PD
t
DH
t
SU:STO
t
BUF
t
WR
t
I
t
HD:WP
t
SU:WP
t
HIGH:WP
Limit
Min
-
0.30
0.5
-
-
-
0.25
0.20
0
50
0.05
0.05
0.25
0.5
-
-
1.0
0.1
1.0
Typ
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Max
1000
-
-
0.12
0.12
0.12
-
-
-
-
0.45
-
-
-
5
0.05
-
-
-
Unit
kHz
µs
µs
µs
µs
µs
µs
µs
ns
ns
µs
µs
µs
µs
ms
µs
µs
µs
µs
(Note2)
AC Characteristics Condition
Parameter
Load Capacitance
SDA, SCL (INPUT) Rise Time
SDA, SCL (INPUT) Fall Time
Input Data Level
Input/Output Data Timing Reference Level
Symbol
C
L
t
R
t
F1
V
IL1
/V
IH1
-
Conditions
100
20
20
0.2Vcc/0.8Vcc
0.3Vcc/0.7Vcc
Unit
pF
ns
ns
V
V
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/29
TSZ02201-0GFG0G100420-1-2
15.Jul.2016 Rev.001
BR24T512-3AM

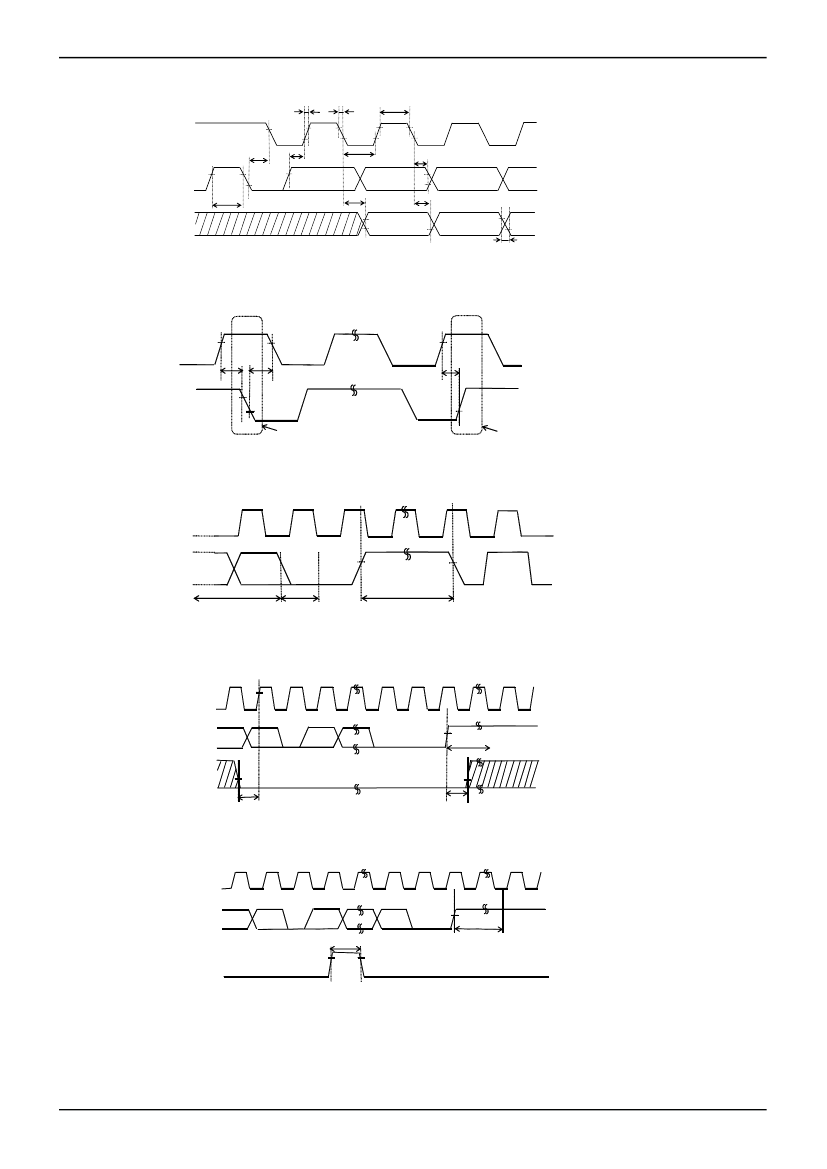

Serial Input / Output Timing
tR
SCL
tHD:STA
70%
70%
30%
70%
70%
30%
70% 70%
30%
Datasheet
tF1
tHIGH
70%
30%
70%
30%
tLOW
tSU:DAT
tHD:DAT
70%
30%
SDA
(入力)
(INPUT)
SDA
tBUF
tPD
70%
30%
tDH
70%
30%
30%
(OUTPUT)
(出力)
(1) Input read at the rise edge of SCL
(2) Data output in sync with the fall of SCL
tF2
Figure 2-(a). Serial Input / Output Timing
SCL
70%
70%
70%
tSU:STA
tHD:STA
70%
30%
tSU:STO
SDA
30%
START CONDITION
STOP CONDITION
Figure 2-(b). Start-Stop Bit Timing
SCL
SDA
D0
write data
(n-th address)
ACK
70%
70%
tWR
STOP CONDITION
START CONDITION
Figure 2-(c). Write Cycle Timing
SCL
70%
DATA(1)
DATA(n)
ACK
ACK
70%
SDA
D1
D0
tWR
WP
30%
30%
tSU:WP
tHD:WP
STOP CONDITION
Figure 2-(d). WP Timing at Write Execution
SCL
DATA(1)
DATA(n)
ACK
tHIGH:WP
ACK
70%
SDA
D1
D0
tWR
70%
WP
70%
Figure 2-(e). WP Timing at Write Cancel
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
4/29
TSZ02201-0GFG0G100420-1-2
15.Jul.2016 Rev.001
BR24T512-3AM
Block Diagram
A0
1
512Kbit
EEPROM
Array
8bit
Address
Decoder
Word
Address Register
Data
Register
Datasheet
8
VCC
A1
2
16bit
7
WP
START
STOP
A2 3
Control Circuit
ACK
6
SCL
GND 4
High Voltage
Generating Circuit
Power Source
Voltage Detection
5
SDA
Figure 3. Block Diagram
Pin Configuration
(TOP VIEW)
A0
A1
A2
GND
1
2
3
4
1
1
1
1
BR24T512-3AM
8 VCC
1
1
1
1
7
WP
6 SCL
5 SDA
Pin Descriptions
Terminal
Number
1
2
3
4
5
6
7
8
Terminal
Name
A0
A1
A2
GND
SDA
SCL
WP
VCC
Input/
Output
Input
Input
Input
-
Input/
Output
Input
Input
-
Descriptions
Slave address setting
(Note1)
Slave address setting
(Note1)
Slave address setting
(Note1)
Reference voltage of all input / output, 0V
Serial data input serial data output
Serial clock input
Write protect terminal
Connect the power source
(Note1) A0,A1 and A2 are not allowed to use as open.
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/29
TSZ02201-0GFG0G100420-1-2
15.Jul.2016 Rev.001
