APT3216YD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> APT3216YD

APT3216YD: DescriptionSINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm; CategoryLED optoelectronic/LED photoelectric; File Size202KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com

Download Datasheet Parametric Compare View All

APT3216YD Overview

SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm

APT3216YD Parametric

Parameter Name	Attribute value
Maker	Kingbright
package instruction	3.20 X 1.60 MM, 0.75 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	8.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.75 mm
method of packing	TAPE
peak wavelength	590 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	120 deg

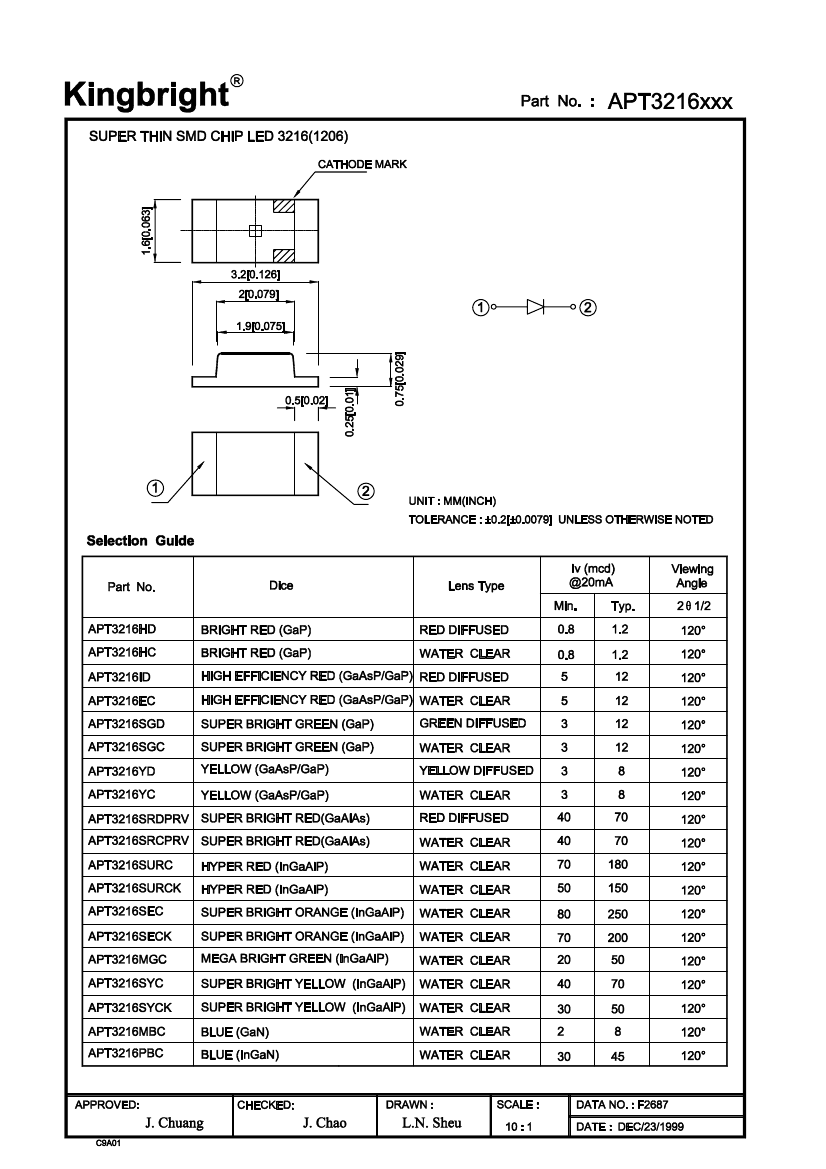

Preview

Download Datasheet

View All

APT3216YD Related Products

	APT3216YD	APT3216	APT3216HC	APT3216HD	APT3216ID	APT3216SGD	APT3216SRDPRV
Description	SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm	SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm	SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm	SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm	SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm	SINGLE COLOR LED, SUPER BRIGHT GREEN, 2 mm	SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm
color	YELLOW	HIGH EFFICIENCY RED	BRIGHT RED	BRIGHT RED	HIGH EFFICIENCY RED	SUPER BRIGHT GREEN	SUPER BRIGHT RED
Lens type	DIFFUSED	WATER CLEAR	WATER CLEAR	DIFFUSED RED	DIFFUSED RED	DIFFUSED GREEN	DIFFUSED RED
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 Cel	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
peak wavelength	590 nm	627	700 nm	700 nm	625 nm	565 nm	660 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Maker	Kingbright	-	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright
package instruction	3.20 X 1.60 MM, 0.75 MM HEIGHT, SMD, 2 PIN	-	3.20 X 1.60 MM, 0.75 MM HEIGHT, SMD, 2 PIN	3.20 X 1.60 MM, 0.75 MM HEIGHT, SMD, 2 PIN	3.20 X 1.60 MM, 0.75 MM HEIGHT, SMD, 2 PIN	3.20 X 1.60 MM, 0.75 MM HEIGHT, SMD, 2 PIN	3.20 X 1.60 MM, 0.75 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compli	-	compli	compli	compli	compli	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	-	0.025 A	0.025 A	0.03 A	0.025 A	0.03 A
Nominal luminous intensity	8.0 mcd	-	1.2 mcd	1.2 mcd	12.0 mcd	15.0 mcd	70.0 mcd
Optoelectronic device types	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.75 mm	-	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm
method of packing	TAPE	-	TAPE	TAPE	TAPE	TAPE AND REEL	TAPE AND REEL
surface mount	YES	-	YES	YES	YES	YES	YES
Terminal pitch	3.75 mm	-	3.75 mm	3.75 mm	3.75 mm	3.75 mm	3.75 mm
perspective	120 deg	-	120 deg	120 deg	120 deg	120 deg	120 deg
