BCM2002X
PRODUCT
®
Brief
O F
B E N E F I T S
BCM2002X 2.4 GHZ BLUETOOTH
TM
FRAC-N RADIO
B C M 2 0 0 2 X
F E AT U R E S
S U M M A R Y
•
BQB qualified Bluetooth V1.1 radio transceiver
frequency generation
•
•
Fractional-N
13, 19.2, 19.68, or 19.8 MHz reference
Supports 12,
•
Differential RF interface
•
Typical -80 dBm receiver sensitivity under high
interference environments
•
Typical +3 dBm RF output power satisfied
requirements for Class 2 operation
•
•
Strong spurious emissions performance
integration
Minimal filtering required to meet mobile phone
blocking performance
•
•
Excellent
filtering required to meet mobile phone integration
Minimal
requirements
requirements
frequencies
•
Ideal for mobile phone integration
• Designed to handle the very harsh environment of mobile
phones while maintaining high radio performance and
optimizing overall phone performance.
• In-band and out-of-band blocking performance significantly
exceeds Bluetooth requirements.
• Fractional-N frequency generation technology eliminates the
need for a dedicated reference crystal, which is an additional
source of RF noise.
Monolithic implementation in a standard digital
•
CMOS process with minimal external components
•
•
•
Highly linear receiver exceeds Bluetooth specifications
Meets FCC
•
RF filtering radiated emissions requirements without
or shielding
•
Low power consumption
•
Built-in digital RSSI
•
Programmable PA gain
•
8mm x 8mm, 52-pin LPCC standard package
•
• GSM, CDMA, GPRS, and WCDMA mobile phones
provides a manufacturable low-cost Bluetooth RF/IF
solution.
On-chip auto-calibration eliminates process variation
across components and mitigates temperature
variation, enabling the chips to be used in high-volume
mobile phone applications.
The BlueRF RXMODE2 unidirectional baseband
interface supports connection to a wide variety of
baseband devices.
Applications:

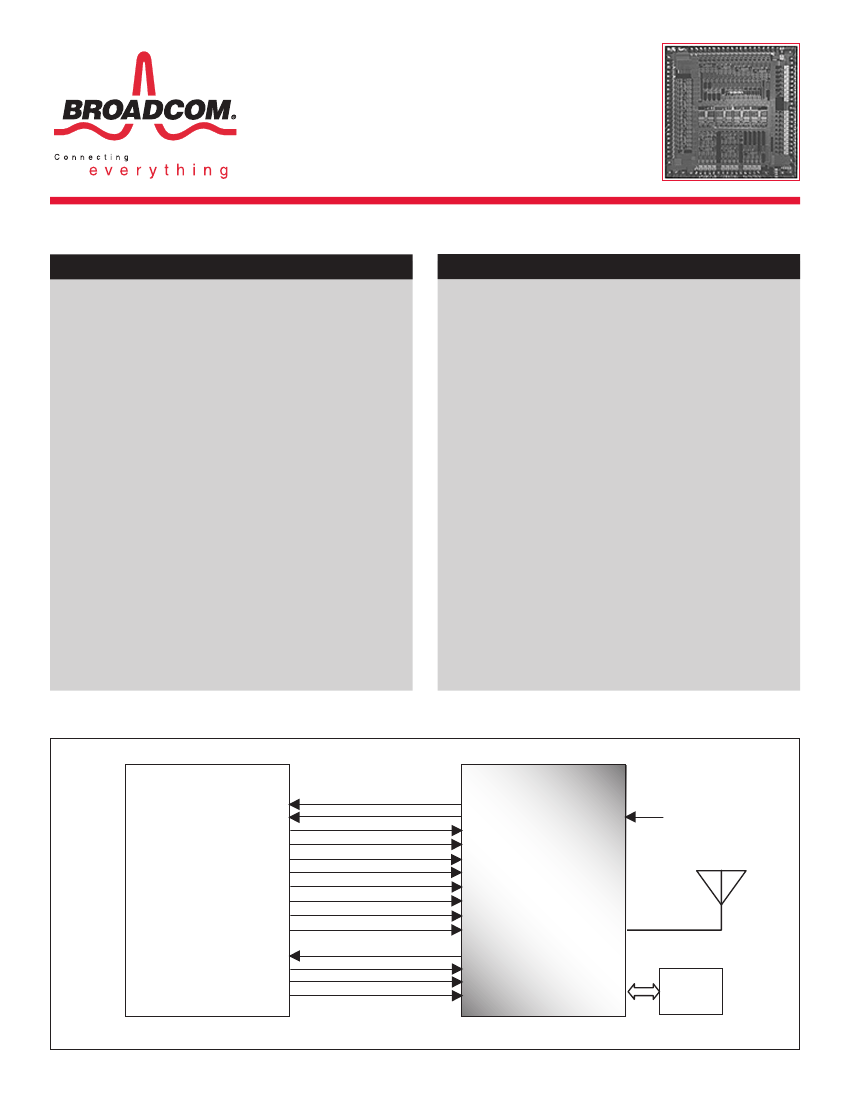

BCM2002X BlueRF Frac-N Radio Application Example
BRCLK
BRXD
BTXD
BPKTCTRL
BPAEN
BRXEN
TX CLK
FSK D
TX D
SL CTR L
PA RAMP
RX PU
TX PU
SYNTH PU
XTAL PU
BPWR
SRI DO
SRI DI
SRI C
SRI E
Ext Clk
(from Mobile Phone)
Baseband
Device
BTXEN
BSEN
BXTLEN
BnPWR
BMISO
BMOSI
BOCLK
BnDEN
BCM2002X
Loop
Filters
B C M 2 0 0 2 X
O V E R V I E W
BCM2002X Functional Block Diagram
RF Input
Demodulator
Bit Slicer
Digital Output
LO
Generation
Frac-N PLL
Loop
Filter
RF Output
Modulator
Digital Input
Control I/F
(BlueRF)
Calibration
Control
Interface
The
BCM2002X
is a Bluetooth 1.1 compliant integrated radio
transceiver device operating in the 2.4 GHz band. It is ideal for
integration in mobile phone applications where the radio has
been designed to handle the harsh environments of mobile
phones to provide the highest communication link quality of
service.
The
BCM2002X
uses fractional-N frequency generation
technology to synthesize the different reference frequencies for
mobile phone applications. The fractional-N technology
eliminates the need for a dedicated reference crystal, which
lowers BOM cost and eliminates an additional RF noise source.
The receiver front-end consists of a low-noise amplifier and an
image reject mixer. Balanced mixer structures fed by accurate
quadrature LO signals allow an excellent noise figure and strong
image rejection.
A low IF frequency allows for high performance amplifier and
filter designs in CMOS. The bandpass filter structure features
self-calibration circuitry that automatically adjusts circuit
elements to compensate for any process variation. This
eliminates tuning and ensures that process and temperature
variation are uniform across the devices. The IF amplifiers
provide a limiting function so that the following stages always
get a constant signal level regardless of the RF input level. An
RSSI signal is also generated in these amplifiers for the system
to determine signal strength. The signal is then filtered further,
demodulated, and finally sent to a bit slicer to generate logic
level data output.
The
BCM2002X
is controlled via a BlueRF unidirectional
interface. BlueRF is a Bluetooth industry-standard specification
that provides compatibility between Bluetooth RF and baseband
chips. This interface provides control for the various sections of
the chip, defines data transfers and allows access to the various
internal registers of the device.
