68ZR-10D Overview

RESISTOR, VOLTAGE DEPENDENT, 56 V, 6.5 J, THROUGH HOLE MOUNT, RADIAL LEADED

Parameter Name	Attribute value
Maker	Hokuriku
package instruction	,
Reach Compliance Code	unknown
Circuit maximum DC voltage	56 V
Circuit RMS maximum voltage	40 V
Maximum energy absorption capacity	6.5 J
Manufacturer's serial number	ZR
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Package shape	DISK PACKAGE
Rated power dissipation(P)	0.05 W
Resistor type	VARISTOR
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Base Number Matches	1

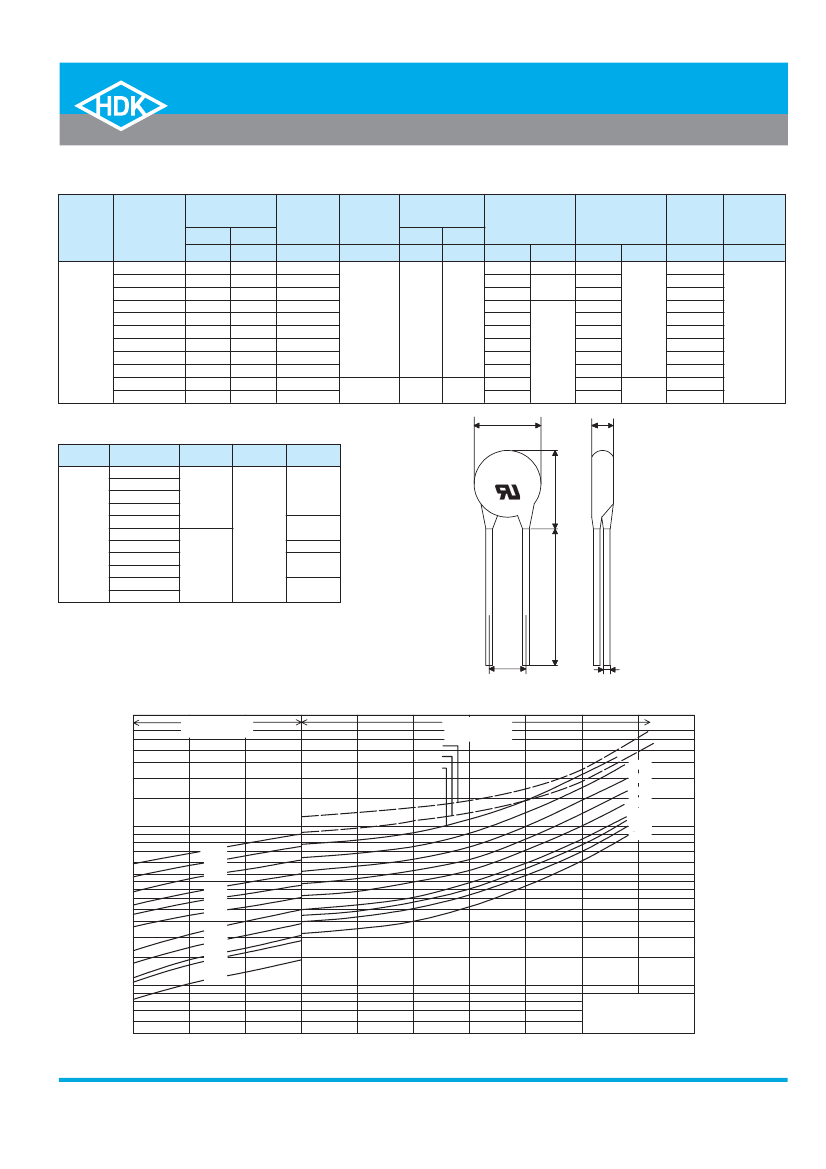

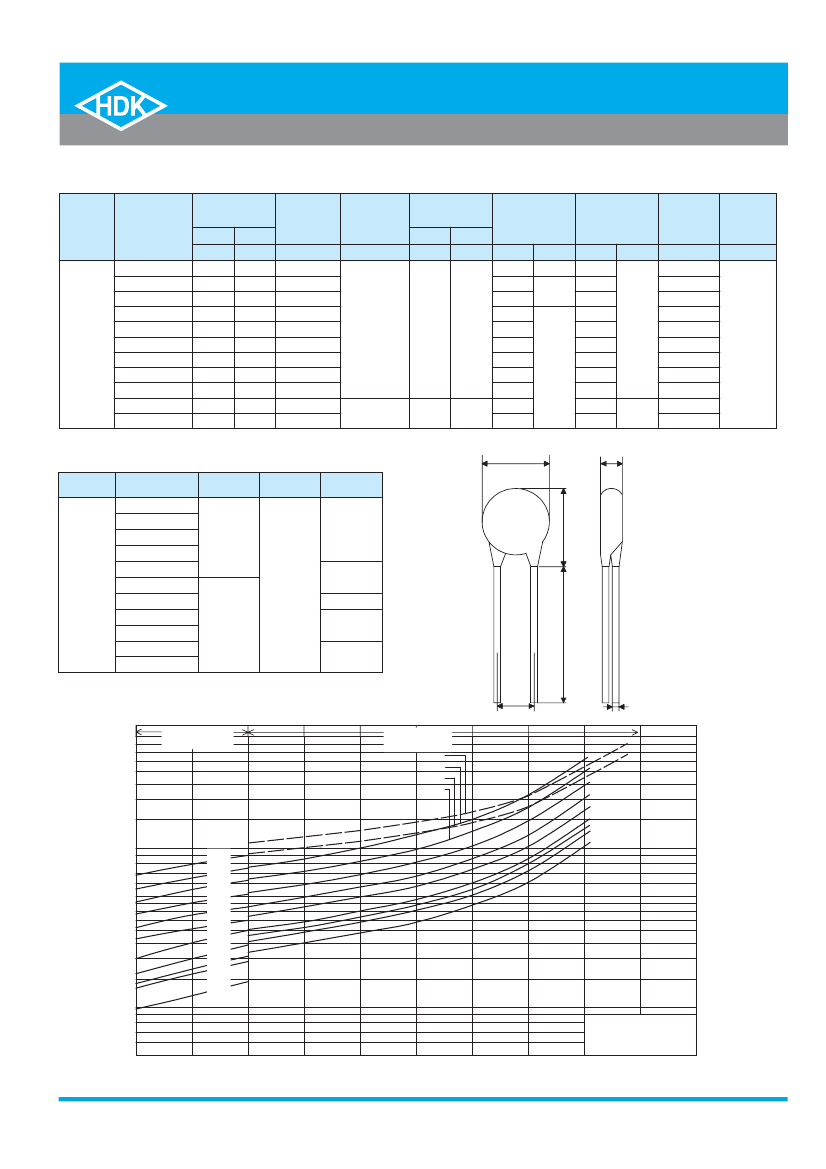

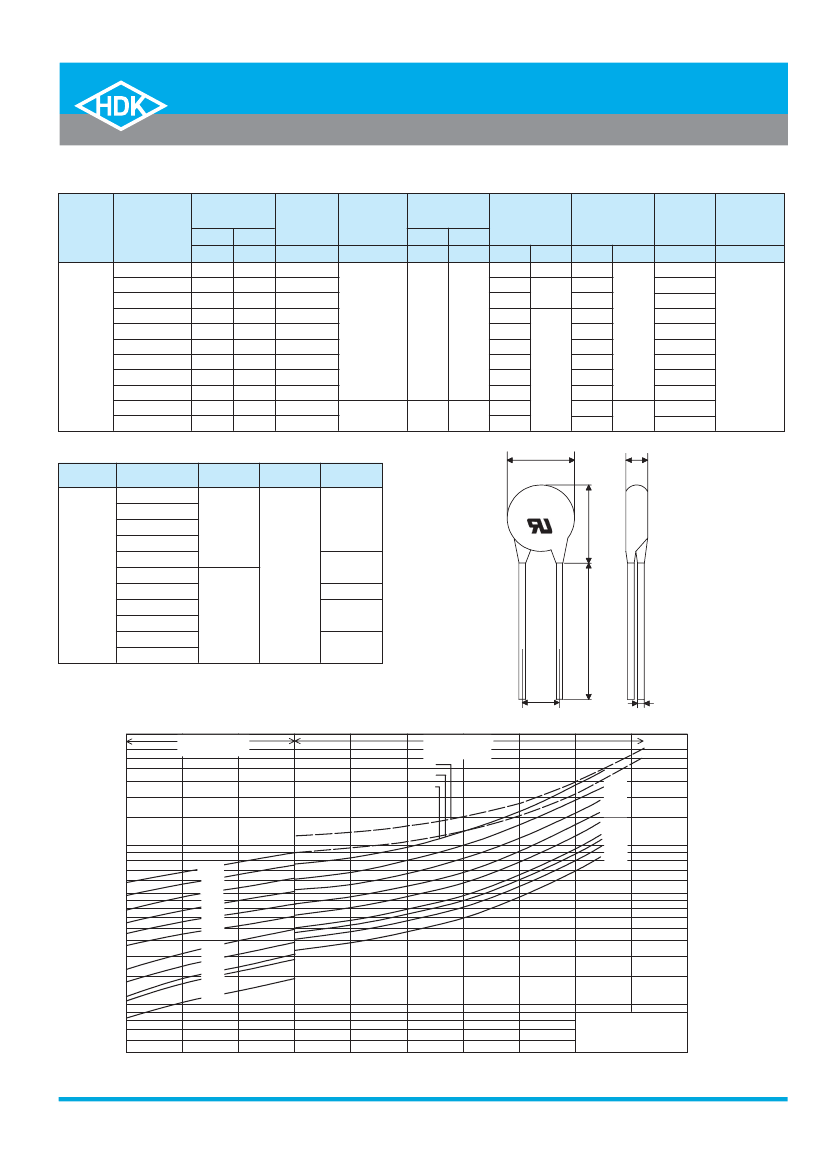

General Type

Model No. ZR (Radial type)

Disk type general use ZR (Low voltage) is for protection of electronics and control equipments from surge and noise.

1. Features

Superior nonlineality of voltage to maintain low limiting voltage.

Symmetry V-I characteristics to be applicable for +/- surge and AC circuit.

Small in size, high in surge endurance to be stable for repetitive surges.

Quicker response and sharper cut-off compared with discharge type protector.

Low temperature coefficient.

Wide applicable voltage range.

High reliability.

2.Application

Protection of semiconductors from surge voltage.

Protection of circuit and lines from induced lightening surge.

Protection from relay noise.

Voltage stabilization.

3.Qualification

MNR disk type is qualified for UL1414, 1449 and CSA C22.2, to be available for exporting. Also international standard, ISO-9001

qualification is obtained.

HOKURIKU

Specifications are subject to change without notice.
