for Individual and overall Shielding
550 T 003 M 2 F0 B 1 F 02
Basic Part No.
Cable Entry Style
T = Top
S = Side
E = End
Basic Part Number
Finish Symbol (Page 3)
Shell Size (Table I)
Cable Entry Dash No. (Table II)
F = Strain Relief, G = Gland Nut
0 = Without EMI Gasket,
1 = With EMI Gasket
Jackscrew Type (Page A-4)
Receptacle Mounting (Right Page)
CC = Cable-to-Cable Mounting
F0 = Front Mounting
R1-R9 = Rear Mounting
R1-R9 = Rear Mounting
1.380
(35.1) Max
Cable Range
Ferrule I.D. Typ.
Shell I.D. Typ.
1.380 (35.1)
Max
Style F
Strain Relief
S
SIDE
ENTRY
1.100 (27.9) Max
550-003

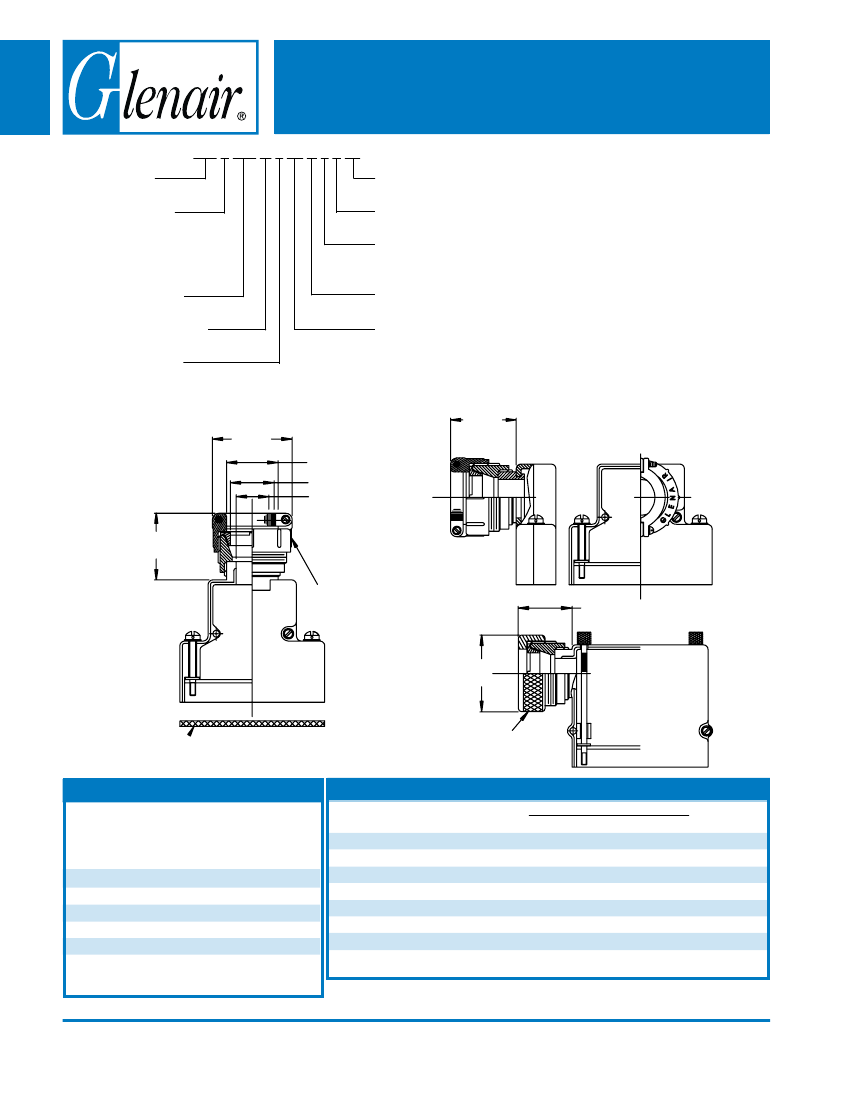

EMI/RFI D-Subminiature
Strain-Relief Split Backshell
MIL-DTL-24308
D-Subminiature
1. Metric dimensions
(mm) are indicated in
parentheses.
2.
Do NoT uSE CoN-
NECToRS WITH
FLoAT MouNT-
INGS.
3. Individual and overall
shield. Thickness
range: .031 (.8) to
.188 (4.8).
H
T
ToP
ENTRY
J
E
END
ENTRY
EMI Gasket (Optional)
Style G
Gland Nut
H
J
Dash
Cable Range
Com’l
Min
Max
Max
Max
No.
Shell Entry Style Entry Style
02 .968 (24.6) .781 (19.8) .125 (3.2) .250 (6.4)
Shell Size
T (Ref)
E
03 1.046 (26.6) .906 (23.0) .250 (6.4) .375 (9.5)
Size Ref
Shell I.D.
Shell I.D.
04 1.156 (29.4) 1.031 (26.2) .312 (7.9) .500 (12.7)
E/09 .250 (6.4) .375 (9.5)
1
05 1.218 (30.9) 1.156 (29.4) .437 (11.1) .625 (15.9)
A/15 .375 (9.5) .375 (9.5)
2
06 1.343 (34.1) 1.281 (32.5) .562 (14.3) .750 (19.1)
B/25 .475 (12.1) .475 (12.1)
3
07* 1.468 (37.3) 1.406 (35.7) .687 (17.4) .875 (22.2)
C/37 .475 (12.1) .475 (12.1)
4
08* 1.593 (40.5) 1.531 (38.9) .812 (20.6) 1.000 (25.4)
D/50 .575 (14.6) .575 (14.6)
5
6* F/104 1.000 (25.4)
n/a
* Available in Shell Size 6 Only
* Shell Size 6 Available in Top Entry Only.
© 2011 Glenair, Inc.
CAGE Code 06324
TABLE I: SHELL SIZE & ENTRY
TABLE II: BACKSHELL DIMENSIoNS & CABLE ENTRY
Ferrule
I.D.
.125 (3.2)
.250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-14
D-Subminiature Split Backshells
Standard Dimensions
Termination
Type
Jackscrew
Types B, D,
E, H, K
(Page A-4)
P
Jackscrew
Types B, D,
E, H, K
(Page A-4)
F
R
F
E
E
S - SIDE
ENTRY
T - TOP
ENTRY
Termination
Type
A
D
C
B
Jackscrew Types B , D, H
and J Only (Page A-4)
Shrink Sleeve (As Required)
E - END
ENTRY
E
A
G
.12 (3.0) Ref.
Com’l
Shell Shell Size
Size
Ref
1
E/09
2
A/15
3
B/25
4
C/37
5
D/50
6
F/104
CoMMoN CoNNECToR/SHELL INTERFACE & BACKSHELL DIMENSIoNS
A
Max
1.393 (35.4)
1.706 (43.3)
2.265 (57.5)
2.900 (73.7)
2.800 (71.1)
2.900 (73.7)
B
Max
.624 (15.8)
.624 (15.8)
.624 (15.8)
.624 (15.8)
.750 (19.1)
.844 (21.4)
C Ref.
.312 (7.9)
.312 (7.9)
.312 (7.9)
.312 (7.9)
.375 (9.5)
.422 (10.7)
±.005
.984
1.312
1.852
2.500
2.406
2.500
D
(.1)
(25.0)
(33.3)
(47.0)
(63.5)
(61.1)
(63.5)
P
(18.5)
(26.7)
(40.5)
(56.9)
(54.4)
(56.9)
R Ref
.719 (18.3)
.719 (18.3)
.938 (23.8)
.938 (23.8)
.938 (23.8)
1.094 (27.8)
.730
1.050
1.594
2.240
2.140
2.240
Panel
Dash
No. Thickness
n/a
CC
n/a
F0
.031 (.8)
R1
.047 (1.2)
R2
.062 (1.6)
R3
.093 (2.4)
R4
.104 (2.6)
R5
.125 (3.2)
R6
.156 (4.0)
R7
.135 (3.4)
R8
.188 (4.8)
R9
CABLE MouNTING AND BACKSHELL DIMENSIoNS
E
.174 (4.4)
.343 (8.7)
.247 (6.3)
.231 (5.9)
.216 (5.5)
.185 (4.7)
.174 (4.4)
.153 (3.9)
.125 (3.2)
.140 (3.6)
.094 (2.4)
Sizes 1 & 2
1.451 (36.9)
1.625 (41.3)
1.525 (38.7)
1.509 (38.3)
1.500 (38.1)
1.470 (37.3)
1.451 (36.9)
1.430 (36.3)
1.400 (35.6)
1.417 (36.0)
1.368 (34.7)
F + .031 (0.79)
Sizes 3 - 5
1.671 (42.4)
1.844 (46.8)
1.745 (44.3)
1.728 (43.9)
1.720 (43.7)
1.690 (42.9)
1.671 (42.4)
1.650 (41.9)
1.620 (41.1)
1.637 (41.6)
1.590 (40.4)
Size 6
1.820 (46.2)
2.000 (50.8)
1.890 (48.0)
1.875 (47.6)
1.860 (47.2)
1.829 (46.5)
1.820 (46.2)
1.798 (45.7)
1.767 (44.9)
1.805 (45.8)
1.740 (44.2)
G + .031 (0.79)
Sizes 1 & 2 Sizes 3 - 5
1.583 (40.2) 1.831 (46.5)
1.750 (44.5) 2.000 (50.8)
1.656 (42.1) 1.904 (48.4)
1.640 (41.7) 1.888 (48.0)
1.625 (41.3) 1.873 (47.6)
1.594 (40.5) 1.842 (46.8)
1.583 (40.2) 1.831 (46.5)
1.563 (39.7) 1.811 (46.0)
1.531 (38.9) 1.781 (45.2)
1.550 (39.4) 1.798 (45.7)
1.500 (38.1) 1.750 (44.5)
Metric dimensions (mm) are indicated in parentheses.
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-15
MIL-DTL-24308
D-Subminiature
