30BF40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 30BF40

30BF40: DescriptionDIODE 3 A, SILICON, RECTIFIER DIODE, DO-214AB, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size59KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

30BF40 Overview

DIODE 3 A, SILICON, RECTIFIER DIODE, DO-214AB, Rectifier Diode

30BF40 Parametric

Parameter Name	Attribute value
package instruction	R-PDSO-C2
Reach Compliance Code	unknown
application	ULTRA FAST RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

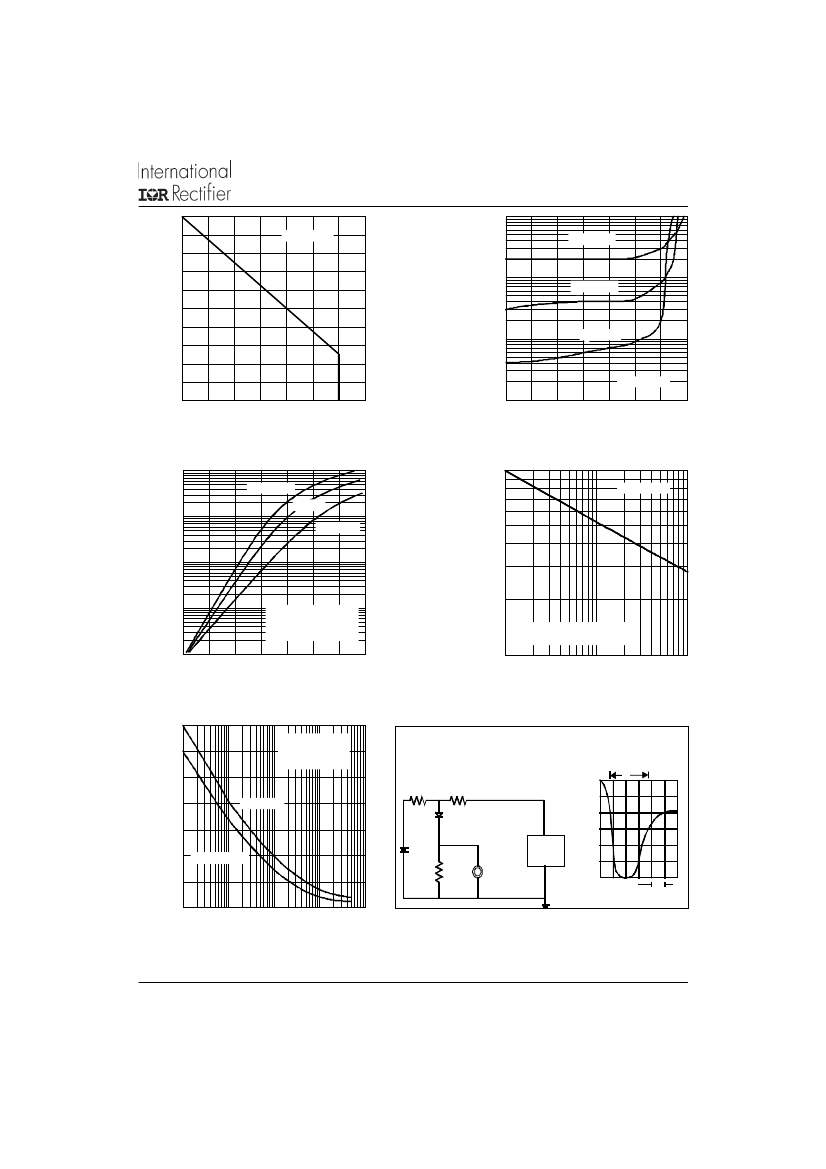

PD-20713 07/99

30BF.. Series

SURFACE MOUNTABLE

ULTRAFAST RECOVERY DIODE

SMC (DO-214AB)

Major Ratings and Characteristics

Characteristics

10 to 20

F(AV)

RRM

FSM

@ 3 A, T

= 25°C

@ T

= 25°C

range

1.0

Features

Units

60 to 80

1.7

100

°C

30BF..

100 to 800

100

1.4

- 50 to 150

For surface mounted applications

Low profile package

Built in stress releaf

Compatible with all pick & palce equipments

Ultrafast recovery times for high efficiency

Plastic package has Underwriters Laboratory

Flammability Classification 94V-O

Glass passivated junction

High temperature soldering:

260°C\10 seconds at terminals

.108 (2.75)

.124 (3.15)

.220 (5.59)

.245 (6.22)

.260 (6.60)

.280 (7.11)

.006 (.152)

.012 (.305)

.079 (2.00)

.103 (2.62)

.030 (0.76)

.060 (1.52)

.004 (.103)

.008 (.203)

.305 (7.75)

.320 (8.13)

Dimensions in inches and (millimeters)

30BF40 Related Products

	30BF40	30BF80	30BF60	30BF20	30BF10
Description	DIODE 3 A, SILICON, RECTIFIER DIODE, DO-214AB, Rectifier Diode	DIODE 3 A, SILICON, RECTIFIER DIODE, DO-214AB, Rectifier Diode	DIODE 3 A, SILICON, RECTIFIER DIODE, DO-214AB, Rectifier Diode	DIODE 3 A, SILICON, RECTIFIER DIODE, DO-214AB, Rectifier Diode	DIODE 3 A, SILICON, RECTIFIER DIODE, DO-214AB, Rectifier Diode
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214AB	DO-214AB	DO-214AB	DO-214AB	DO-214AB
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	60 A	60 A	60 A	60 A	60 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.05 µs	0.1 µs	0.1 µs	0.035 µs	0.035 µs
surface mount	YES	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	-	Vishay	Vishay	Vishay
