CR042611F

Description
Fixed Resistor, Metal Glaze/thick Film, 0.5W, 2610ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size858KB,1 Pages
ManufacturerMeritek Electronics
Websitehttp://www.meritekusa.com
Environmental Compliance
Download Datasheet Parametric View All

CR042611F Overview

Fixed Resistor, Metal Glaze/thick Film, 0.5W, 2610ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP, ROHS COMPLIANT

CR042611F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMeritek Electronics
package instructionSMT, 1210
Reach Compliance Codecompliant
ECCN codeEAR99
structureChip
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.55 mm
Package length3.05 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width2.55 mm
method of packingTR, 7 INCH
Rated power dissipation(P)0.5 W
Rated temperature70 °C
resistance2610 Ω
Resistor typeFIXED RESISTOR
size code1210
surface mountYES
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient100 ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance1%
Operating Voltage200 V
Base Number Matches1

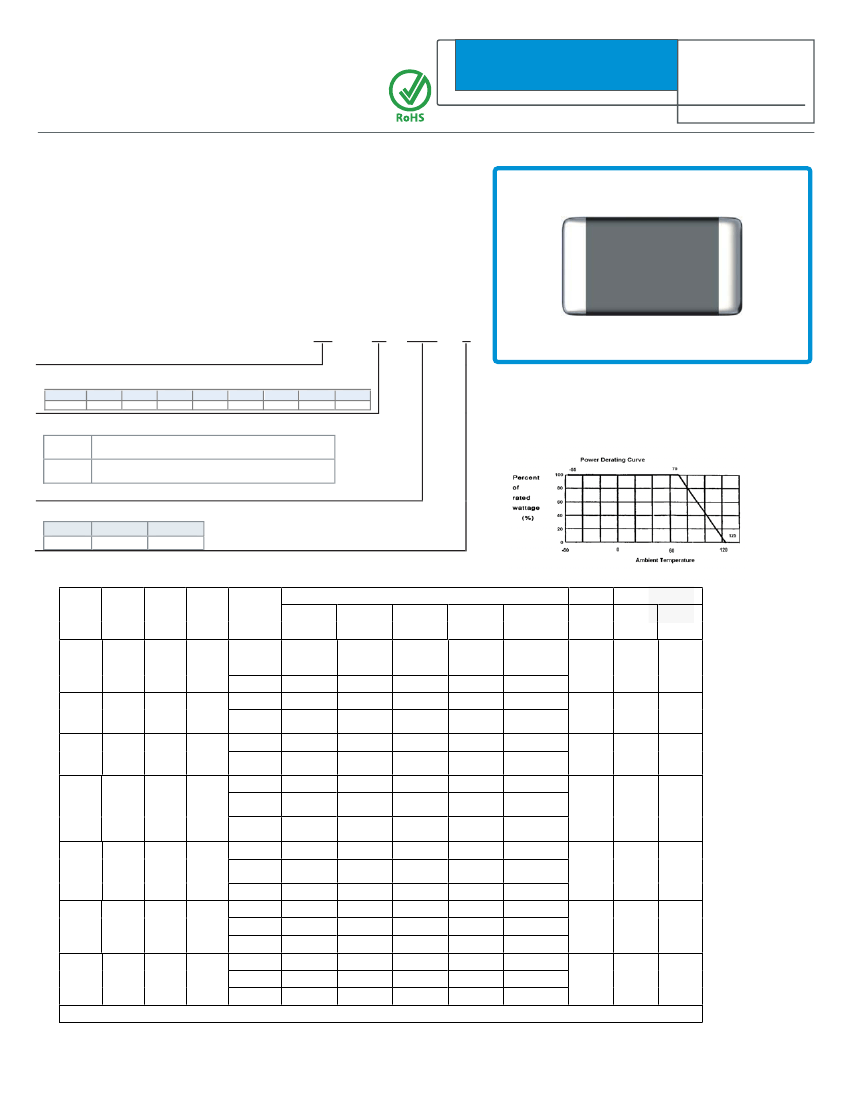

Thick Film Chip Resistors
CR
Series
MERITEK
F
EATURES
Excellent mechanical strength and electrical stability
Ideal for pick and place machinery
Stable high frequency characteristics
Miniature, high board density
Equivalent specification EIAJ- RC- 2690,
EIAJ- RC- 1009B, EIA- RS- 481A
Operating Temperature Range : -55 ~ +155
P
ART
N
UMBERING
S
YSTEM
Meritek Series
Size
CODE
01
01
2512
02
02
2010
04
04
1210
08
08
1206
10
10
0805
16
16
0603
CR
10
1002
F
20
20
0402
25
25
0201
P
OWER
D
ERATING
C
URVE
For operating conditions where ambient
temperature exceeds 70ºC, ratings must be
derated in accordance with the curve below.
Resistance Value
5%
1%
3 digits. First 2 are significant, third is
multiplier (10
x
)
4 digits. First 3 are significant, fourth is
multiplier (10
x
)
"R" indicates decimal on value
000 = Jumper “0” ohm
Tolerance
CODE
F
±1%
J
±5%
S
TANDARD
C
HIP
> 1
TYPE
Rated
power at
70
o
C
Max.
working
voltage
Max.
overload
voltage
Resistance Range
T.C.R.
o
(ppm / C)
Jumper
Jumper resistance
B ( 0.1%) D ( 0.5%) F ( 1%)
E-96
E-96
10 ~ 99
100 ~ 1M
100 ~ 1M
1 ~ 99
100 ~ 1M
1 ~ 99
100 ~ 1M
1 ~ 99
1 ~ 1M
100 ~ 1M
-----
-----
-----
-----
-----
-----
-----
-----
G ( 2%)
E-24
1 ~ 9.9
10 ~ 1M
-----
1 ~ 10M
-----
1 ~ 10M
-----
1 ~ 10M
1 ~ 10M
-----
10 ~ 10M
1 ~ 9.9
-----
10 ~ 1M
1 ~ 9.9
-----
10 ~ 1M
1 ~ 9.9
J ( 5%)
E-24
1 ~ 9.9
10 ~ 20M
-----
1 ~ 20M
-----
1 ~ 20M
-----
1 ~ 20M
1 ~ 20M
-----
10 ~ 20M
1 ~ 9.9
-----
10 ~ 10M
1 ~ 9.9
-----
10 ~ 10M
1 ~ 9.9
E-96
1 ~ 9.9
10 ~ 1M
33 ~ 1M
1 ~ 32
1.1M ~ 10M
Current
J ( 5%)
F ( 1%)
CR20
(0402)
1/16 W
50V
100V
+500
-200
200
-----
100 ~ 1M
100 ~ 1M
-----
100 ~ 1M
-----
100 ~ 1M
-----
1 ~ 1M
100 ~ 1M
-----
-----
-----
-----
-----
-----
-----
-----
1A
50m
Max.
35m
Max.
CR16
(0603)
CR10
(0805)
100
1/10 W
75V
150V
200
100
1/8 W
150V
300V
200
100
1A
50m
Max.
50m
Max.
30m
Max.
25m
Max.
33 ~ 1M
1 ~ 32
1.1M ~ 10M
2A
33 ~ 1M
1 ~ 32
1.1M ~ 10M
CR08
(1206)
1/4 W
200V
400V
200
100
(*)
2A
50m
Max.
25m
Max.
1 ~ 1M
33 ~ 1M
10 ~ 32
1.1M ~ 10M
100
CR04
(1210)
1/2 W
200V
400V
200
400
100
CR02
(2010)
3/4 W
200V
400V
200
400
100
CR01
(2512)
1W
200V
400V
200
400
Operating Temperature Range : -55
o
C
~ +155
o
C
( * ) available upon request
2A
50m
Max.
25m
Max.
1 ~ 9.9
10 ~ 1M
-----
1 ~ 9.9
10 ~ 1M
-----
1 ~ 9.9
2A
50m
Max.
25m
Max.
2A
50m
Max.
25m
Max.
Specifications are
subject to change without notice.
rev.6
