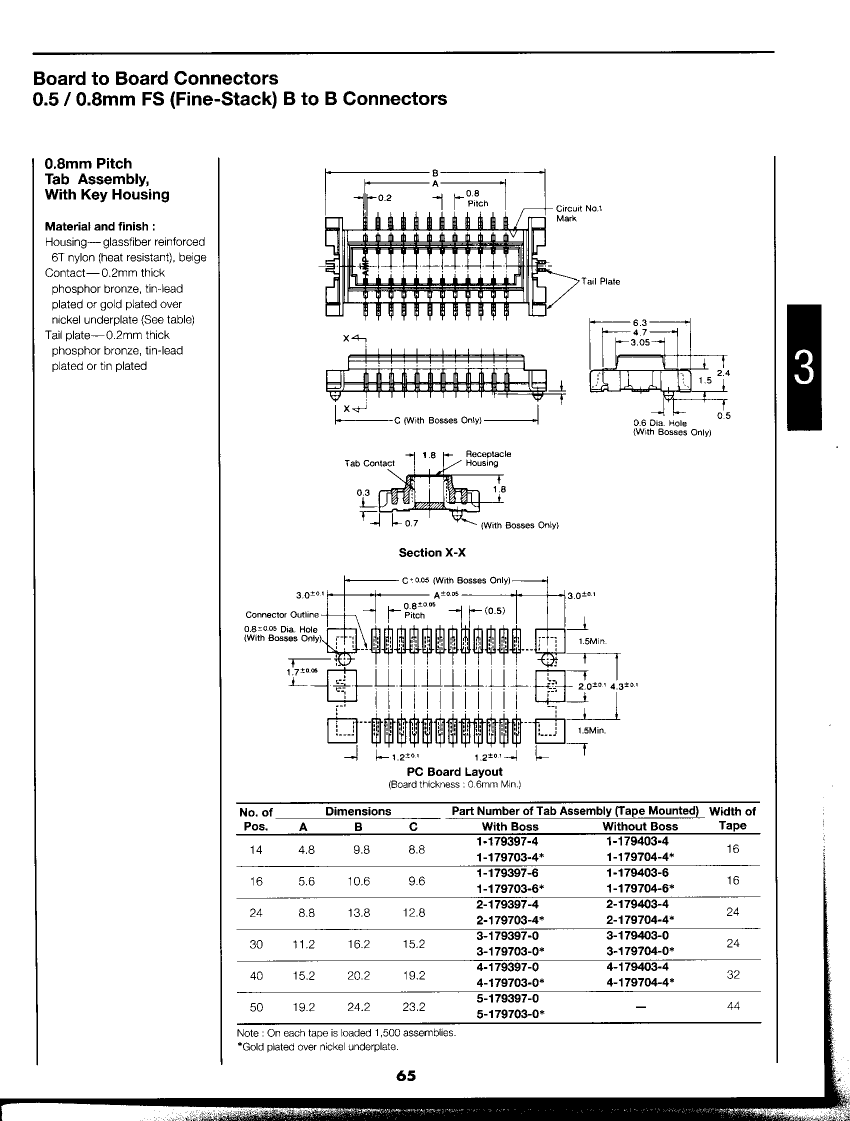

3-179704-0 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.031 PITCH

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	STACKING HT=0.118\"
Board mount options	PEG
body width	0.248 inch
subject depth	0.094 inch
body length	0.638 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
insulator material	NYLON
Manufacturer's serial number	179704
Plug contact pitch	0.031 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7912 mm
polarization key	ENDS
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Total number of contacts	30
Base Number Matches	1
