39-30-7101: DescriptionRectangular Power Connector, 10 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size518KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

39-30-7101 Overview

Rectangular Power Connector, 10 Contact(s), Male, Solder Terminal

39-30-7101 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	MINI-FIT JR
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5569
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Flanges allow for screw-in retention to board-mounted

headers

s

Low proﬁle is ideal for power applications with space

constraints

Reference Information

Product Speciﬁcation: PS-5556-0001

Packaging: Tray or bag

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With:

5557

single row receptacle

Designed In: Millimeters

Electrical

Voltage: 600V

Current: (Used with 16 AWG)

Circuits

Amperes-Jr.

Amperes-HCS

2–3

9

12

4–6

8

11

7–10

7

10

12–24

6

9

Electrical (cont’d)

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V AC

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Insertion Force to PCB: 49N (11.01 lb) max.

Mating Force: 6.9N (1.54 lb) max.

Unmating Force: 3.4N (0.7 lb) min.

Durability: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact: Brass

Plating: Tin, select Gold or overall Gold

Operating Temperature: -40 to +105˚C

4.20mm (.165") Pitch

Mini-Fit, Jr.

™

Header

5569

Right Angle, Single Row

With Flanges

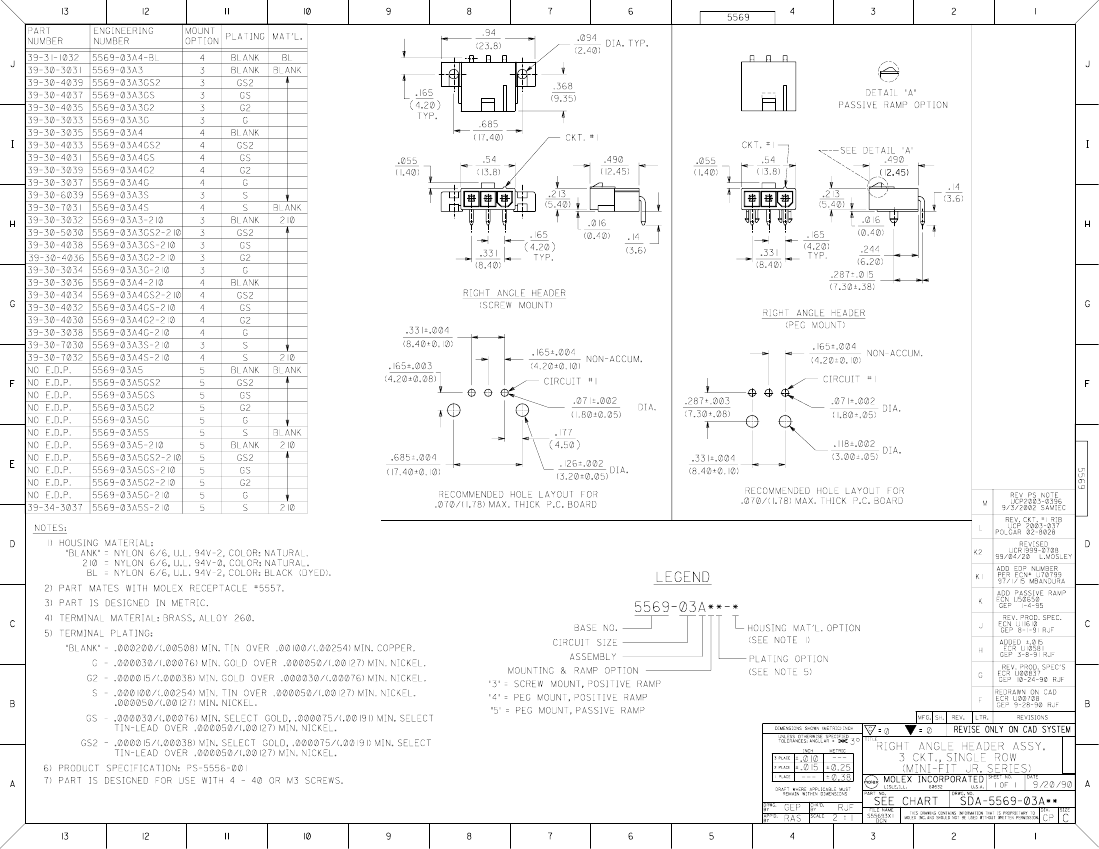

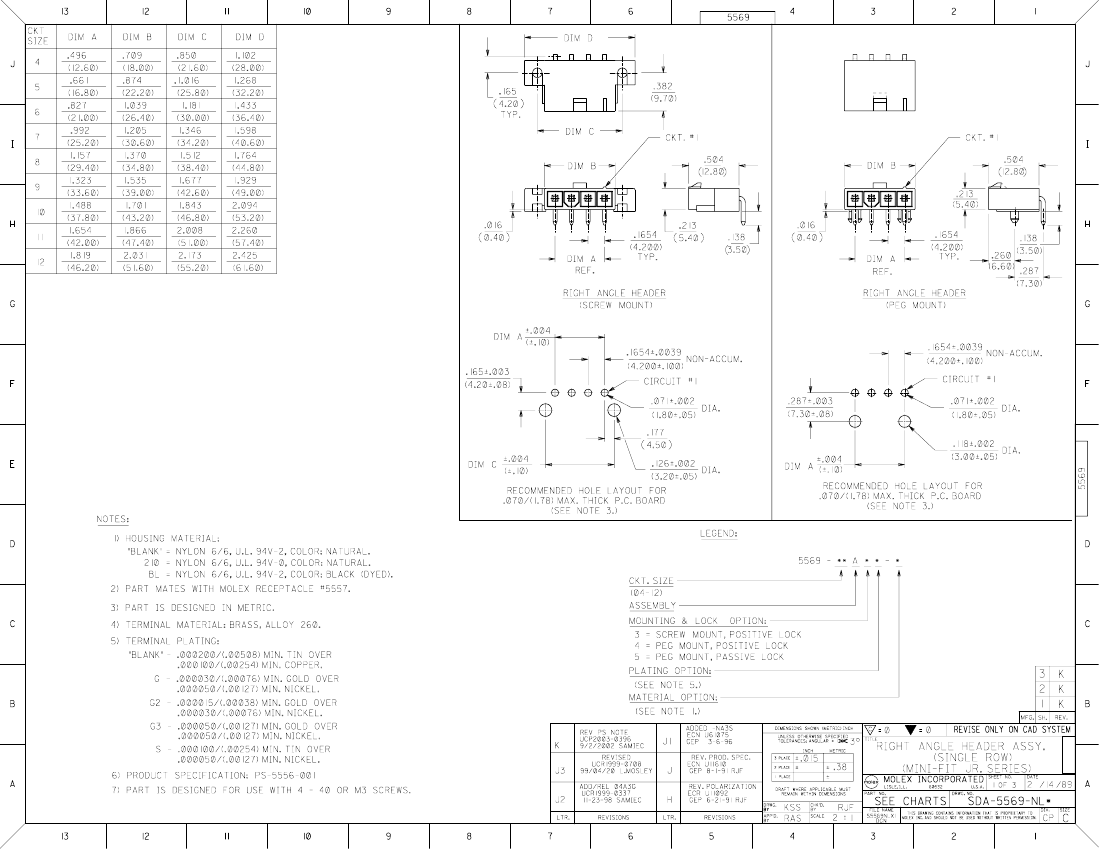

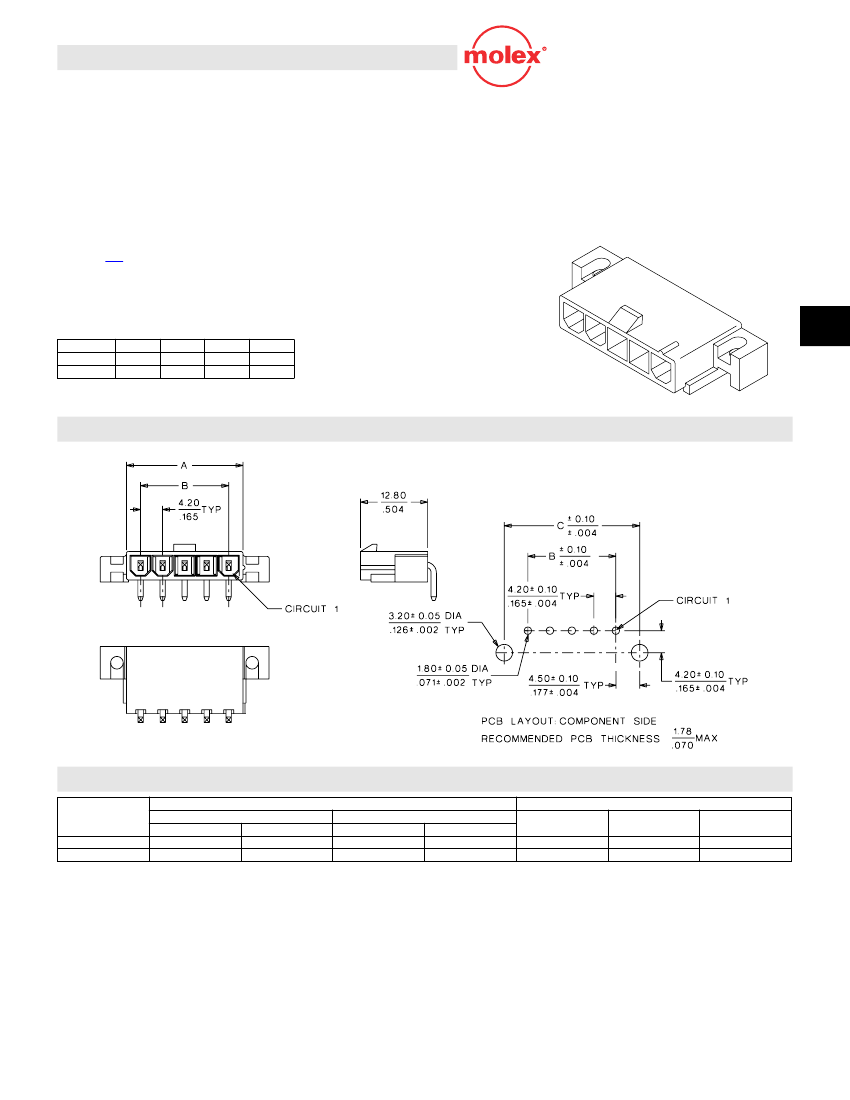

CATALOG DRAWING (FOR REFERENCE ONLY)

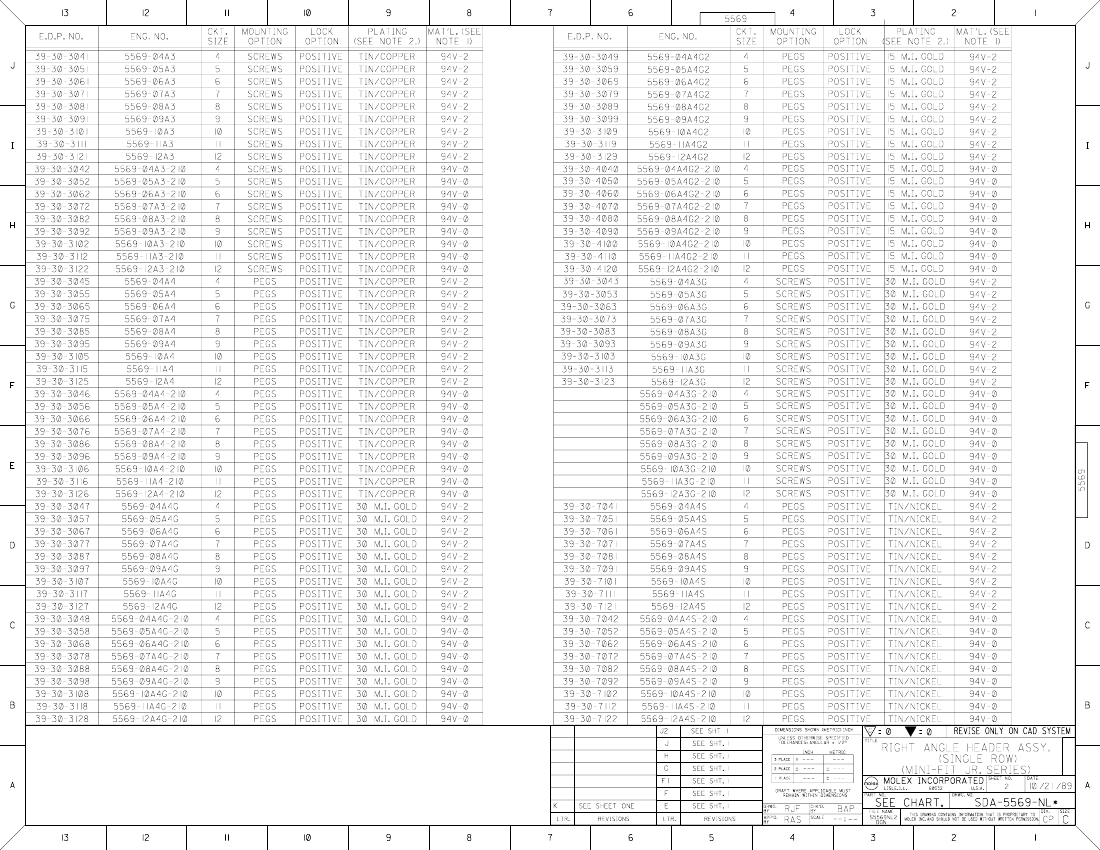

ORDERING INFORMATION AND DIMENSIONS

Order No.

Circuits

3

4

94V-2

• 39-30-3031

• 39-30-3041

Tin Plated

94V-0

• 39-30-3032

94V-2

• 39-30-3033

• 39-30-3043

Gold Plated

94V-0

• 39-30-3034

A

13.80 (.540)

18.00 (.709)

Dimension

B

8.40 (.331)

12.60 (.496)

C

17.40 (.685)

21.60 (.850)

• US Standard Product, available through Molex franchised distributors

MX01

F-45

Power Connectors
