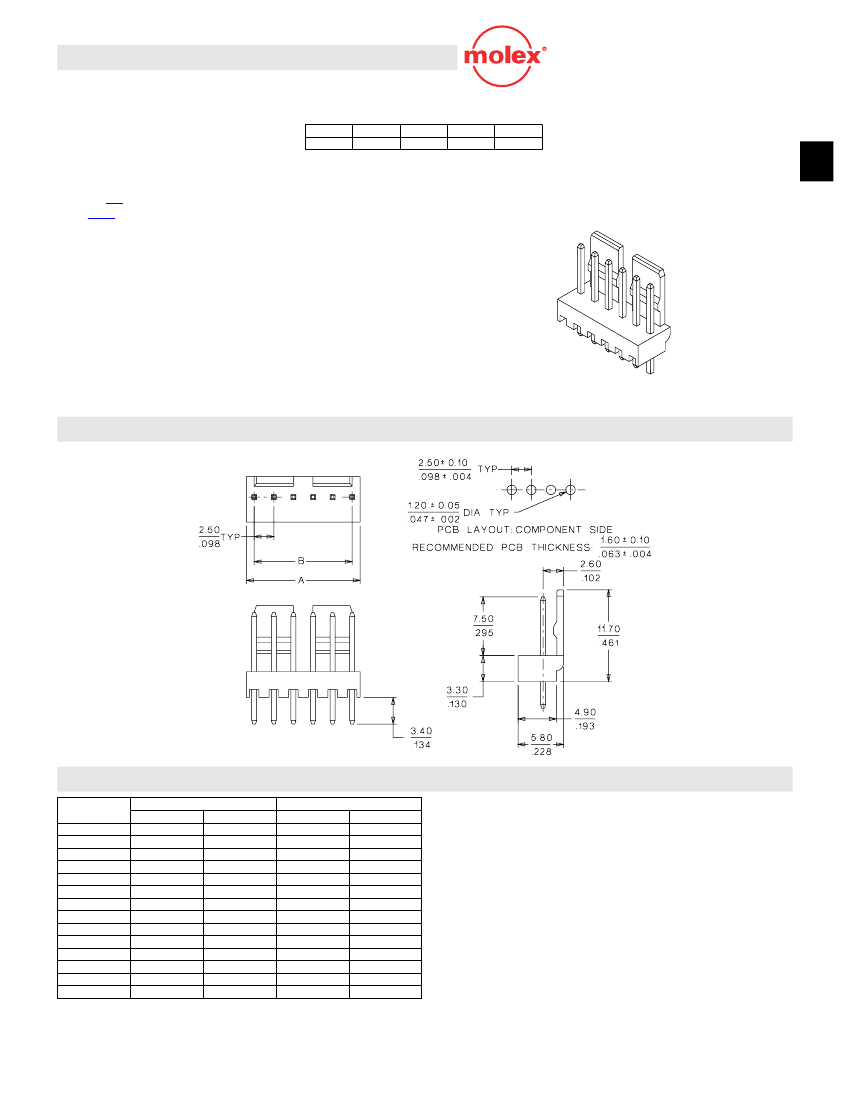

FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 2 to 15 circuits
s
0.64mm (.025") square wire pins
Electrical
Voltage: 250V
Current:
AWG
Amperes
22
3.0
24
2.5
26
2.0
28
1.5
2.50mm (.098") Pitch
Header
5045
Vertical
Polarizing Lock
Physical
Housing: 6/6 nylon, UL 94V-0
Contact: Brass
Plating: See Table
Operating Temperature: -40 to +105˚C

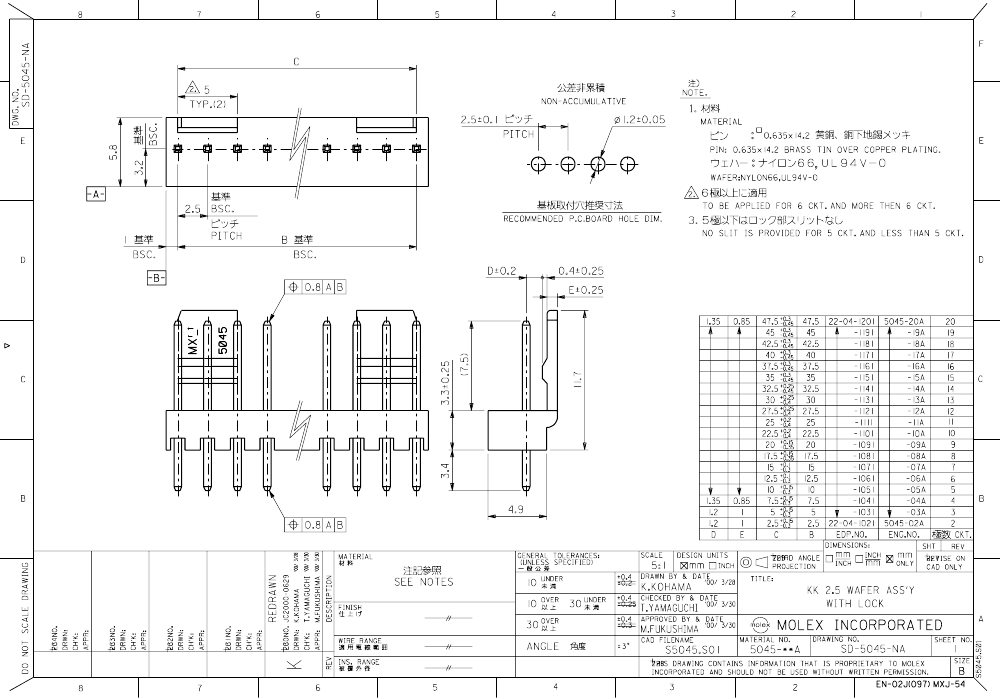

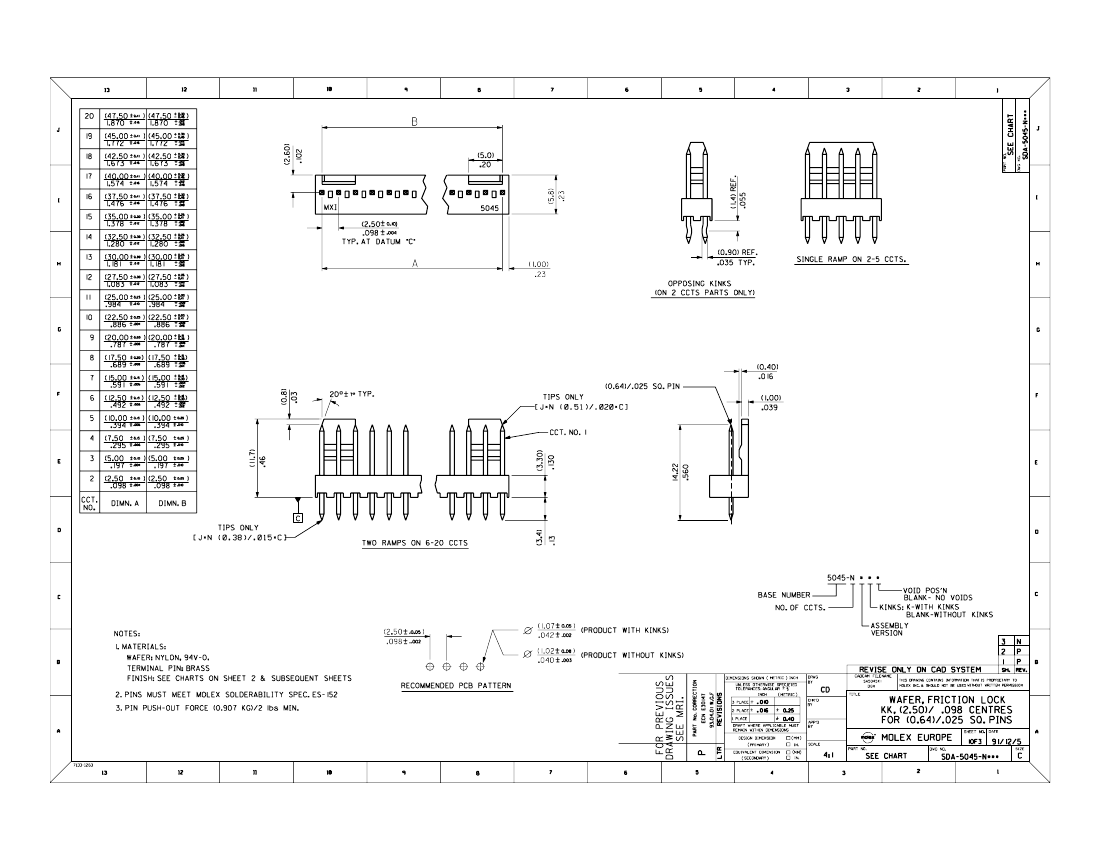

CATALOG DRAWING (FOR REFERENCE ONLY)

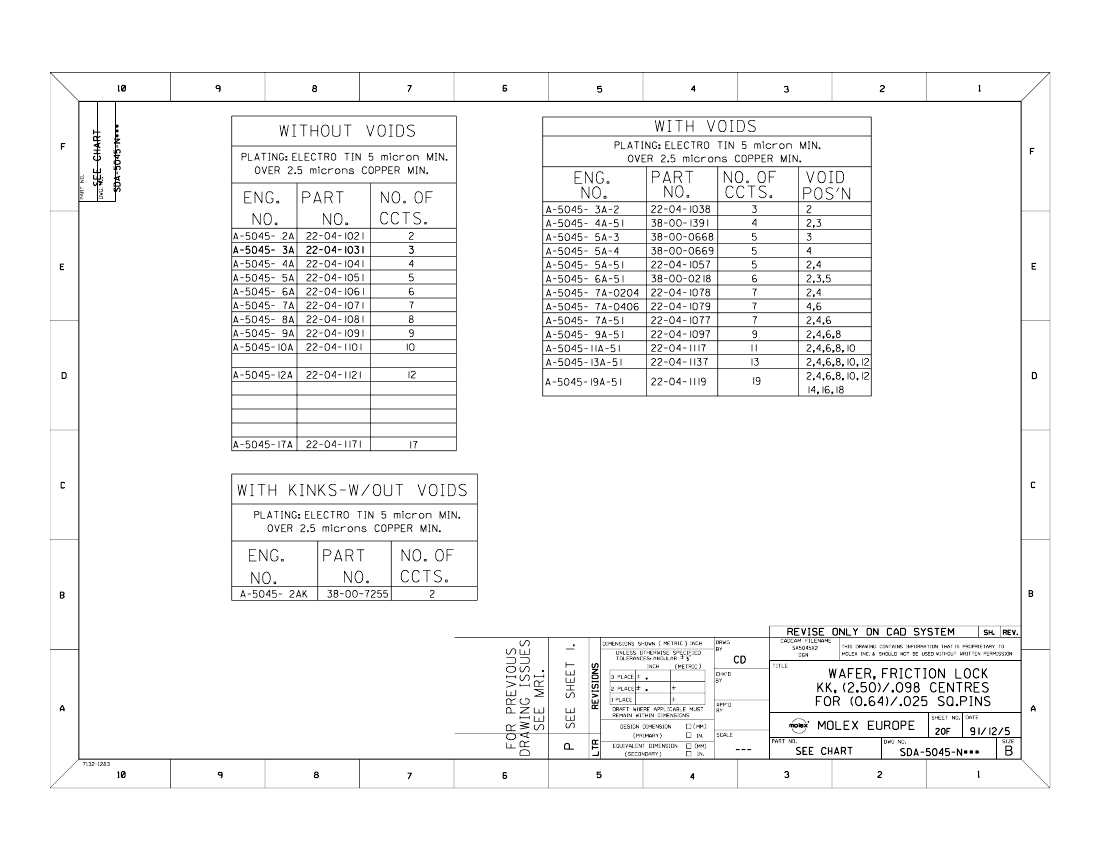

ORDERING INFORMATION AND DIMENSIONS
Circuits
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Order No.
Tin
• 22-04-1021
• 22-04-1031
• 22-04-1041
• 22-04-1051
• 22-04-1061
• 22-04-1071
• 22-04-1081
• 22-04-1091
• 22-04-1101
• 22-04-1111
• 22-04-1121
• 22-04-1131
• 22-04-1141
• 22-04-1151
Gold
22-11-1021
22-11-1031
22-11-1041
22-11-1051
22-11-1061
22-11-1071
22-11-1081
22-11-1091
22-11-1101
22-11-1111
22-11-1121
22-11-1131
22-11-1141
22-11-1151
4.50
7.00
9.50
12.00
14.50
17.00
19.50
22.00
24.50
27.00
29.50
32.00
34.50
37.00
Dimension
A
(.098)
(.276)
(.374)
(.472)
(.571)
(.669)
(.768)
(.866)
(.964)
(1.063)
(1.161)
(1.260)
(1.358)
(1.457)
2.50
5.00
7.50
10.00
12.50
15.00
17.50
20.00
22.50
25.00
27.50
30.00
32.50
35.00
B
(.177)
(.197)
(.295)
(.394)
(.492)
(.591)
(.689)
(.787)
(.886)
(.984)
(1.083)
(1.181)
(1.279)
(1.378)
• US Standard Product, available through Molex franchised distributors
MX01
B-117
2.00 to 2.50mm (.079 to .098") Pitch
Reference Information
Packaging: Bulk
UL File No.: E29179
CSA File No.: LR19980
Mates With:
5051
housings, KK
®
2.50mm (.098")
and
5102-N
Designed In: Millimeters
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 1000V AC/1 min.
Insulation Resistance: 1000 M
Ω
min.
B
