Micro-D
Connectors
Micro-D Pigtail
Basic Part Number
Contact Type
P
-
Pin
S
- Socket
Filter Connector
Product Code
Shell Finish
(See Table I)
Pre-Wired Pigtails with Insulated Wire
240-032
Micro-D Filter Connectors
Wire Type
K
- M22759/11 600 Vrms Teflon
®
(TFE)
C
- M22759/33 600 Berms Modified
Cross-Linked Tefzel
®
(ETFE)
Filter Type
P
- Pi Circuit
C
- C Circuit
Wire Length
(Inches)
Hardware
(See Table II)
240 - 032 - 2 - 25
Number of Contacts
9, 15, 21, 25, 31, 37
P
P
B
6
K
1 - 18
B
Filter Class
A, B, C, D, E, F or G
(See Table III)
Wire Gauge
(AWG)
4
- #24
6
- #26
Wire Color
1
- White
2
- Yellow
5
- Color Coded per MIL-STD-681
(#24 and #26 gauge only)
7
- Ten Color Repeat
D
E
D

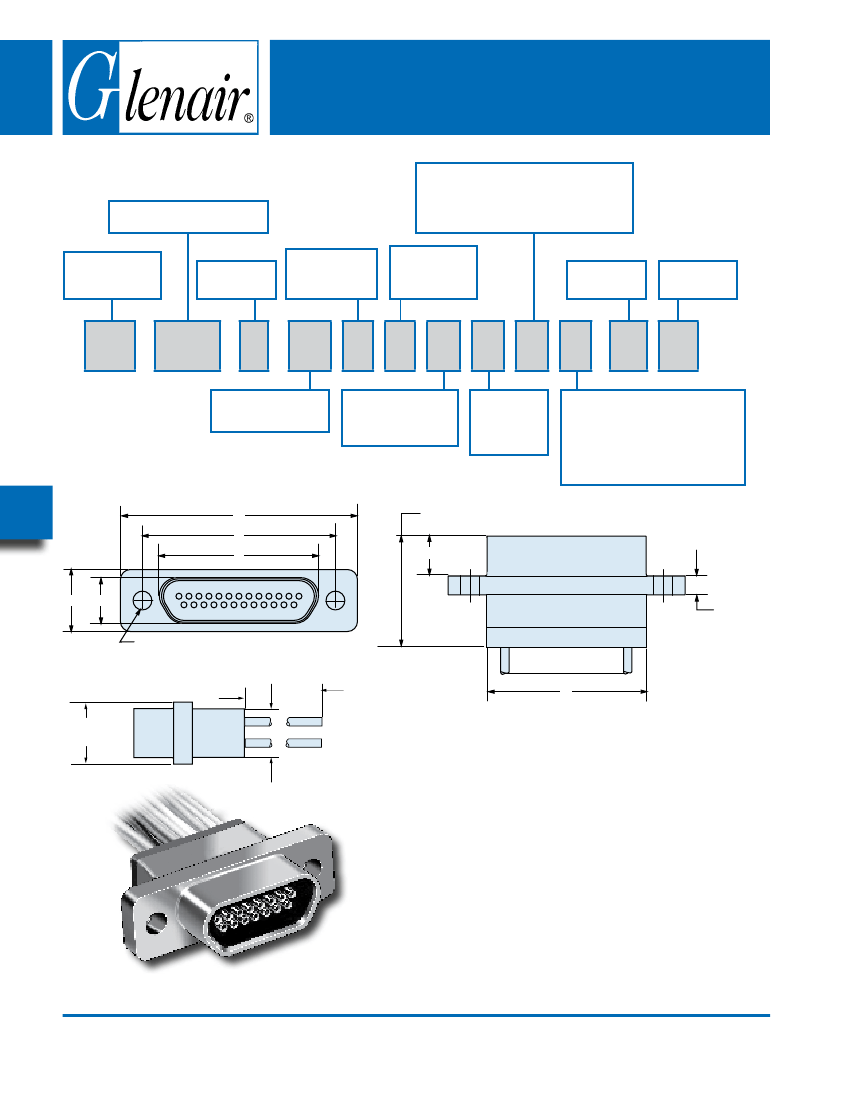

.096/.088 (2.43/2.23) DIA.
A
B
C
PI FILTER 1.000 (25.4) MAX.
C FILTER .700 (17.8) MAX.
F
.093 ± .005
(2.36 ± 0.13)
WIRE LENGTH
+1.0/-0.0 (+25.4/-0.0 )
.322 (8.19)
MAX
H
.287 (7.3)
Glenair’s Filtered Pigtail Micro-D's
provide EMI solutions
in a miniaturized M83513 Micro-D connector. These
connectors feature ceramic capacitor planar arrays
and ferrite inductors. Insulated wire is factory precision-
crimped to TwistPin contacts for superior reliability in
the most demanding environments.
Choose 9 to 67 Contacts,
with standard cadmium or
nickel plating on the connector housing or choose
optional finishes such as gold or chem film.
© 2008 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-12
Pre-Wired Pigtails with Insulated Wire
240-032
Micro-D Filter Connectors

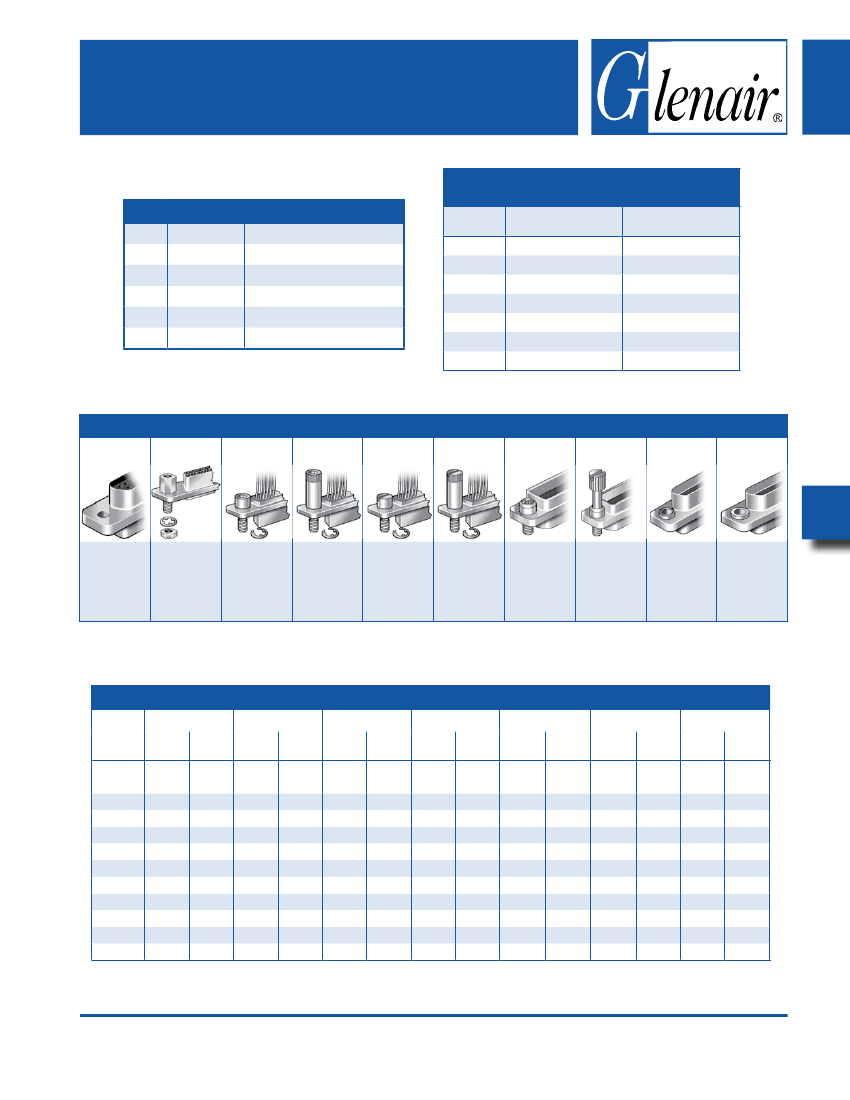

TABLE I: SHELL FINISH
SYM
1
2
5
6
33
MATERIAL
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
FINISH DESCRIPTION
Cadmium
Nickel
Gold
Chem Film
Ni-PTFE
1000 Hour Grey
TM
TABLE lll: CAPACITOR ARRAY CODE
CAPACITANCE RANGE
CLASS
A
B
C
D
E
F
G
PI - CIRCUIT (pF)
38,000 - 56,000
32,000 - 45,000
18,000 - 33,000
8,000 - 12,000
3,300 - 5,000
800 - 1,300
400 - 600
C - CIRCUIT (pF)
19,000 - 28,000
16,000 - 22,500
9,000 - 16,500
4,000 - 6,000
1,650 - 2,500
400 - 650
200 - 300
TABLE Il:
MICRO-D MOUNTING HARDWARE
B
P
M
M1
S
S1
L
K
F
R
Thru-Hole Jackpost Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Float Mount Float Mount
Order
Hardware
Separately
Removable
Includes Nut
and Washer
Hex Head
Removable
E-ring
Hex Head
Removable
E-ring
Extended
Slot Head
Removable
E-ring
Slot Head
Removable
E-ring
Extended
Hex Head
Non-
Removable
Slot Head
Non-
Removable
Extended
For Front
Panel
Mounting
For Rear
Panel
Mounting
MICRO-D FILTER PIGTAIL DIMENSIONS
A Max.
Layout
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
In.
.785
.785
.935
.935
1.085
1.085
1.185
1.185
1.335
1.335
1.485
1.485
mm.
19.94
19.94
23.75
23.75
27.56
27.56
30.01
30.01
33.91
33.91
37.72
37.72
± .003
.565
.565
.715
.715
.865
.865
.965
.965
1.115
1.115
1.265
1.265
In .
B
± 0.08
mm.
C Max.
In.
.333
.400
.483
.551
.633
.701
.733
.801
.883
.951
1.033
1.101
D Max.
In.
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
E Max.
In.
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
mm.
8.46
10.16
12.27
14.00
16.08
17.81
18.62
20.35
22.43
24.16
26.24
27.96
mm.
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
mm.
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
± .004
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
In.
F
mm.
± 0.10
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
H Max.
In.
.400
.400
.550
.550
.700
.700
.800
.800
.950
.950
1.100
1.100
mm.
10.16
10.16
13.97
13.97
17.78
17.78
20.32
20.32
24.13
24.13
27.94
27.94
14.35
14.35
18.16
18.16
21.97
21.97
24.51
24.51
28.32
28.32
32.13
32.13
