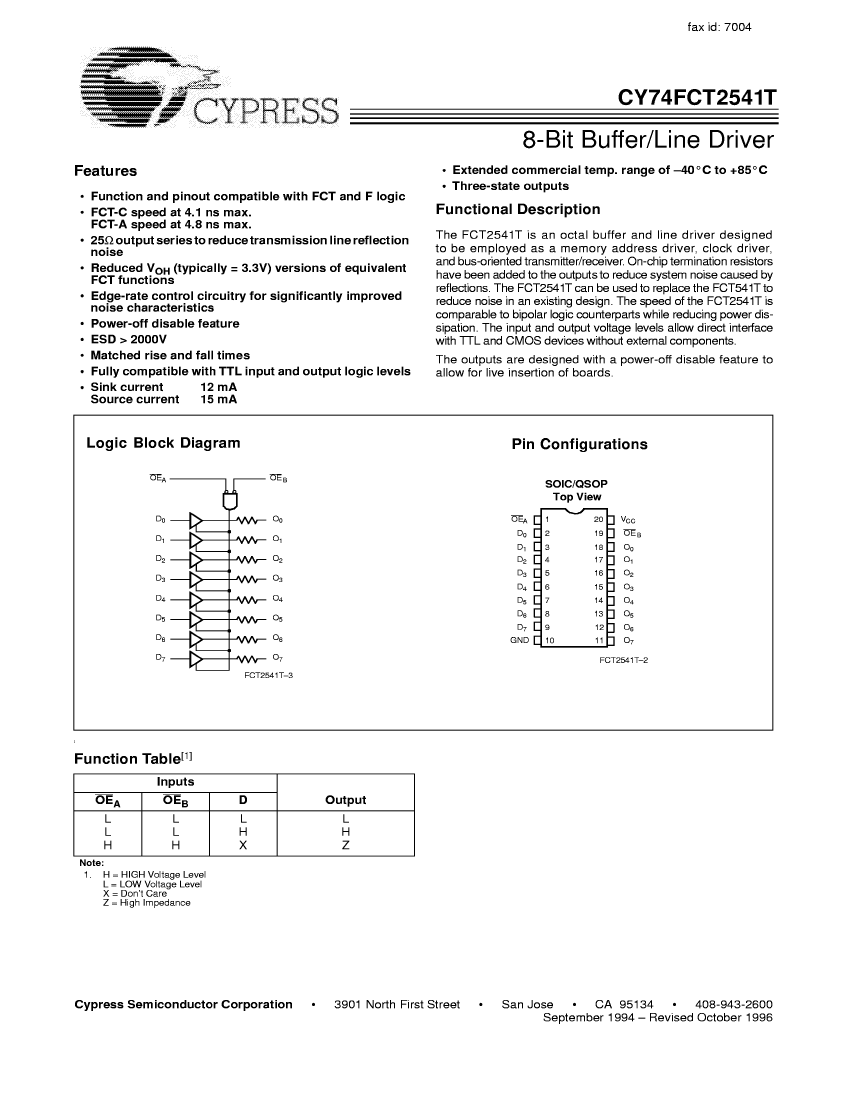

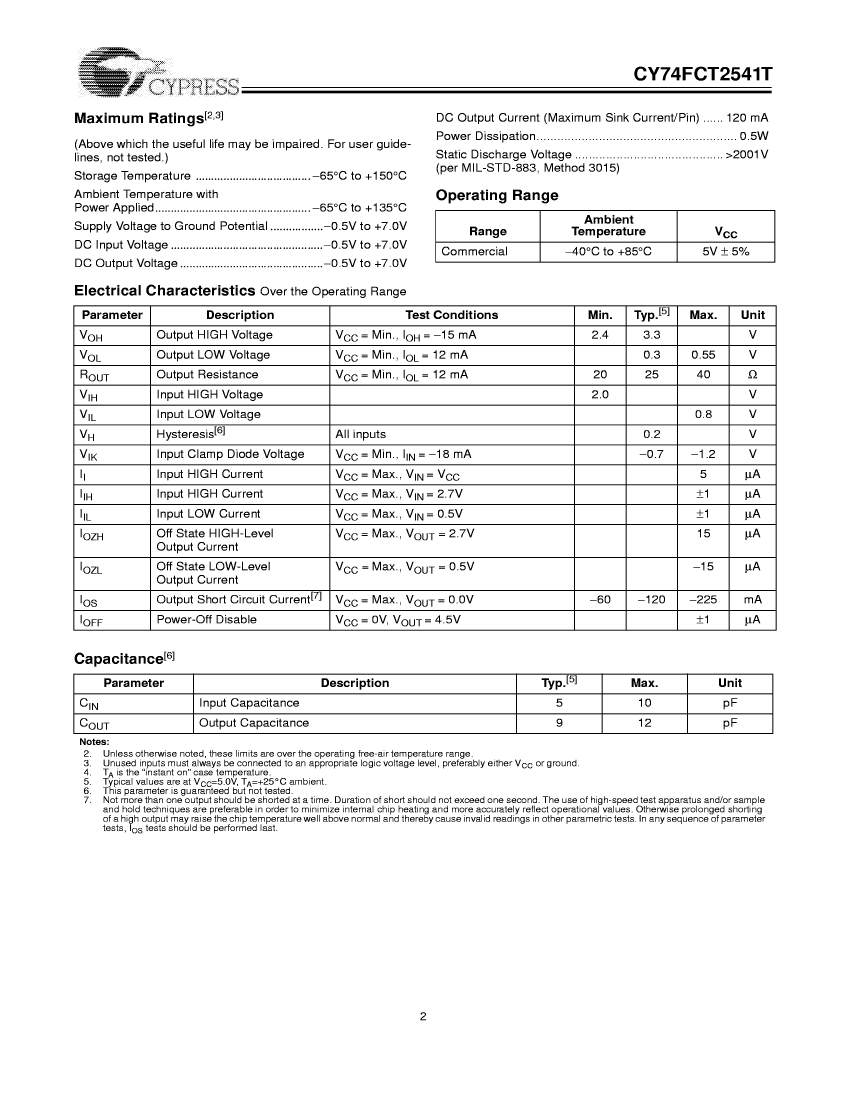

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Cypress Semiconductor |
| Parts packaging code | SOIC |

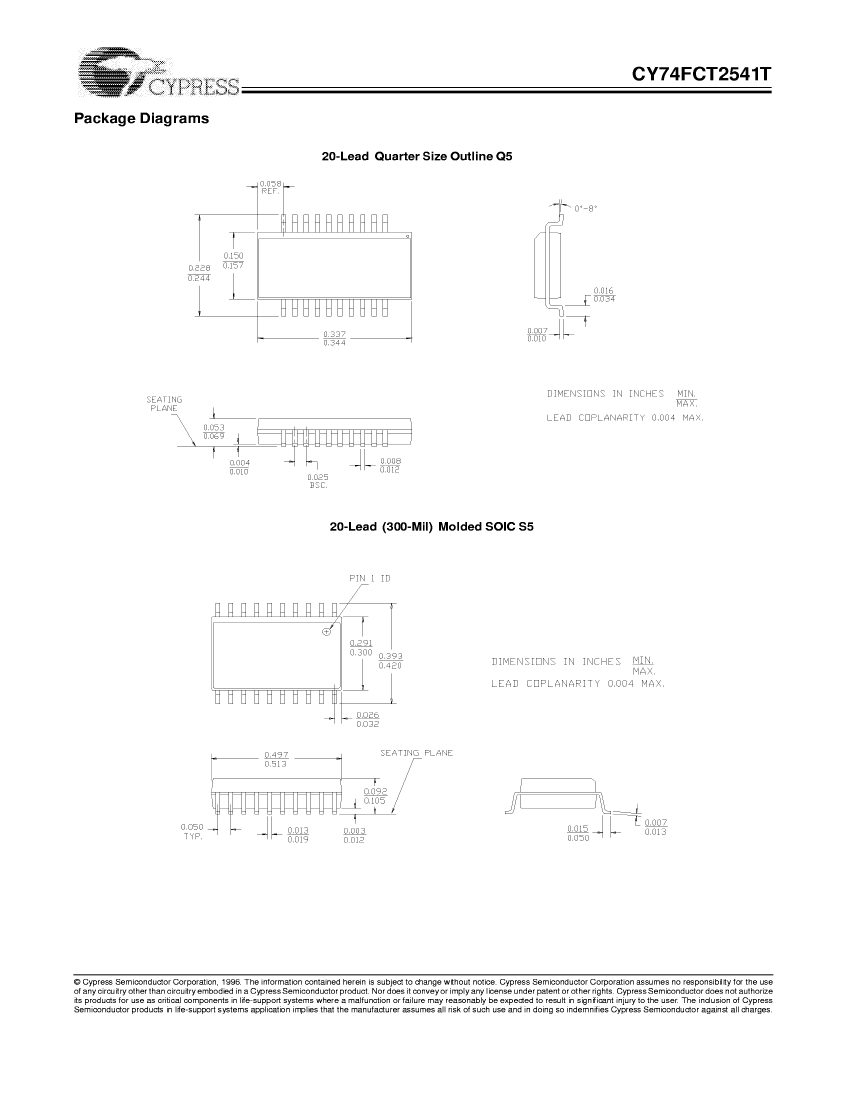

| package instruction | 0.300 INCH, PLASTIC, SOIC-20 |
| Contacts | 20 |
| Reach Compliance Code | compliant |
| Other features | WITH DUAL OUTPUT ENABLE |
| Control type | ENABLE LOW |
| series | FCT |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| length | 12.8 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| MaximumI(ol) | 0.012 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE WITH SERIES RESISTOR |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP20,.4 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 5 V |

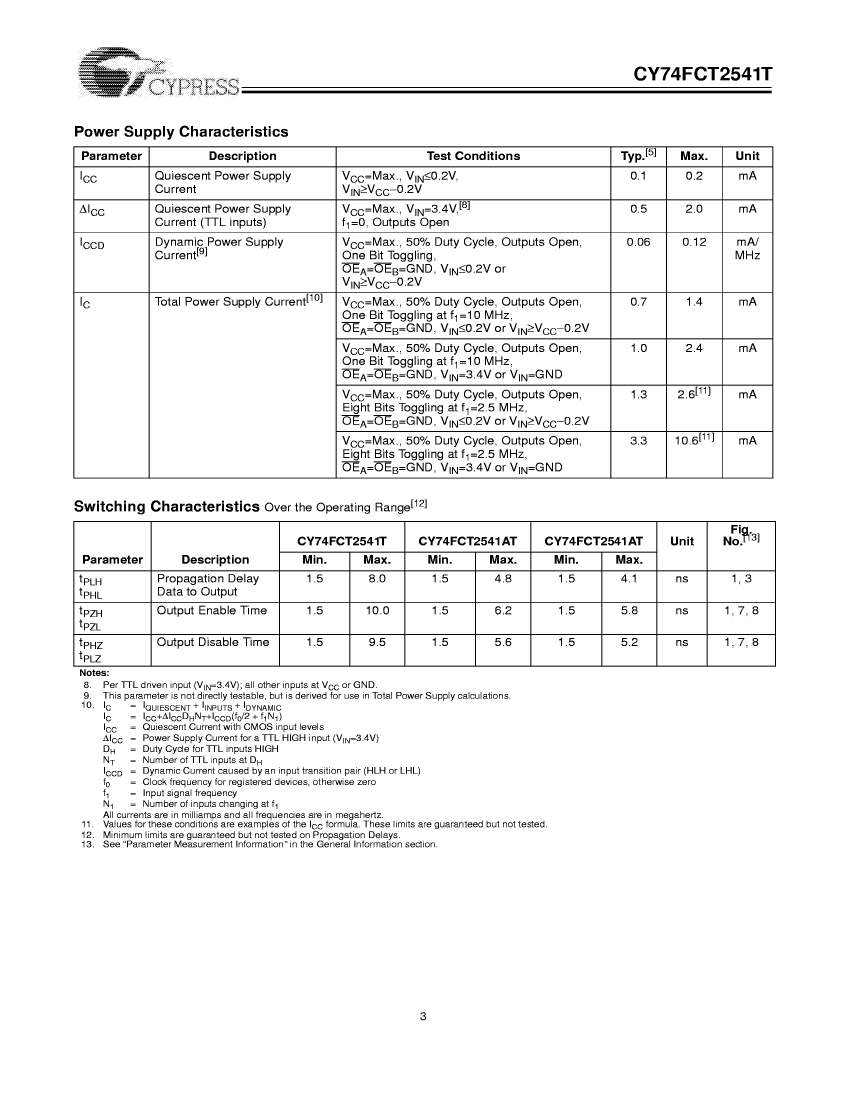

| Prop。Delay @ Nom-Sup | 4.1 ns |
| propagation delay (tpd) | 4.1 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.65 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 7.5 mm |
| Base Number Matches | 1 |

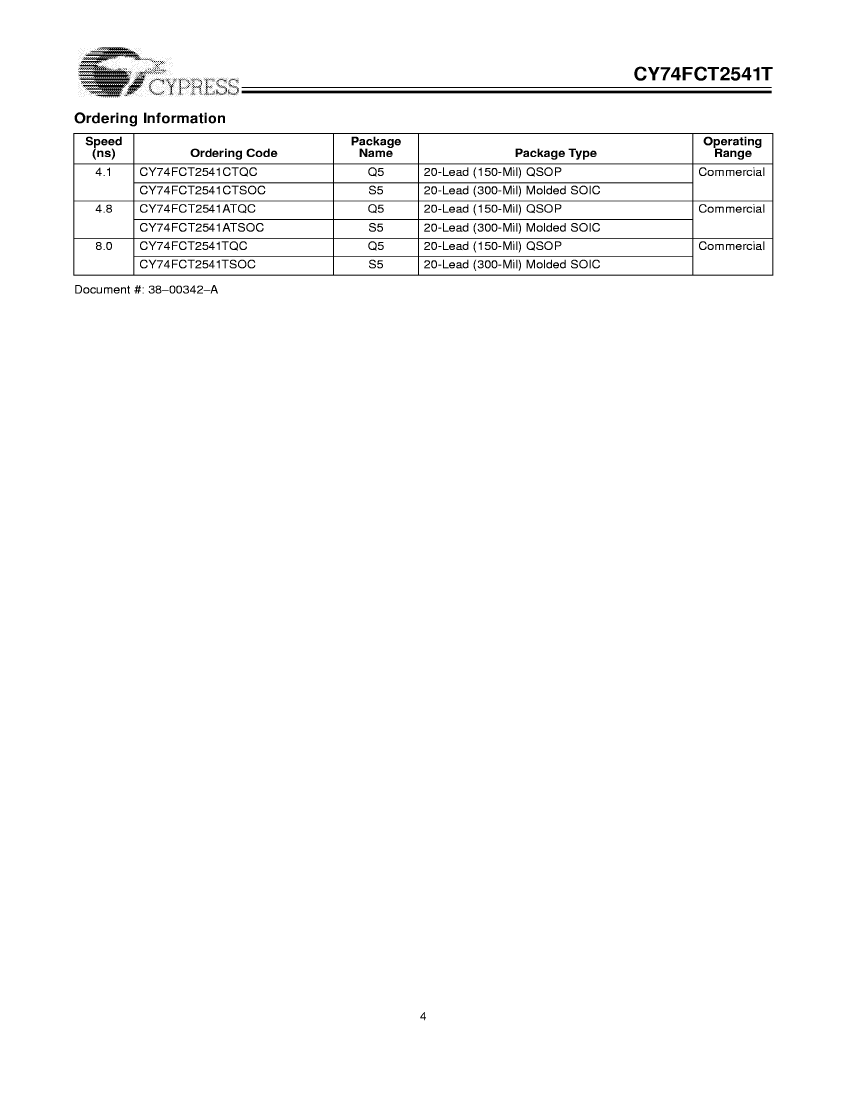

| CY74FCT2541CTSOC | CY74FCT2541CTQC | CY74FCT2541ATSOC | CY74FCT2541TSOC | CY74FCT2541TQC | |
|---|---|---|---|---|---|
| Description | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.150 INCH, QSOP-20 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Cypress Semiconductor | Cypress Semiconductor | Cypress Semiconductor | Cypress Semiconductor | Cypress Semiconductor |
| Parts packaging code | SOIC | QSOP | SOIC | SOIC | QSOP |
| package instruction | 0.300 INCH, PLASTIC, SOIC-20 | 0.150 INCH, QSOP-20 | 0.300 INCH, PLASTIC, SOIC-20 | 0.300 INCH, PLASTIC, SOIC-20 | 0.150 INCH, QSOP-20 |
| Contacts | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | compliant | compliant | not_compliant | not_compliant | not_compliant |
| Other features | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE |
| Control type | ENABLE LOW | ENABLE LOW | ENABLE LOW | ENABLE LOW | ENABLE LOW |
| series | FCT | FCT | FCT | FCT | FCT |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| length | 12.8 mm | 8.65 mm | 12.8 mm | 12.8 mm | 8.65 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| MaximumI(ol) | 0.012 A | 0.012 A | 0.012 A | 0.012 A | 0.012 A |
| Number of digits | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE WITH SERIES RESISTOR | 3-STATE WITH SERIES RESISTOR | 3-STATE WITH SERIES RESISTOR | 3-STATE WITH SERIES RESISTOR | 3-STATE WITH SERIES RESISTOR |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SSOP | SOP | SOP | SSOP |
| Encapsulate equivalent code | SOP20,.4 | SSOP20,.25 | SOP20,.4 | SOP20,.4 | SSOP20,.25 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE, SHRINK PITCH |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Prop。Delay @ Nom-Sup | 4.1 ns | 4.1 ns | 4.8 ns | 8 ns | 8 ns |
| propagation delay (tpd) | 4.1 ns | 4.1 ns | 4.8 ns | 8 ns | 8 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.65 mm | 1.75 mm | 2.65 mm | 2.65 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 0.635 mm | 1.27 mm | 1.27 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 7.5 mm | 3.9 mm | 7.5 mm | 7.5 mm | 3.9 mm |
