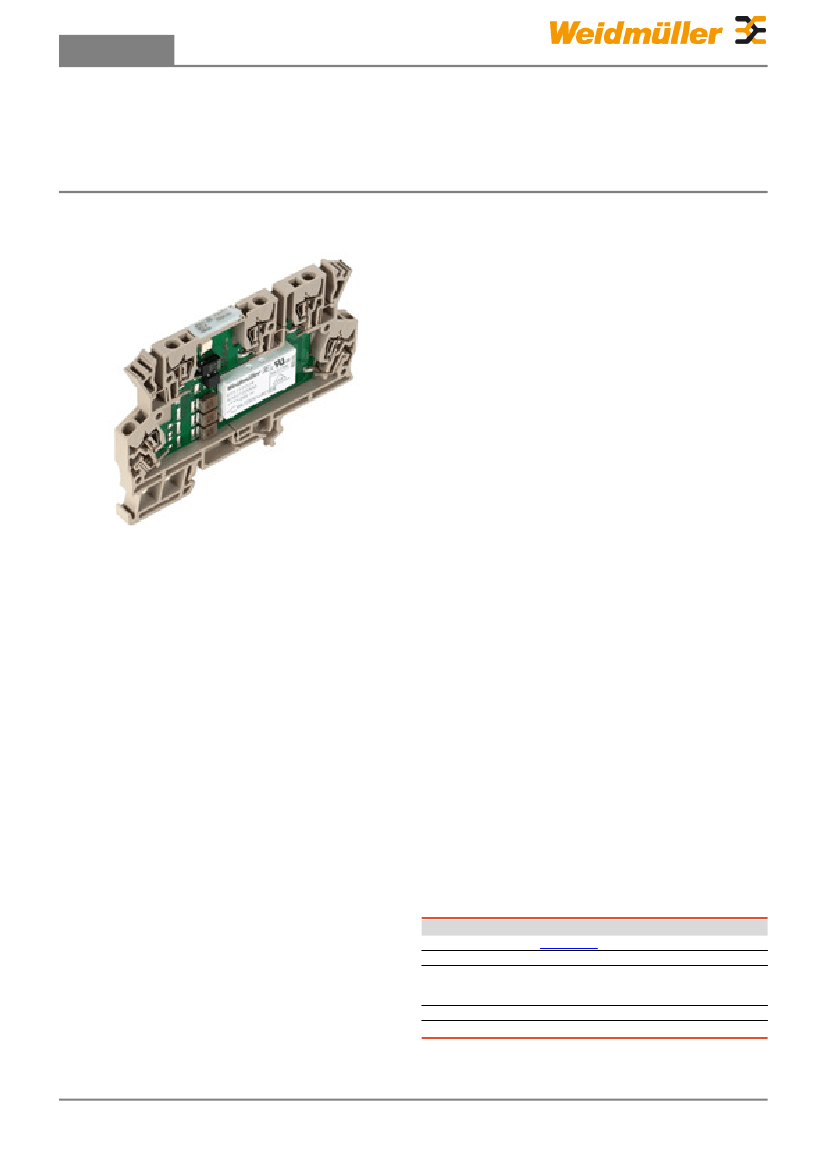

Datasheet
MCZ-SERIES
MCZ R 120VAC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
The MCZ R relay couplers, with a width of only 6 mm, are the
thinnest in their class.
They are distinguished by the following features:
• Tension clamp connection
• Integrated cross-connection in input/output.
Clampable conductor cross-section is 0.5 to 1.5 mm²
General ordering data
Order No.
Part designation
Version
GTIN (EAN)
Qty.
8420880000
MCZ R 120VAC
MCZ-SERIES, Relays, No. of contacts: 1, CO
contact, Rated control voltage: 120 V AC -15 % /
+10 %, Tension clamp connection
4008190227036
10 pc(s).
Creation date November 10, 2010 11:52:00 PM CET
Last update 27.09.2010 / We reserve the right to make technical changes.
1
Datasheet
MCZ-SERIES
MCZ R 120VAC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Technical data
Dimensions
Length
Height
91 mm
63.2 mm
Width
6 mm
Temperature
Ambient temperature (operational)
-25 °C...+55 °C
Storage temperature
-40 °C...+60 °C
Input
Rated voltage
Response / drop-out voltage AC coil
Pull-in / drop-out current, AC coil
Status indicator
300 V
approx. 70 V / approx. 22 V
4 mA // 1.3mA
Green LED
Rated control voltage
Rated current AC
Power rating
120 V AC -15 % / +10 %
7 mA
0.85 VA
Output
Continuous current
Max. switching frequency at rated load
Switch-off delay
Switching voltage AC, max.
max. switching capacity
6A
0.1 Hz
43 ms
250 V
1500 VA
Max. switching current
Min. switching current
Switch-on delay
making current
min. switching capacity
6A
100 mA
15 ms
6A
12 V / 100 mA
Contact data
Contact design
Contact material
CO contact
AgSnO2
No. of contacts
Mechanical service life
1
20 x 10 switching cycles
6
Rated data
Conductor connection system
Humidity
Tension clamp connection
40°C / 93% rel. humidity, no
condensation
DIN Rail compatibility
Solid, max.
TS 35
1.5 mm²
Insulation coordination (EN 50 178)
Clearance and creepage distances for
control/load side
Impulse withstand voltage
Pollution severity
Protective separation acc. to VDE 0106 part
101
≥ 5.5 mm
6 kV
2
Yes
Dielectric strength to mounting rail
Overvoltage category
Protection class
Rated voltage
4 kV
eff
/ 1 min.
III
IP 20
300 V
Other technical data
Bridge rectifier
Reverse polarity protection
Version
Yes
not available
Relay coupler
Free-wheel diode
Status indicator
No
Green LED
Approvals
Approvals institutes
CSA; CURUS; GOSTME25;
CE
Creation date November 10, 2010 11:52:00 PM CET
Last update 27.09.2010 / We reserve the right to make technical changes.
2
Datasheet
MCZ-SERIES
MCZ R 120VAC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Technical data
Classifications
ETIM 2.0
eClass 5.1
EC001437
27-37-16-01
ETIM 3.0
eClass 6.0
EC001437
27-37-16-01
Notes
Note, technical data
End plate AP MCZ 1.5: 8389030000
for cross-connectors and markers - refer to MCZ Series accessories
Creation date November 10, 2010 11:52:00 PM CET
Last update 27.09.2010 / We reserve the right to make technical changes.
3
