SR-2MININ-H-I-L-TL-P datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> SR-2MININ-H-I-L-TL-P

SR-2MININ-H-I-L-TL-P: DescriptionRF Coaxial Relay, SPDT, Latched, 0.12A (Coil), 12VDC (Coil), 1440mW (Coil), 18000MHz, DC Input, DC Output, Surface Mount-Straight, SURFACE MOUNT PACKAGE-3; CategoryMechanical and electronic products relay; File Size88KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

SR-2MININ-H-I-L-TL-P Overview

RF Coaxial Relay, SPDT, Latched, 0.12A (Coil), 12VDC (Coil), 1440mW (Coil), 18000MHz, DC Input, DC Output, Surface Mount-Straight, SURFACE MOUNT PACKAGE-3

SR-2MININ-H-I-L-TL-P Parametric

Parameter Name	Attribute value
package instruction	SURFACE MOUNT PACKAGE-3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN TTL DRIVER AND INDICATOR
body width	34.04 mm
body height	12.7 mm
Body length or diameter	45.97 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.12 A
Coil power	1440 mW
Coil resistance	100 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.4 dB
Maximum isolation	60 dB
Manufacturer's serial number	SR
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating frequency	18000 MHz
Minimum operating frequency
physical size	45.97mm X 34.04mm X 12.7mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	15 ms
Termination type	SOLDER
voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

Surface Mount

Coaxial Switches

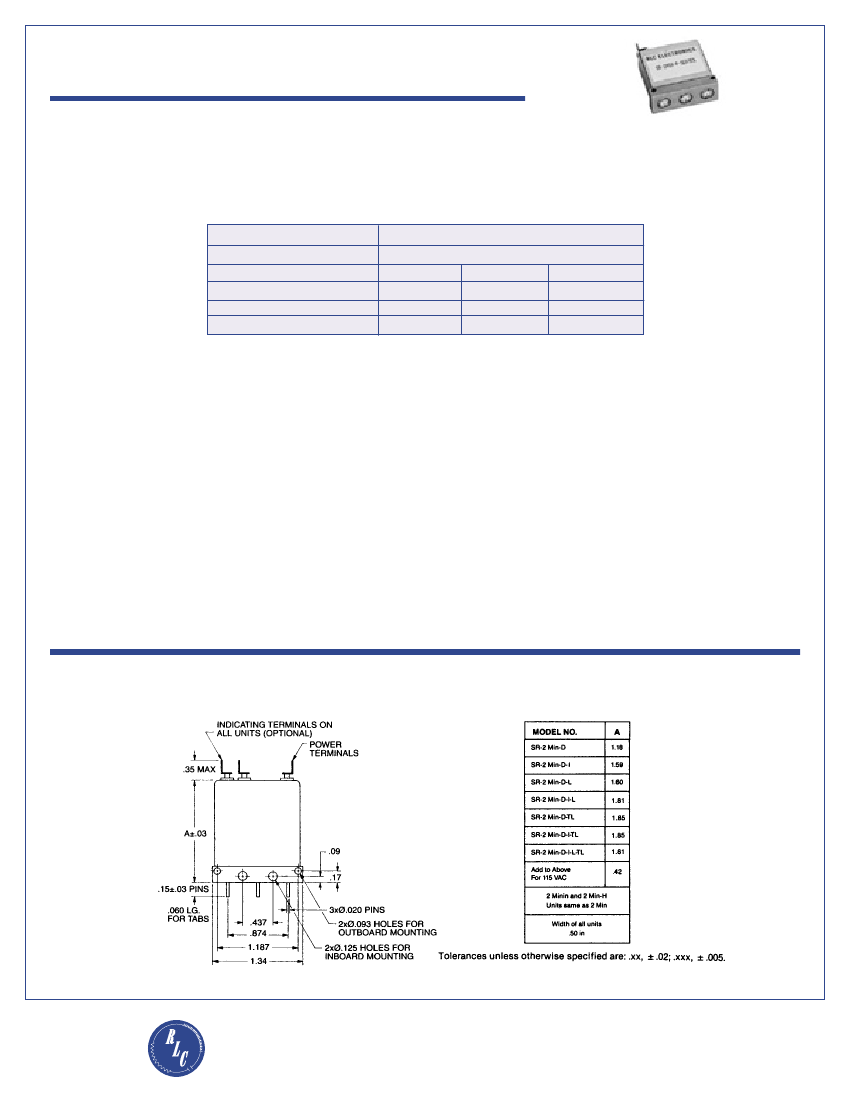

This RLC Electronics' Surface Mount Coaxial Switch is a

single pole two position type suitable for surface mount/ drop-in

applications while maintaining the excellent electrical and

mechanical characteristics of the connectorized version.

Specifications

-2

Switch Type

Frequency Range

Frequency (GHz)

Insertion Loss (Max dB)

VSWR (Max)

Isolation (dB Min)

DC-4.0

0.2

1.2

MIN

2-3-4-5-6-7-8

SINGLE POLE TWO POSITION

DC-18GHz

4.0-12.4

0.3

1.3

12.4-18.0

0.4

1.5

Power Rating, RF Cold Switching:

See page 5.

Impedance:

50 Ohms

Operating Power 25°C:

(Failsafe):

12Vdc at 250 ma nom.

28Vdc at 140 ma nom. 115 Vac at 50 ma nom.

(Latching):

12 Vdc at 120 ma nom. 28 Vdc at

60 ma nom. 115 Vac at 43 ma nom. Current

applied 10 ms min. cutthroat standard,

recovery time 100 ms nom.

Connectors, RF:

.020 Dia. Pins or Solder Tabs .050 Wide.

Connectors, Power:

Feed through solder lugs.

Life:

1,000,000 operations.

Switching Time:

15 mS Max.

Weight:

2 oz.

Environmental

Conditions:

MIL-S-3928

Operating Mode:

Manual, failsafe or latching.

Switching Sequence:

Break before make.

To designate the switch desired use:

(1) “M” for Manual, “R” for Remote.

(2) “Min” for outboard mountings or “Minin”

for inboard mountings.

(3) “A” for 115 Vac, “D” for 28 Vdc or “H” for 12 Vdc.

(4) “I” for indicators if desired.

(5) “L” for latching cutthroat if desired.

(6) “TL” for TTL Driver if desired

(7) “Arc” for Arc Suppression diodes.N/A for TTL and Latching

(8) “P” for pins, “TAB” for tabs.

Example: SR-2 min-D-P is a remote, outboard mounting, 28 Vdc; Failsafe switch with pin connectors

Outline Drawing

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
