Part Number

Search

5054051470

Description

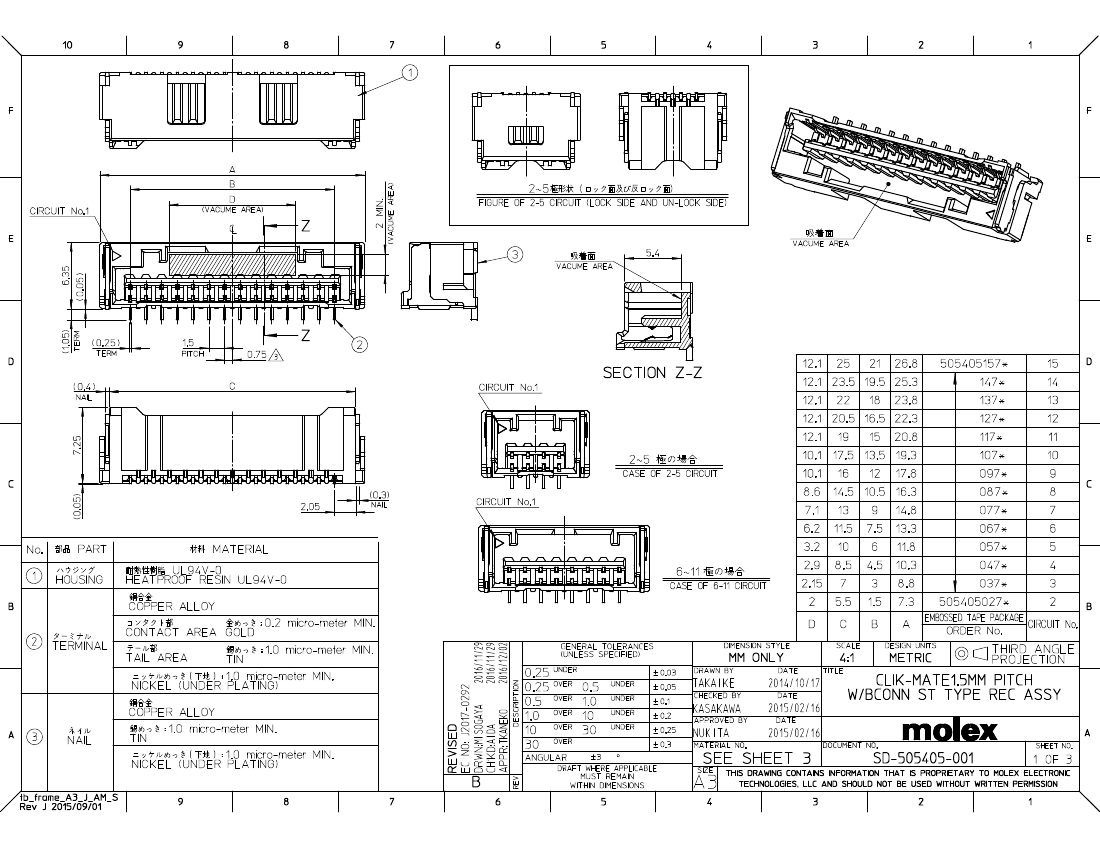

Board Connector, 14 Contact(s), 1 Row(s), Female, Straight, 0.059 inch Pitch, Surface Mount Terminal, Locking, Receptacle,
CategoryThe connector    The connector
File Size799KB,10 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

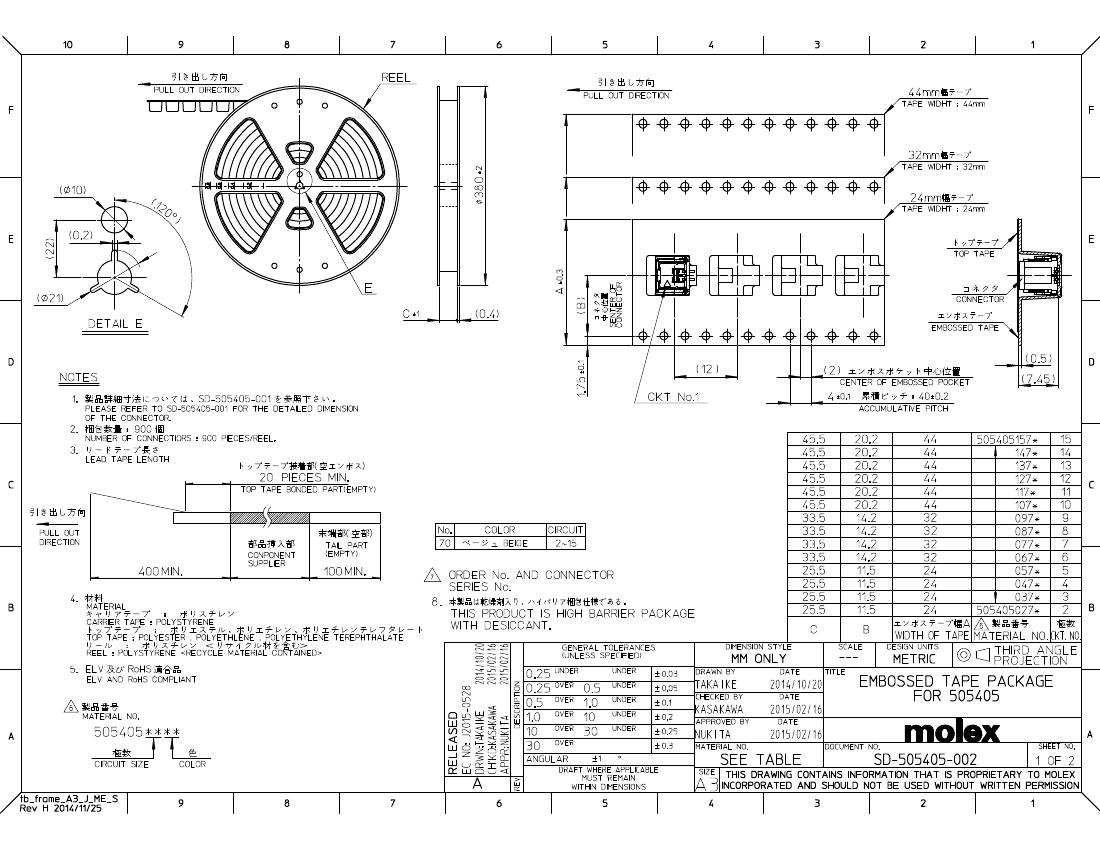

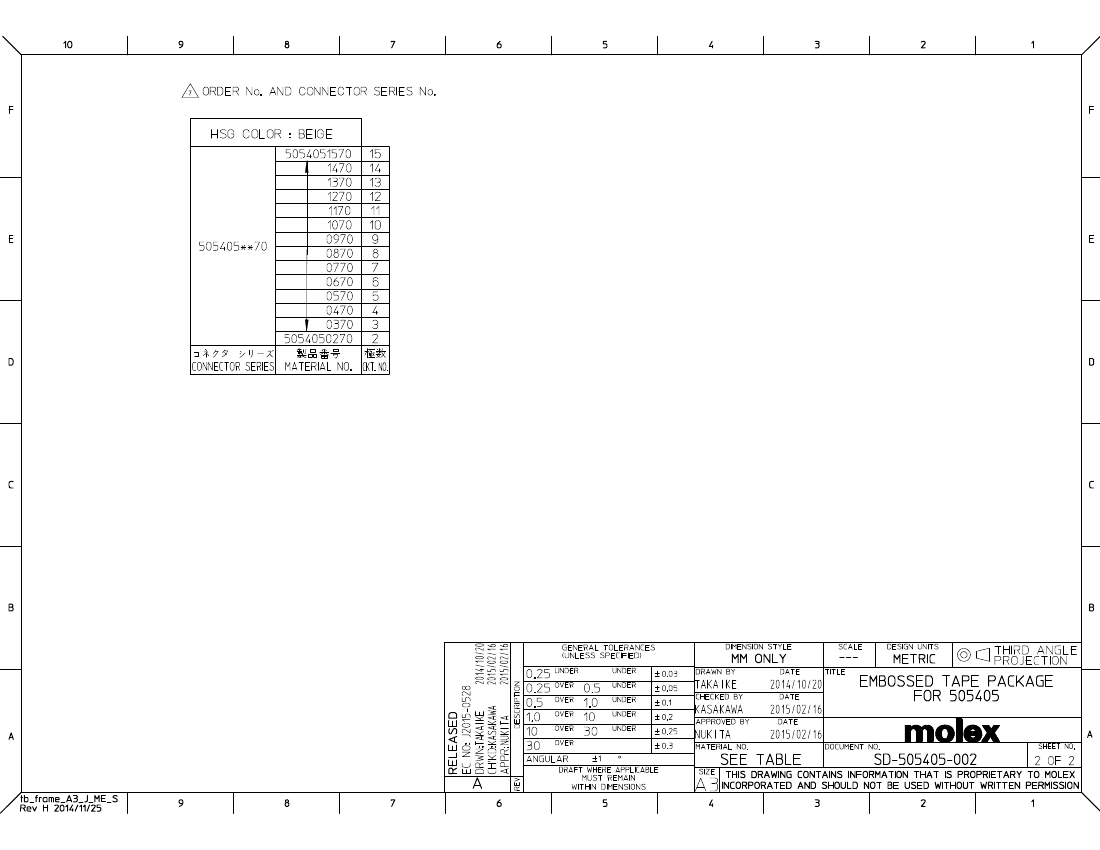

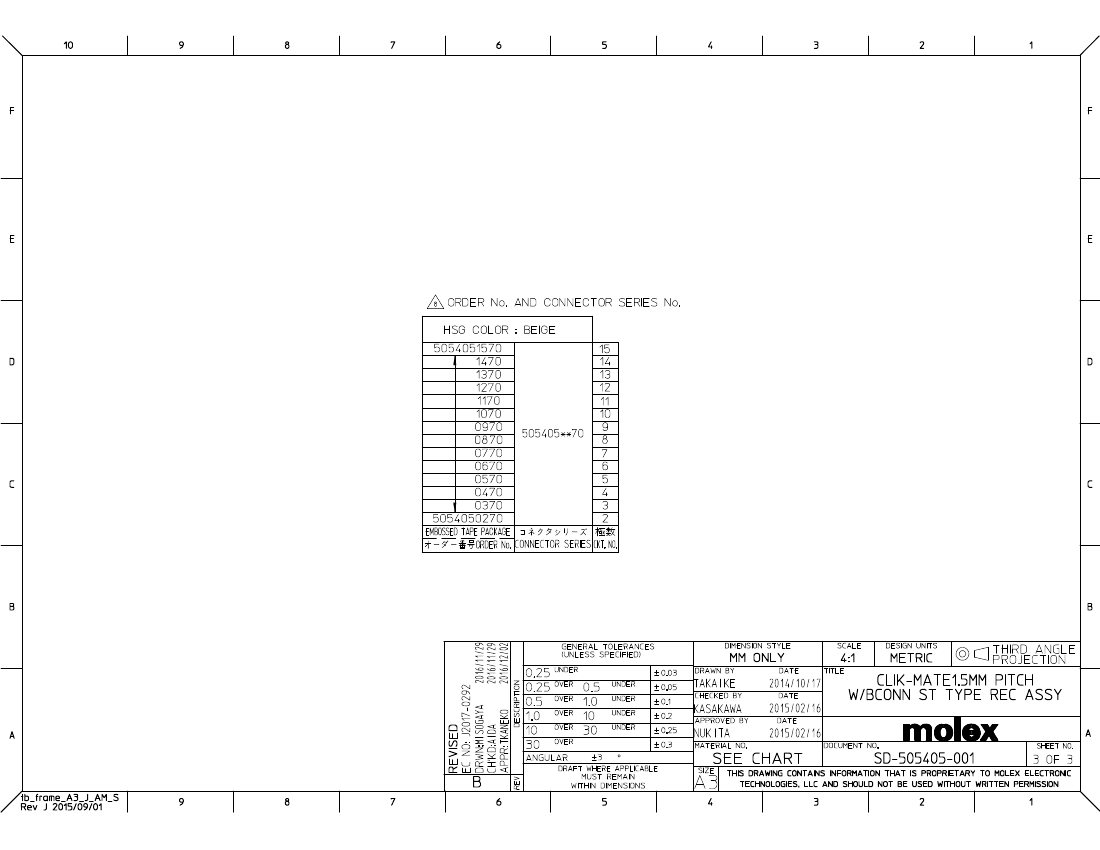

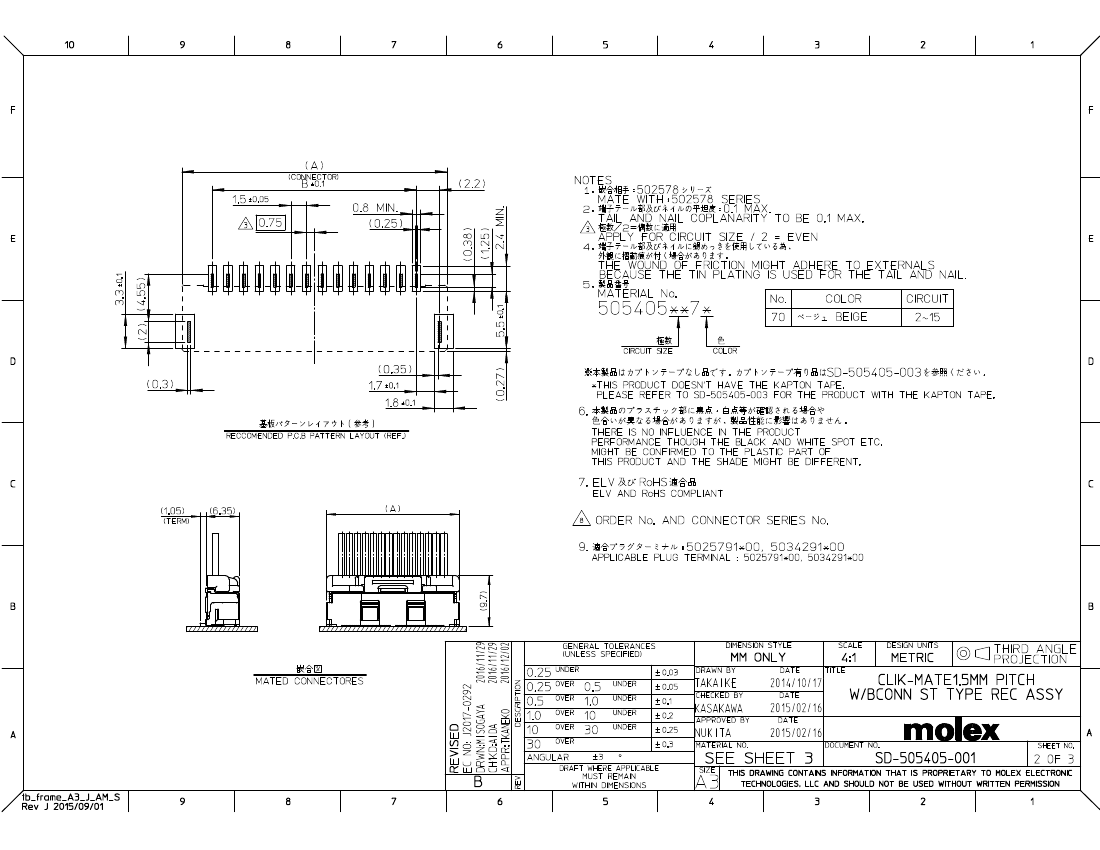

5054051470 Overview

Board Connector, 14 Contact(s), 1 Row(s), Female, Straight, 0.059 inch Pitch, Surface Mount Terminal, Locking, Receptacle,

5054051470 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time22 weeks
Board mount optionsFITTING NAIL
body width0.25 inch
subject depth0.287 inch
body length0.996 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Insulation resistance500000000 Ω
Manufacturer's serial number505405
Plug contact pitch0.059 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thickness7.87u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.4986 mm
Termination typeSURFACE MOUNT
Total number of contacts14
Base Number Matches1
