DM54LS161AJ

Description
Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16
Categorylogic    logic
File Size293KB，12 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

DM54LS161AJ Overview

Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16

DM54LS161AJ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codecompliant
Counting directionUP
seriesLS
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.304 mm
Load/preset inputYES
Logic integrated circuit typeBINARY COUNTER
Maximum Frequency@Nom-Sup20000000 Hz
MaximumI(ol)0.004 A
Operating modeSYNCHRONOUS
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Maximum supply current (ICC)32 mA
propagation delay (tpd)38 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax25 MHz
Base Number Matches1

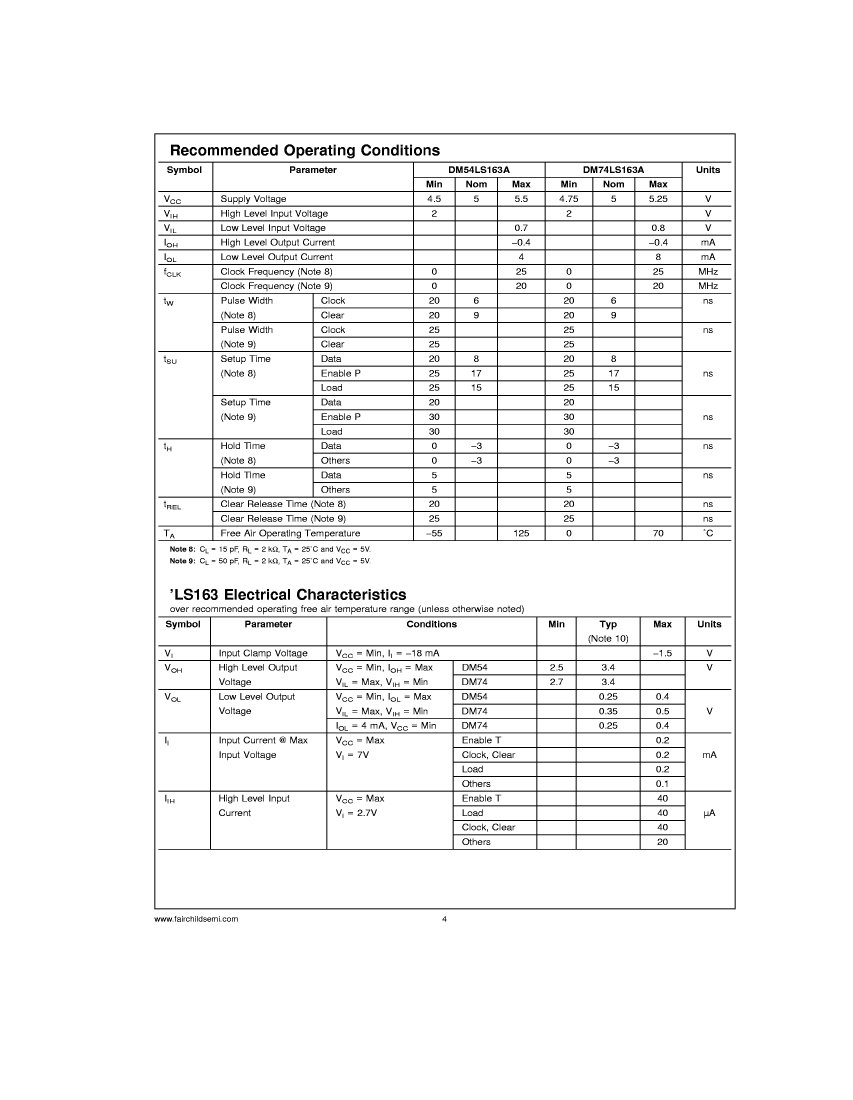

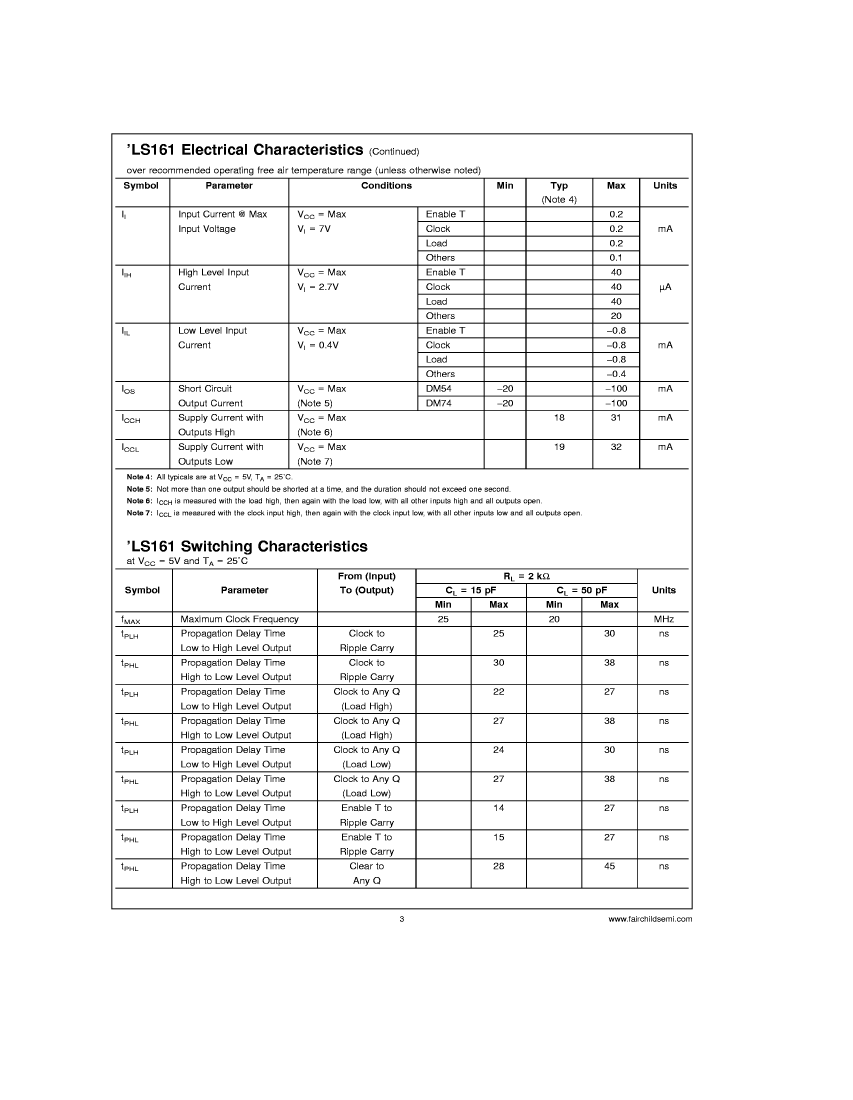

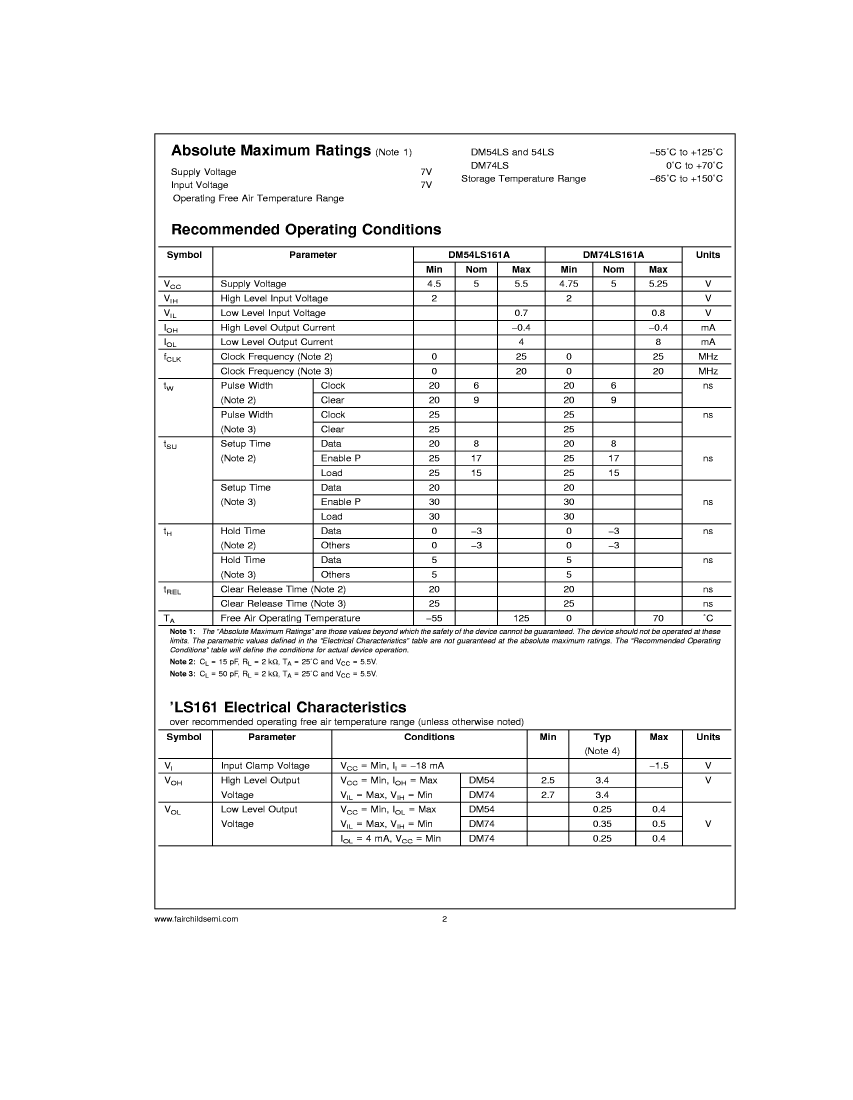

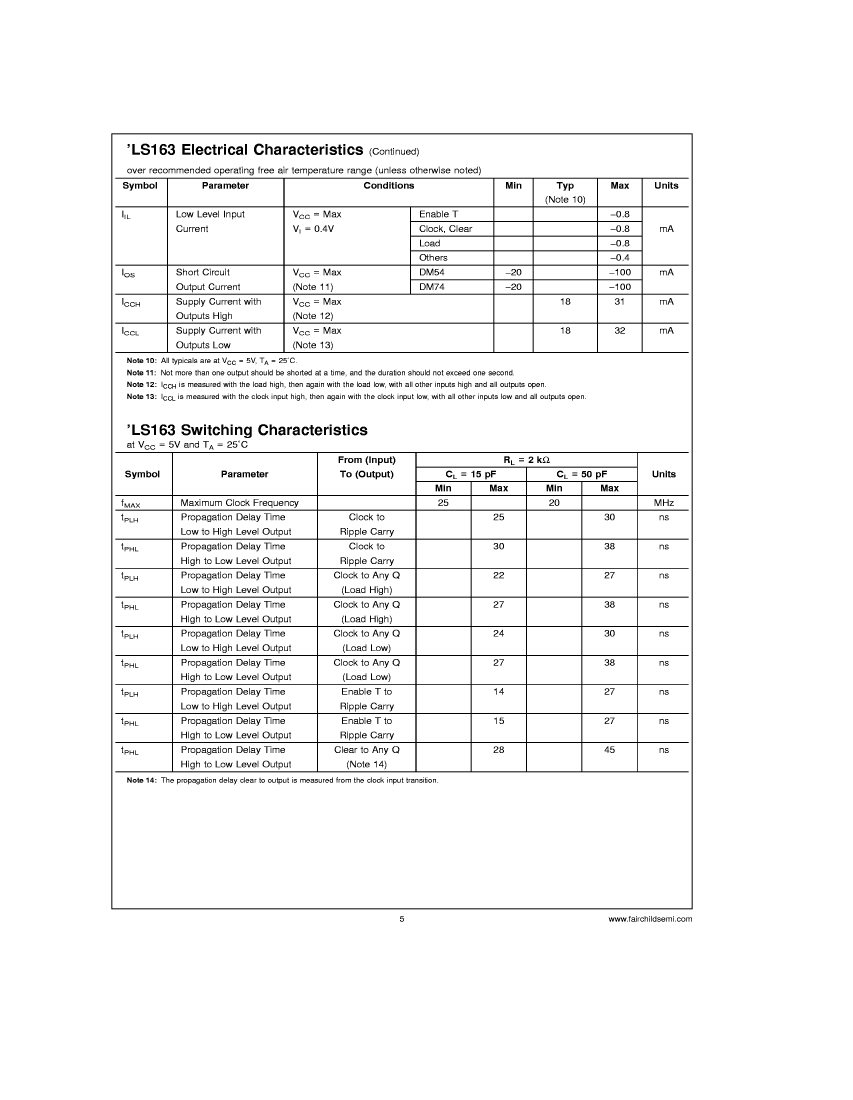

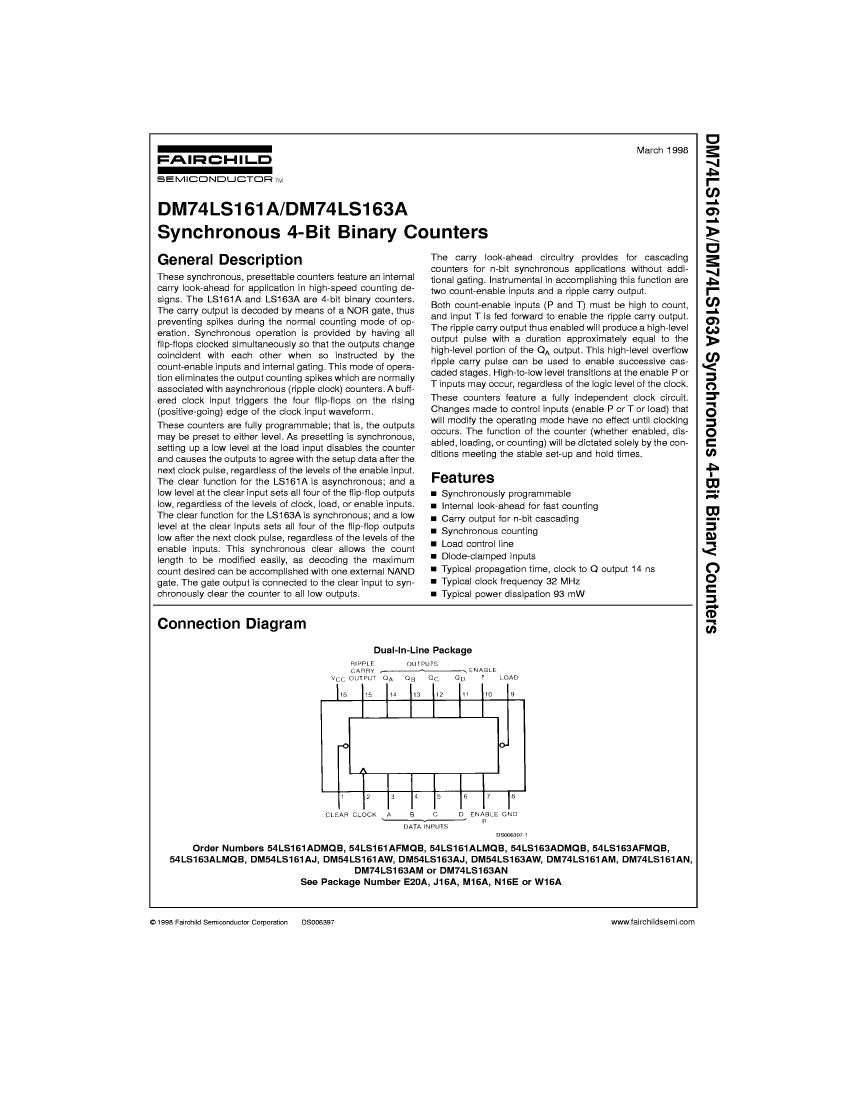

Preview

Download Datasheet
This Material Copyrighted By Its Respective Manufacturer

DM54LS161AJ Related Products

DM54LS161AJ DM54LS163AJ DM54LS163AW DM54LS161AW 54LS161AFMQB 54LS163ADMQB 54LS161ALMQB 54LS163AFMQB 54LS163ALMQB 54LS161ADMQB
Description Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CQCC20, CERAMIC, LCC-20 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CQCC20, CERAMIC, LCC-20 Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDIP16, CERAMIC, DIP-16
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Parts packaging code DIP DIP DFP DFP DFP DIP QLCC DFP QLCC DIP
package instruction DIP, DIP16,.3 DIP, DIP16,.3 DFP, FL16,.3 DFP, FL16,.3 CERAMIC, FP-16 DIP, DIP16,.3 QCCN, LCC20,.35SQ DFP, FL16,.3 QCCN, LCC20,.35SQ DIP, DIP16,.3
Contacts 16 16 16 16 16 16 20 16 20 16
Reach Compliance Code compliant compliant compliant compliant compliant unknown compliant compliant compliant unknown
Counting direction UP UP UP UP UP UP UP UP UP UP
series LS LS LS LS LS LS LS LS LS LS
JESD-30 code R-GDIP-T16 R-GDIP-T16 R-GDFP-F16 R-GDFP-F16 R-GDFP-F16 R-GDIP-T16 S-CQCC-N20 R-GDFP-F16 S-CQCC-N20 R-GDIP-T16
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0 e0
length 19.304 mm 19.304 mm 9.6645 mm 9.6645 mm 9.6645 mm 19.304 mm 8.89 mm 9.6645 mm 8.89 mm 19.304 mm
Load/preset input YES YES YES YES YES YES YES YES YES YES
Logic integrated circuit type BINARY COUNTER BINARY COUNTER BINARY COUNTER BINARY COUNTER BINARY COUNTER BINARY COUNTER BINARY COUNTER BINARY COUNTER BINARY COUNTER BINARY COUNTER
Maximum Frequency@Nom-Sup 20000000 Hz 20000000 Hz 20000000 Hz 20000000 Hz 20000000 Hz 20000000 Hz 20000000 Hz 20000000 Hz 20000000 Hz 20000000 Hz
MaximumI(ol) 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A
Operating mode SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS SYNCHRONOUS
Number of digits 4 4 4 4 4 4 4 4 4 4
Number of functions 1 1 1 1 1 1 1 1 1 1
Number of terminals 16 16 16 16 16 16 20 16 20 16
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED
encapsulated code DIP DIP DFP DFP DFP DIP QCCN DFP QCCN DIP
Encapsulate equivalent code DIP16,.3 DIP16,.3 FL16,.3 FL16,.3 FL16,.3 DIP16,.3 LCC20,.35SQ FL16,.3 LCC20,.35SQ DIP16,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR SQUARE RECTANGULAR SQUARE RECTANGULAR
Package form IN-LINE IN-LINE FLATPACK FLATPACK FLATPACK IN-LINE CHIP CARRIER FLATPACK CHIP CARRIER IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Maximum supply current (ICC) 32 mA 32 mA 32 mA 32 mA 32 mA 32 mA 32 mA 32 mA 32 mA 32 mA
propagation delay (tpd) 38 ns 38 ns 38 ns 38 ns 38 ns 38 ns 38 ns 38 ns 38 ns 38 ns
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 5.08 mm 5.08 mm 2.032 mm 2.032 mm 2.032 mm 5.08 mm 1.905 mm 2.032 mm 1.905 mm 5.08 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount NO NO YES YES YES NO YES YES YES NO
technology TTL TTL TTL TTL TTL TTL TTL TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE FLAT FLAT FLAT THROUGH-HOLE NO LEAD FLAT NO LEAD THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 1.27 mm 1.27 mm 1.27 mm 2.54 mm 1.27 mm 1.27 mm 1.27 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL QUAD DUAL QUAD DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Trigger type POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE
width 7.62 mm 7.62 mm 6.604 mm 6.604 mm 6.604 mm 7.62 mm 8.89 mm 6.604 mm 8.89 mm 7.62 mm
minfmax 25 MHz 25 MHz 25 MHz 25 MHz 25 MHz 25 MHz 25 MHz 25 MHz 25 MHz 25 MHz
Base Number Matches 1 1 1 1 1 1 1 1 1 1
