5962F9565302VXC

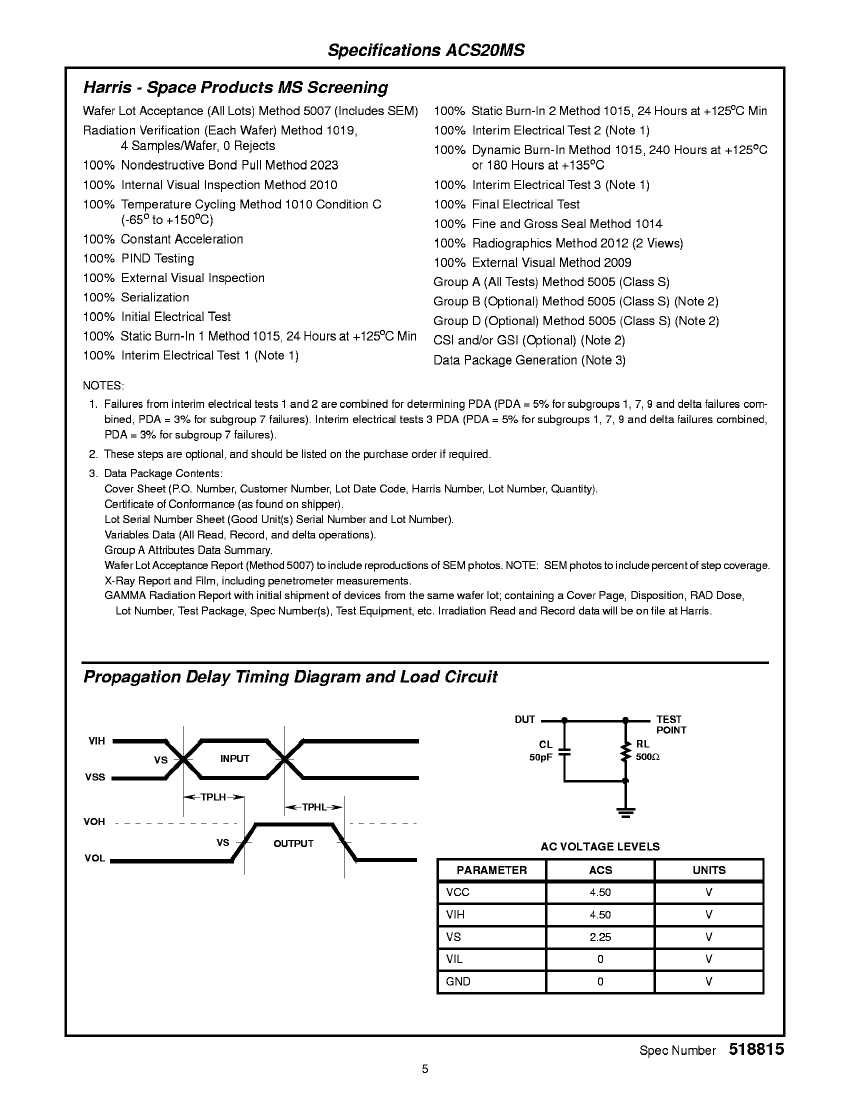

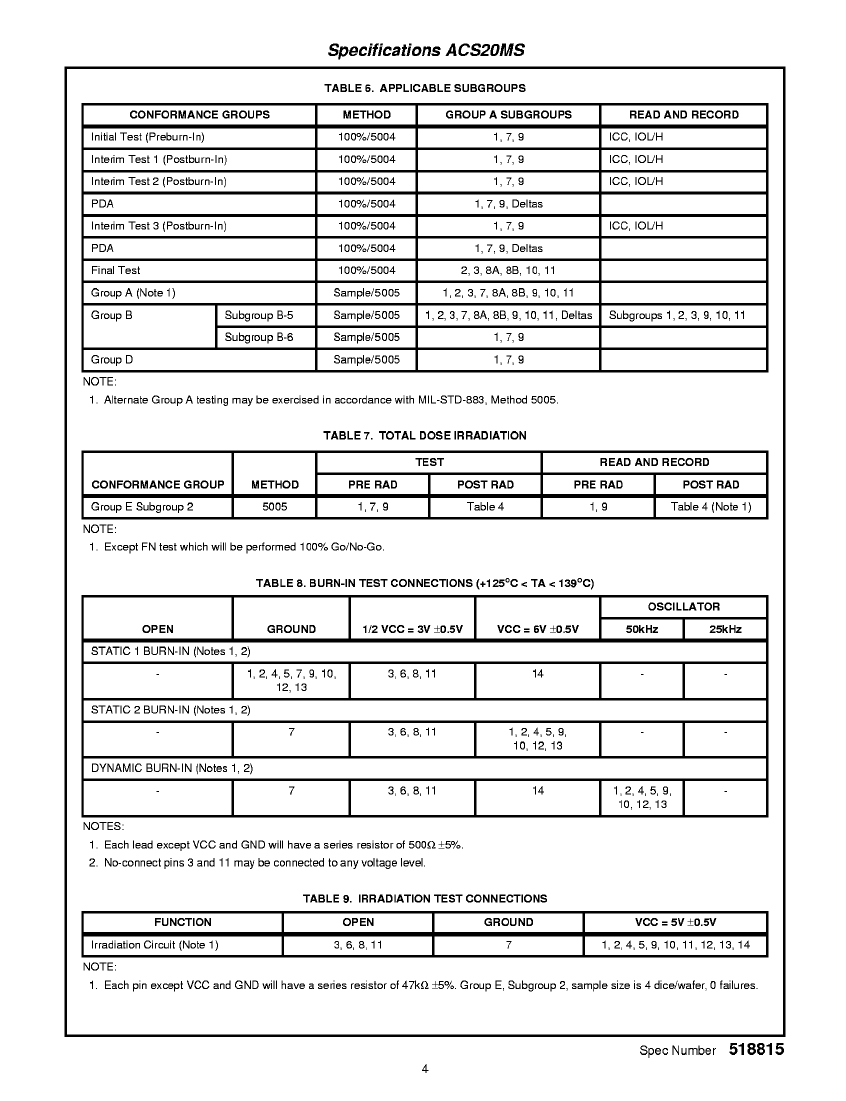

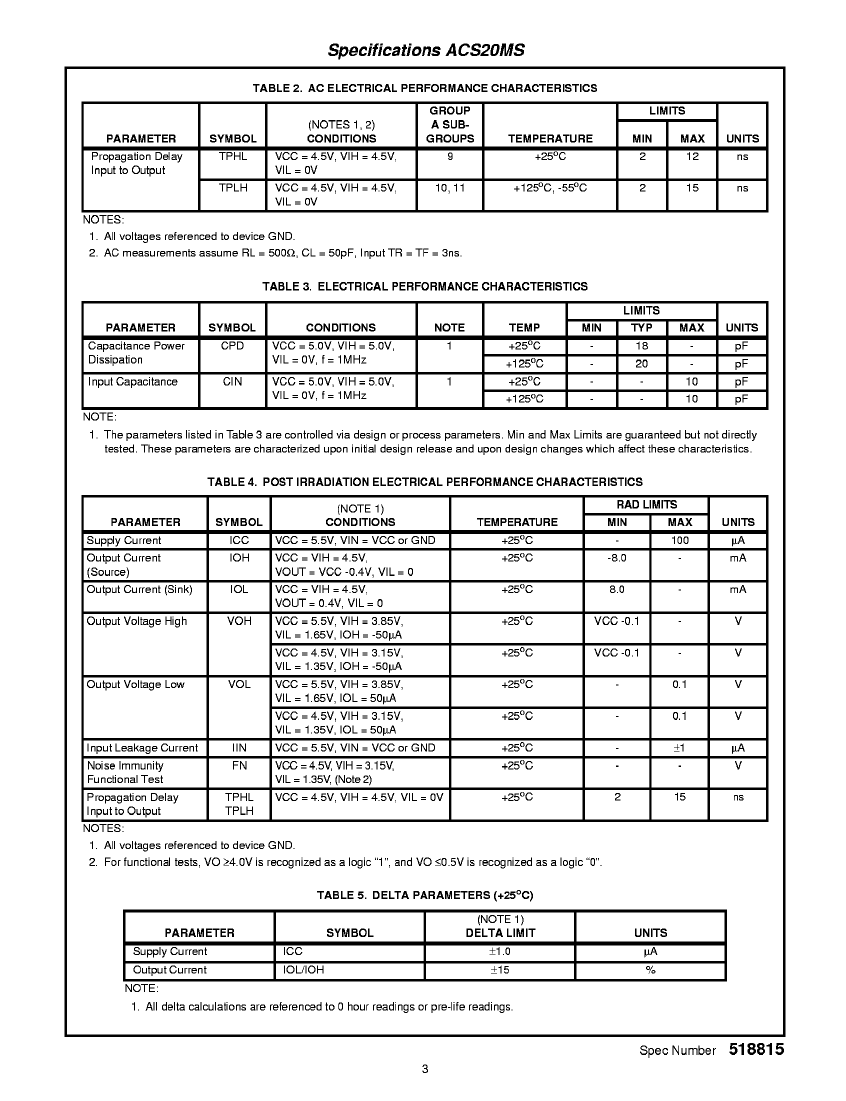

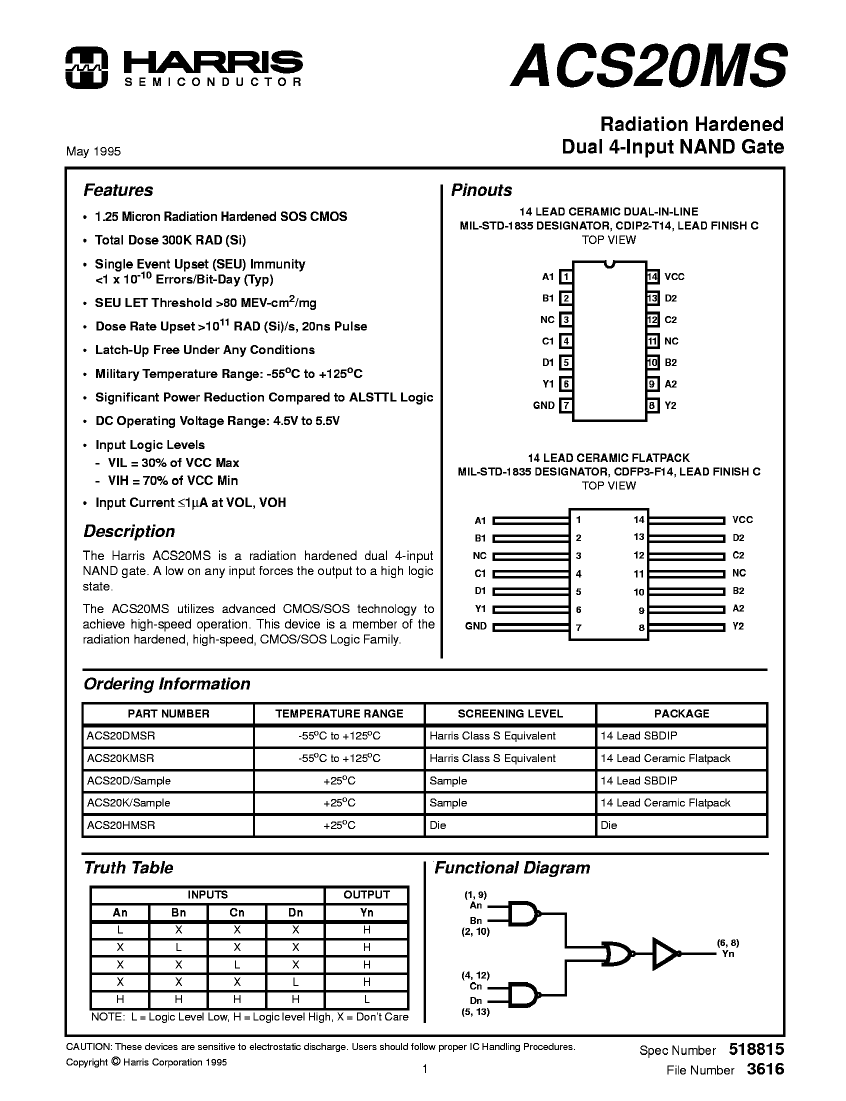

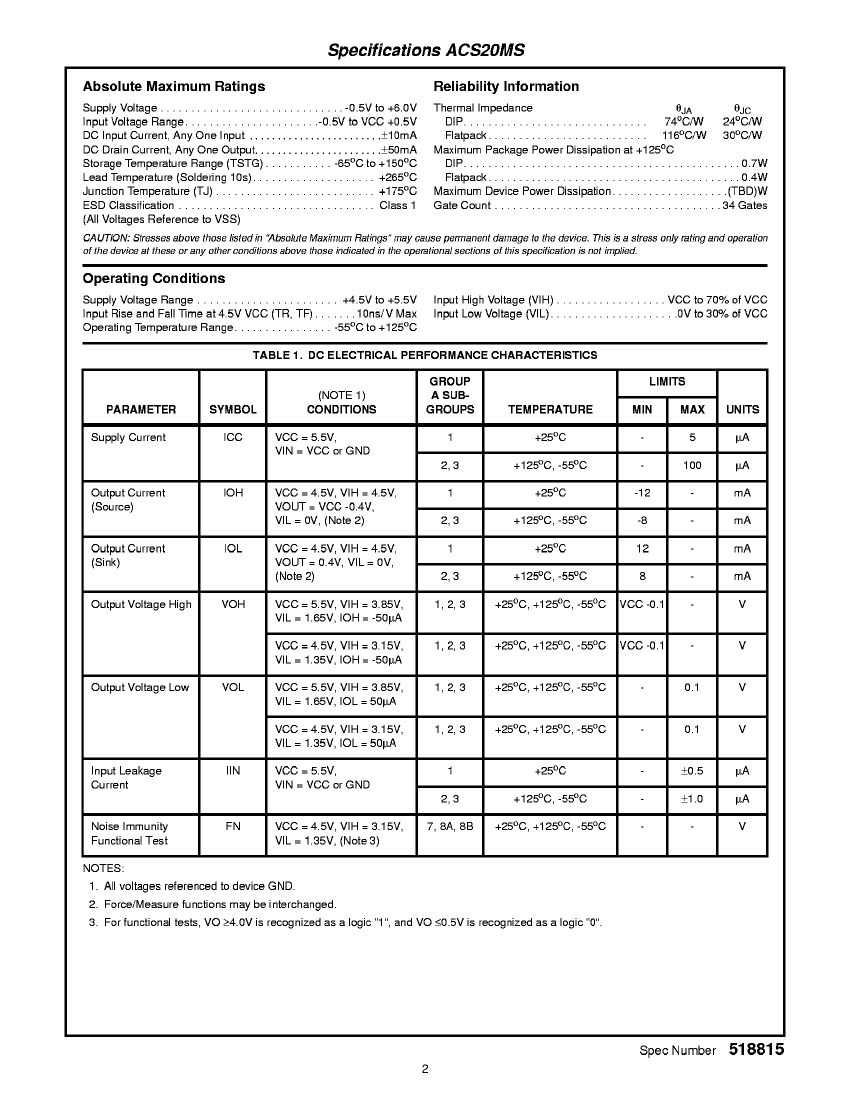

Description
AC SERIES, DUAL 4-INPUT NAND GATE, CDFP14
Categorylogic    logic
File Size218KB,8 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric View All

5962F9565302VXC Overview

AC SERIES, DUAL 4-INPUT NAND GATE, CDFP14

5962F9565302VXC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeDFP
package instructionDFP, FL14,.3
Contacts14
Reach Compliance Codenot_compliant
seriesAC
JESD-30 codeR-CDFP-F14
JESD-609 codee0
length9.525 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeNAND GATE
MaximumI(ol)0.008 A
Number of functions2
Number of entries4
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Prop。Delay @ Nom-Sup15 ns
propagation delay (tpd)15 ns
Certification statusNot Qualified
Schmitt triggerNO
Filter levelMIL-PRF-38535 Class V
Maximum seat height2.92 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
total dose300k Rad(Si) V
width6.285 mm
Base Number Matches1
