5962-86716012X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962-86716012X

5962-86716012X: DescriptionSPST, 4 Func, 1 Channel, CMOS, CQCC20; CategoryAnalog mixed-signal IC The signal circuit; File Size306KB，11 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962-86716012X Overview

SPST, 4 Func, 1 Channel, CMOS, CQCC20

5962-86716012X Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	S-CQCC-N20
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	20
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	50 ns
Maximum connection time	50 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

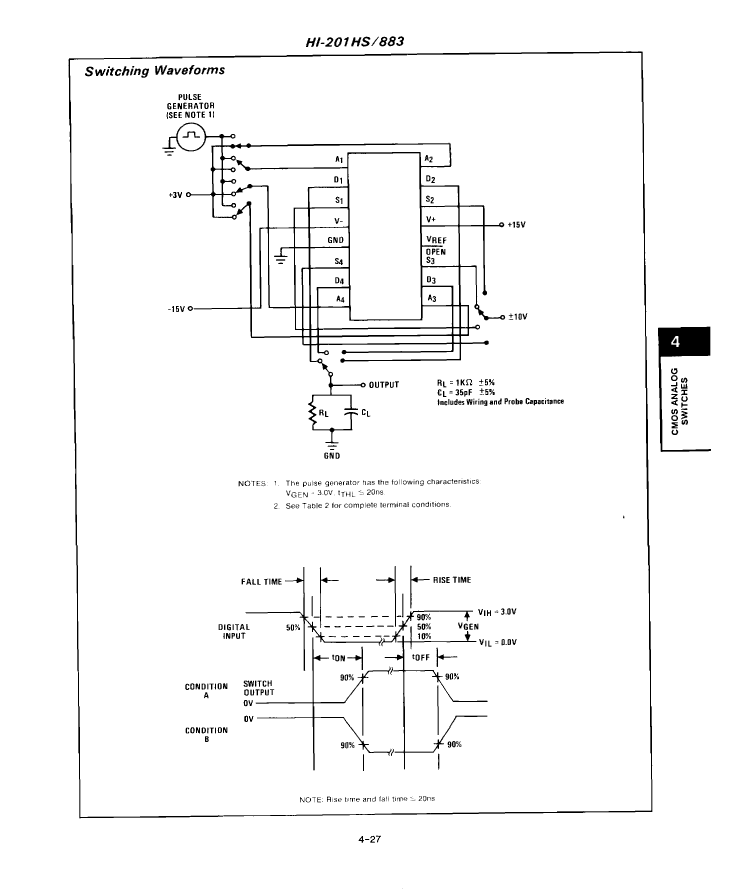

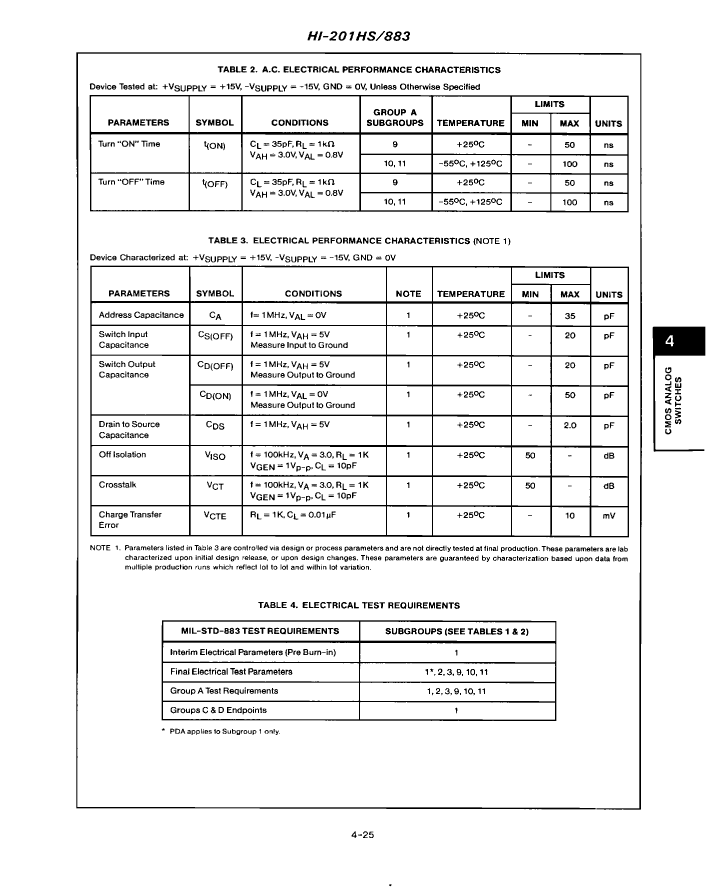

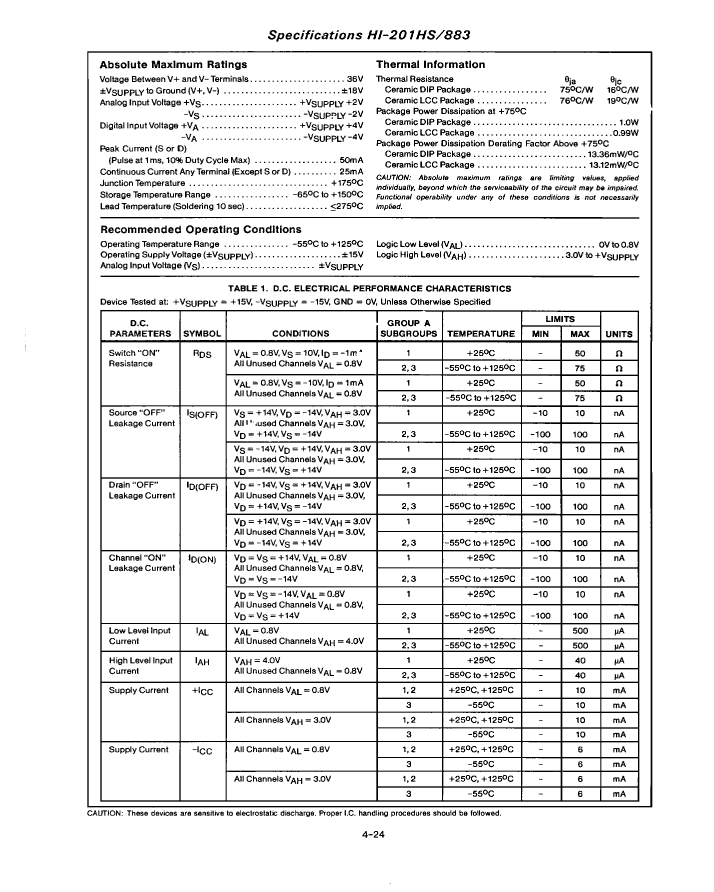

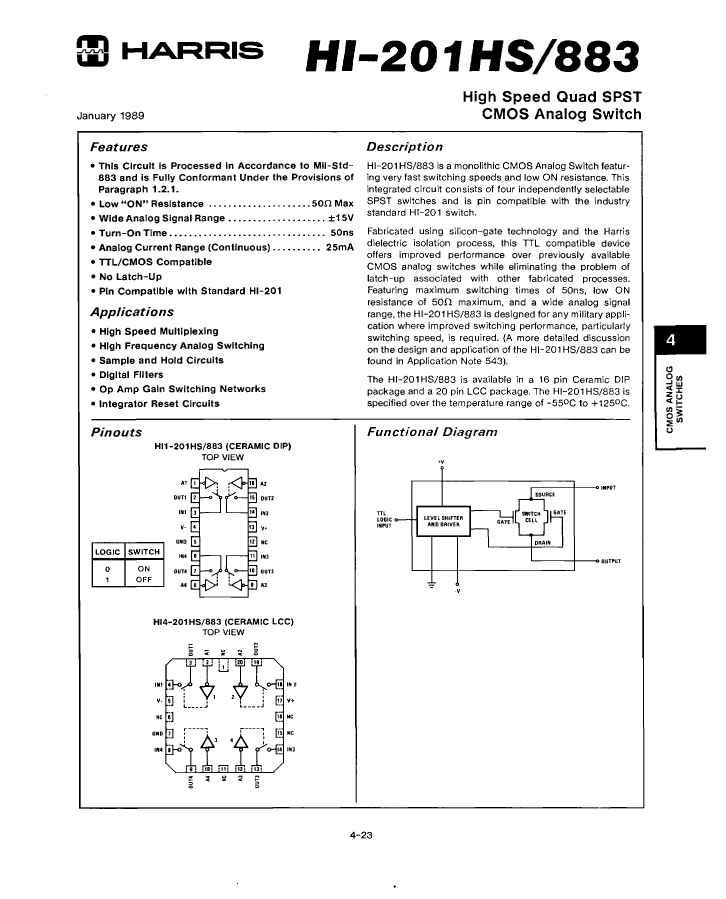

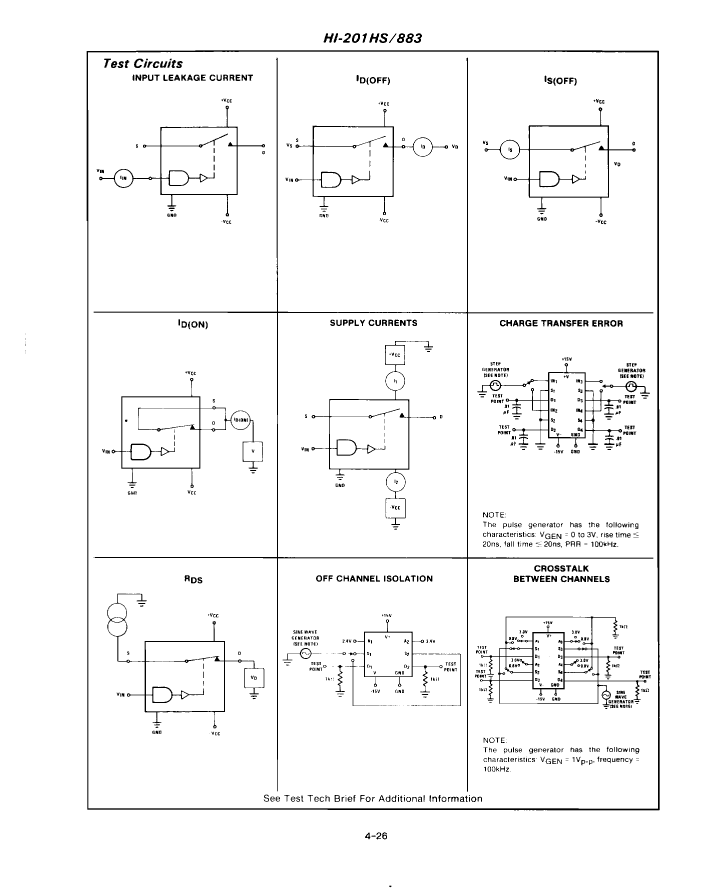

Preview

Download Datasheet

View All

5962-86716012X Related Products

	5962-86716012X	5962-8671601EA	5962-8671601EX	5962-86716012A	HI4-201HS/883	HI1-201HS/883
Description	SPST, 4 Func, 1 Channel, CMOS, CQCC20	SPST, 4 Func, 1 Channel, CMOS, CDIP16,	SPST, 4 Func, 1 Channel, CMOS, CDIP16,	SPST, 4 Func, 1 Channel, CMOS, CQCC20	SPST, 4 Func, 1 Channel, CMOS, CQCC20	SPST, 4 Func, 1 Channel, CMOS, CDIP16,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	S-CQCC-N20	R-GDIP-T16	R-GDIP-T16	S-CQCC-N20	S-CQCC-N20	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1	1	1
Number of functions	4	4	4	4	4	4
Number of terminals	20	16	16	20	20	16
Maximum on-state resistance (Ron)	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	YES	YES	NO
Maximum disconnect time	50 ns	50 ns	50 ns	50 ns	50 ns	50 ns
Maximum connection time	50 ns	50 ns	50 ns	50 ns	50 ns	50 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL
Base Number Matches	1	1	1	1	1	-
Maximum supply current (Isup)	-	10 mA	-	10 mA	10 mA	10 mA
