5459-2-48-1: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5459-2-48-1 Overview

Board Connector, 48 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

5459-2-48-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.28 inch
subject depth	0.498 inch
body length	2.697 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5459
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

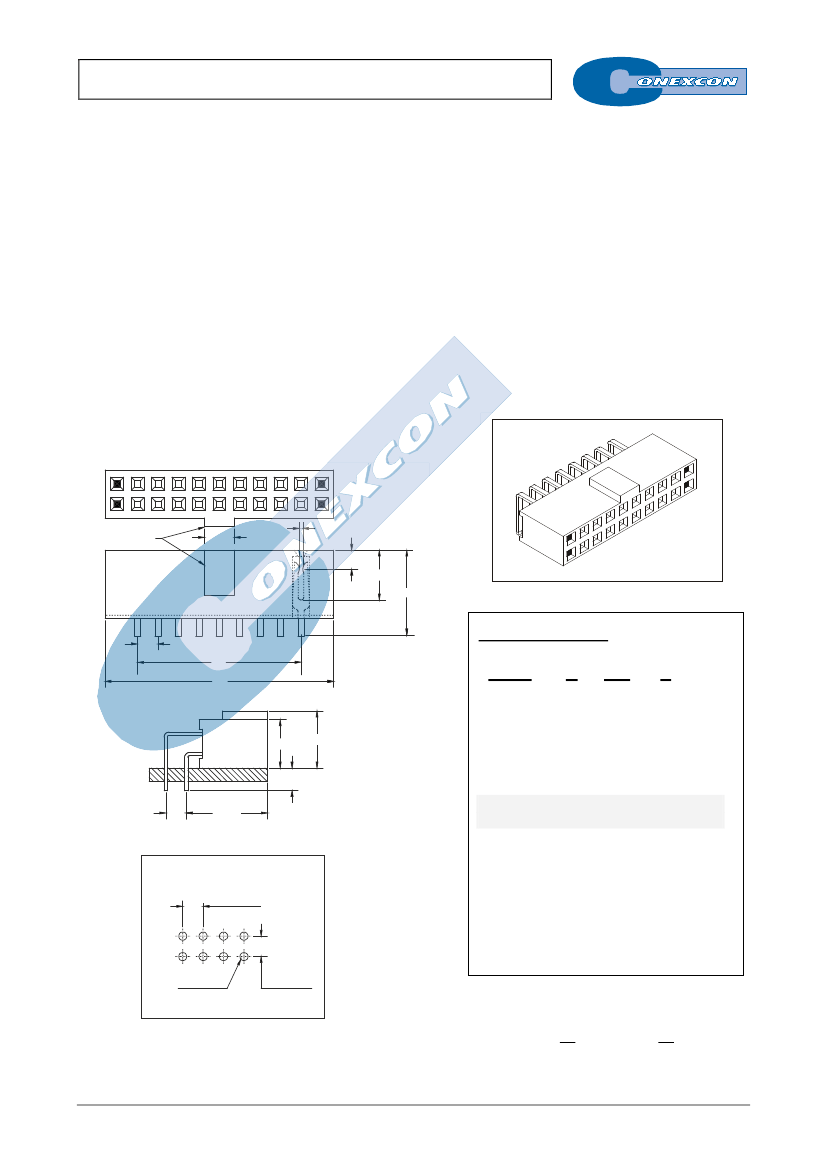

DUAL ROW SIDE ENTRY SOCKET

5459 SERIES.

2.54 mm (0.100”) pitch. With Polarisation Bump

General Features

Electrical Features



Available in 6 through 72 circuits



Mates with pin header 2.54 mm pitch 5446, 5447, 4455

•

and 5543 series



Accept 0.64 square pin



U contact with different plating

Materials



Voltage rating: < 250V



Current rating: < 3 A



Contact resistance: < 20 mΩ



Dielectric withstanding voltage: 600 V AC/minute



Insulation resistance: >1000 MΩ



Capacitance: < 2 pF at 1 KHz

Mechanical Features



Insulator: PBT UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant



Insertion force receptacle/plug: < 0,40 Kgf/pin

Unmating force receptacle/plug: > 0,03 Kgf/pin

Contact retention force to housing: > 0,50 Kgf/pin

Durability: 50 cycles

Dimension Information

Pivote de

polarización

3.70

0.44 +0.03

0.00

2.36

6.20.2

12.64

2.54

Ordering Information:

5459 -

T-

XX-

6.00

7.10

1. Connector Series

2. (T) Contact Plating

3.2

2.54

10.10



T =

Tin plated



T =

Gold flash over nickel

Recommended Finish

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002



T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

3. (XX) Number of circuits



Available in 6 through 72 circuits

1.02±0.05

.040±.002

2.54±0.05

.100±.002

DIMENSIONS

2.54







−













2.54



 +

7.54





(XX) = Number of circuits

E-XX
