5962R9580501VXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9580501VXC

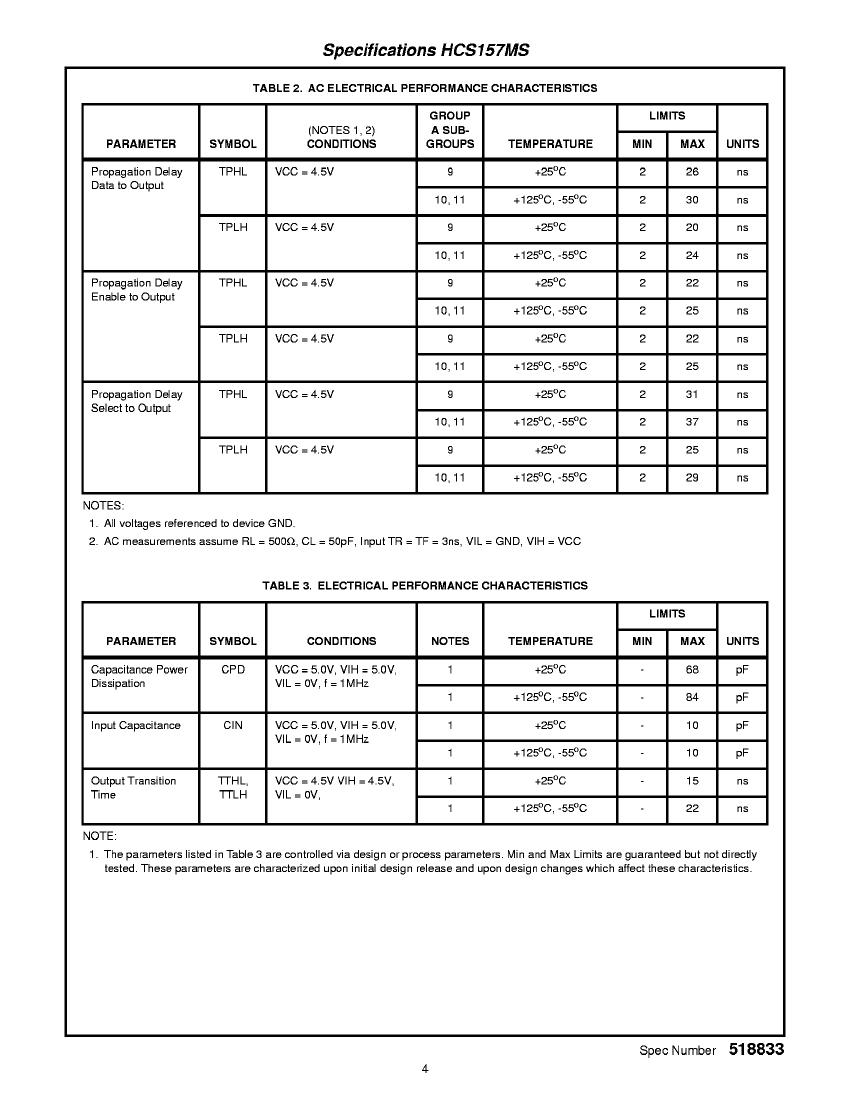

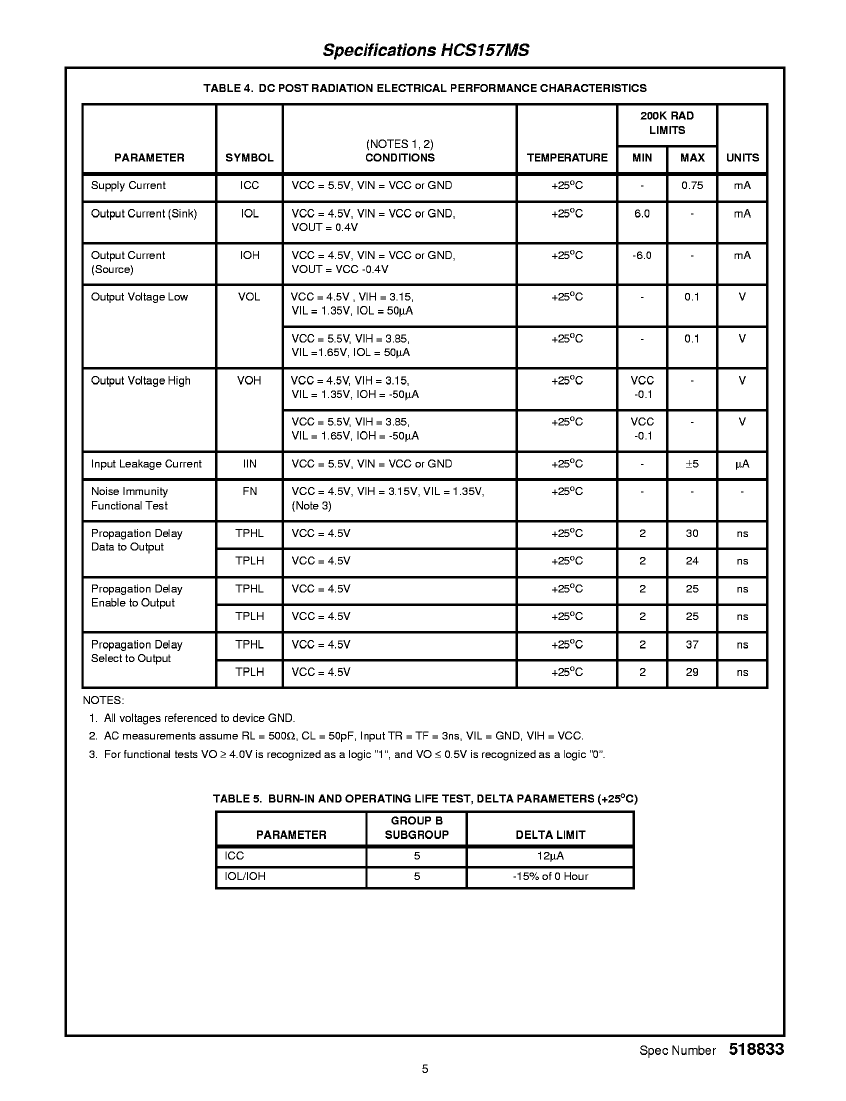

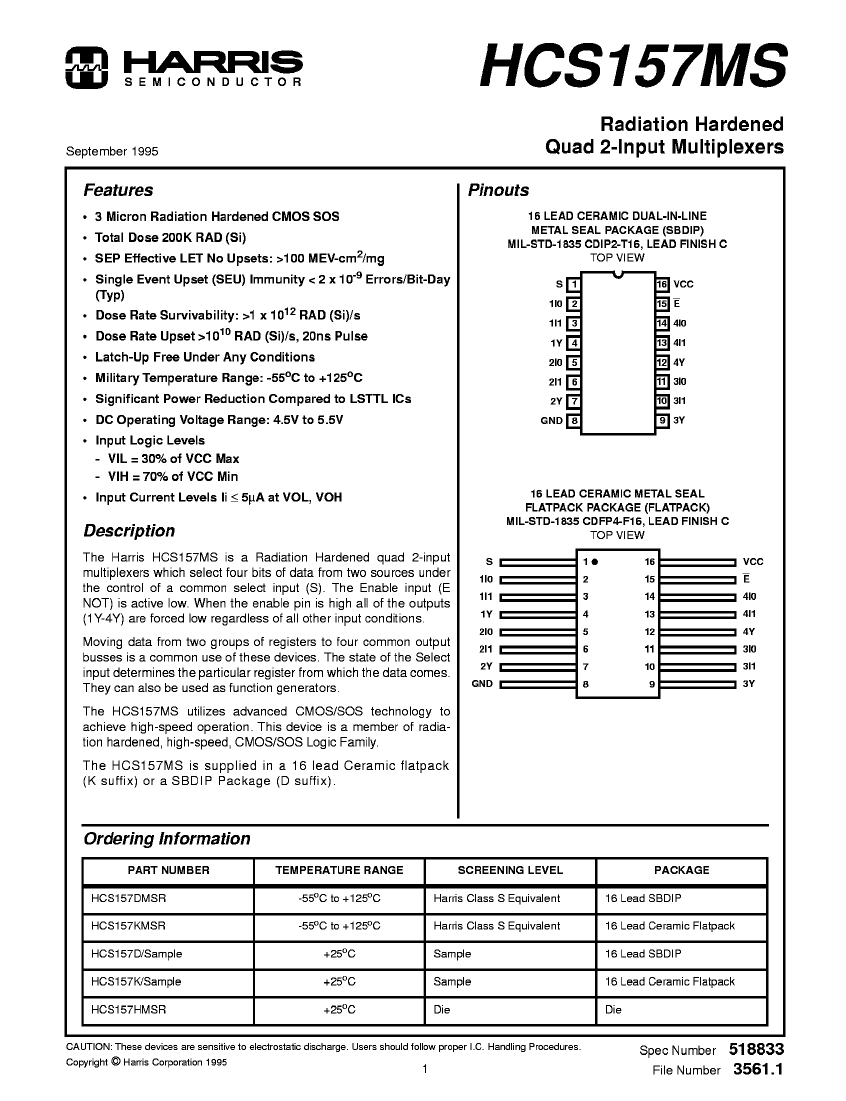

5962R9580501VXC: DescriptionMultiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDFP16; Categorylogic logic; File Size226KB，9 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9580501VXC Overview

Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDFP16

5962R9580501VXC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	37 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962R9580501VXC Related Products

	5962R9580501VXC	HCS157HMSR	5962R9580501V9A	HCS157KMSR	5962R9580501VEC	HCS157K/SAMPLE	HCS157DMSR	HCS157D/SAMPLE
Description	Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDFP16	Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS	Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS	Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDFP16	Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDIP16	Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDFP16	Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDIP16	Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDIP16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDFP-F16	X-XUUC-N16	X-XUUC-N16	R-CDFP-F16	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2	2
Output times	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	UNCASED CHIP	UNCASED CHIP	FLATPACK	IN-LINE	FLATPACK	IN-LINE	IN-LINE
propagation delay (tpd)	37 ns	37 ns	37 ns	37 ns	37 ns	37 ns	37 ns	37 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	NO LEAD	NO LEAD	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	UPPER	UPPER	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY	-
Maker	-	Harris	-	Harris	-	Harris	Harris	Harris
