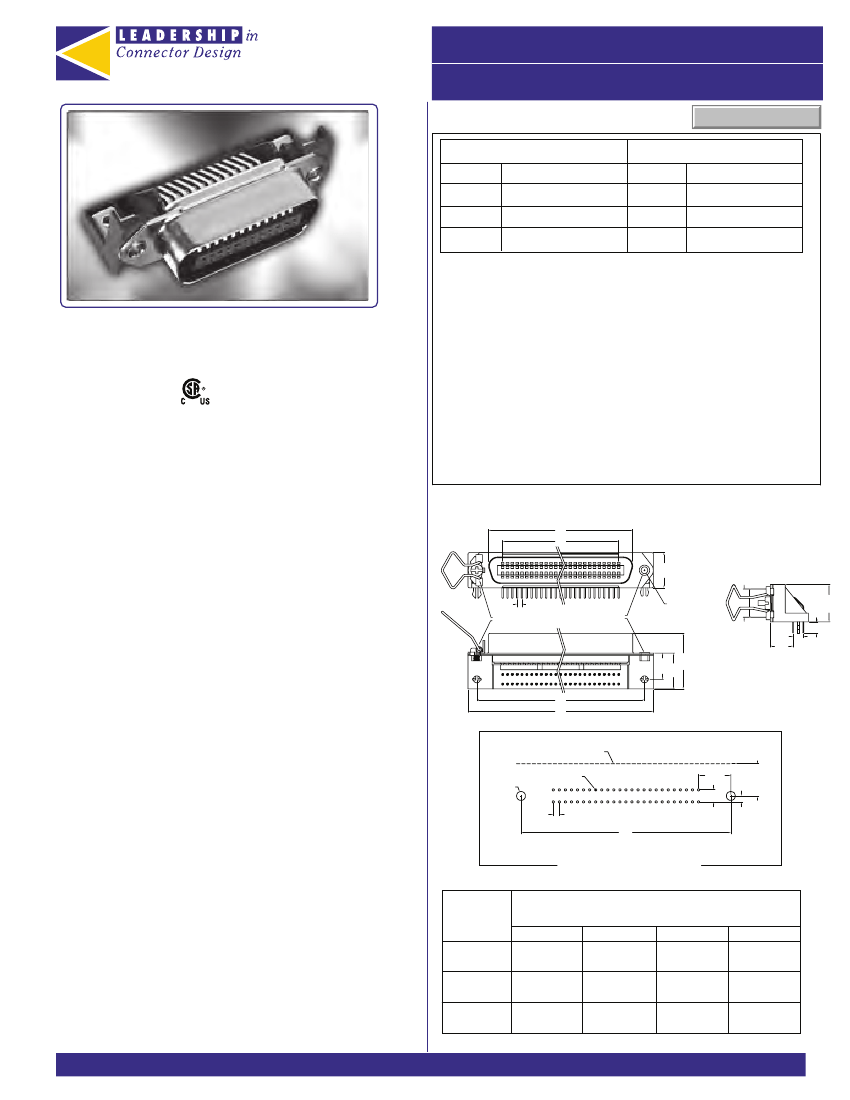

MINIATURE RIBBON CONNECTORS

KYCON

37X-9 Series

Ordering Information

Receptacles

Contacts

Part Number

Click here for more information

Plugs

Contacts

Part Number

37X-92240

37X-92360

37X-92500

37X-91240

37X-91360

37X-91500

Mounting Options (PCB)

12 - 4-40 Riveted Threaded Mounting Holes

24 - Grounding Brackets

37X-9 Series Right Angle PCB Mount

Miniature Ribbon Connectors

Features

LR78160

• Applications Include Computer Peripherals, Data Processing,

Telecommunications and Industrial Controls

• UL Recognized Material

• Design Meets the Requirements of IEEE-488 and SCSI

Applications

• Plug and Socket Available in 14, 24, 36, and 50 Positions

• Bright Nickel Plated Shells for EMI/RFI Shielding

• D Shaped Connector Mating and Polarization

• CSA/NRTL Certified File No. LR78160

Mounting Option (Panel)

Blank - With Spring Latches*

K - With 4-40 Riveted Threaded Inserts and Spring Latches*

X - With Pan Head Screws installed and without Spring Latches

XK - With 4-40 Riveted Threaded Inserts and w/out Spring Latches

XJ - Without Spring Latches and with Jack Screws Installed**

XJM - Without Spring Latches and with IEEE Standard

Metric Jack Screws Installed**

* Spring Latch Option Only Available for Receptacle

** Removal of Jack Screws Will Cause Disassembly of XJ Option

37X Series Dimensions

Dimensions in mm

15.7

11.90

Performance Specifications

Materials and Finish

Shell :

Steel Material, Nickel Finish

Insert :

PBT Thermoplastic, Blue, 30% GlassFilled,

Self-Extinguishing, 94V-0 Rated

Contact Material :

Phosphor Bronze

Contact Finish :

Gold Flash Over 0.0001 (0.00254) Nickel

2.16 Typ.

Spring Latch

Option

"XK" Mounting

Option

#4-40 UNC

Riveted

Threaded

Inserts

4.29

9.60

11.76

16.0

24.77

PCB Edge

2-Ø3.20

±0.05

Ø0.80±0.05

11.53

Electrical Characteristics

Contact Current Rating :1

Amps

Dielectric Withstanding Voltage :

1000 V AC Min

Insulation Resistance :

1000 Megohms Min

Temperature Rating :

-55°C to + 105°C

2.16 Typ.

Recommended PCB Layout

Number

of Contacts

(Shell Size)

Dimensions (

)

1.427

36.30

1.941

49.30

2.545

64.45

1.843

46.80

2.350

59.70

2.949

74.90

2.150

54.70

2.638

67.70

3.264

82.80

.935

23.76

1.446

36.72

2.041

51.84

2007
