5962F9670301VXC datasheet, PDF

5962F9670301VXC: DescriptionNAND Gate, AC Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14; Categorylogic logic; File Size96KB，3 Pages; ManufacturerDefense Logistics Agency

Download Datasheet Parametric Compare View All

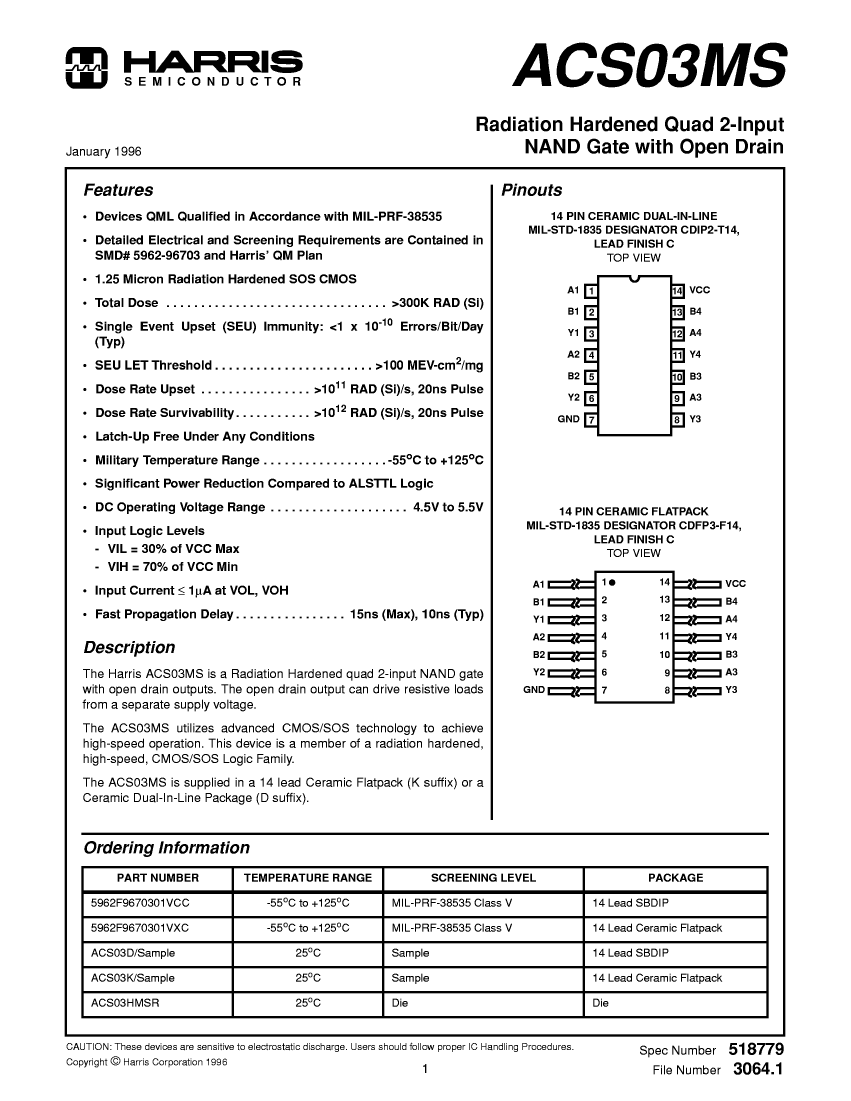

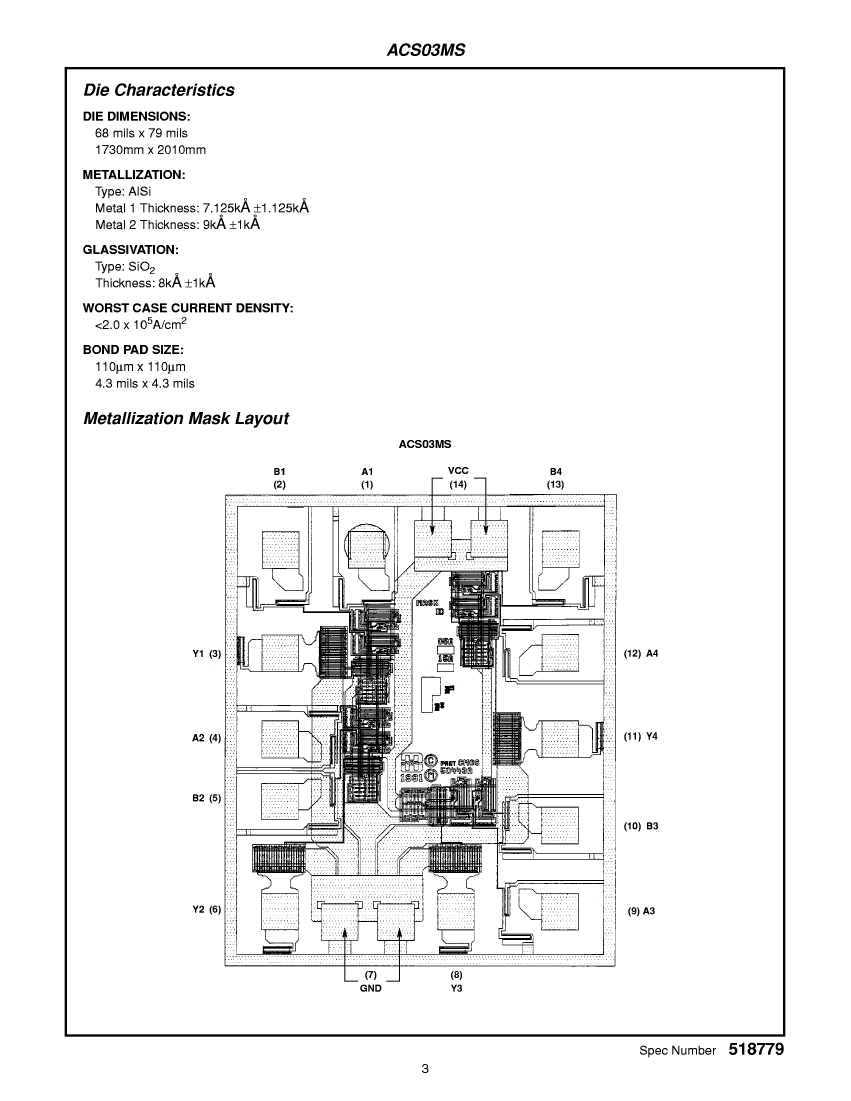

5962F9670301VXC Overview

NAND Gate, AC Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	14
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-DRAIN
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	15 ns
Certification status	Qualified
Filter level	MIL-PRF-38535 Class V
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL
total dose	300k Rad(Si) V
Base Number Matches	1

	5962F9670301VXC	5962F9670301VCC
Description	NAND Gate, AC Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14	NAND Gate, AC Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14
Parts packaging code	DFP	DIP
package instruction	DFP,	DIP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	AC	AC
JESD-30 code	R-CDFP-F14	R-CDIP-T14
JESD-609 code	e4	e4
Logic integrated circuit type	NAND GATE	NAND GATE
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
propagation delay (tpd)	15 ns	15 ns
Certification status	Qualified	Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	GOLD
Terminal form	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V
Base Number Matches	1	1
