8812485400 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8812485400

8812485400: DescriptionDry Reed Relay, 4PST, Momentary, 0.04A (Coil), 12VDC (Coil), 475mW (Coil), 1A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size86KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

8812485400 Overview

Dry Reed Relay, 4PST, Momentary, 0.04A (Coil), 12VDC (Coil), 475mW (Coil), 1A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

8812485400 Parametric

Parameter Name	Attribute value
Maker	Standex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	19.7 mm
body height	10 mm
Body length or diameter	32.4 mm
Maximum coil current (DC)	0.04 A
Coil operating voltage (DC)	8.4 V
Coil power	475 mW
Coil release voltage (DC)	0.7 V
Coil resistance	333 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	1A@1000VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@1000VDC
Maximum contact voltage (AC)	1000 V
Maximum contact voltage (DC)	1000 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	8812485400
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1.1 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	32.4mm x 19.7mm x 10mm
Relay action	MOMENTARY
Relay function	4PST
Relay type	DRY REED RELAY
release time	0.1 ms
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

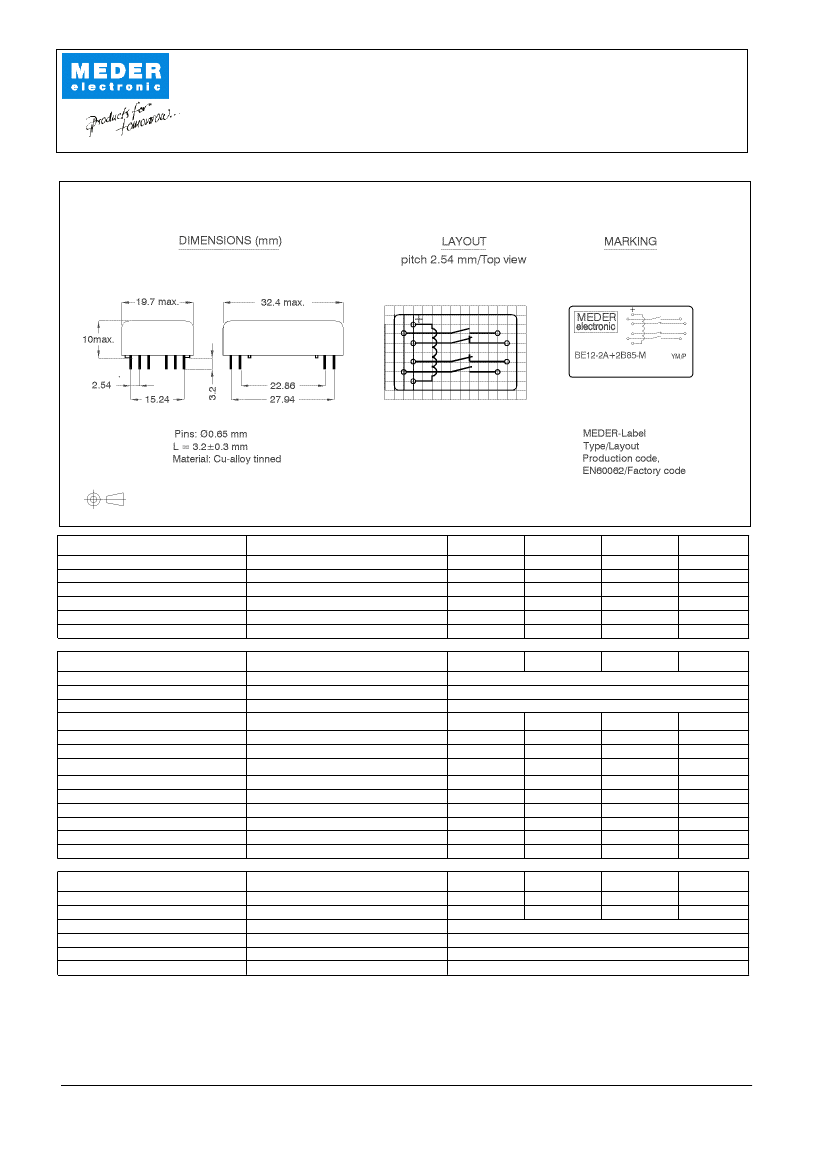

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

8812485400

Item:

BE12-2A+2B85-M

Coil Data at 20 °

Coil resistance

Coil voltage

Rated power

Thermal Resistance

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact Data 85

Contact-No.

Contact-form

Contact-material

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage (20-30 AT)

Operate time incl. bounce

Release time

Capacity

Conditions

Min

Typ

2A+2B

Rhodium

Max

Unit

not to exceed their individual max.'s

DC or Peak AC

!" #

100% Duty Cycle

Measured with 40% overdrive

RH <45 %, 100 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

Special Product Data

Insulation resistance Coil/Contact

Insulation voltage Coil/Contact

Housing material

Sealing compound

Connection pins

number of contacts

Conditions

RH <45%, 200 VDC test voltage

according to IEC 255-5

Min

Typ

Max

Unit

Fe - magnetic screen

Polyurethan

Copper alloy tin plated

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

08.10.09

Last Change by:

WKOVACS

Approval at:

12.10.09

Approval by:

KOLBRICH

Version:
