34S101-302H3

Description
RF 1.0/2.3 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug,
CategoryThe connector    The connector
File Size106KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

34S101-302H3 Overview

RF 1.0/2.3 DIN Connector, Male, Cable Mount, Crimp Terminal, Plug,

34S101-302H3 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Other featuresVSWR AND INSERTION LOSS MAX AT 4 GHZ, APPLICABLE CABLES: RG 316/U; RG 174A/U
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF 1.0/2.3 DIN CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedGOLD (50) OVER NICKEL
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.2 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number34S101-302H3
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency10 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.58
Base Number Matches1

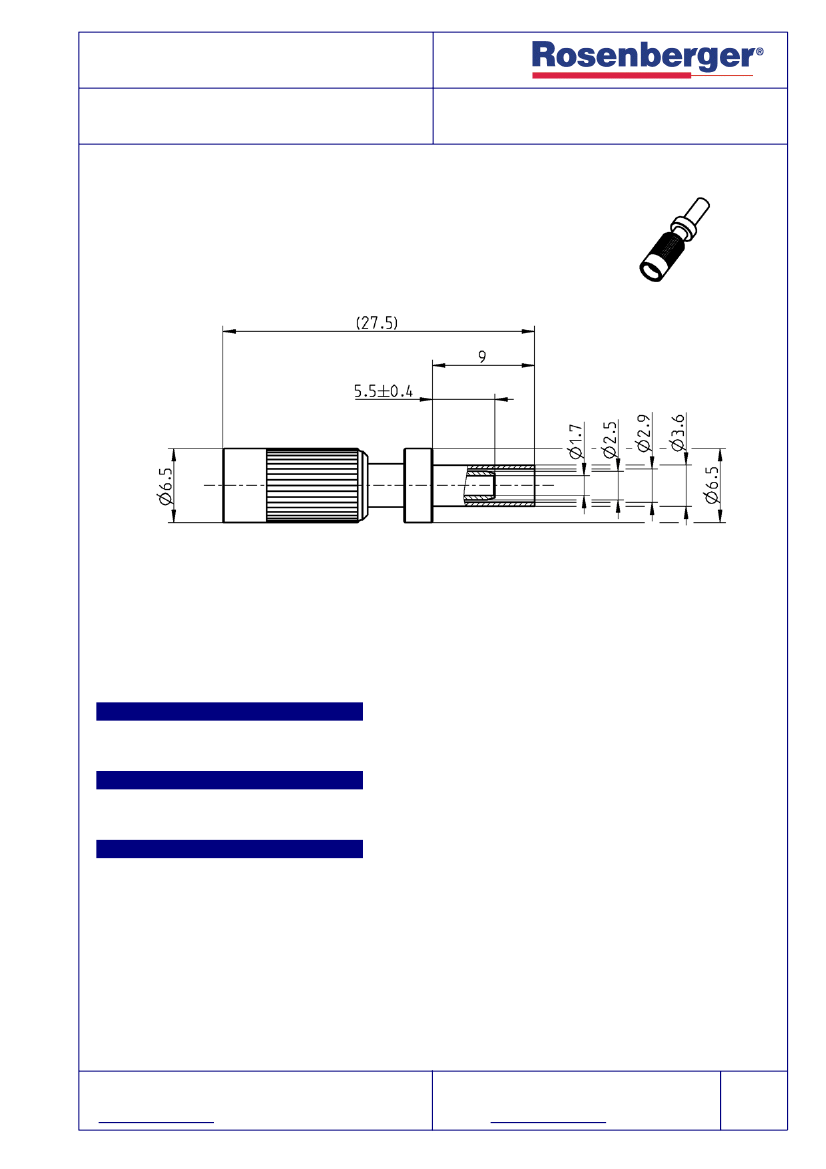

TECHNICAL DATA SHEET
1.0/2.3
STRAIGHT PLUG
SCREW ON
34S101-302H3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
CECC 22 230, DIN 47297
Documents
Assembly instruction
34 A
Material and plating
Connector parts
Center contact
Outer contact
Body
Coupling nut
Dielectric
Crimping ferrule
Material
Beryllium copper
Beryllium copper
Brass
Brass
PTFE
Copper
Plating
Gold, min. 1.27 µm, over chemical nickel
Gold, min. 1.27 µm, over nickel
Silver, 3-6 µm
Nickel, 2.5-5 µm
Nickel, 2.5-5 µm
RF_35/12.04/3.0
