DIAMOND
Fiber Optic Components
Constant innovation in the field of fiber optics has created demand for
products with ever increasing performance requirements. Diamond has
responded to this challenge and expanded the E-2000
™
connector system
to address these increased needs throughout all market segments.
In addition to the already existing superior design of the E-2000
™
technol-
ogy, new innovative features have been added to the next generation of
E-2000
™
to address the customer’s highest expectations.
The new E-2000
™
0.1 dB offers now unparalleled 0.1 dB maximum inser-
tion loss random mating, exceptional repeatability, while maintaining the
already well established, superior features of the E-2000
™
connector
family.

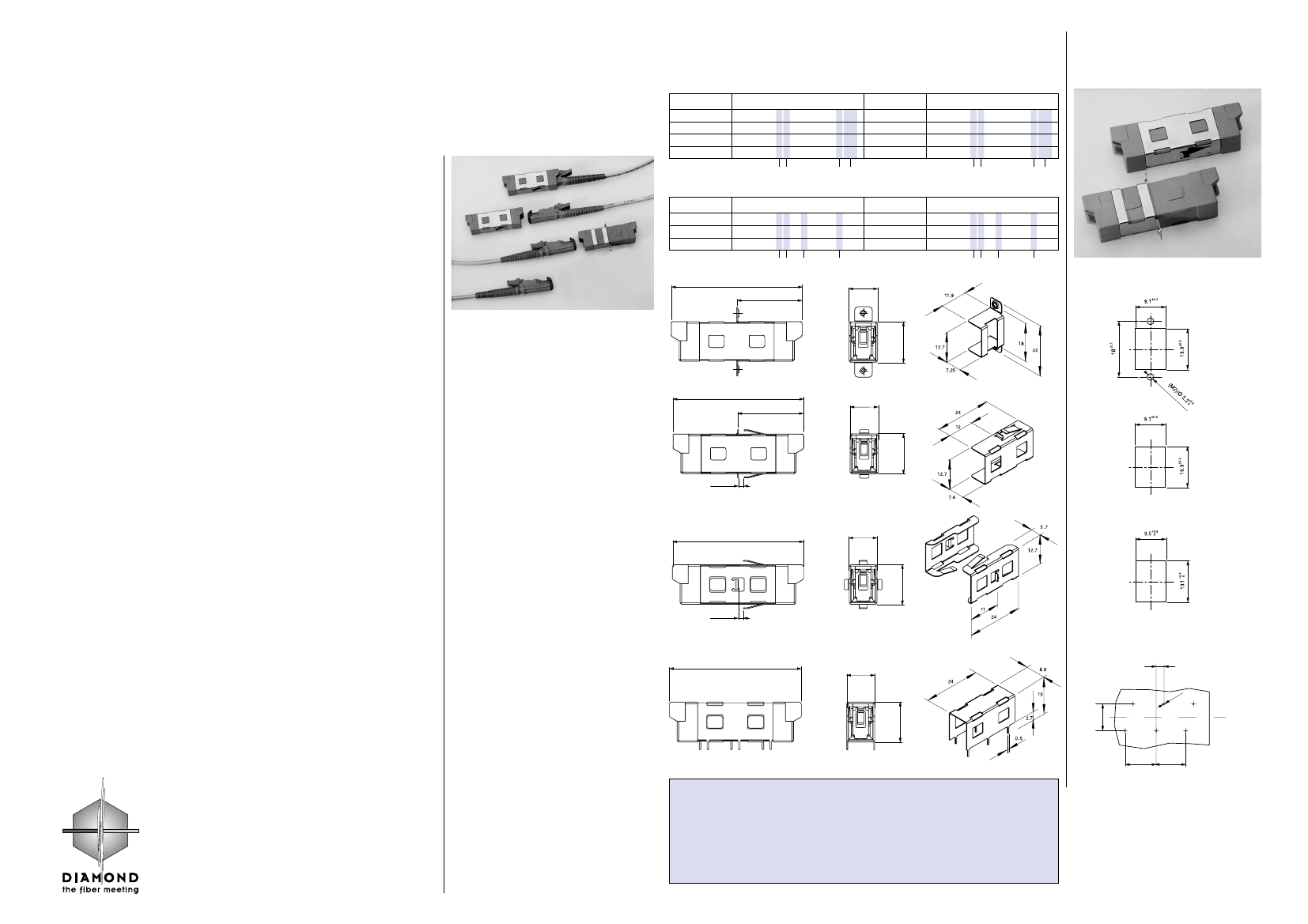

FEATURES AND BENEFITS INCLUDE
•
•
•
•
Color-coding and mechanical keying to ensure correct matings.
Spring-loaded protective cap for high power applications providing
increased safety protection.
Modular designed mating adapters with metal protective shutters for
high power applications (available as single and compact duplex).
E-2000
™
body designed to prevent endface damages during mating
process.
E-2000
™
SINGLE MODE /
MULTIMODE
(CECC/IEC LSH)
E-2106.6/E-2116.6
SINGLE MODE APC
E-2108.6
(CECC/IEC LSH-HRL)
Type designation:
Mating sleeve:
External parts:
COLOR CODING
Frame color
blue
green
black
red
167
167
167
167
-
-
-
-
E-2201.2
Zirconia
Plastic blue (V1xx), green (V2xx)
MATING ADAPTER
E-2000
™
PC/APC
Order Number
0xx
0xx
0xx
0xx
1 2
Frame color
x01
x02
x03
x04
4
5
Order Number
167
167
167
167
-
-
-
-
0xx
0xx
0xx
0xx
1 2
-
-
-
-
001
001
001
001
V
V
V
V
orange
yellow
white
violet
-
-
-
-
001
001
001
001
V
V
V
V
x05
x06
x07
x08
4
5
MECHANISCHE CODIERUNG
Frame no.
1 (red)
2 (brown)
3 (yellow)
Order Number
167 - 0xx - 101 V x00
167 - 0xx - 201 V x00
167 - 0xx - 301 V x00
1 2
3
4
Frame no.
4 (orange)
5 (violet)
6 (white)
Order Number
167 - 0xx - 401 V x00
167 - 0xx - 501 V x00
167 - 0xx - 601 V x00
1 2
3
4
42
21
8.9
CUTOUT DIMENSIONS
12.7
42
8.9
21.3
070-133-010V001
A)
12.7
STANDARDS
•
EN 86 275-801
Detail Specification:
“Connector sets of assessed quality for optical
fibers and cables - Type LSH universal” (05/99)
Detail Specification:
“Connector sets of assessed quality for optical
fibers and cables - Type LSH-HRL universal”
(05/99)
“Fiber optic connector interfaces –
Part 15: Type LSH connector family”
Diamond internal Standard:
“E-2000
™
- 0.1 dB original”
max 1.6
Type A: for higher packaging density within E-2000
™
cutout
070-133-011V001
Max wall thickness 1,6 mm
42
8.9
B)
•
EN 86 275-802
max 1.6
Max wall thickness 1,6 mm
•
IEC 61 754-15
Type B: for excellent stability within SC cutout
42
12.7
070-133-042V001
2.5
•
ctc 222
8.9
ø0
8.6
.7
12.7
10
10
070-133-017V001
ORDER NUMBER CODES FOR MATING ADAPTERS
1
2
DIAMOND SA
Via dei Patrizi 5
CH-6616 LOSONE
Tel. ++41-91/785 45 45
Fax ++41-91/785 45 00
e-mail: info@diamond-fo.com
3
4
Specifications subject to changes
without notice
002-037-210P009083
5
Adapter type:
0.15 dB: insert “0”
0.1 dB: insert “1”
Code for fixation type:
-
0
for basic body
-
1
for assembled screw fixing clip
-
2
for assembled quick fixing clip (type A)
-
4
for print fixation -
6
for assembled quick fixing clip (type B)
Code for mechanical keying
Code for basic body color:
-
1
for blue
-
2
for green
Code for color coding
Other fixations or colors upon request.
PBT’s Injection molded outer housing
UL 94 V0 flammability rating
Connector housing totally encloses
ferrule to optimally protect it from
dust, contaminants and scratches
DIAMOND two component ferrule
(zirconia/Cu-Ni insert)
Active Core Alignment minimizes
fiber core offset and ensures opti-
mal connector performance
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
9/125/900
9/125/900/2100
9/125/900/2500
9/125/900/3000
9/125/900/3500

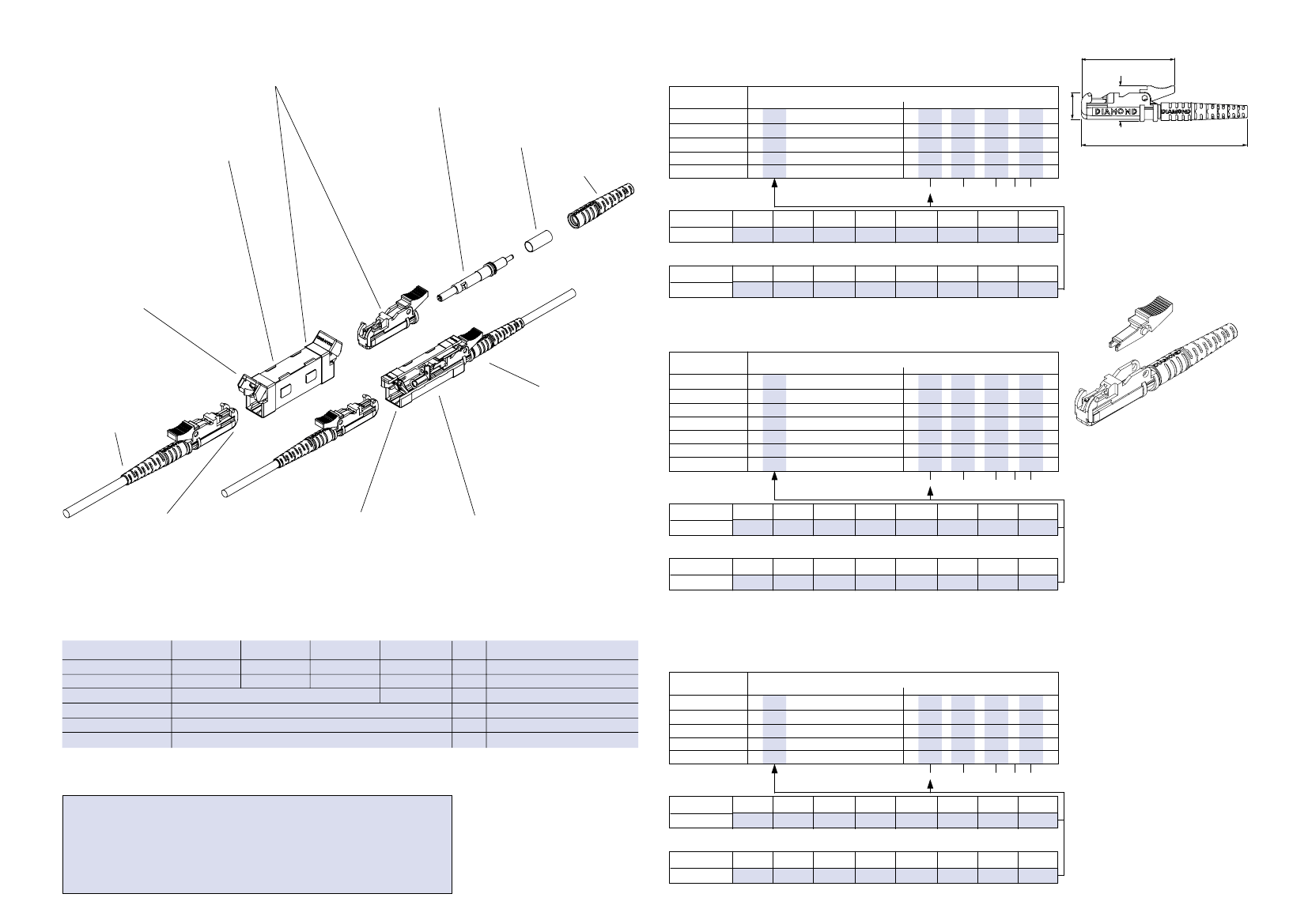

E-2106.6-11
Zirconia/copper-nickel alloy insert (Pilzferrule)
Plastic (blue)
Convex (PC)
9
31.5
Modular designed compact mating adapter
with interchangeable mounting bracket
(green for APC, blue for PC applications)
Permits dense packing
Offers several installation solutions
Order Number
Unterminated connector
Terminated assembly
300 - 000 - 001 L 000
300 - 000 - 002 L 000
300 - 000 - 003 L 000
300 - 000 - 004 L 000
300 - 000 - 005 L 000
300 - xxx - 001 L xxx
300 - xxx - 002 L xxx
300 - xxx - 003 L xxx
300 - xxx - 004 L xxx
300 - xxx - 005 L xxx
1
2
3
4
5
Cable diameter independent
crimping sleeve
Universal bend protection
boot (PUR)
12
56
COLOR CODING
Thumb-latch
Interchangeable color-coded and me-
chanical-keyed frames (8 different colors
and 6 different mechanical combinations)
Permits clear and unmistakable identifi-
cation of lines on crowded panels
Guards against improper connections
Adaptable to evolving needs
Order No.
blue
300
green
310
black
320
red
330
orange
340
yellow
350
white
360
violet
370
MECHANICAL KEYING
Thumb-latch No. 1 (red) 2 (brown) 3 (yellow) 4 (orange) 5 (violet) 6 (white)
Order No.
400
410
420
430
440
450
–––
–––
–––
–––
Connectors for other fiber and cable dimensions available upon request.
Type designation:
Polish geometry:
Dimensions
Fiber/Cable
50/125/900
Positive latching mechanism with inter-
changeable, color-coded and mechanically-
keyed thumb-latch (PBT)
Offers superior retention under axial load
Allows higher packing densities
Distinct color-coded thumb latch allows
easy optical line identification and ordering
50/125/900/2100
50/125/900/2500
50/125/900/3000
50/125/900/3500
62.5/125/900
62.5/125/900/3000
E-2116.6-11
Convex (PC)
Order Number
Unterminated connector
Terminated assembly
301 - 000 - 001 L 000
301 - 000 - 002 L 000
301 - 000 - 003 L 000
301 - 000 - 004 L 000
301 - 000 - 005 L 000
301 - 000 - 001 L 000
301 - 000 - 004 L 000
301 - xxx - 001 L xxx
301 - xxx - 002 L xxx
301 - xxx - 003 L xxx
301 - xxx - 004 L xxx
301 - xxx - 005 L xxx
301 - xxx - 011 L xxx
301 - xxx - 014 L xxx
1
2
3
4
5
All cable types supported
COLOR CODING
Integrated black protective caps
Automatically protects personnel from
eye-damaging laser radiation
Closes automatically upon extraction to
protect ferrule from dust and scratches
Suitable for high power applications
Spring-loaded metal protection shutters
Engages automatically to protect per-
sonnel from eye-damaging laser radia-
tion
Angled, anti-reflection surface ensures
low reflectance in unmated state, induc-
ing light diffusion
Alignment sleeve (zirconia)
Thumb-latch
Order No.
blue
301
green
311
black
321
red
331
orange
341
yellow
351
white
361
violet
371
MECHANICAL KEYING
Thumb-latch No. 1 (red)
Order No.
401
2 (brown) 3 (yellow) 4 (orange) 5 (violet) 6 (white)
411
421
431
441
451
–––
–––
–––
–––
Connectors for other fiber and cable dimensions available upon request.
SPECIFICATIONS
Multimode
Insertion Loss (IL)
Return Loss (RL)
Repeatability of IL
Service life
Operating temperature
Storage temperature
* Measured with high precision reflectometer.
** May be further limited by cable specifications.
Single mode 0°PC
Single mode 8° APC
type 0.2 max 0.4
min 70*
Single mode 8° 0.1 dB
max 0.1
min 85*
-
Units
dB
dB
dB
°C
°C
Test conditions
IEC 61300-3-4;
λ=
1300/1550nm
IEC 61300-3-6;
λ=
1300/1550nm
Over service life
type 0.15 max 0.4 type 0.2 max 0.4
typ 40
min 50
max
±0.1
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
9/125/900
9/125/900/2100
9/125/900/2500
9/125/900/3000
9/125/900/3500
E-2108.6-22
Zirconia/copper-nickel alloy insert (Pilzferrule)
Plastic (green)
8° angled (APC)
Order Number
Unterminated connector
Terminated assembly
302 - 000 - 001 L 000
302 - 000 - 002 L 000
302 - 000 - 003 L 000
302 - 000 - 004 L 000
302 - 000 - 005 L 000
302 - xxx - 001 L xxx
302 - xxx - 002 L xxx
302 - xxx - 003 L xxx
302 - xxx - 004 L xxx
302 - xxx - 005 L xxx
1
2
3
4
5
1000 mate/demate cycles
-40 / +85 **
-40 / +90 **
ORDER INFORMATION FOR CONNERCTORS
ORDER NUMBER CODES
1
2
COLOR CODING
Thumb-latch
Order No.
green
302
blue
312
black
322
red
332
orange
342
yellow
352
white
362
violet
372
Connector code
Connector code for termination on other end of assembly:
- For pigtails
insert 000
- For patch assemblies
insert connector code for other connector
3
Code for fiber or cable
4
Connector type:
max 0.4 dB: insert “L”
max 0.1 dB: insert “H”
5
Length in meters
MECHANICAL KEYING
Thumb-latch No. 1 (red)
Order No.
402
2 (brown) 3 (yellow) 4 (orange) 5 (violet) 6 (white)
412
422
432
442
452
–––
–––
–––
–––
Connectors for other fiber and cable dimensions available upon request.
