5BT-1.5/3.0-5-N/N datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 5BT-1.5/3.0-5-N/N

5BT-1.5/3.0-5-N/N: DescriptionTunable BPF, 5 Section(s) Min, 5 Section(s) Max, 1.5MHz Min, 3MHz Max; CategoryAnalog mixed-signal IC filter; File Size94KB，2 Pages; ManufacturerK&L Microwave Inc

Download Datasheet Parametric Compare View All

5BT-1.5/3.0-5-N/N Overview

Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 1.5MHz Min, 3MHz Max

5BT-1.5/3.0-5-N/N Parametric

Parameter Name	Attribute value
Maker	K&L Microwave Inc
Reach Compliance Code	compliant
3dB bandwidth	5%
average input power	50 W
filter type	TUNABLE BPF
high	106 mm
input connector	N FEMALE
Input/output impedance	50 OHM
Maximum insertion loss	3 dB
length	559 mm
Manufacturer's serial number	BT
Installation type	PANEL MOUNT
Number of partitions-max	5
Number of partitions - minimum	5
Output connector	N FEMALE
physical size	L559.0XB237.0XH106.0 (mm)/L22.008XB9.331XH4.173 (inch)
tuning control	KNOB CONTROL
maximum tuning frequency	3 MHz
minimum tuning frequency	1.5 MHz
voltage standing wave ratio	1.5
width	237 mm
Base Number Matches	1

Preview

Download Datasheet

View All

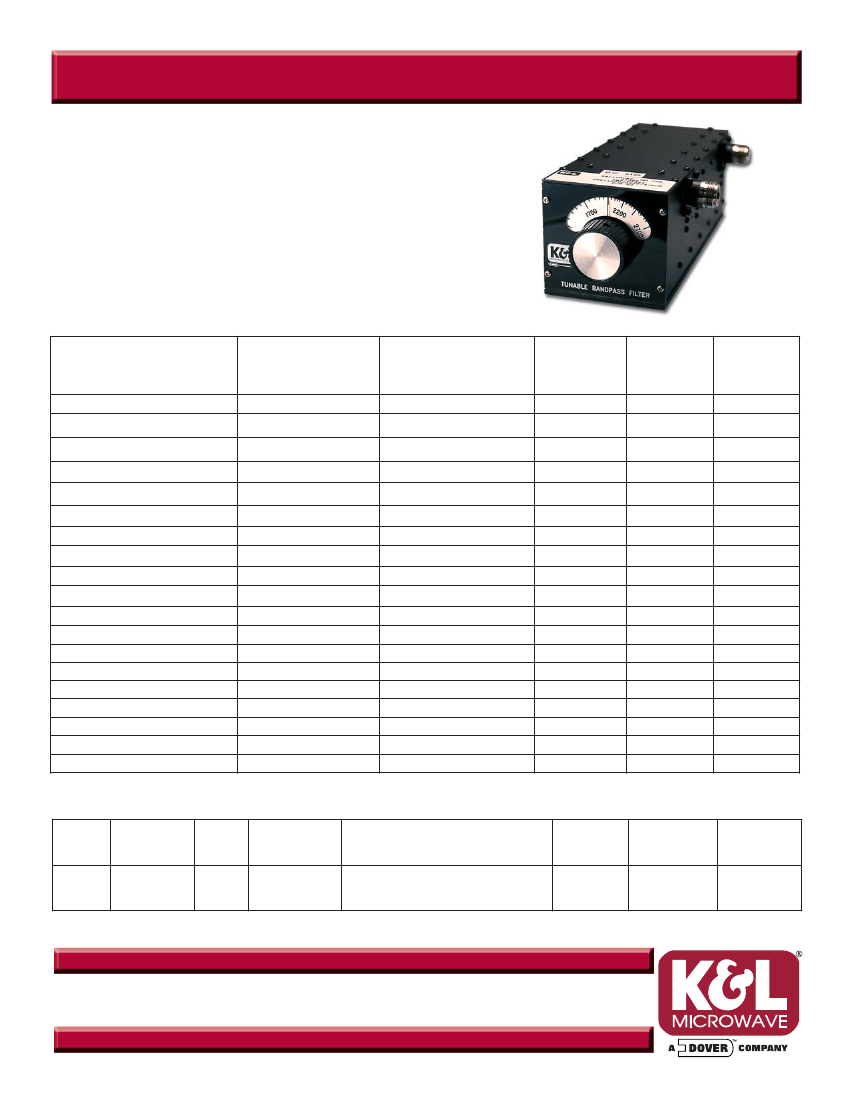

Test & Measurement — Tunable Bandpass Filters — BT Series

◆

Features:

•

Manual Frequency Selection

•

Direct-readout Center Frequency Dial

•

5 Section, Chebyshev Filter Response

•

Digitally Controlled Versions Available

AVAILABLE FROM STOCK

K&L Model

Frequency Range

(MHz)

1.5-3.0

3-6

6-12

12-24

15-30

24-48

30-76

48-95

63-125

95-190

125-250

190-375

250-500

375-750

500-1000

750-1500

1000-2000

1200-2600

1500-3000

Passband Insertion

Loss

3.0 dB max

2.5 dB max

1.3 dB max

1.3 dB max.

1.0 dB max.

Lenth

Inch/mm

22.00/559

14.70/373

9.80/249

7.38/187

Width

Inch/mm

9.32/237

7.00/178

5.38/137

9.80/249

5.38/137

2.88/73

Heigh

Inch/mm

4.19/106

4.00/102

2.75/70

5BT-1.5/3.0-5-N/N

5BT-3/6-5-N/N

5BT-6/12-5-N/N

5BT-12/24-5-N/N

5BT-15/30-5-N/N

5BT-24/48-5-N/N

5BT-30/76-5-N/N*

5BT-48/95-5-N/N

5BT-63/125-5-N/N*

5BT-95/190-5-N/N

5BT-125/250-5-N/N*

5BT-190/375-5-N/N

5BT-250/500-5-N/N*

5BT-375/750-5-N/N*

5BT-500/1000-5-N/N*

5BT-750/1500-5-N/N*

5BT-1000/2000-5-N/N*

5BT-1200/2600-5-N/N*

5BT-1500/3000-5-N/N

◆

Specifications:

Type

Section

Nominal

3 dB BW

VSWR Impedance

1.5:1

50 Ohms

Shape Factor

Power

Handling

Dial

Accuracy

+/- 1%

Connector

Type N

30 dB to 3 dB/50 dB to 3 db 50 Watts

2.2:1 / 3.5:1

Custom configurations and ruggedized versions also available. Contact the factory for custom requirements.
