3600BL14M100S/PB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> 3600BL14M100S/PB

Preview

3600BL14M100S/PB: Description3300 MHz - 3900 MHz RF TRANSFORMER; CategoryPower management transformer; File Size128KB，2 Pages; ManufacturerJohanson Dielectrics

Download Datasheet Parametric Compare View All

3600BL14M100S/PB Overview

3300 MHz - 3900 MHz RF TRANSFORMER

3600BL14M100S/PB Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
maximum cutoff frequency	3900 MHz
minimum cutoff frequency	3300 MHz
high	0.6 mm
Insertion loss	1.2 dB
JESD-609 code	e0
length	1.6 mm
Manufacturer's serial number	3600BL14M100
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	L1.6XB0.8XH0.6 (mm)
surface mount	YES
Terminal surface	TIN LEAD
Transformer type	RF TRANSFORMER
width	0.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

"High Frequency Ceramic Solutions"

3.6 GHz Balun

Detail Specification: 01/11/06

P/N 3600BL14M100

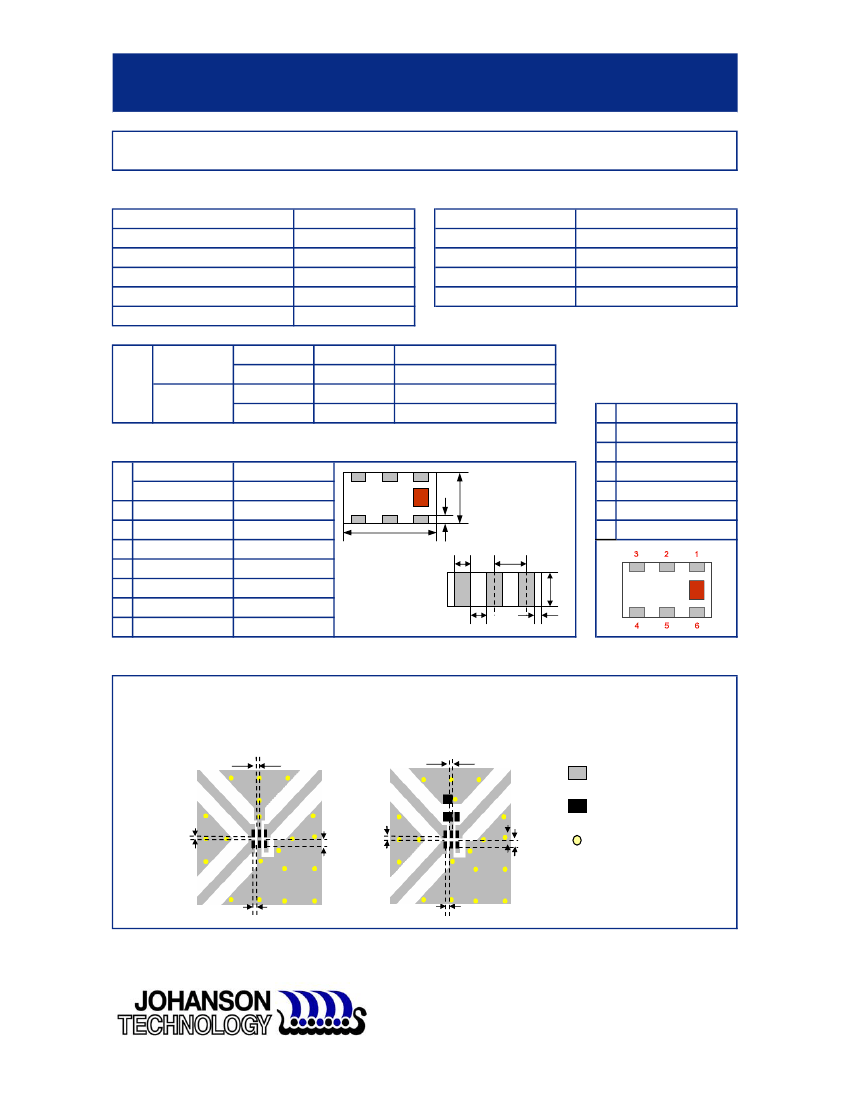

Page 1 of 2

General Specifications

Part Number

Frequency (MHz)

Unbalanced Impedence

Differential Balanced Impedence

3600BL14M100

3300~3900

50

Ω

100

Ω

1.2 dB max.

9.5 dB min.

Bulk

T&R

100% Tin

Tin / Lead

Suffix = S

Suffix = E

Suffix = None

Suffix = /Pb

Phase Difference

Amplitude Difference

Operating Temperature

Reel Quanity

Power Capacity

180° ± 15

1.5 dB max.

-40 to +85°C

4,000

2 Watts max.

Insertion Loss

Return Loss

P/N

Suffix Termination

Style

Packaging

Style

Eg. 3600BL14M100S

Eg. 3600BL14M100E

Eg. 3600BL14M100(E or S)

Eg. 3600BL14M100(E or S)/Pb

Terminal Configuration

No.

1

Function

Unbalanced Port (IN)

GND or DC feed + RF GND

Mechanical Dimensions

In

L

W

T

a

b

c

g

p

0.063 ± 0.004

0.031 ± 0.004

0.024 ± 0.004

0.008 ± 0.004

0.008 +.004/-.006

0.006 ± 0.004

0.012 ± 0.004

0.020 ± 0.002

mm

1.60 ± 0.10

0.80 ± 0.10

0.60 ± 0.10

0.20 ± 0.10

0.20 +0.1/-0.15

0.15 ± 0.10

0.30 ± 0.10

0.50 ± 0.05

g

b

T

L

W

2

3

4

5

6

a

p

Balanced Port (OUT1)

Balanced Port (OUT2)

GND

NC

c

Mounting Considerations

Mount these devices with brown mark facing up.

Line width should be designed to provide proper impedance matching characteristics.

Bypass components should be inserted when the DC feed option is utilized.

Without DC Feed

0.25

With DC Feed

0.25

*

0.3

*

0.55

0.3

*

0.55

Solder Resist

Land

Through-hole

Φ

0.3)

(

*

0.25

*

0.25

Units: mm

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821

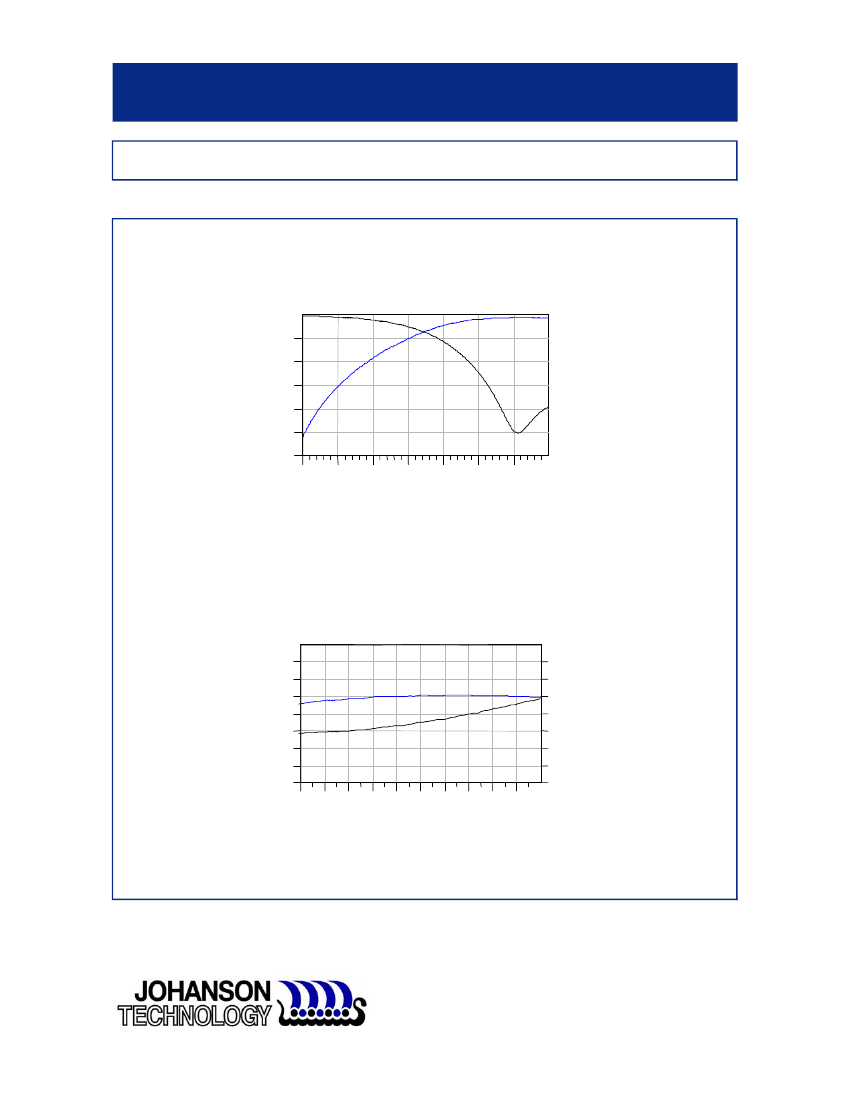

3600BL14M100S/PB Related Products

	3600BL14M100S/PB	3600BL14M100E/PB	3600BL14M100S	3600BL14M100E
Description	3300 MHz - 3900 MHz RF TRANSFORMER	3300 MHz - 3900 MHz RF TRANSFORMER	3300 MHz - 3900 MHz RF TRANSFORMER	3300 MHz - 3900 MHz RF TRANSFORMER
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
maximum cutoff frequency	3900 MHz	3900 MHz	3900 MHz	3900 MHz
minimum cutoff frequency	3300 MHz	3300 MHz	3300 MHz	3300 MHz
high	0.6 mm	0.6 mm	0.6 mm	0.6 mm
Insertion loss	1.2 dB	1.2 dB	1.2 dB	1.2 dB
JESD-609 code	e0	e0	e3	e3
length	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Manufacturer's serial number	3600BL14M100	3600BL14M100	3600BL14M100	3600BL14M100
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	BULK	TAPE & REEL	BULK	TAPE & REEL
physical size	L1.6XB0.8XH0.6 (mm)	L1.6XB0.8XH0.6 (mm)	L1.6XB0.8XH0.6 (mm)	L1.6XB0.8XH0.6 (mm)
surface mount	YES	YES	YES	YES
Terminal surface	TIN LEAD	TIN LEAD	TIN	TIN
Transformer type	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER	RF TRANSFORMER
width	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Base Number Matches	1	1	1	1
