IDT74FST3253Q8 datasheet, PDF - EEWORLD Datasheet

IDT74FST3253Q8: DescriptionMultiplexer And Demux/Decoder, CBT/FST/QS/5C/B Series, 2-Func, 2 Line Input, 2 Line Output, True Output, PDSO16, QSOP-16; Categorylogic logic; File Size253KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

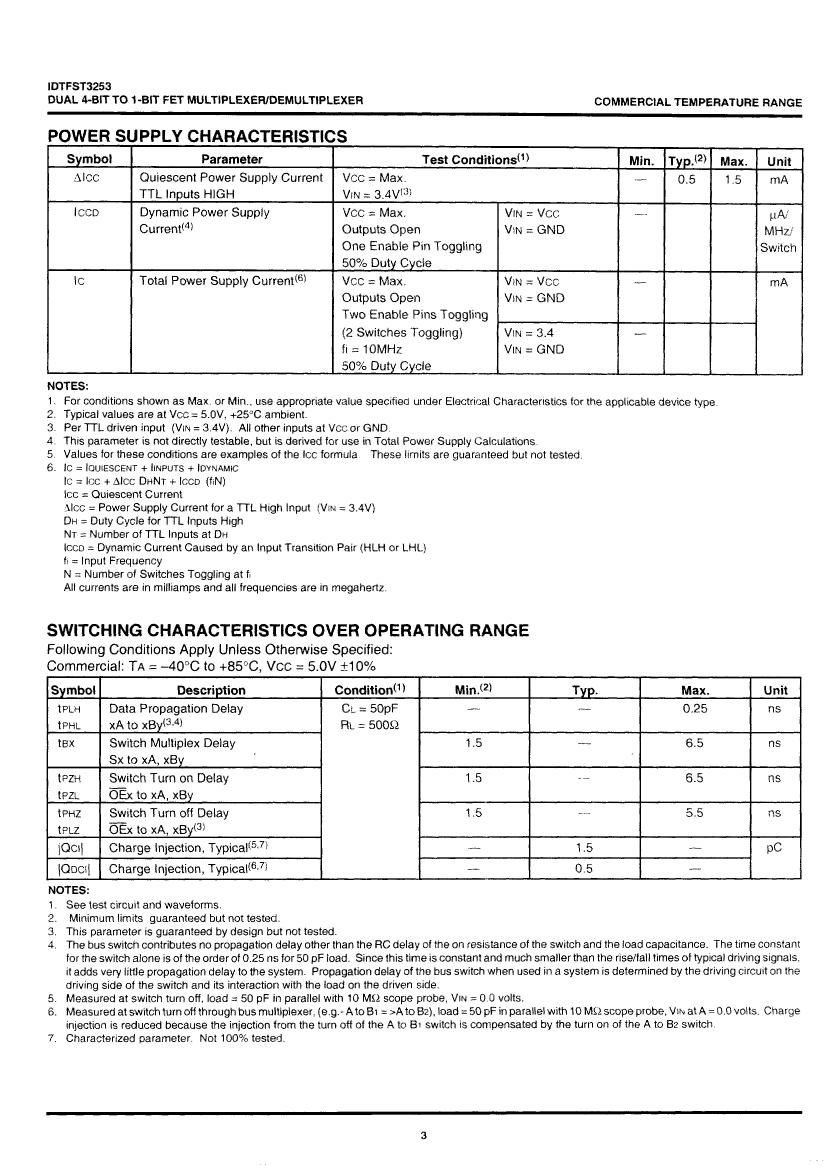

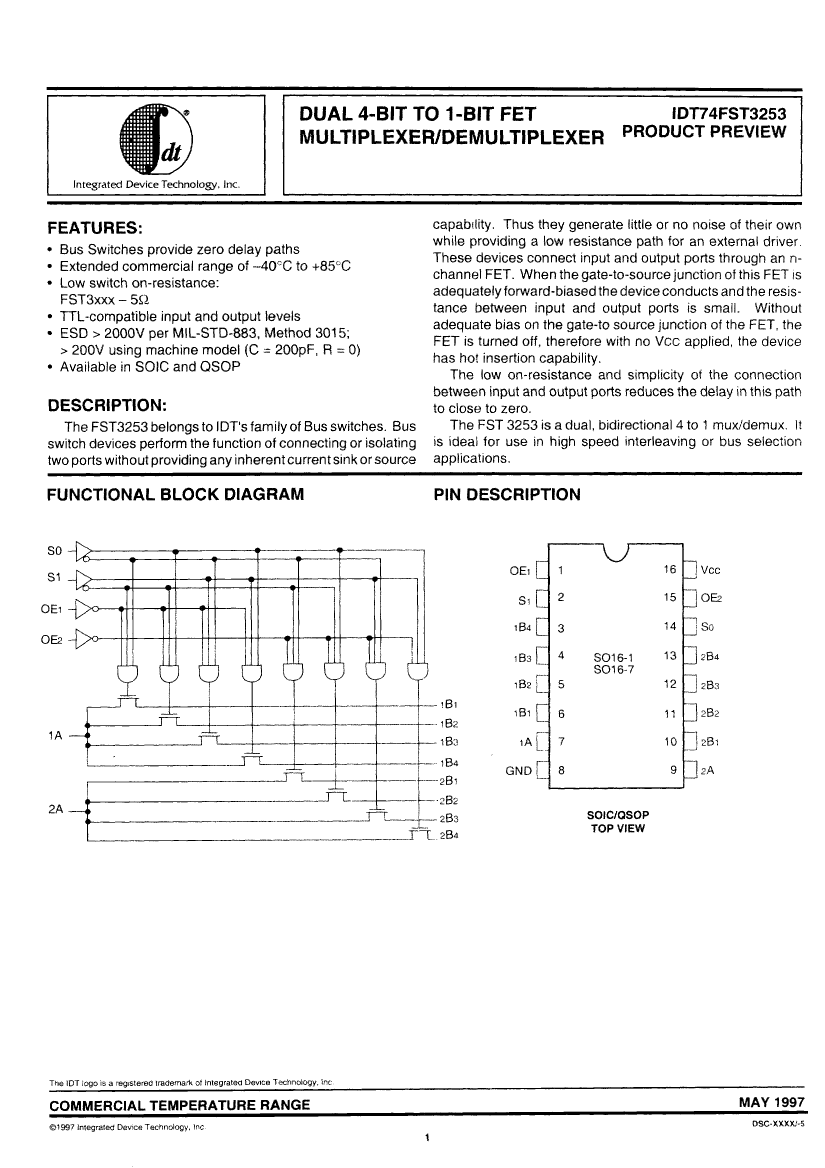

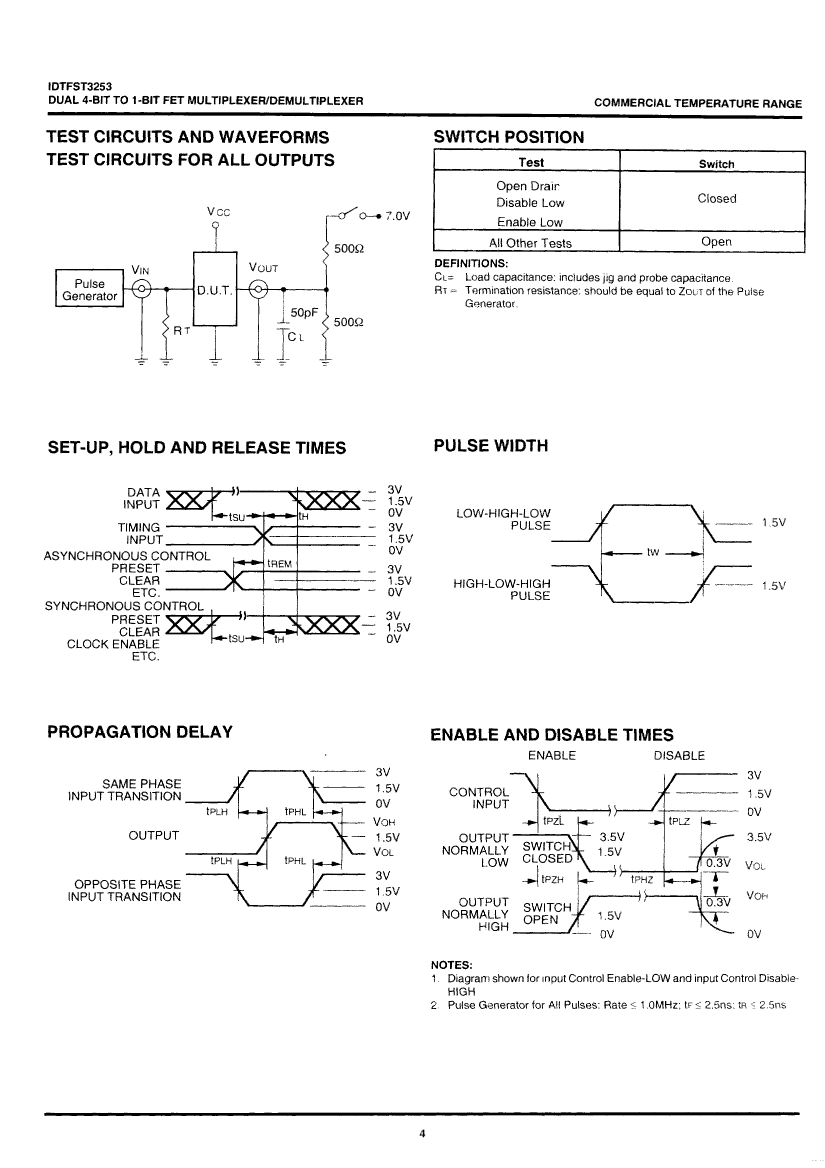

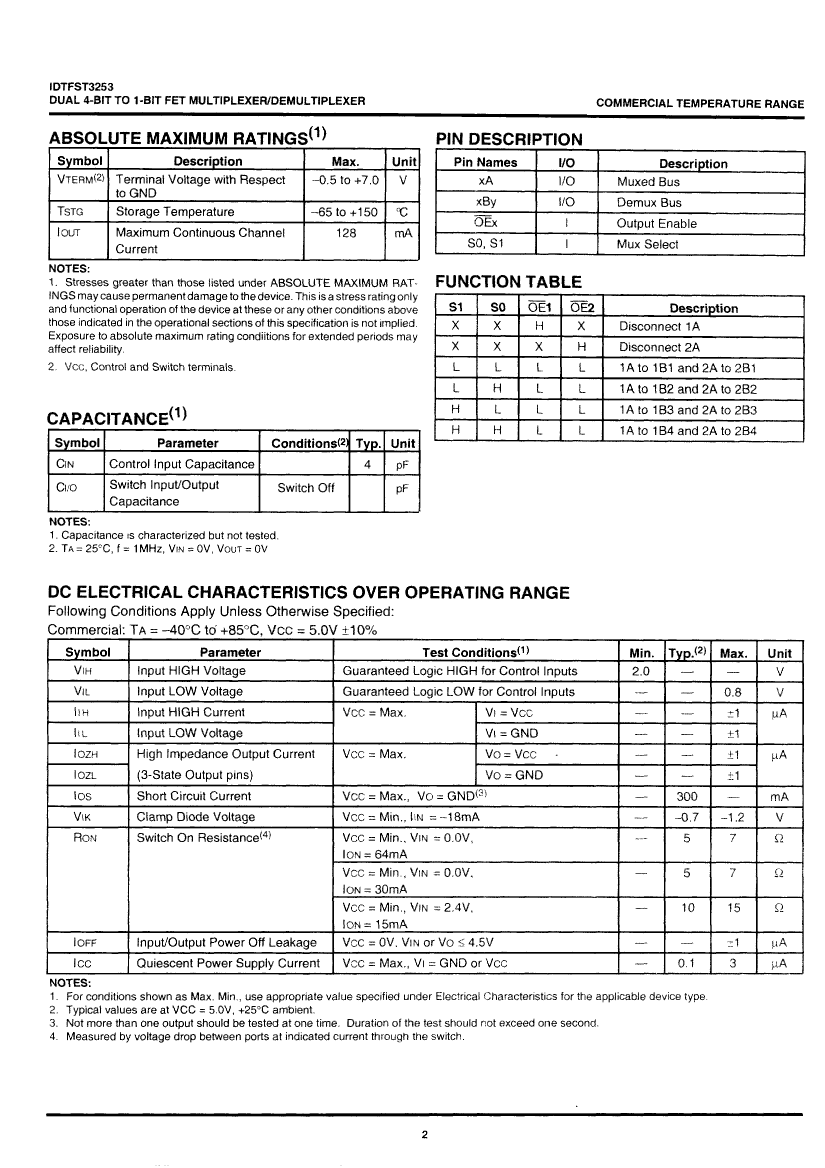

IDT74FST3253Q8 Overview

Multiplexer And Demux/Decoder, CBT/FST/QS/5C/B Series, 2-Func, 2 Line Input, 2 Line Output, True Output, PDSO16, QSOP-16

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
package instruction	SSOP,
Contacts	16
Reach Compliance Code	unknown
series	CBT/FST/QS/5C/B
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	4.9 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER
Number of functions	2
Number of entries	2
Output times	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	0.25 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.9116 mm
Base Number Matches	1

	IDT74FST3253Q8	IDT74FST3253Q
Description	Multiplexer And Demux/Decoder, CBT/FST/QS/5C/B Series, 2-Func, 2 Line Input, 2 Line Output, True Output, PDSO16, QSOP-16	Multiplexer And Demux/Decoder, CBT/FST/QS/5C/B Series, 2-Func, 2 Line Input, 2 Line Output, True Output, PDSO16, QSOP-16
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SOIC	SOIC
package instruction	SSOP,	SSOP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
series	CBT/FST/QS/5C/B	CBT/FST/QS/5C/B
JESD-30 code	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0
length	4.9 mm	4.9 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER	MULTIPLEXER AND DEMUX/DECODER
Number of functions	2	2
Number of entries	2	2
Output times	2	2
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	0.25 ns	0.25 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
width	3.9116 mm	3.9116 mm
Base Number Matches	1	1
